EMD Millipore Integritest 5, Filter Integrity Test Instrument IT5INS001

Product Information

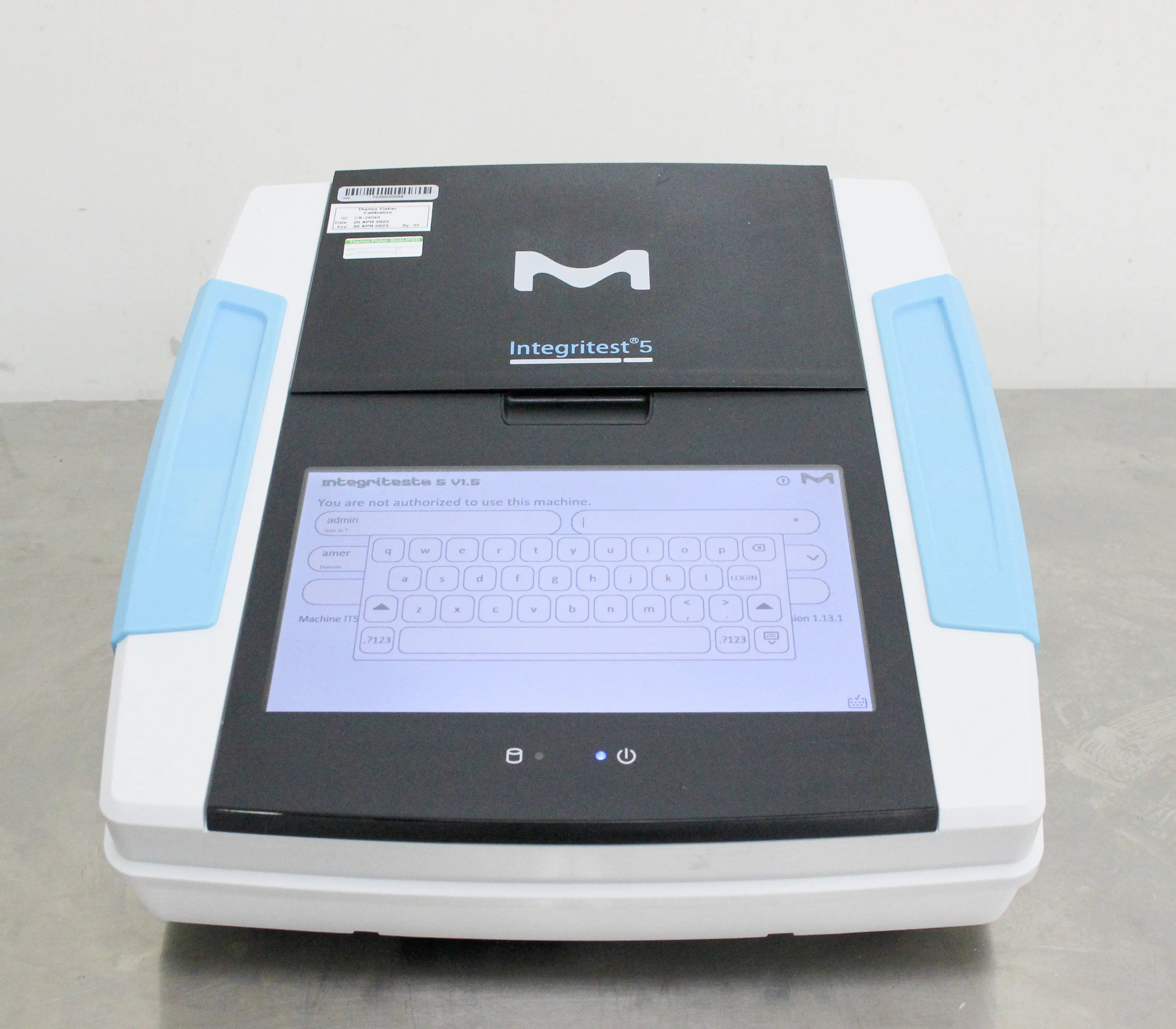

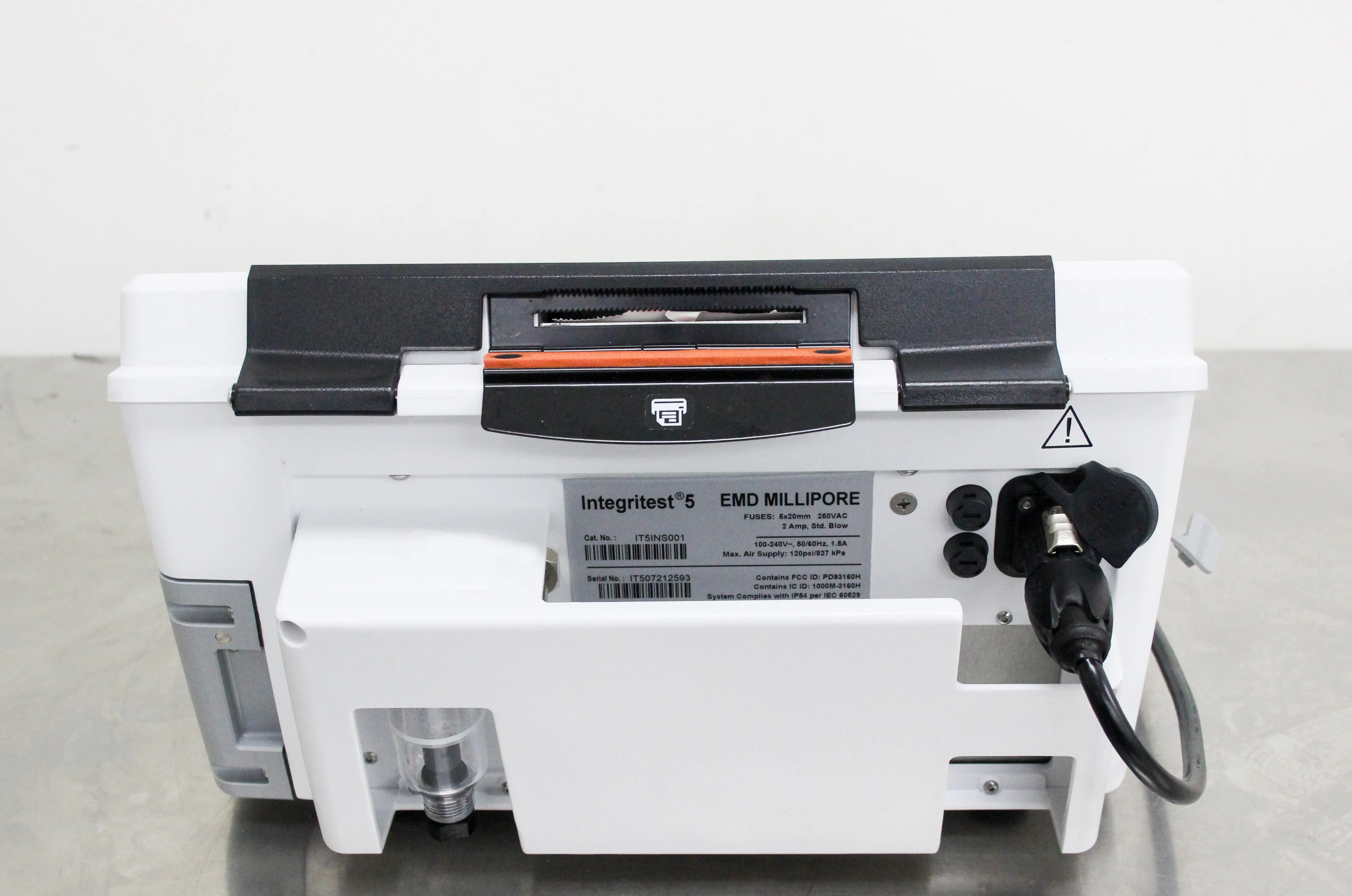

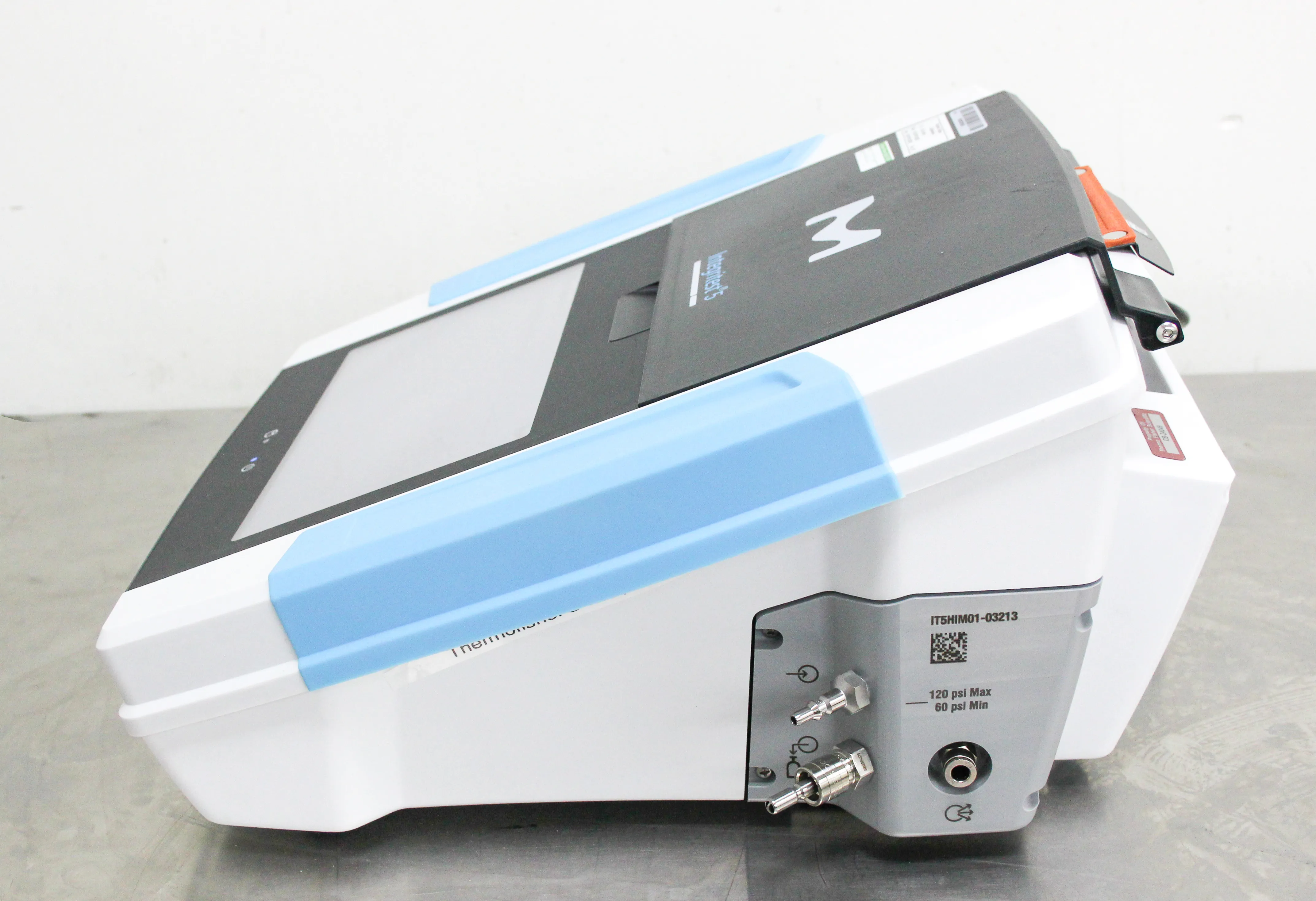

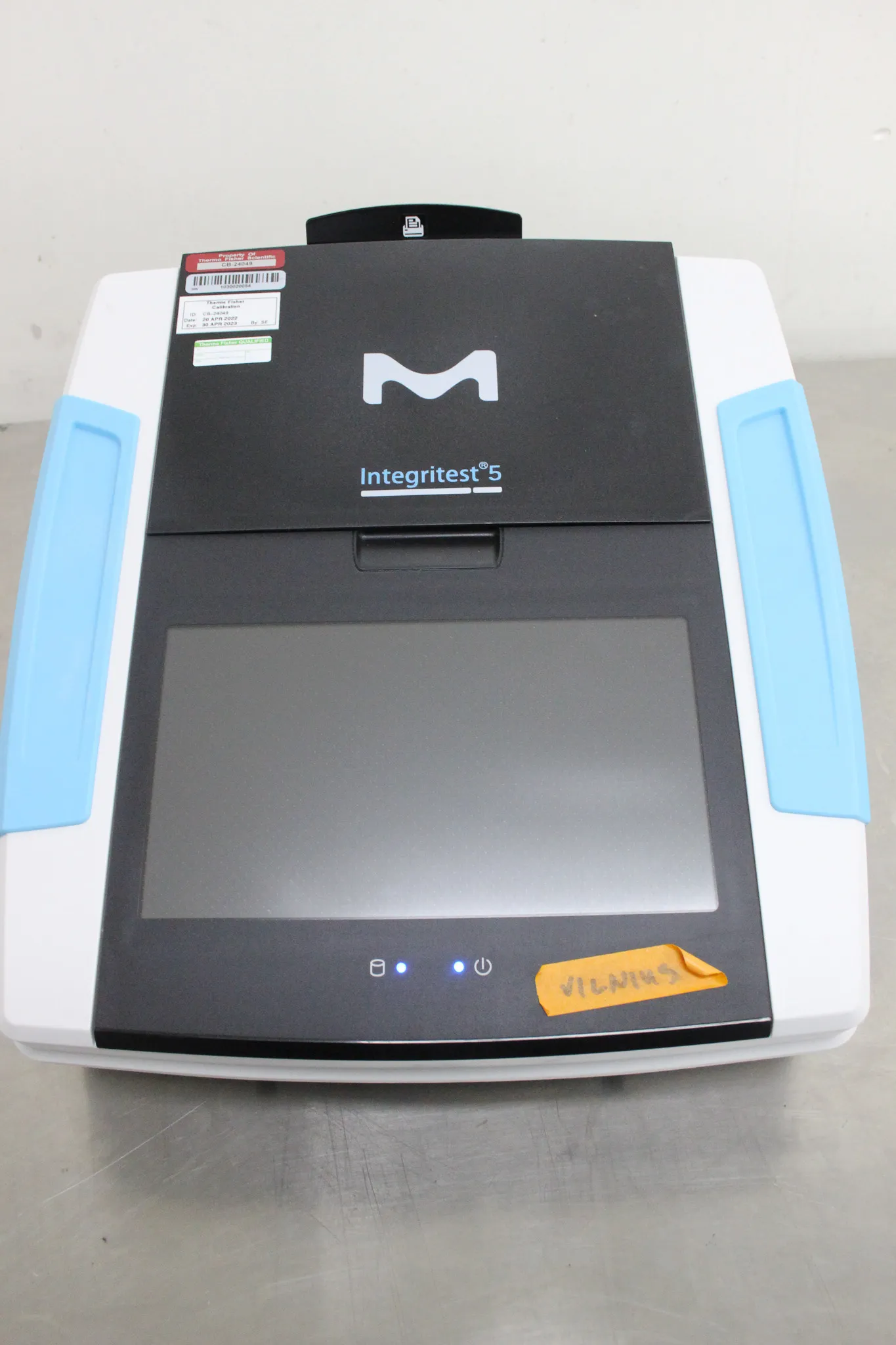

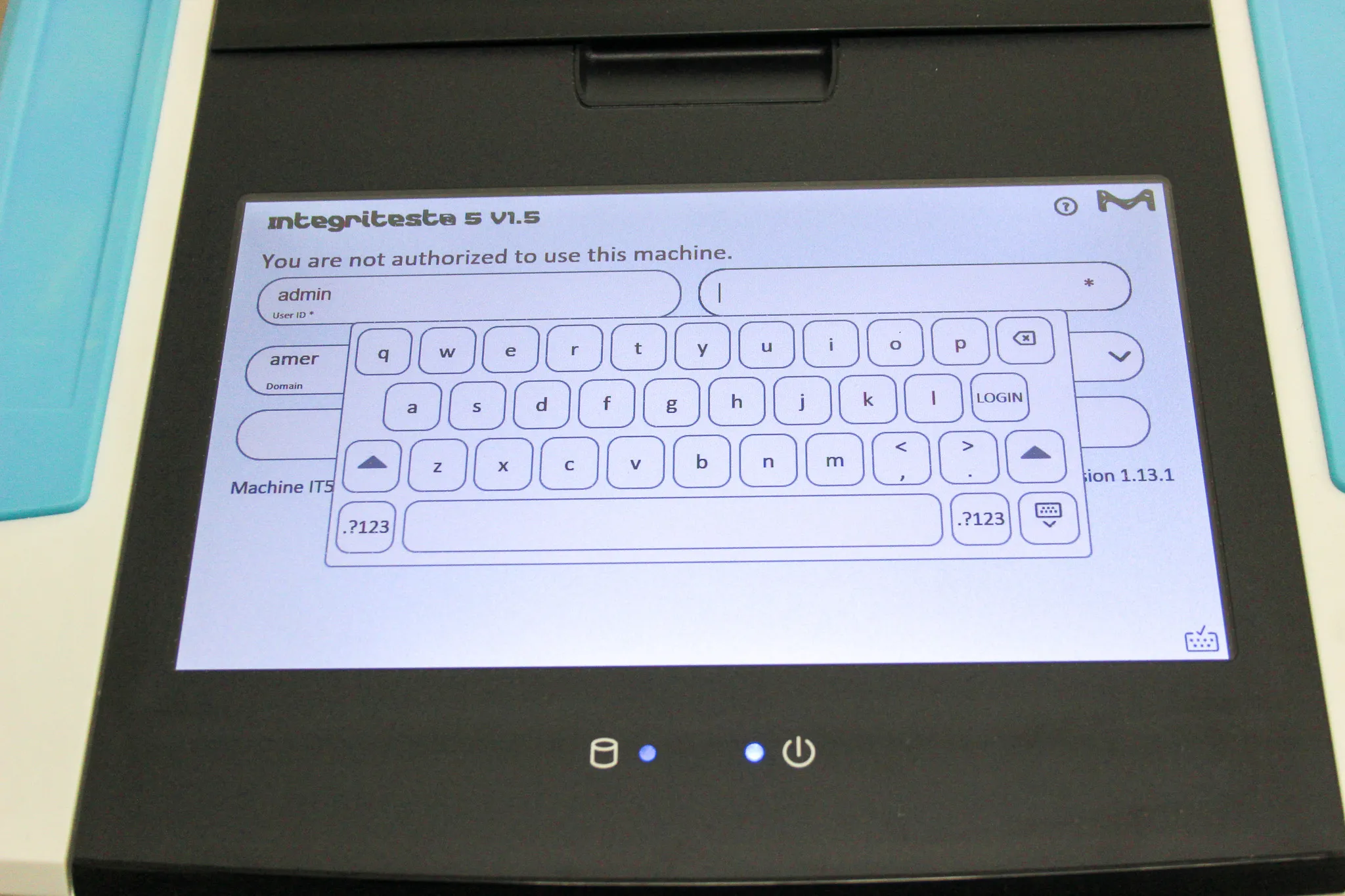

EMD Millipore Integritest 5, Filter Integrity Test Instrument IT5INS001 ***Preowned unit in excellent cosmetic condition. We are unable to fully test this instrument due to, (need password for login.) 30-day warranty included with purchase. See photos for details. Overview The Integritest5 is an easy-to-use, portable, and fully-automated instrument that verifies the integrity of filters or processing equipment. MilliporeSigma introduced the first commercial automated integrity test instrument more than 25 years ago; our latest model now incorporates an improved algorithm to simplify test creation and accelerate test completion. The Integritest5 has an updated algorithm that decreases test run times while maintaining accuracy. The unit was designed for portability and cleaning, including water and dust ingress protection, and a removable Housing Interface Module that incorporates the inlet and outlet valves. An accessible onboard printer and powerful network connectivity tools are included with every instrument. The newly designed software has an intuitive user interface, simplified test creation screens, management tools for tests, users, and units, and highly configurable lists and displays. Users can easily access help for every screen, and utilize search functions to quickly find what they need. The Integritest 5 has multi-language support and is designed to support 21 CFR part 11 compliance. Video tutorials are available on the Integritest5 website. Robust unit protects against water and dust entry, and automatically checks calibration Improved test algorithm reduces test time and simplifies test creation Intuitive software includes help screens available for every step Flexible displays, run information, and test collections to suit your process Standard model offers all networking functions, including multi-unit management and synchronization Easy to Use The Integritest5 instrument features a touch screen with a familiar and user-friendly interface. Test results can be printed using the built-in printer or accessed via networked connected computers. Tests can be added to a queue list to help you save time when testing multiple filters; when a test is running, you can save time by adding tests to the queue and entering run information such as batch numbers and filter serial numbers. Improved algorithm reduces test time and simplifies test creation Bar code readers supported for easy data entry (requires external bar code reader) Context-based help screens Kickstand for easy adjustment of display angle Automation Connectivity to MES/DCS A driving component of achieving digital maturity is the use of manufacturing network systems, such as a Distributed Control System (DCS) or Manufacturing Execution System (MES) to integrate data from each process step on a single platform. Information can then be collected, stored, and manipulated from a single interface, providing efficiencies to the plant operations. Additionally, automation can be used to provide control of each process step at a higher level and reduce the risk of operator error. To meet these market needs, MilliporeSigma has added automation capabilities to the IT5 integrity tester unit. This allows for real-time communication and control of the instrument through secure OPC UA (Open Platform Communications United Architecture) communication, ensuring reliability and security of filter integrity testing. Remote Access: Secure access to your IT5 from anywhere on the network Access from a simple Web browser Real-Time Data Sharing: Real-time monitoring from your DCS or MES system Industry standard OPC UA communication to share data in real-time Transfer report and audit trail files via XML Secure data transfers meeting 21 CFR Part 11 and FDA data integrity guidelines Process Level Control: Manage recipes from DCS or MES ability to select, control, and write testsSend test recipes to the equipment skid directly for operator to execute OPC UA communications to higher level systems Secure and specific local access Compliance and integrity testing Regulatory agencies require integrity testing of sterilizing grade filters. For production operators, supervisors, and validation managers who need to perform on-site filter integrity tests, the Integritest5 instrument is a solution that is easy to learn and gives you the confidence and assurance you need for your test results. Users can conduct bubble point, diffusion, enhanced bubble point, and HydroCorr tests on disk, cartridge, capsule, and virus filters. The Integritest5 software is designed to support the technical requirements of FDA regulation 21 CFR Part 11 for electronic records and electronic signatures. The Integritest5 takes precise pressure measurements and known internal volumes to derive flow rates. Upstream volumes are found by measuring pressure changes from releasing precise quantities of gas. The instrument then measures the pressure decay, and can calculate flow rates based on measured upstream volume.

• Robust unit with protection against water and dust entry
• Improved test algorithm reduces test time and simplifies test creation

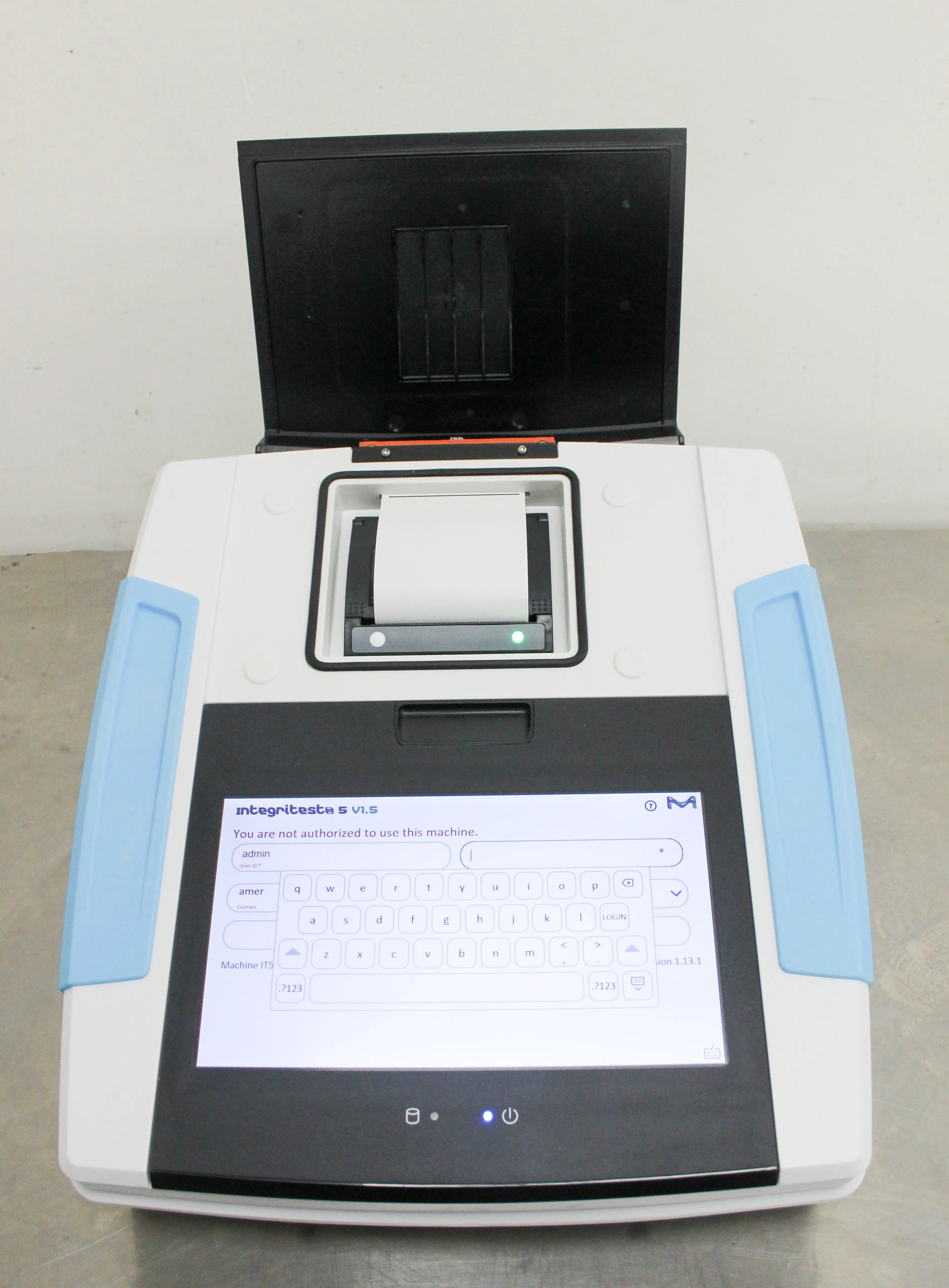

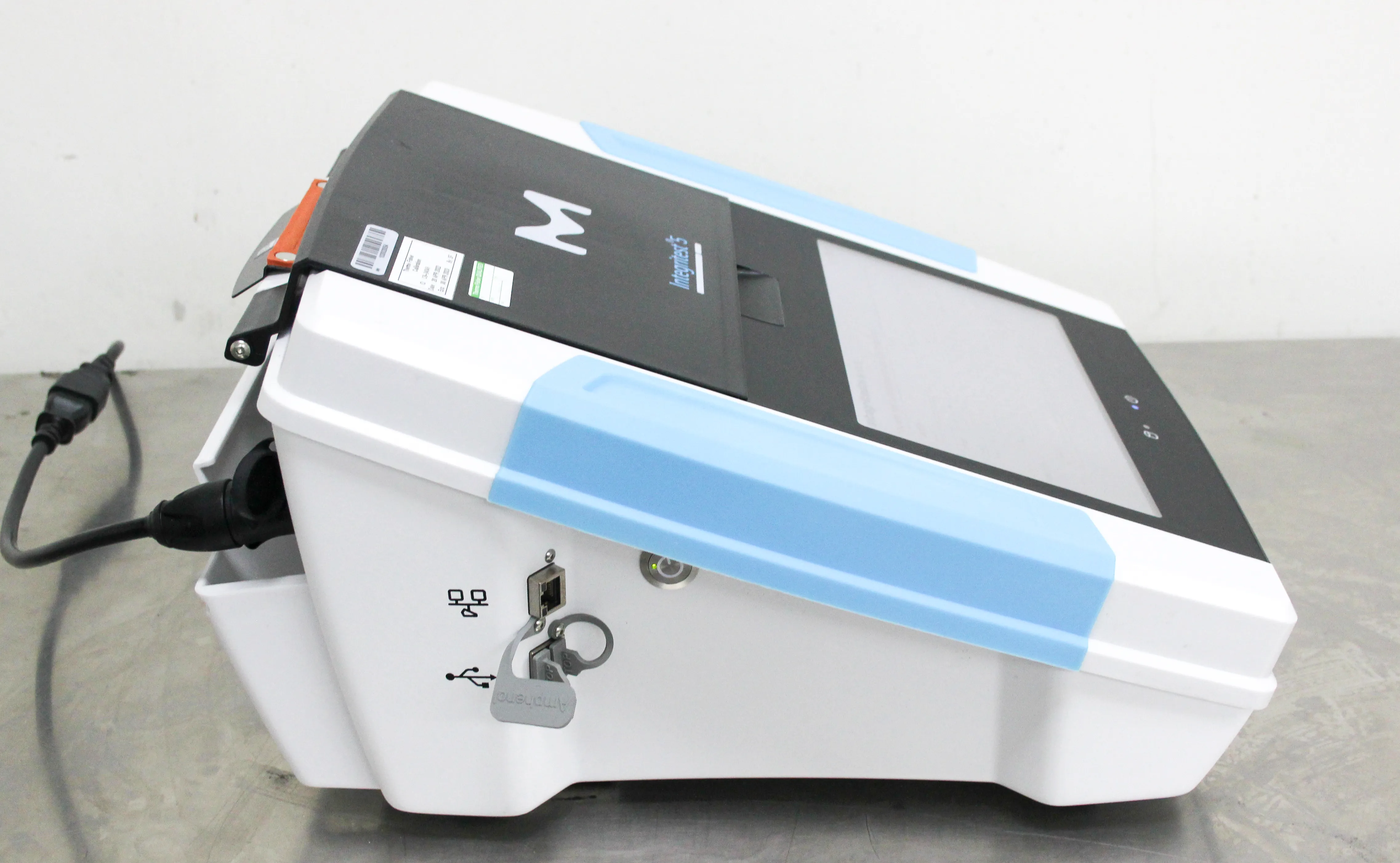

• Onboard printer and advanced network connectivity tools
• Precision pressure and flow rate measurements to support regulatory compliance

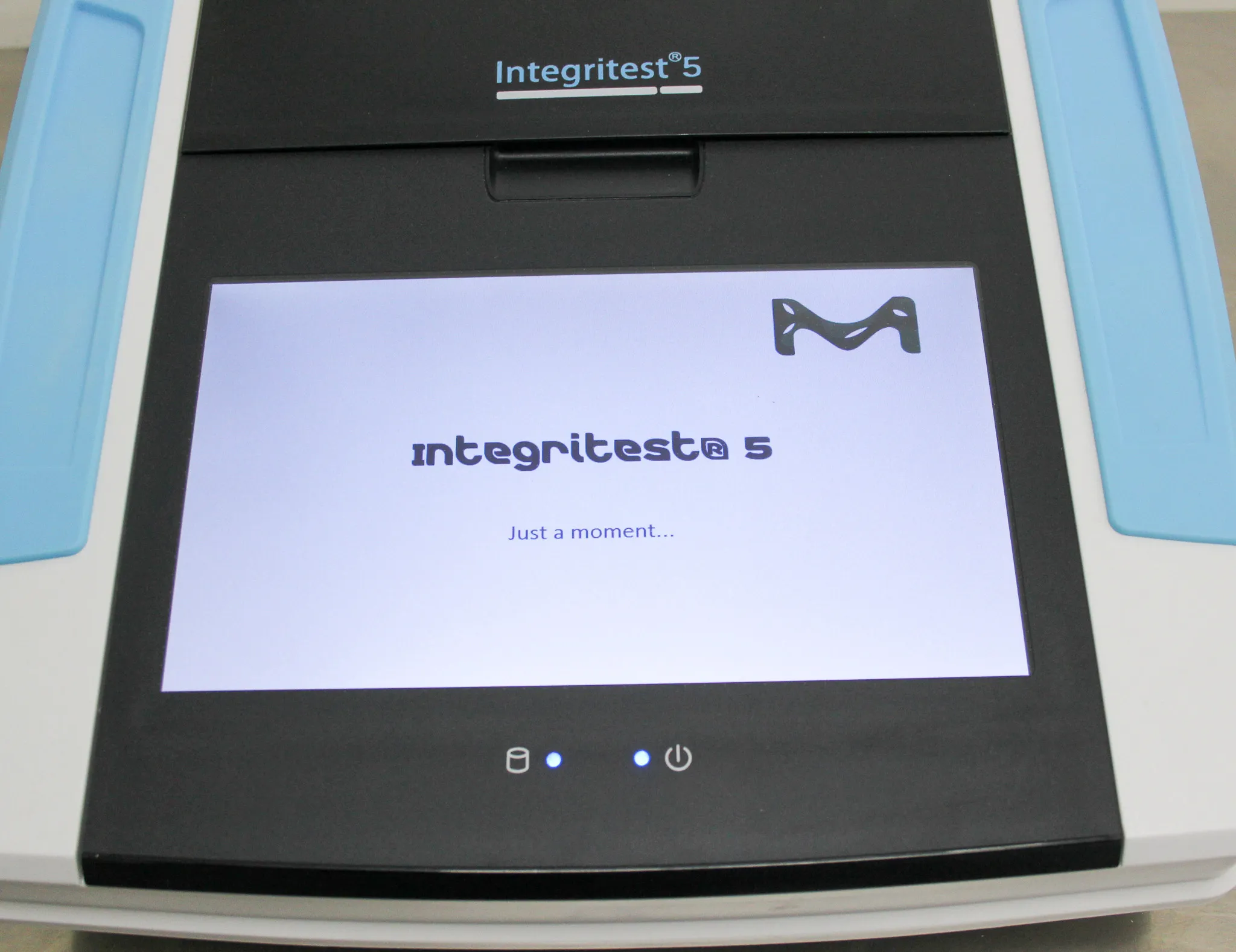

• Easy-to-use interface for intuitive usage

• Applicable Device: Integritest5
• Maximum Inlet Pressure, bar (psi): Clean, dry air or nitrogen source of 1.4-8.2 bar (20-120 psi) at least 1 bar (15 psi) greater than the highest test pressure
• Operating Temperature Range: 1 to 40°C
• Type of Test: Bubble Point, Diffusion, HydroCorr, Water-based integrity test HydroCorr
• Height: 23.1 cm (9.1 in.)
• Width: 39.1 cm (15.4 in.)
• Depth: 43.2 cm (17 in.)
• Weight: <10.5 kg (23 lb.)
• WEEE Directive: In the European Union, this product will be considered Waste Electric and Electronic Equipment (WEEE) at the end of its life.
• Storage Temperature: -20 to 60°C
• Material Size: 1
• Global Trade Item Number: Catalog Number GTIN IT5INS00104054839156168

Metric: 10.5 kg
Imperial: 23 lbs

Metric: 43.2 cm x 39.1 cm x 23.1 cm
Imperial: 17 in x 15.4 in x 9.1 in

90268000

Mass spectrometers and other instruments for measuring ionizing radiations
