ORFLO Moxi Flow Smart Flow Cytometer MXF001

Product Information

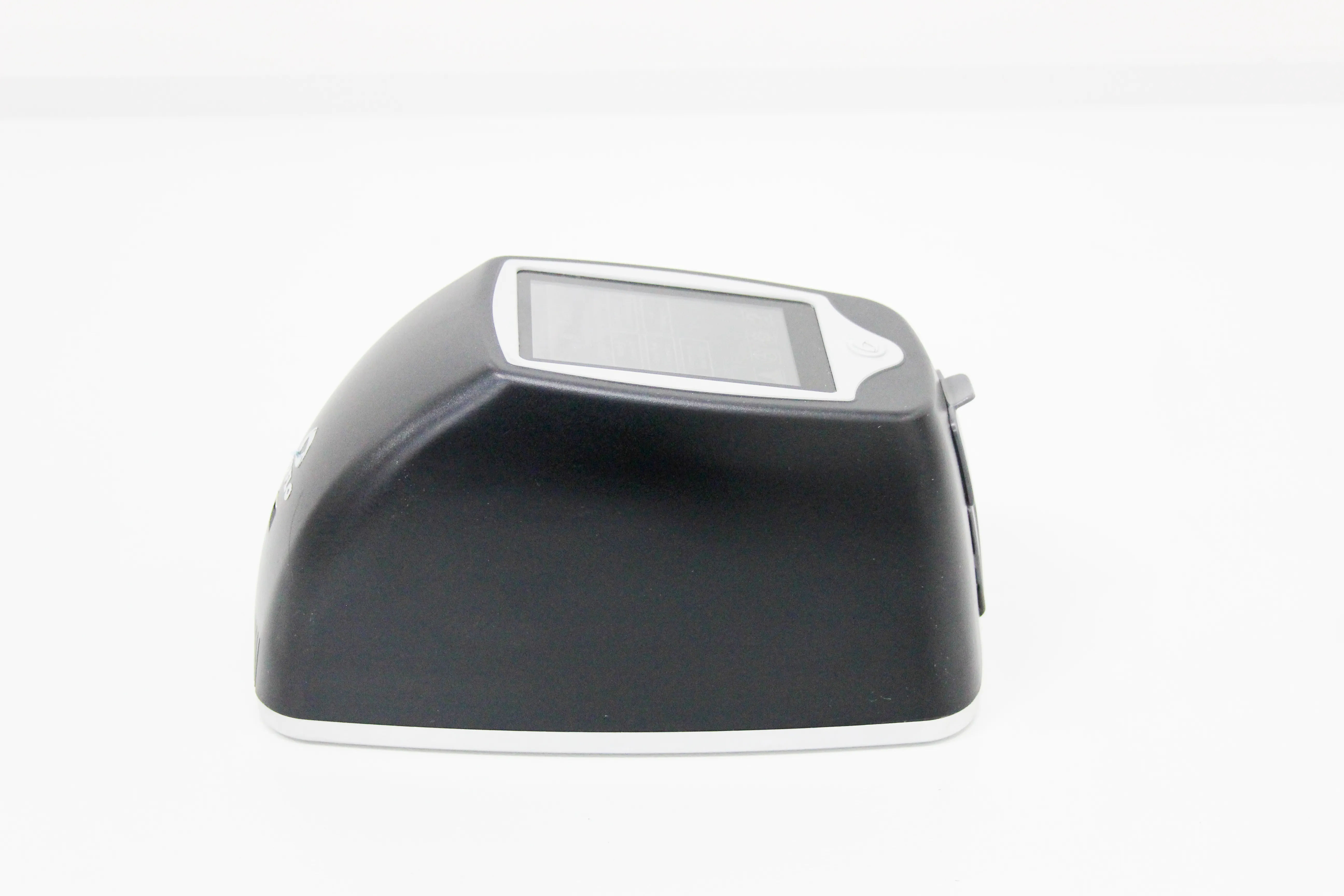

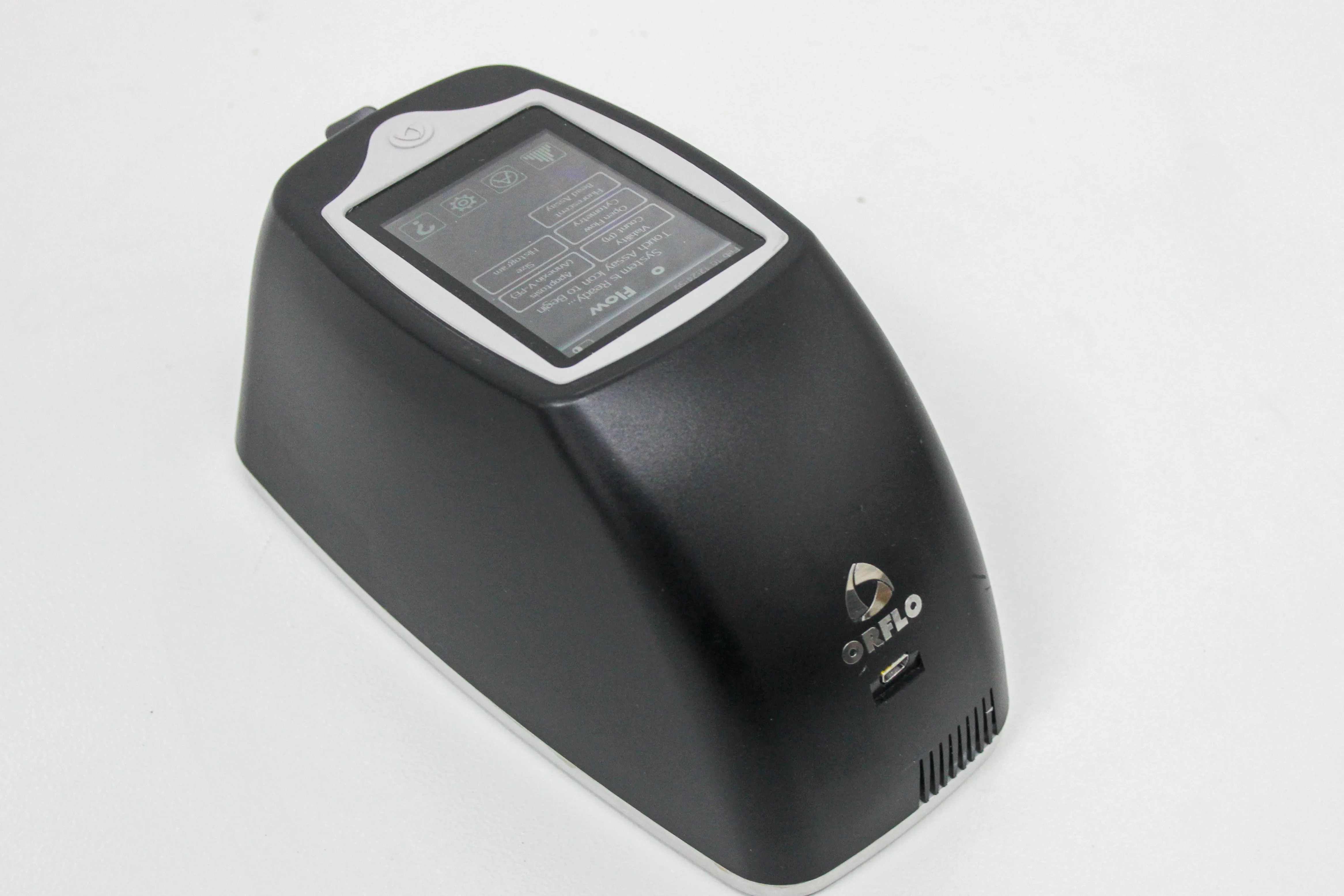

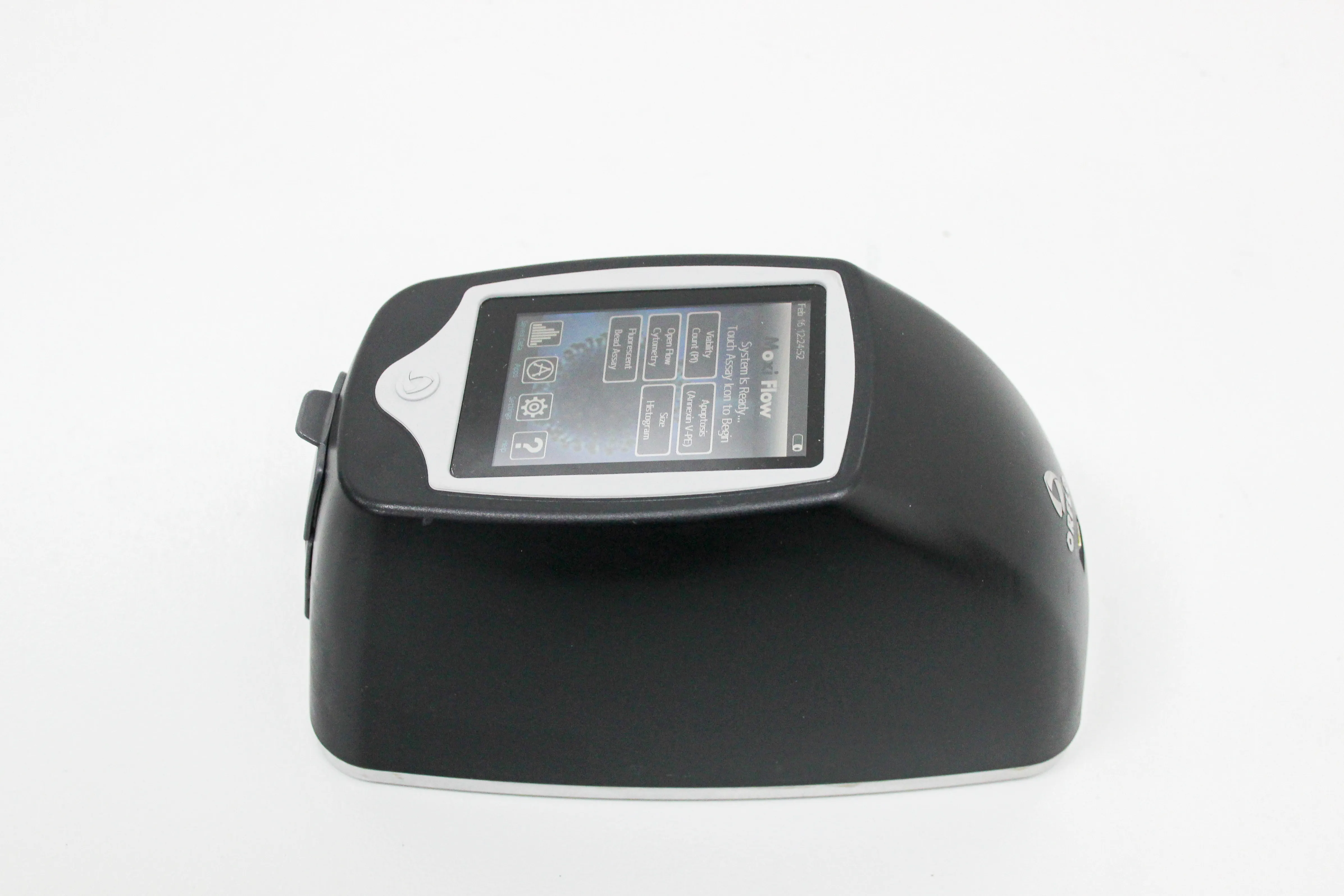

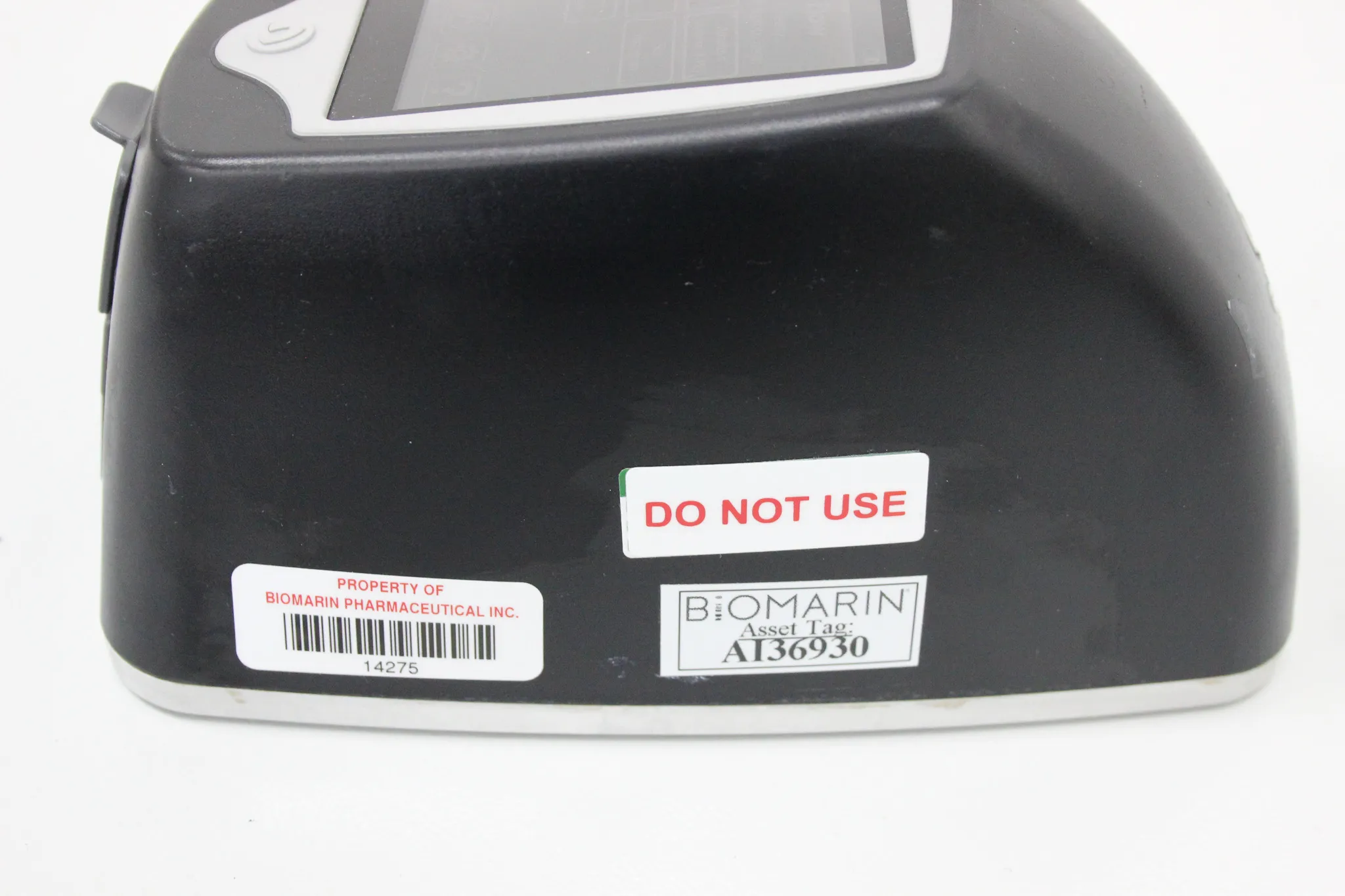

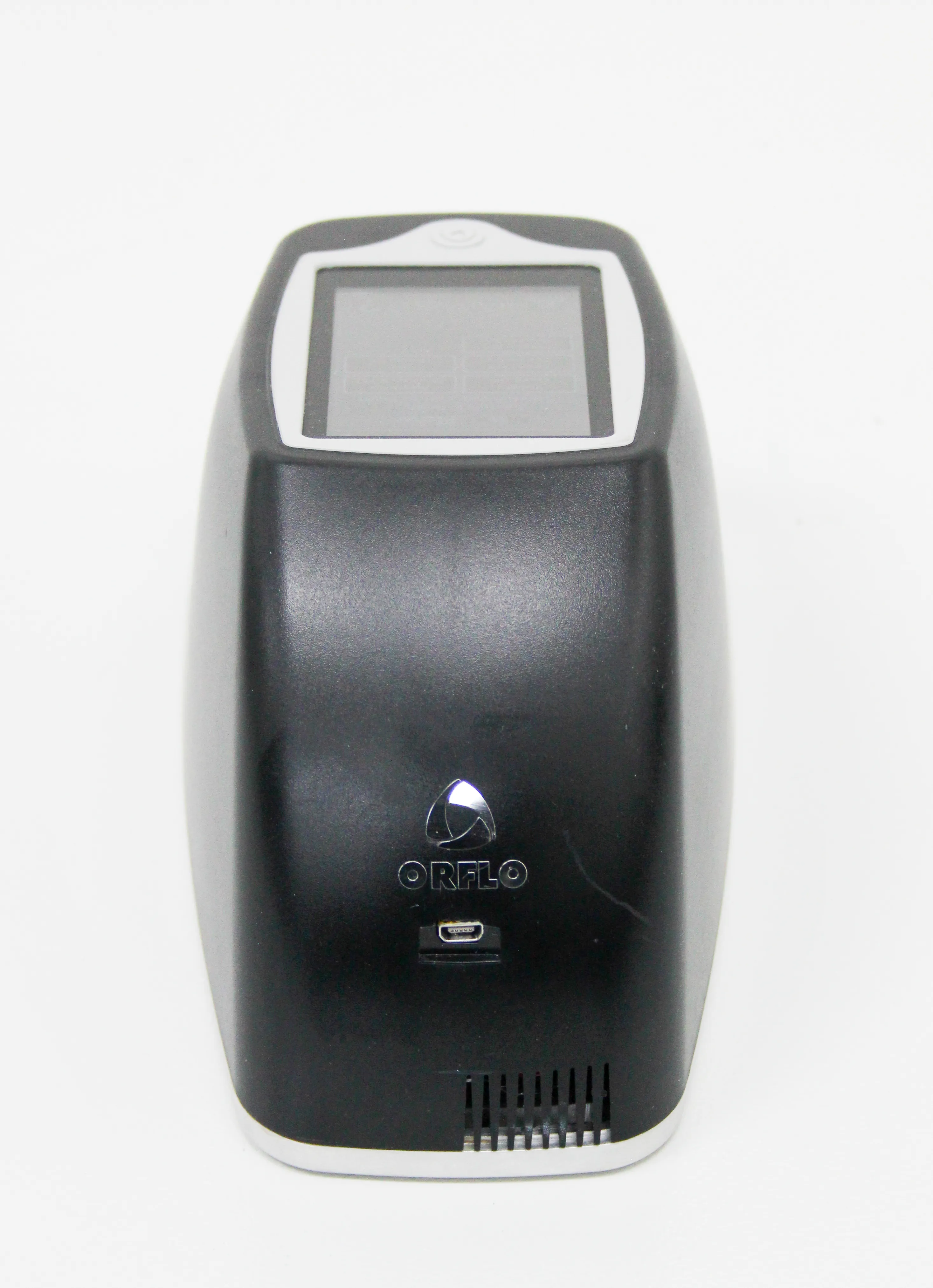

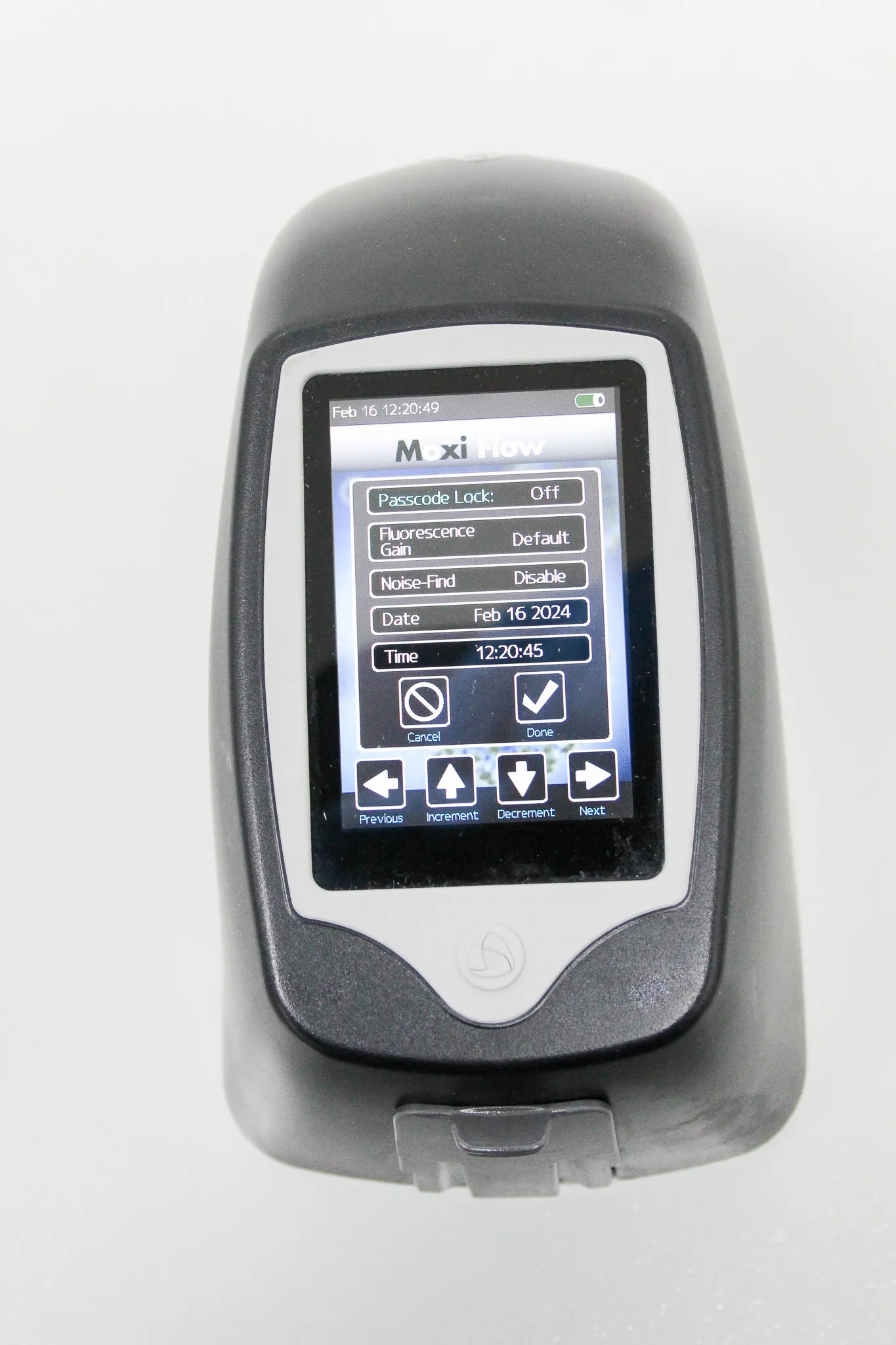

The ORFLO Moxi Flow Smart Flow Cytometer MXF001 is a preowned instrument with minimal wear from normal use, with a scratch on the front panel. The unit powers on and the touchscreen is fully functional. It comes with a 30-day warranty. The Moxi Flow is an innovative, cassette-based flow cytometer, combining unparalleled ease of use with the precision typically associated with more expensive flow cytometers. This ultra-small instrument uses patented microfluidic thin-film cassettes that allow for automatic load and measure operation. It is also the only flow cytometer that auto-aligns the laser to each cassette, enabling highly repeatable and robust results every time. The system is capable of performing cell counts, viability tests, and apoptosis detection. It's also suitable for blood analysis, somatic cell counts in milk, and more. With no PMT gain adjustment or warm up time required, the Moxi Flow offers exceptional convenience. It provides accurate and repeatable results, making it the perfect choice for a variety of cell-based assays. This miniature open platform is designed to meet common cell assay needs and also allow for the development of sophisticated, custom assays. The patented technology involved delivers precise measurement within a range of applications, ensuring reliable results with every use.

• Apoptosis detection capability
• Cell counts with >95% accuracy
• Viability testing with PI
• Precise cell and particle measurement using the Coulter Principle
• Automatic load and measure operation with patented microfluidic thin-film cassettes
• Auto-alignment of the laser to each cassette for repeatable and robust results
• No PMT gain adjustment or warm-up time required
• Open platform allowing the development of custom assays
• Option for open 2-Parameter Flow Cytometry mode

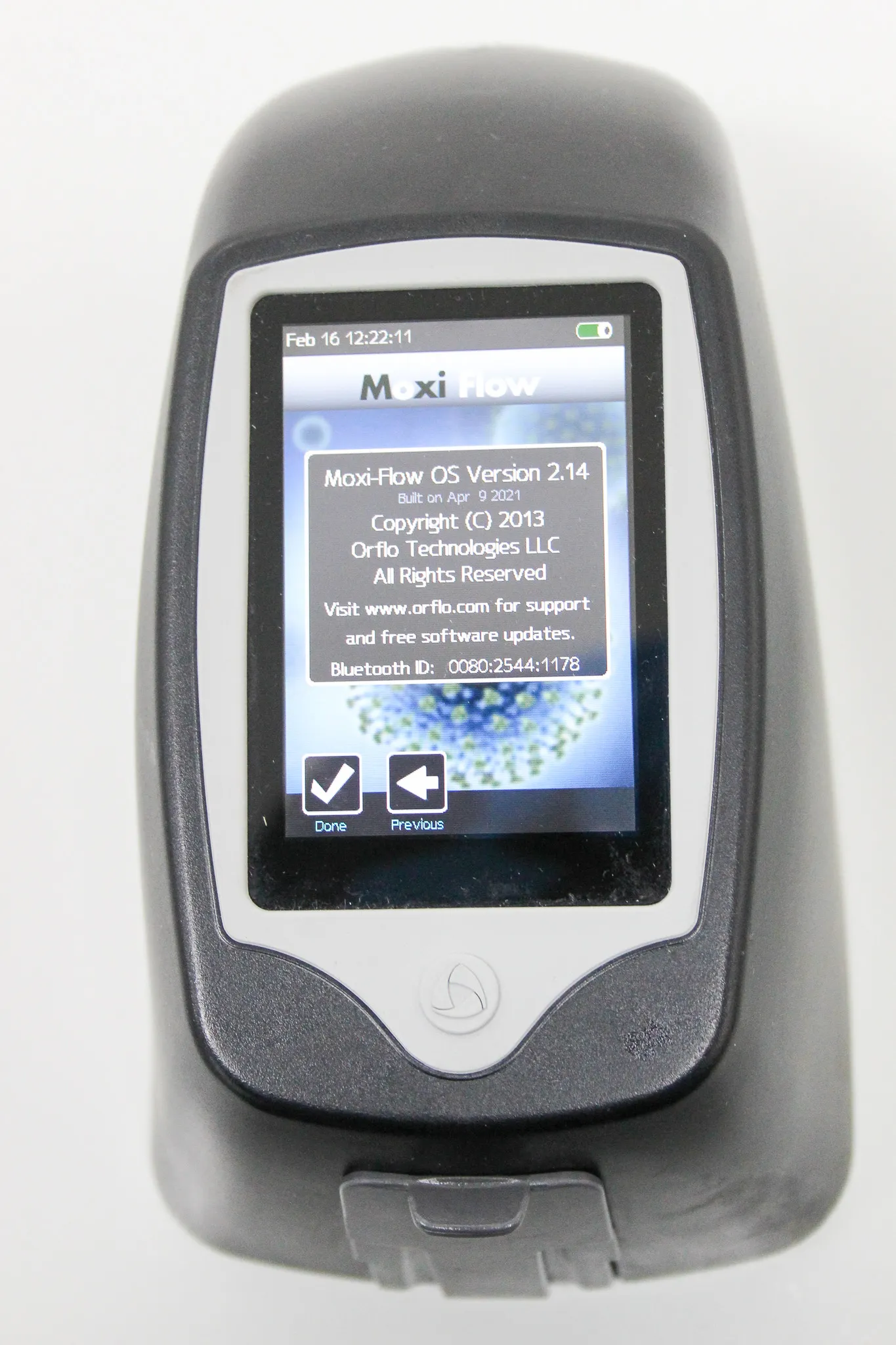

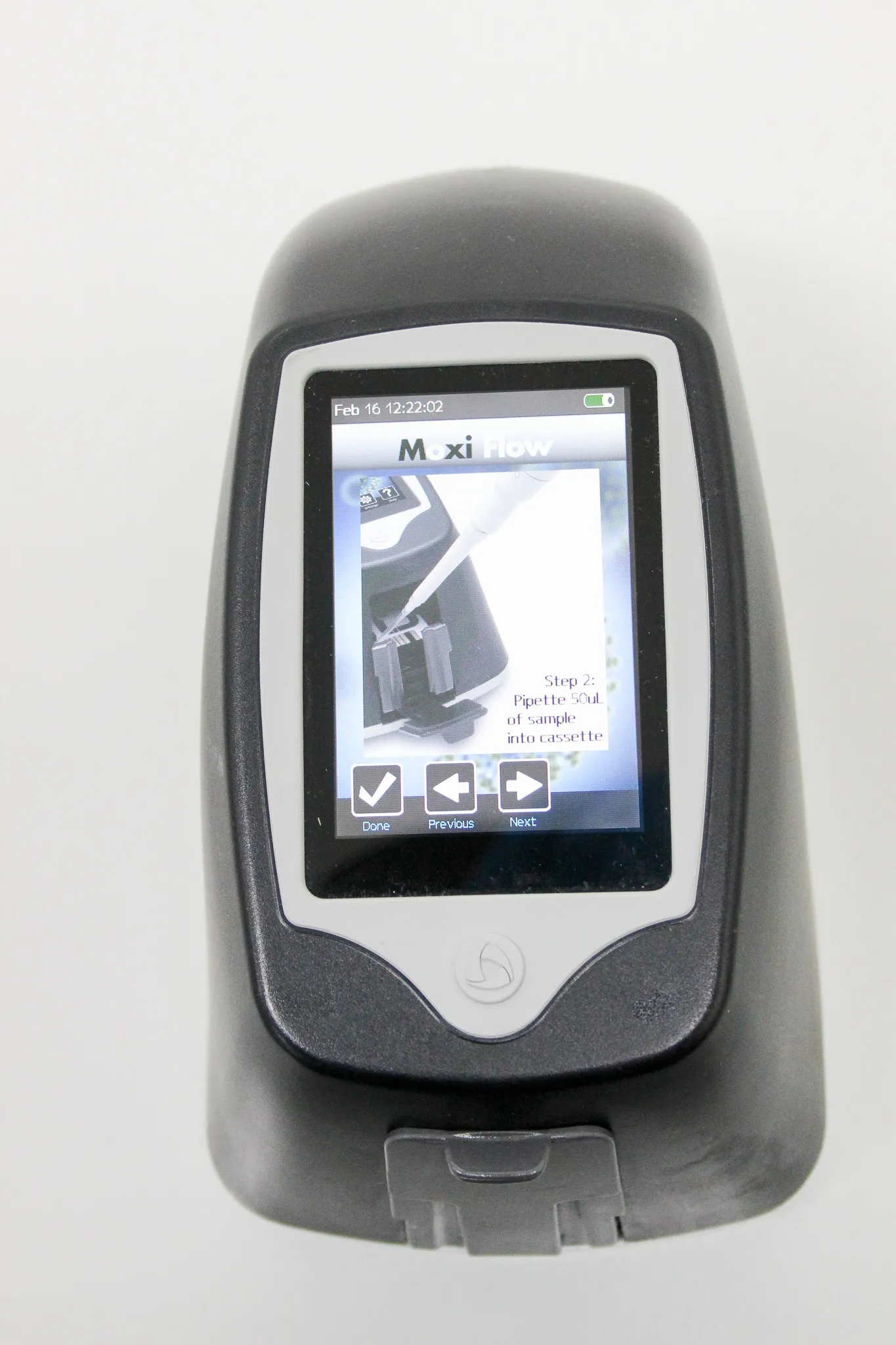

• Compact design with a color touchscreen

• Detection Channels: 2 (1 color, 1 size)
• Laser wavelength: 532nm (green)
• Number of PMTs: 1
• Optical Detection Region: 590/40nm (e.g. R-PE, PI, Nile Red, Ethidium Homodimer 1 & III, Sytox Orange)
• Particle Size Detection: Impedimetric (Coulter Principle)
• Display: 480 x 320 color touchscreen
• Resolution: 1000 histogram bins
• Weight: 2lb 12 oz
• Dimensions: 8 L x 4.5 W x 4.5 H
• Battery: Lithium Ion 4500 mAh
• Data storage: 16MB (full histograms and scatter data)
• AC Power: 100-240V, 50/60 Hz, 0.2 Amps
• Connectivity: USB on-the-go (Mac/PC Compatible)
• Data output format: FCS 3.1

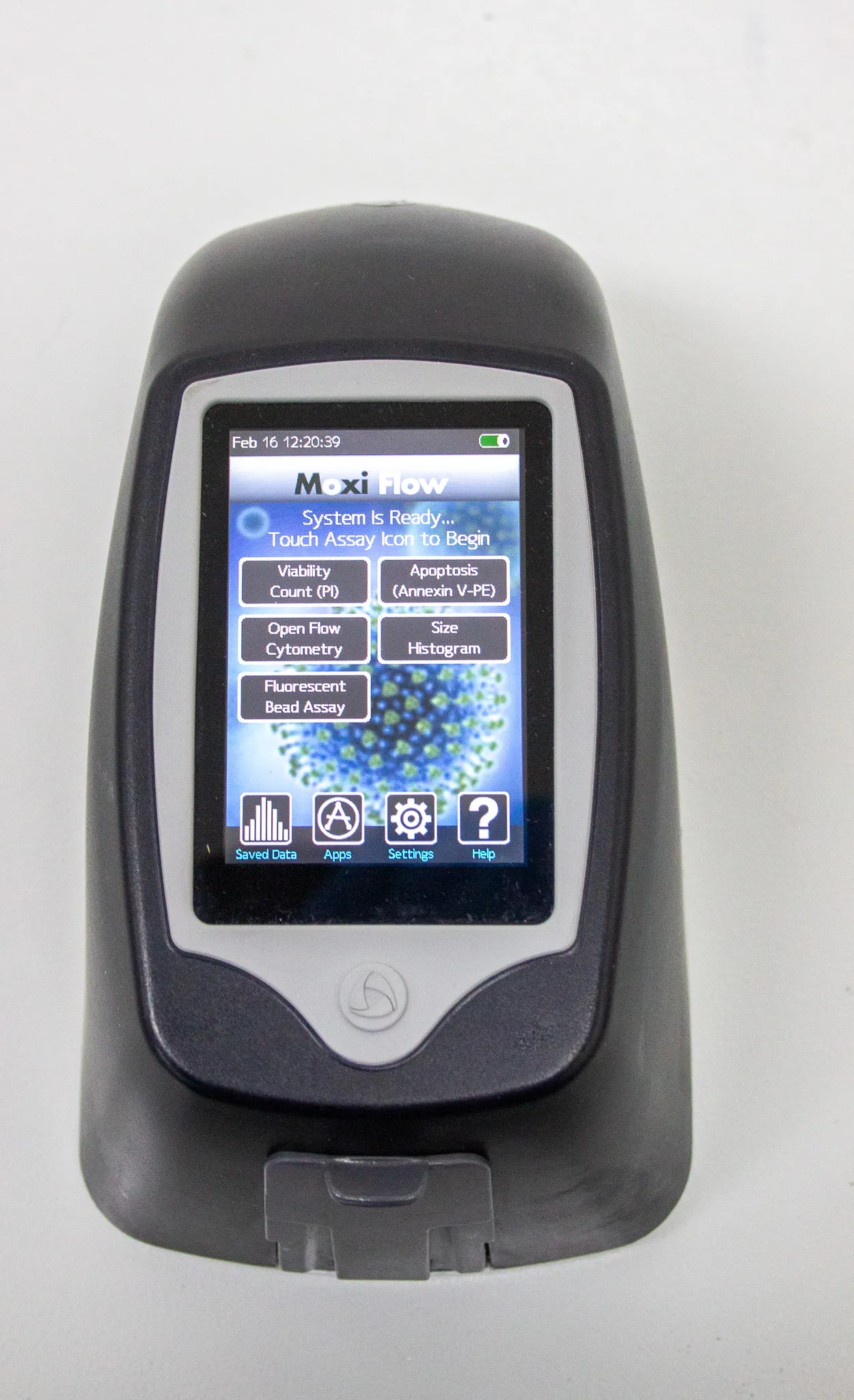

• Pre-Programmed Tests: Viability, Apoptosis, Size Histogram, Fluorescent Beads, Open Flow Cytometry
• Open Platform: Yes, 2-Parameter (requires R-PE reporter)
• Printer Capable: Yes (wireless Bluetooth printing), Export screenshot (.bmp)
• Type MF-M Cassette: For larger cells and more adherent cell lines
• Dynamic range: 4 - 22 microns
• Cell Volume: 34 - 5,575 fL
• Measurement time: ~8 seconds
• Sample concentration: 10,000 - 750,000 cells/mL
• Type MF-S Cassette: For optimum performance for smaller calls and microbeads
• Dynamic range: 3 - 16 microns
• Cell Volume: 14 - 2,145 fL
• Measurement time: ~10 seconds
• Sample concentration: 10,000 - 1,750,000 cells/mL

Metric: 1.36 kg
Imperial: 3.0 lbs

Metric: 20.32 cm x 11.43 cm x 11.43 cm
Imperial: 8 in x 4.5 in x 4.5 in
