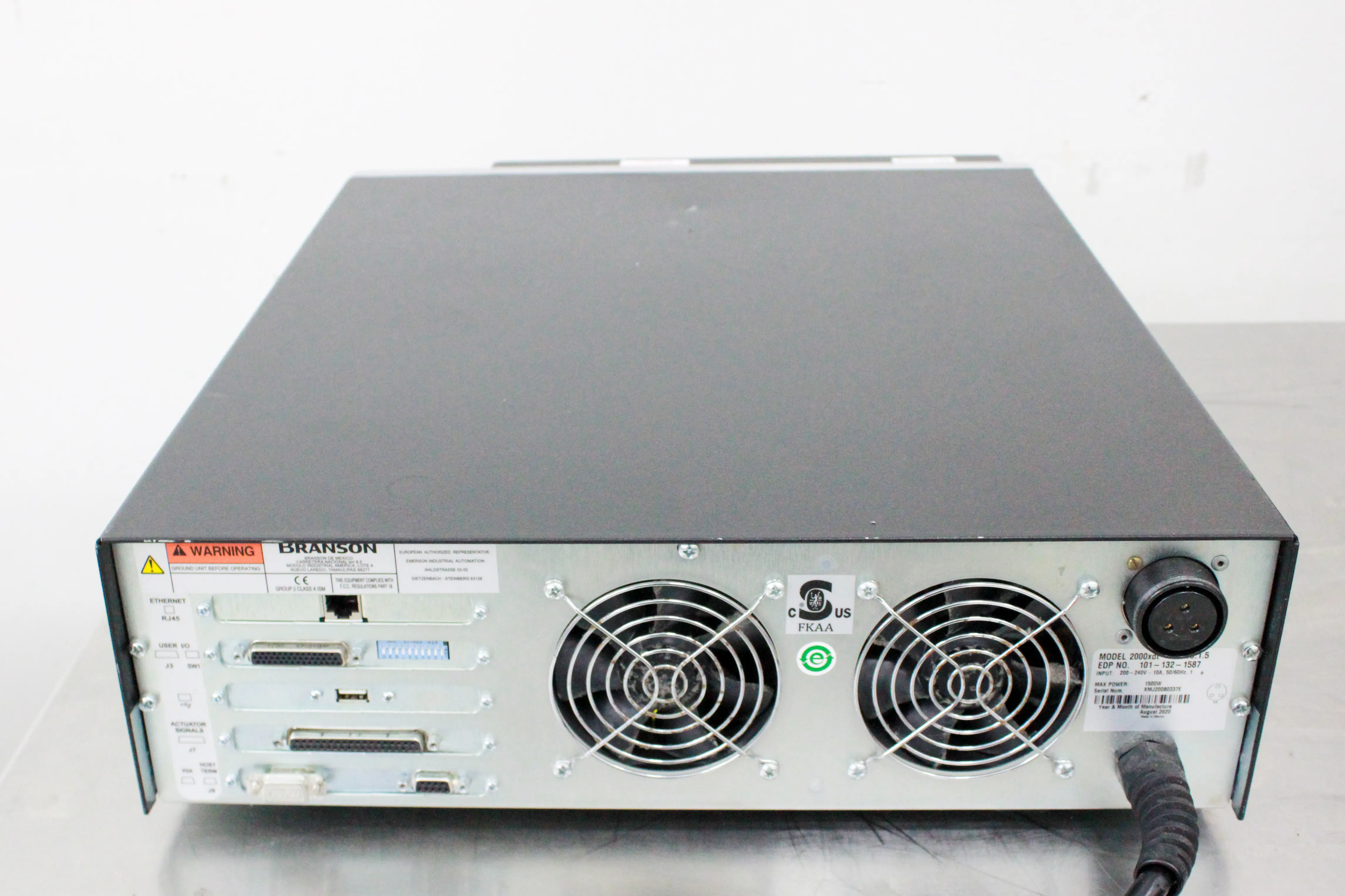

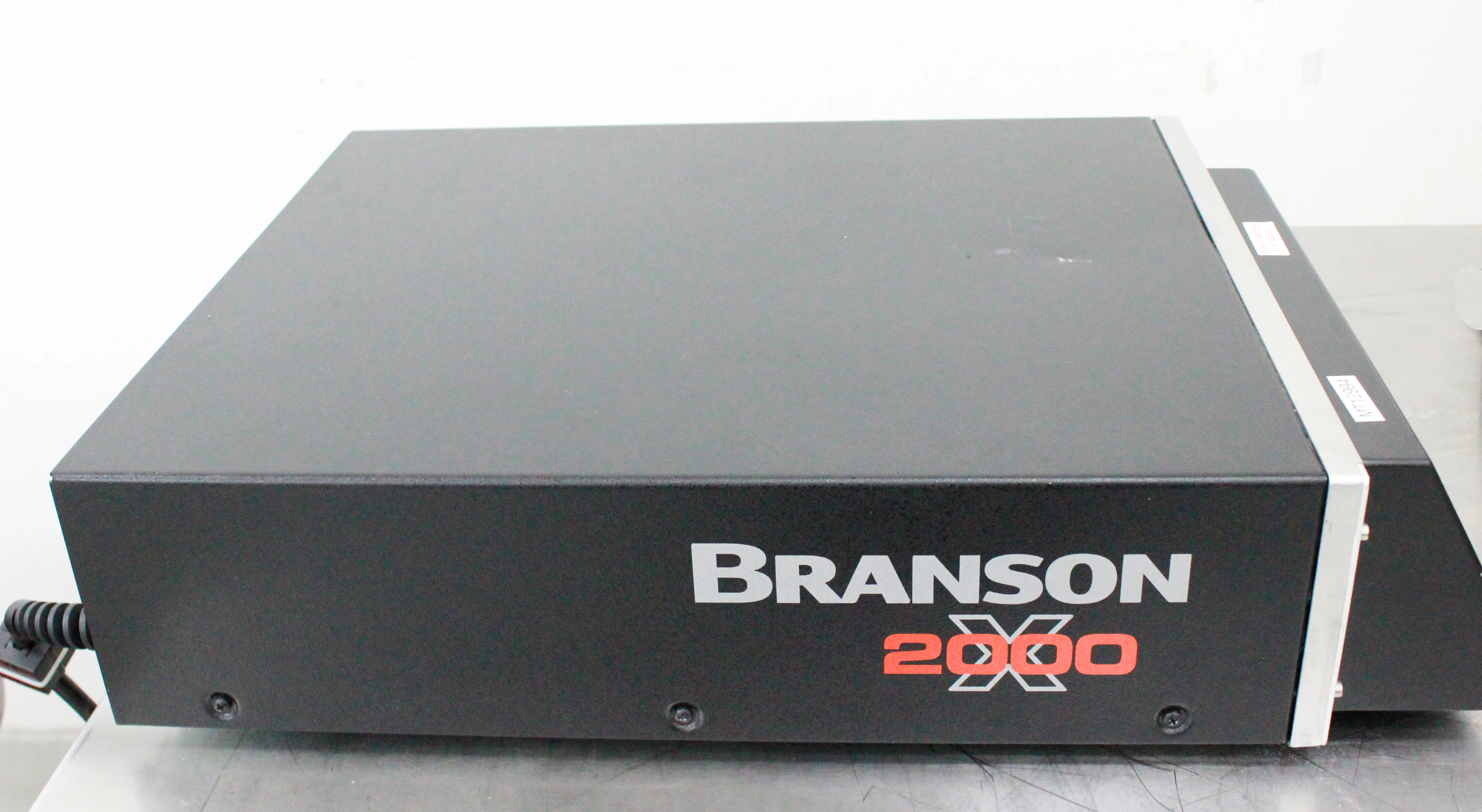

BRANSON X 2000xdt Ultrasonic Digital Welding Base Unit

Product Information

BRANSON X 2000xdt Ultrasonic Digital Welding Base Unit is for sale AS/IS for parts due to the unit powering on with a blank screen. The Branson 2000X Series leads the way in digital, adaptable, precision-control plastic welding technology. It offers multiple weld mode control levels, four output ultrasonic frequencies, and the flexibility to combine with different actuator options. It can be adapted to automation systems or used as a stand-alone complete system. The equipment features True Digital Autotune with Memory, Total Amplitude Control, Programmable Starting Ramp, and a range of self-diagnostics and monitoring features. The system also includes USB and X-Net connectivity, external VGA port, and a choice of languages for message display. The specifications include an output power of 1500 Watts, line voltage of 200-240V AC, and a frequency of 30 kHz.

• True Digital Autotune with Memory (AT/M)
• Total Amplitude Control
• Programmable Starting Ramp
• Self-diagnostics and Monitoring
• USB and X-Net Connectivity
• Choice of Language for Message Display

• Type: 2000Xdt
• Output Power: 1500 Watts
• Line Voltage: 200-240 V AC/ 50/60 Hz. 10A
• Frequency: 30 kHz
• Max. Cycle Rate: 80 cpm
• Ambient Temp. Range: 41-122 F (5-50 C)

Metric: 20.41 kg
Imperial: 45 lb

Metric: 25 cm x 18 cm x 6 cm
Imperial: 9.84 in x 7.08 in x 2.36 in

851580

851580 - Machines and apparatus for soldering, brazing, welding
