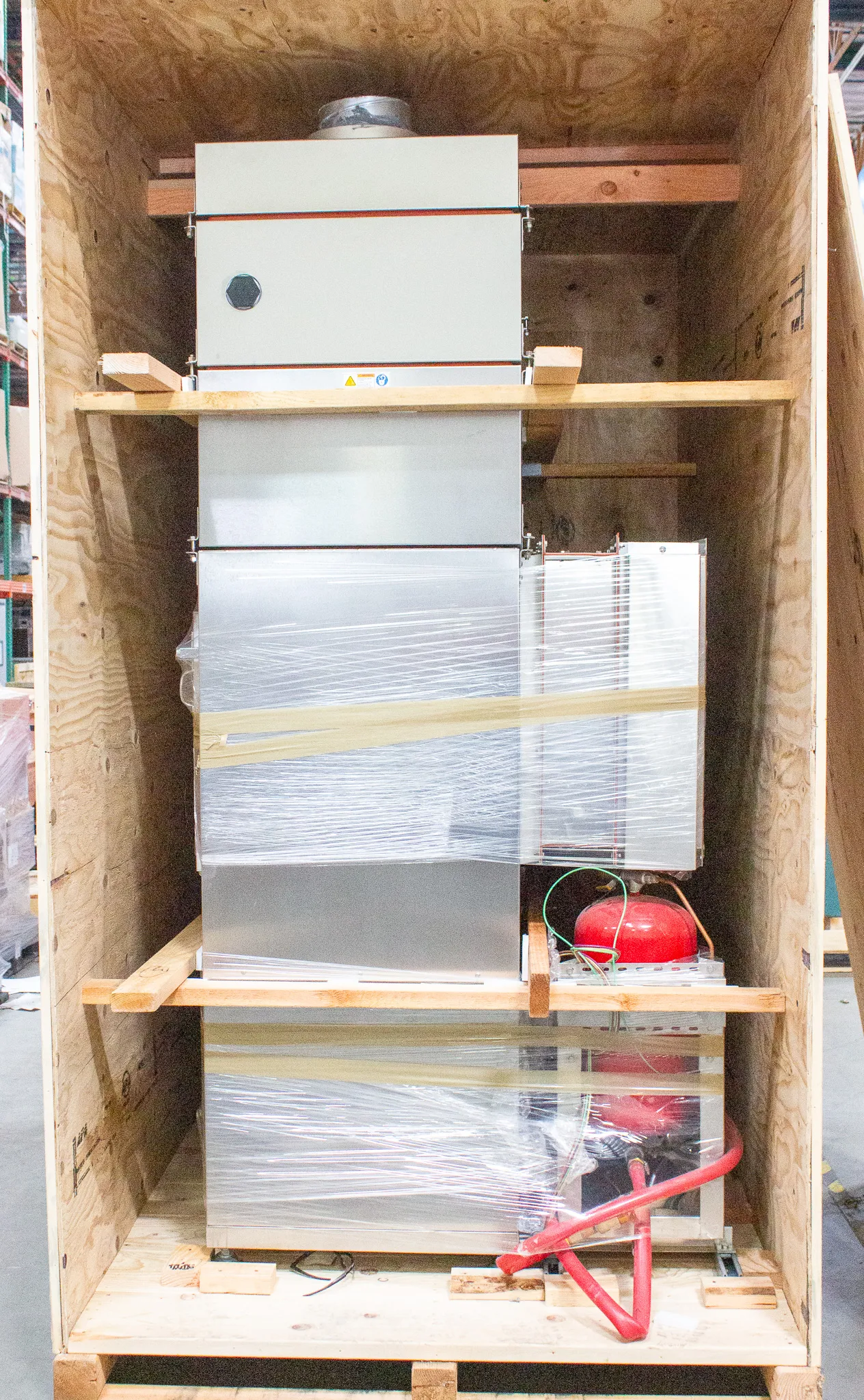

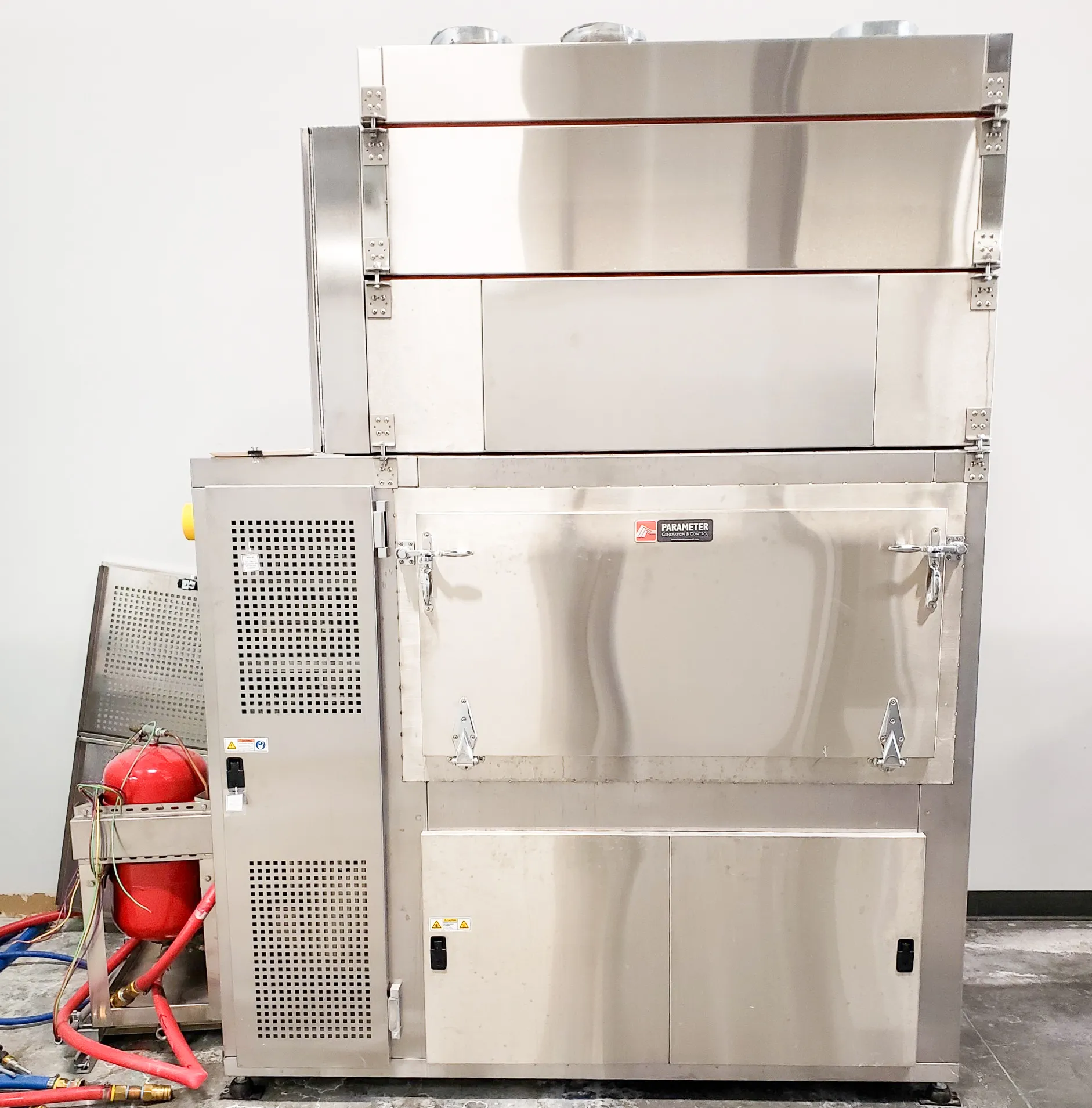

Preowned Parameter 1500-3000 CFM Vertical Conditioner 9234-42N0 Series - Laboratory Equipment

Product Information

Parameter 1500-3000 CFM Vertical Conditioner 9234-42N0 Series ***Preowned conditioner with slight wear from normal use. 30-day warranty included with purchase. Parameter Generation and Control manufactures relative humidity/temperature conditioners for rooms provided by Parameter and existing rooms or enclosures. These systems are designed to provide precise temperature and humidity control. AN UNSURPASSED RH CONTROL OF 0.5% Parameters 1,500-3,000 Vertical Conditioners provide extremely precise control and uniformity within the room or chamber to allow customers to easily maintain their specified conditions. Parameter conditioners provide: Extremely precise control and uniformity within the room or chamber to allow customers to easily maintain their specified conditions. A unique dew point control system utilizes much less energy than other stability control systems. Self-contained conditioners allow easy installation on-site anywhere in the world. PC based monitoring systems that are standard with each unit. System monitors temperature, relative humidity, saturator, and mechanical outputs. Easy temperature / relative humidity Calibrations and simple preventative maintenance schedules. User-friendly controls (Parameters SmartPad) that allow for either steady state conditioning or programmable cycling of conditions. Benefits Consistent and accurate results Stable and uniform environments Unsurpassed accuracy Security and safety Ease of operation Features RH control constancy of 0.5% Temperature control constancy of 0.1C Relative humidity uniformity of 0.5% High-low or deviation alarms 316 stainless steel construction throughout the chamber SmartPad Microprocessor Parameters SmartPad microprocessor controller is a user-friendly system that provides optimum accuracy and control. The SmartPad is equipped with direct readings in both temperature and humidity. It features 60-segment programming for automatic cycling and ramping and soaking excursions. High-low or deviation alarms and digital communications ports are standard features. RH VARIABLES RH VariablesParameterCompetition Total 2.5% 6.0% Control Constancy 0.5% 2.0% Chamber Uniformity 1.0% 2.0% Sensor Accuracy 1.0% 2.0% Specifications 9234-42N0 SERIES (Domestic) 9234-62N0 SERIES (International) Relative Humidity Constancy: 0.5% Relative Humidity Uniformity: 1.0% at 25/60% Temperature Constancy: 0.2C Temperature Uniformity: 0.2C MAXIMUM ENCLOSURE SIZE 6800 cu.ft. MAX. ROOM SIZE8-FOOT CEILING 20 x 40 UTILITIES Domestic: 460V, 3-Phase, 60 Hz, 17.4 FLA, 11.9 RLA International: 380V, 3-Phase, 50Hz, 24.1 FLA, 16.9 RLA WEIGHT 1800 lbs. DIMENSIONS 72"w x 40"d x 81"h

• Extremely precise control and uniformity
• User-friendly controls
• Self-contained and easy to install anywhere
• PC-based monitoring systems
• Beneficial dew point control system

• Relative Humidity Constancy: 0.5%
• Temperature Constancy: 0.1C
• Room Size Limit: 6800 cu.ft.
• Maximum Enclosure Size: 8-FOOT CEILING, 20 x 40
• Electrical Specifications: Domestic - 460V, 3-Phase, 60 Hz, 17.4 FLA, 11.9 RLA; International - 380V, 3-Phase, 50Hz, 24.1 FLA, 16.9 RLA
• Weight: 1800 lbs.
• Dimensions: 72"w x 40"d x 81"h

Metric: 816.466 kg
Imperial: 1800 lb

Metric: 182.88 cm x 101.6 cm x 205.74 cm
Imperial: 72 in x 40 in x 81 in

841590

Part of air conditioning machines; comprising a motor-driven fan and elements for changing the temperature and humidity, including those machines in which the humidity cannot be separately regulated.
