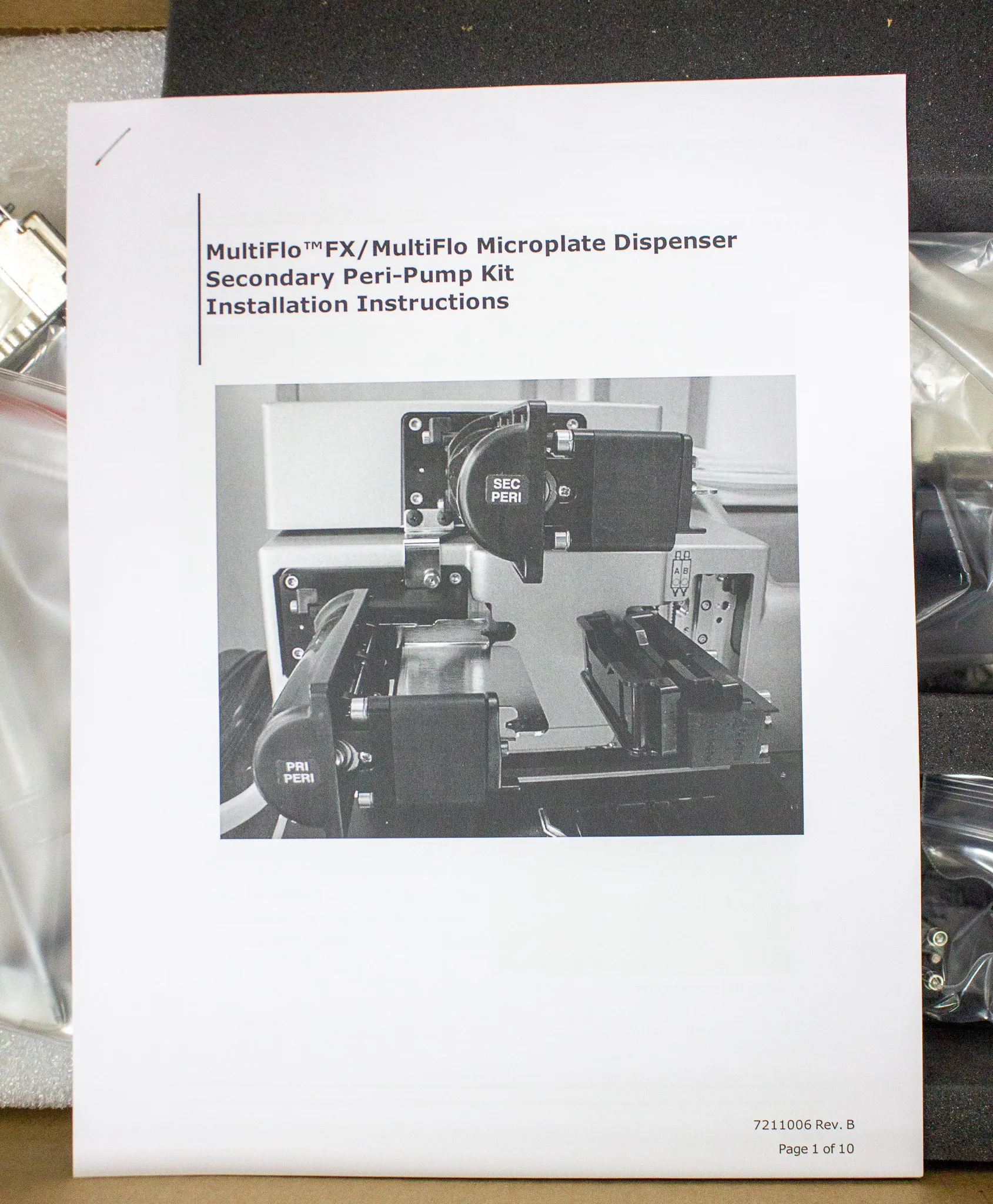

BioTek MultiFlo FX Multimode Dispenser MFXP1 w/ Secondary Peri-Pump Kit (NEW)

Product Information

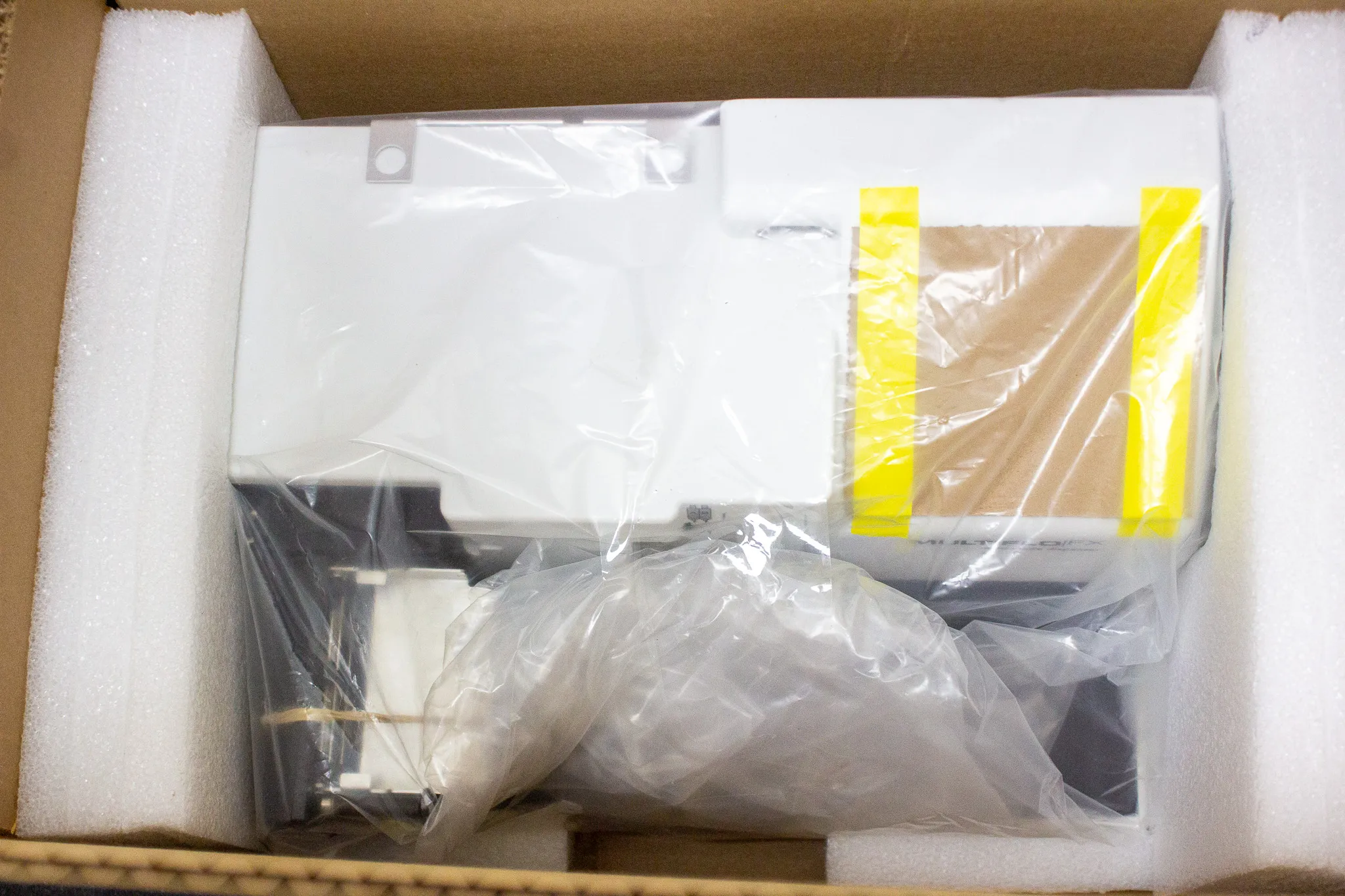

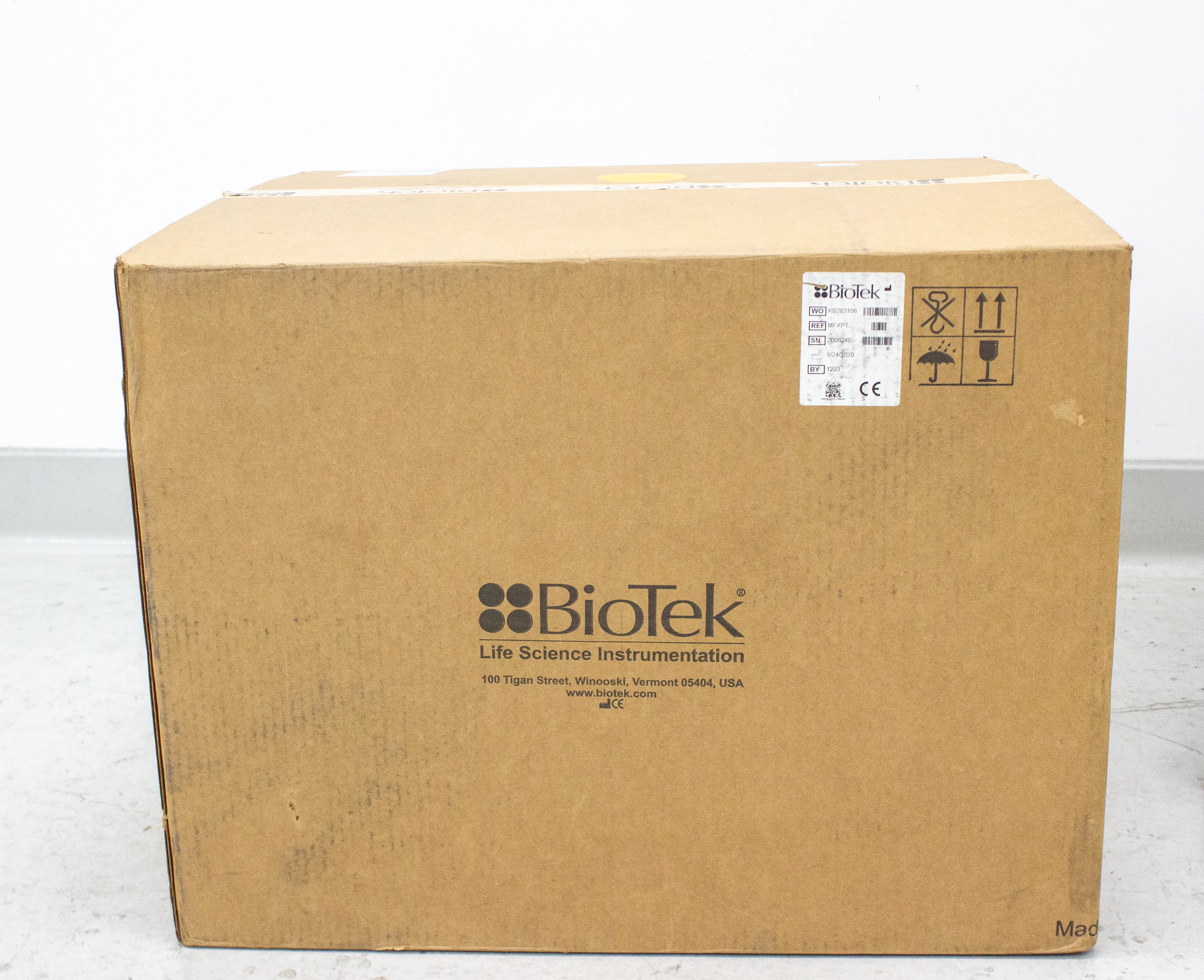

"Brand NEW in box! The BioTek MultiFlo FX Multimode Dispenser MFXP1 is an automated multimode reagent dispenser for 6- to 1536-well microplates, incorporating Parallel Dispense, random access dispense (RAD), and patented Automated Media Exchange (AMX) modules. It facilitates liquid handling for 2D and 3D cell culture to concentration normalization assays, ELISA, and bead-based assays, replacing up to five liquid handlers, and saving space, time, and budgets. The dispenser includes unique features such as Parallel Dispense technology, gentle media exchange with Automated Media Exchange (AMX), Custom manifolds, and amiable dispense tips allowing the reagent to gently dispense down the well sides, keeping cell layers through multiple-step operations for improved assay performance. The dispenser delivers accuracy of 5% at 1 L, 2.0% at 5 L, 2.0% at 10 L, and is CE and TUV marked, RoHS compliant. Primary/secondary screening assays, compound storage, genomics and proteomics research, ELISA, cell-based washing, fixing, staining, concentration normalization are among its typical applications.

• Automated, gentle media exchange with Automated Media Exchange (AMX)
• Multimode dispensing with compact and user-friendly design
• RAD technology for custom-mapped dispensing to individual wells
• Customizable manifolds and fluid flow rate for easy configuration
• Parallel Dispense technology for easy, flexible operation

• Accuracy: 5% at 1 L, 2.0% at 5 L, 2.0% at 10 L
• Certifications/Compliance: CE and TUV marked, RoHS compliant
• For Use With (Application): Primary/secondary screening assays, compound storage, genomics and proteomics research, ELISA, cell-based washing, fixing, staining, volume or concentration normalization

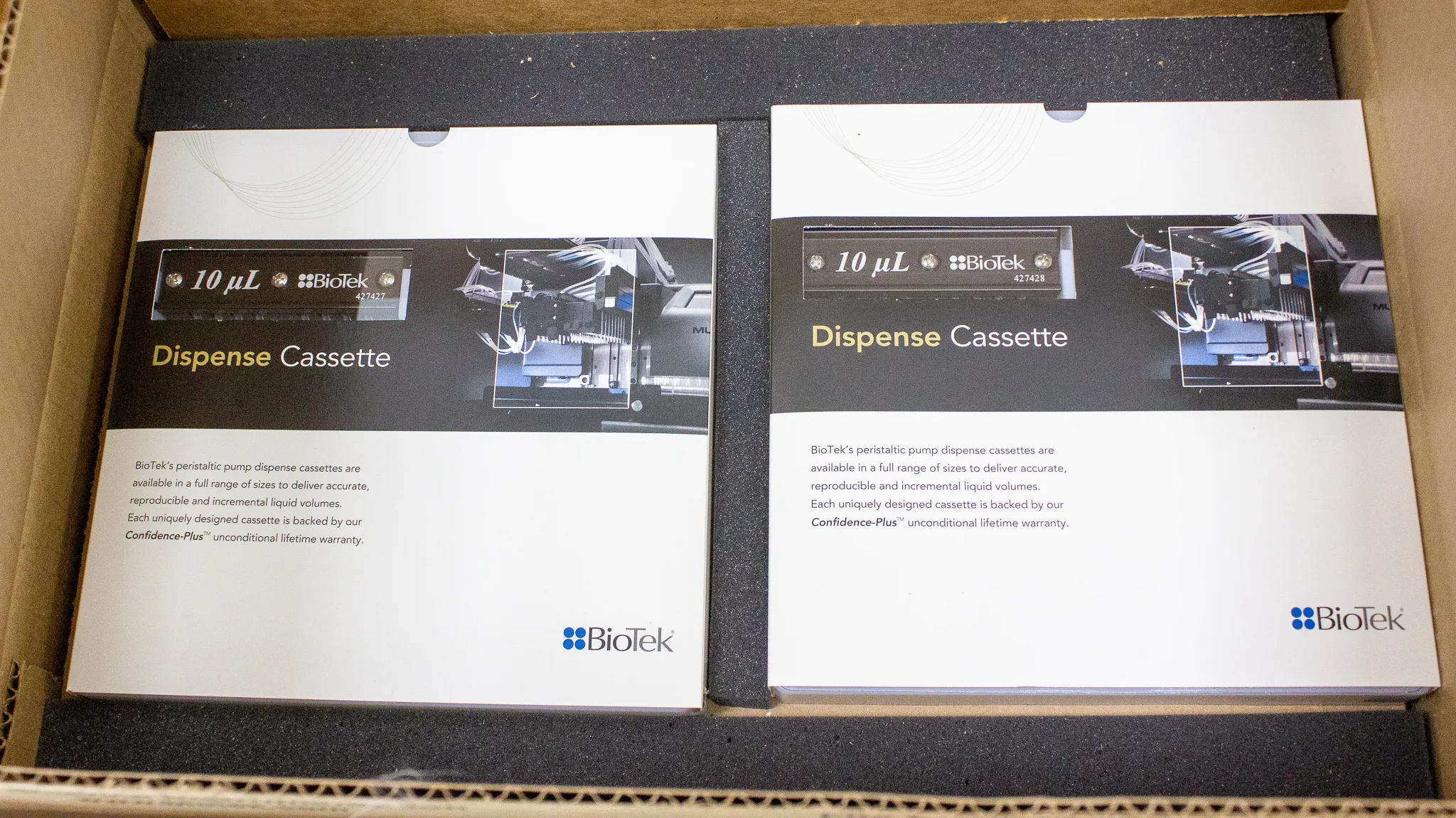

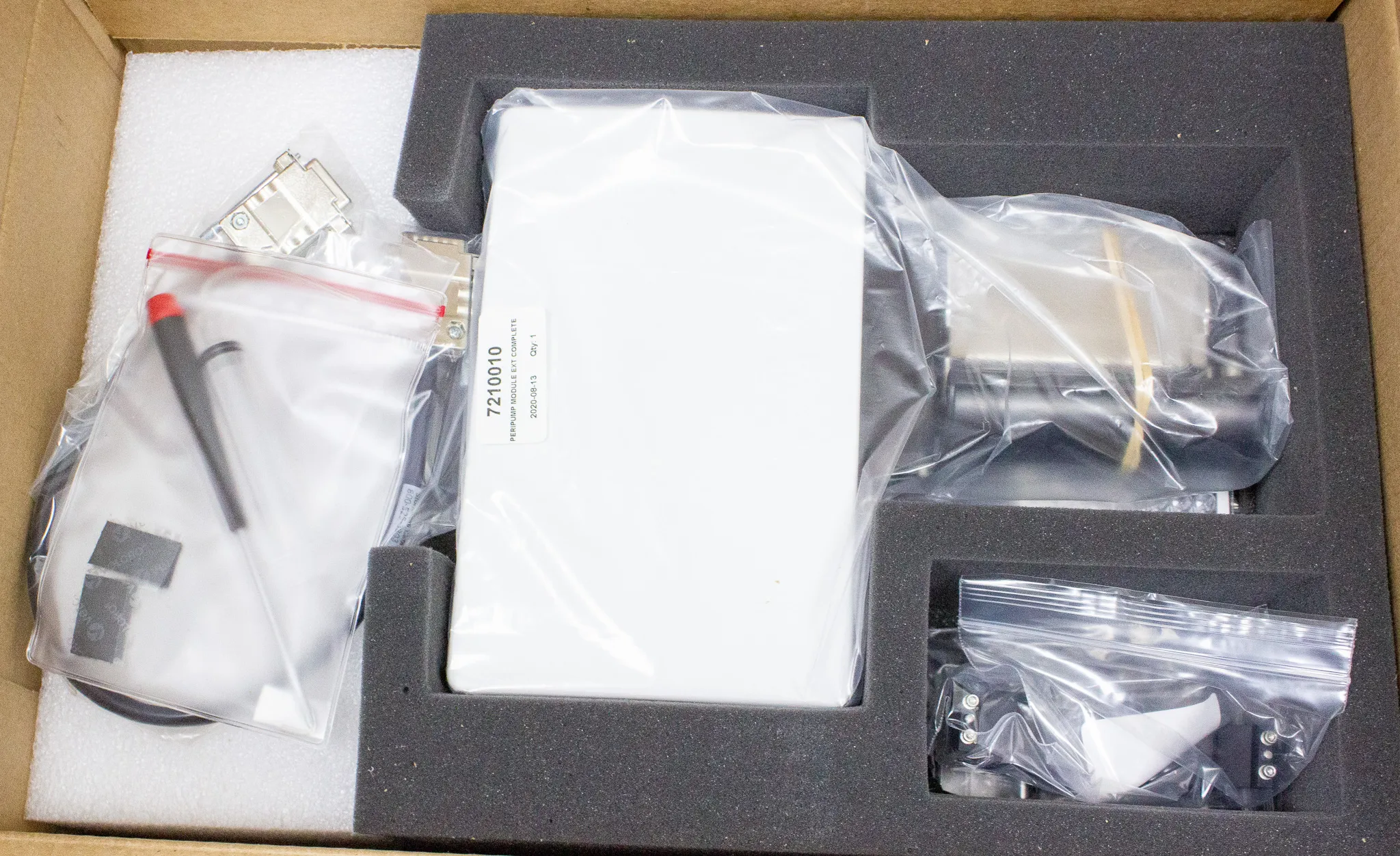

• Includes: 1 module arm, 1 peristaltic dispense pump, and 1 peri-pump cassette with plastic tips
• Model: MFXP1
• Precision: <5% CV at 1 L, <2.5% CV at 5 L, <2.0% CV at 10 L
• Speed: Varies based on wells and cass, e.g., 96 wells, 5 L cass, 10 L/ well: 3 s, 96 wells, 5 L cass, 20 L/ well: 3.5 s, etc.
• Width: 43.5 cm
• Height: 20.3 cm
• Depth: 29.2 cm
• Weight: 6.5 kg
• Voltage: 100/240 V
• Product Type: Microplate Dispenser
• Volume: 500 nL to 3000 L/well, 1 L increments
• For Use With (Equipment): BioStack and third party automation compatible; BioSpa 8 Automated Incubator compatible
• Interface: Color touch screen; Create, edit or run multiple protocols onboard
• Plate Type: Dispensing (peri pump and syringe): 96-, 384- and 1536-well standard, deep and PCR plates; 6-, 12-, 24- and 48-well plates
• Software: LHC2 Software; LHC2 Secure for 21 CFR Part 11 compliance (option); SiLA Compliant driver (option)
• Weight (English): 14.3 lb.
• Electrical Requirements: 90 W max.

Metric: 6.5 kg
Imperial: 14.3 lbs

Metric: 43.5 cm x 29.2 cm x 20.3 cm
Imperial: 17.2 in x 11.8 in x 8 in

8421392510

The harmonized code 8421392510 is applied to dispensing or distribution mechanisms, specifically designed for use in civil aircraft.
