Excel Packaging Systems PP982HP-105 High Profile Pallet Wrapper
- Make Excel Packaging Systems
- Hertz 60Hz
- Model PP982HP-105

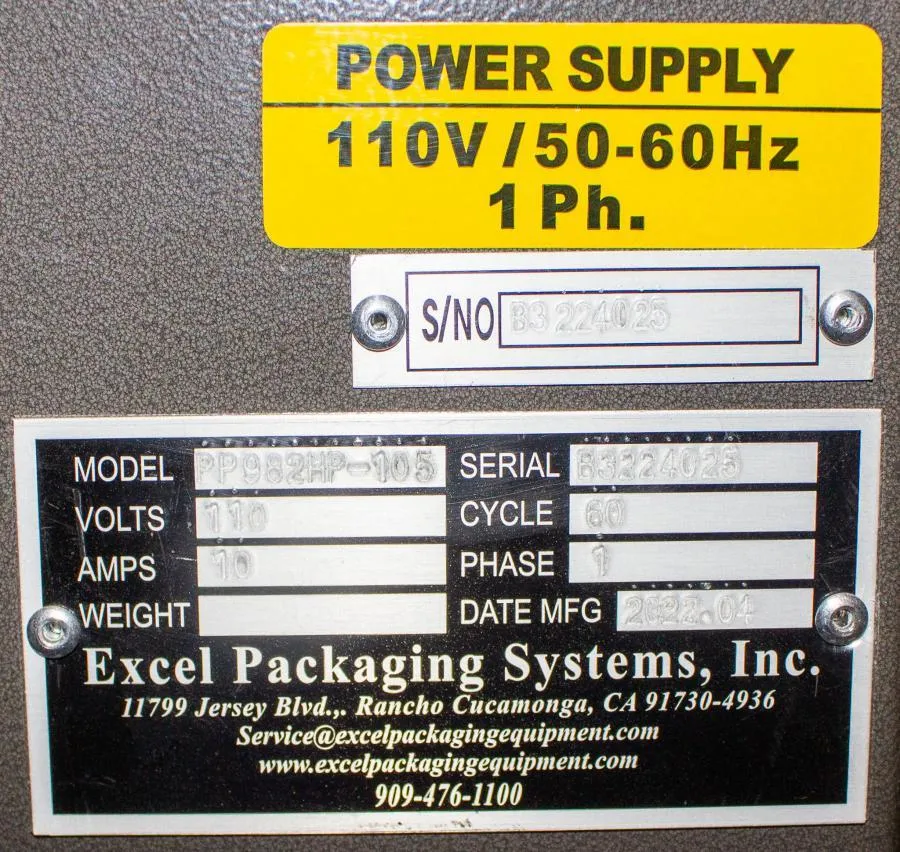

- Serial B3224025
- Weight 1800
- Voltage 120V
- Working Working

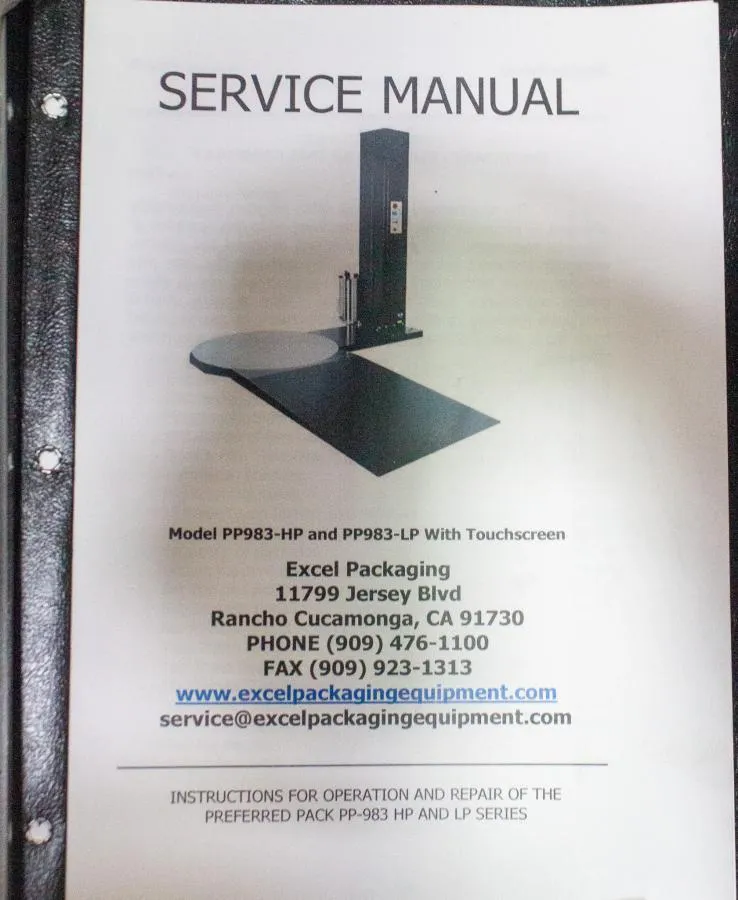

- Includes Power Cord|User Manuals
- Warranty 30-Day Warranty, 100% Parts and Labor
- Dimensions 112×63×112 in
- Shipping Type Freight
- Item Condition Pre-owned
Excel Packaging Systems PP982HP-105 High Profile Pallet Wrapper
***Preowned from a working environment. Pallet wrapper in like-new condition. 30-day warranty with purchase. See photos for details.

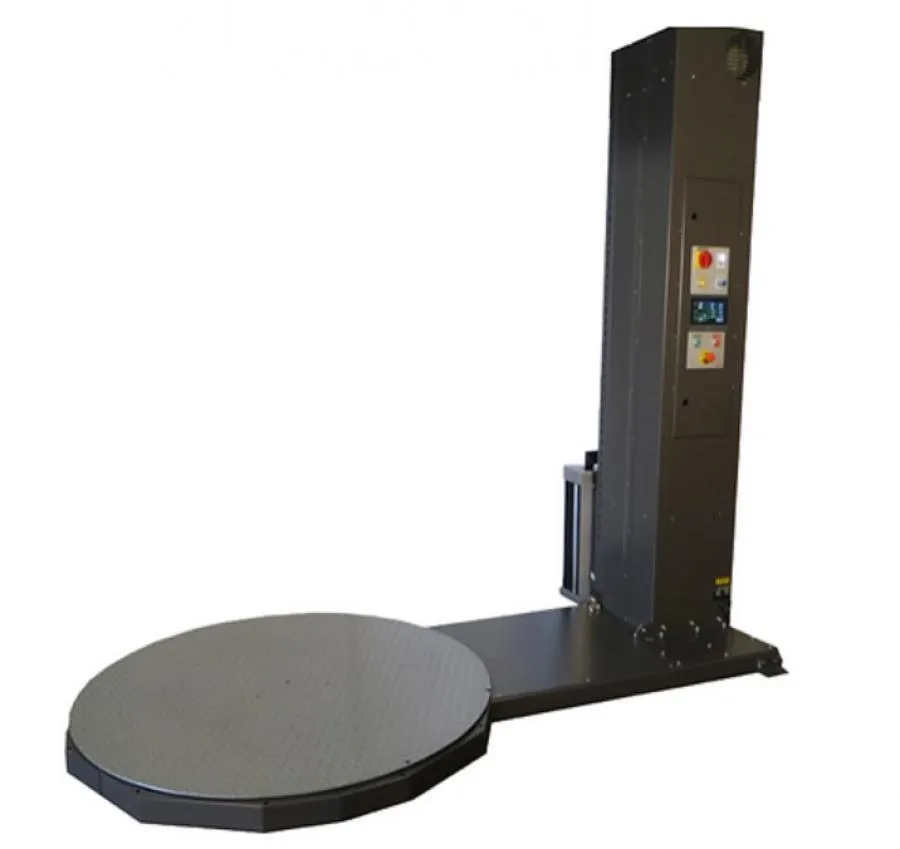

The Preferred Pack model PP-982HP (High Profile = turntable only - no ramp) Semi automatic pallet wrapper with Electro-Mechanical Brake Stretch up to 150%, 4000 lb. Load Capacity, Photo Eye, "Easy Thread Design" and HMI Touch Screen with Programmable Memory. Loads with forklift only.
Simply turn the switch to automatic operation and the machine will do the rest.
Features:
- Electro Mechanical Break Stretch @ up to 150%
- 4,000 lb. Load Capacity
- Photo Eye seeks pallet load height
- “Easy Thread Design”

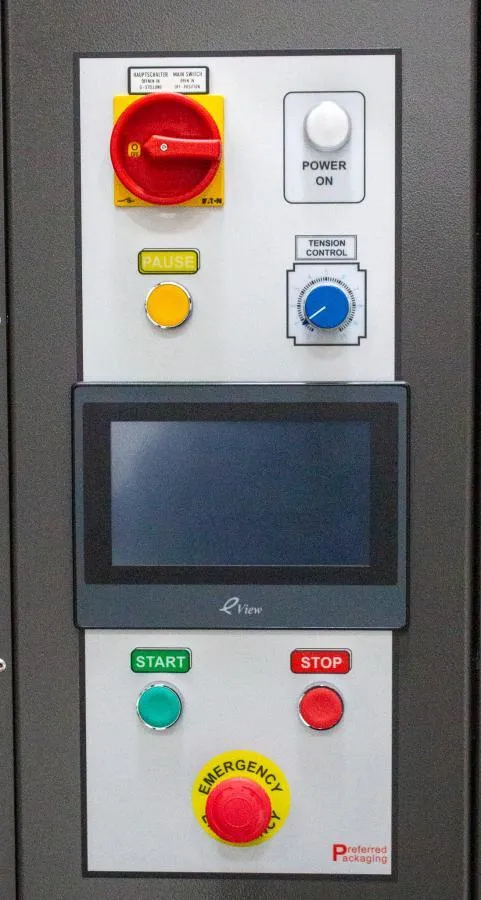

- 7” HMI Touch Screen with 12 Program Memory
- 110 Volt
- Variable Speed Turntable 0-12 RPM
- Independent dial controls on front panel for tension control
- Max load size 48” x 48” x 85” high
- 59” diameter diamond plate non-skid turntable top
- Cycle pause and Tension control
- Emergency safety stop switch
- Forklift portable and easy to move around
- Exceeds OHSA safety standards
- Belt drive for carriage – no messy chains to lubricate
- Home Position – returns to original position
- Mast pivots upward for easy set up and is secured by 6 bolts
- 110 volt power cord and plug
- AC motor invertors
Specifications:
|
Model |
PP-982-HP (no ramp) |
|
Production Rate |
30-40 loads/hour |
|
Power Requirements |
115 Volts, 1 Phase, 15 Amp |
|
Maximum Load Size |
50"L x 50"W x 85"H |
|
Maximum Load |
4,000-lbs |
|
Turntable |
59" Diameter |
|
Turntable Driver |
1/2HP AC Variable Speed 0-12rpm |
|
Turntable Drive Method |
Heavy Duty Chain ANSI #60 |
|
Turntable Support |
Heavy Duty Delrin Double Ring Roller Assembly |
|
Film Delivery System |
Mechanical Break Stretch System Designed to Produce Film Yields of up to 150% |
|
Machine Dimensions |
108"L x 59"W x 102"H |
|
Carriage Elevator |
Variable Speed 1/2HP - Drive Belt |
|
Controls |
PLC with 12 Program Memory |
|
Fork Lift Portable |
Yes |
|
Home Position |
Turntable Auto Returns to Home Position |
|
CE Approval |
Exceeds OSHA Safety Standards |
|
Film Capacity |
All Commercial 20" Wide Stretch Film |
|
Shipping Weight |
1,800-lbs |
