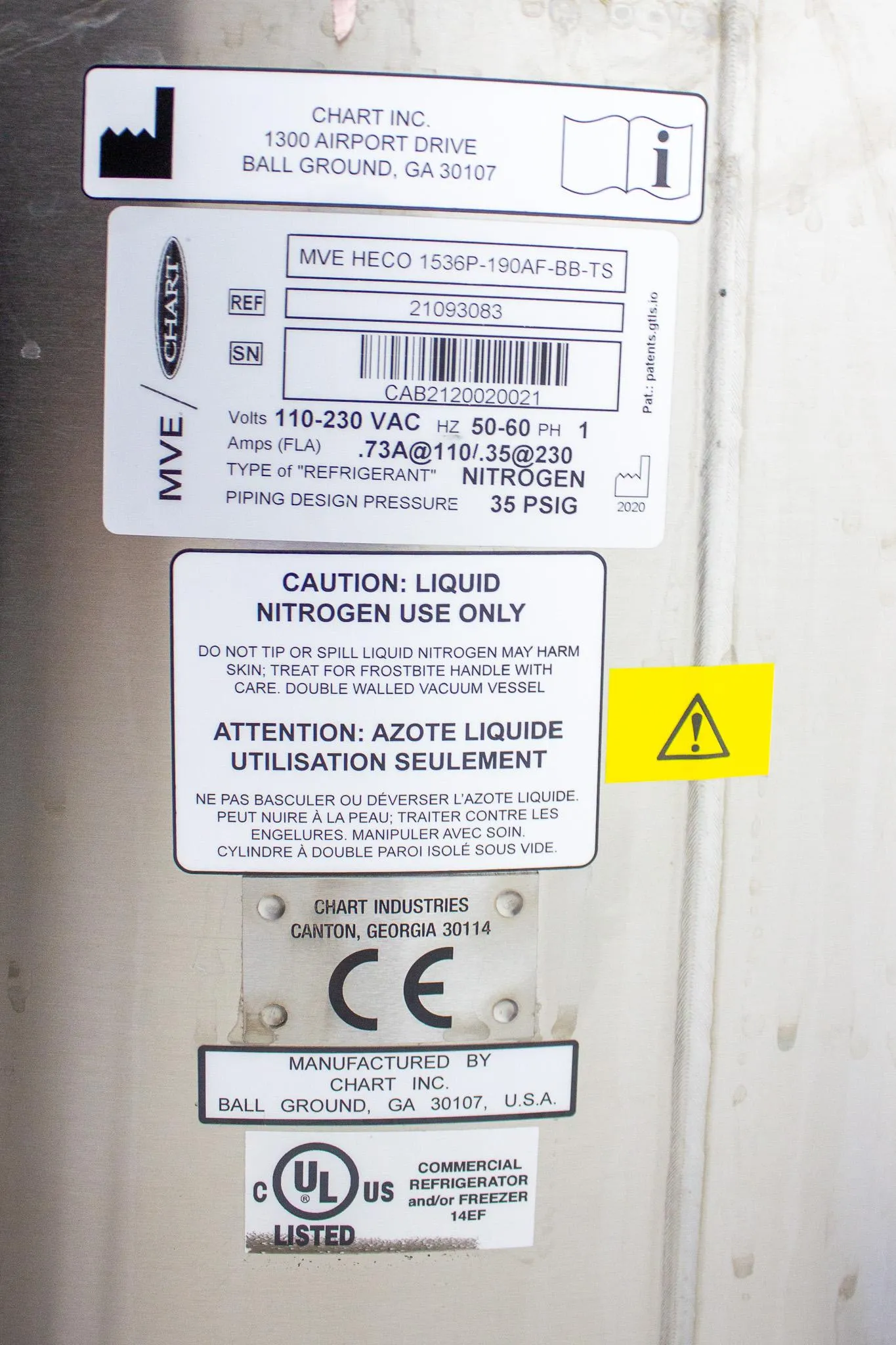

Chart MVE HECO Series 1500-190 Model 1536P-190AF-BB-TS Liquid Nitrogen Freezer

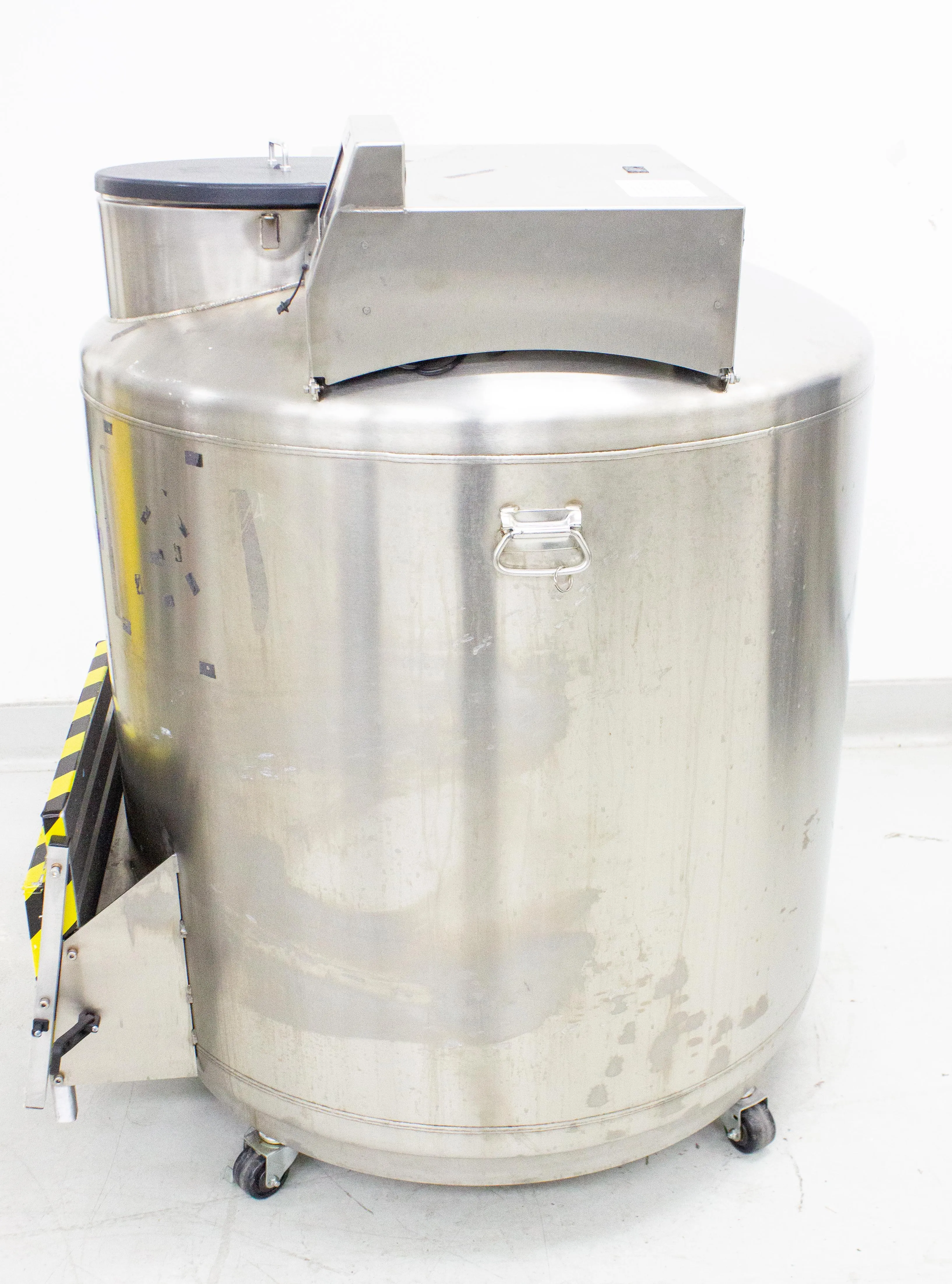

The MVE HEco 1536P-190 Liquid Nitrogen Freezer provides the most efficient cryogenic storage solution with a capacity of up to 36,400 2ml vials. This unit features an all stainless steel construction keeping a controlled temperature of -190C, touch screen controller, a low profile size for less lift-over height and full auto fill and gas bypass plus optional battery backup designed to bring you peace of mind.

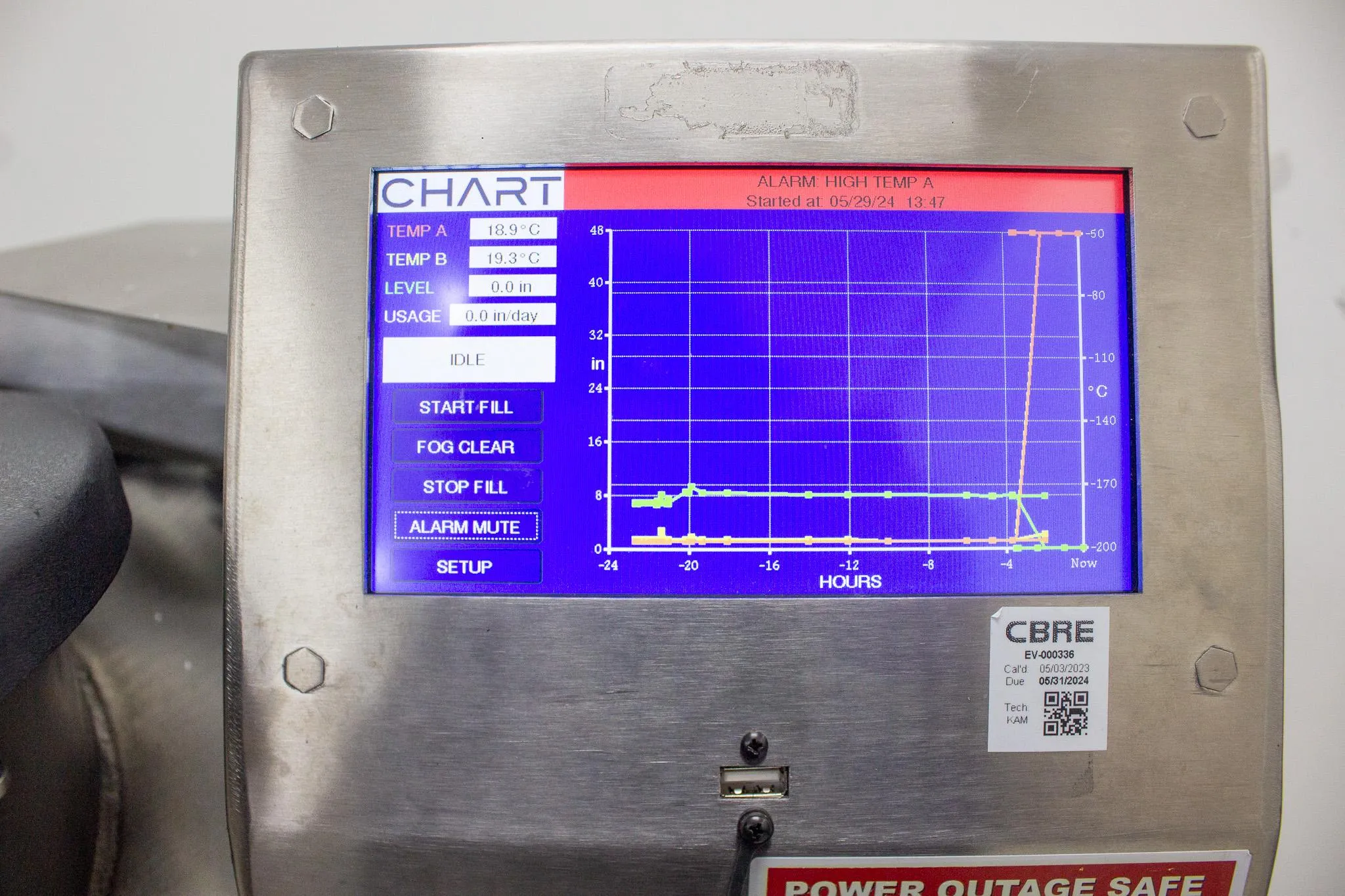

• Touch-Screen Controller
• LN2 efficiency
• Fully enclosed wiring and plumbing
• Vacuum jacketed transfer hose
• Dry sample storage
• -190°C top box temperature
• Lowest liftover height
• Single step standard
• Optional double-tier step
• Optional battery backup

• Max. Storage Capacity:
  • 1.2 & 2ml Vials: 36,400
  • # of Racks for 100 Cell Boxes: 24
  • # of Racks for 25 Cell Boxes: 16
  • # of Stages per Rack: 13
• Performance:
  • LN2 Capacity: 730 liters
  • LN2 Capacity under Tray: 115 liters
  • Static Hold Time (Vapor days): 17
  • Static Hold Time (Liquid Full days): 100
• Unit Dimensions:
  • Neck Opening: 17.4” / 442mm
  • Usable Internal Height: 28.8” / 732mm
  • Inner Diameter: 38.5” / 978mm
  • Overall Height: 54.7” / 1,389mm
  • Liftover Height: 37.3” / 947
  • Door Width Requirement: 44” / 1,118
  • Weight Empty: 700 lbs / 318kg
  • Weight Liquid Full: 2000 lbs / 907kg
• Blood Bag Capacities:
  • Bag 791 OS/U (25ml): 2,905
  • Bag 4R9951 (50ml): 1,488
  • Bag 4R9953 (250ml): 812
  • Bag 4R9955 (500ml): 608
  • Bag DF200 (200ml): 496
  • Bag DF700 (700ml): 256
