BIODOT LM9000 Auto Lamination System
- Make BIODOT
- Hertz 50Hz/60Hz
- Model LM9000
- Serial LM90000073
- Weight 720.0 Lb
- Voltage 120V/220V
- Warranty 30-Day Warranty On Part
- Dimensions 60.0in x 60.0in x 60.0in
- Shipping Type Freight
- Item Condition New
- Manufacturing Date Does Not Apply
Product Information
The BIODOT LM9000 Auto Lamination System is a precision continuous lamination machine designed for the Life Science industry. With a modular design, it supports various materials and configurations for diverse product requirements. It offers features such as membrane payout module with micrometer controlled auto tracking, quick release and adjustable guide rollers, moderate and high volume production throughput, and data storage to support multiple setups. The LM9000 is designed for continuous lamination onto a plastic support backing with adhesive, making it suitable for lateral flow tests, immunoblots, dry chemistry, and custom applications. With dimensions of 2006 x 508 x 863 mm and a weight of 550 lbs, it requires a power supply of 110/220 VAC, 50/60 Hz along with 60 - 125 psi clean/dry air. This unit comes with a 30-Day Warranty, 100% Parts and Labor. Software not included.
Technician comment

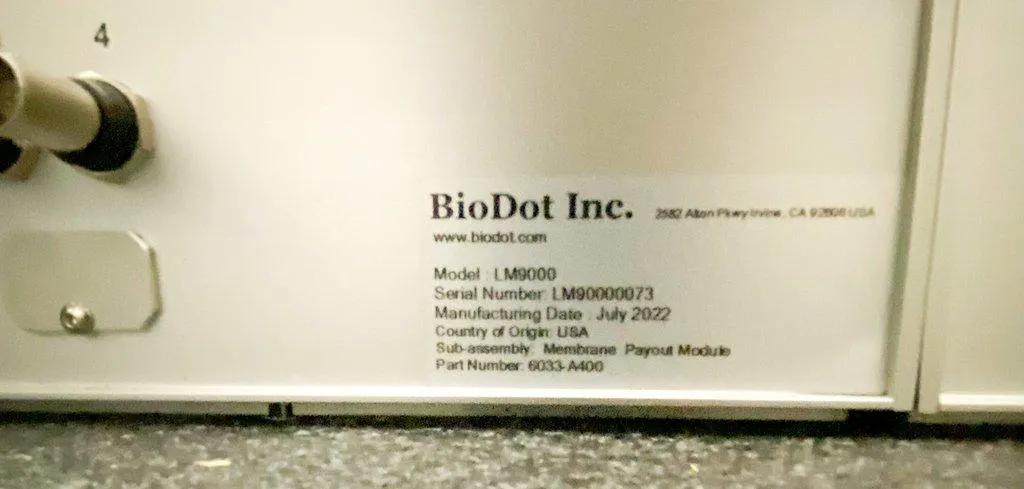

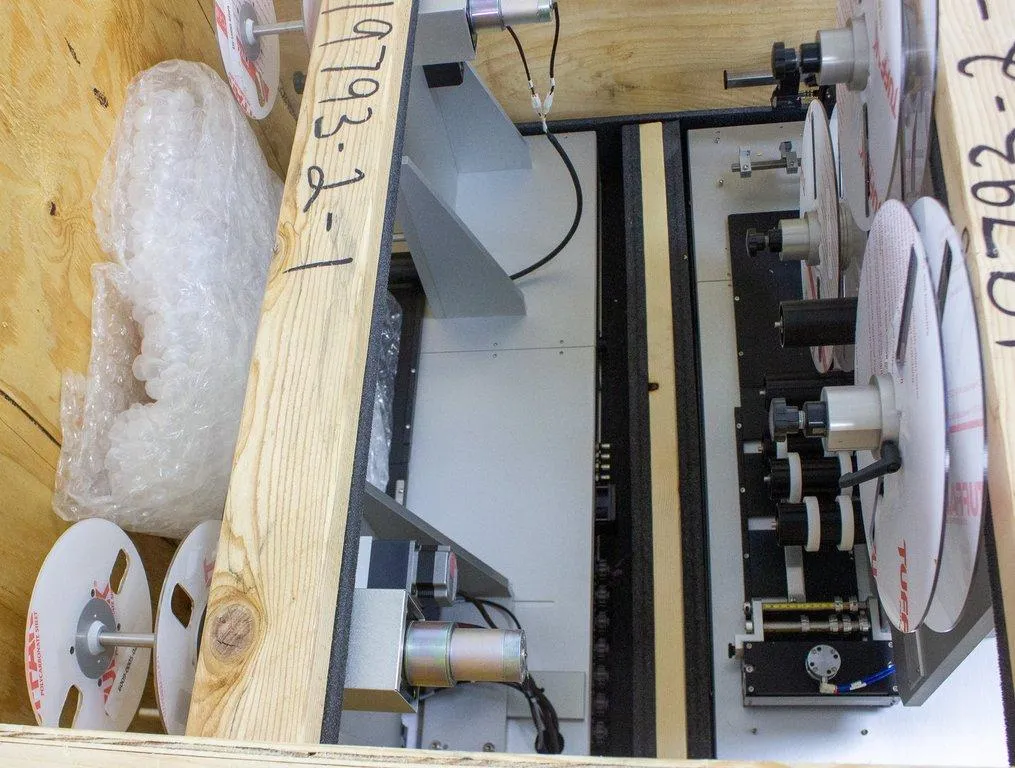

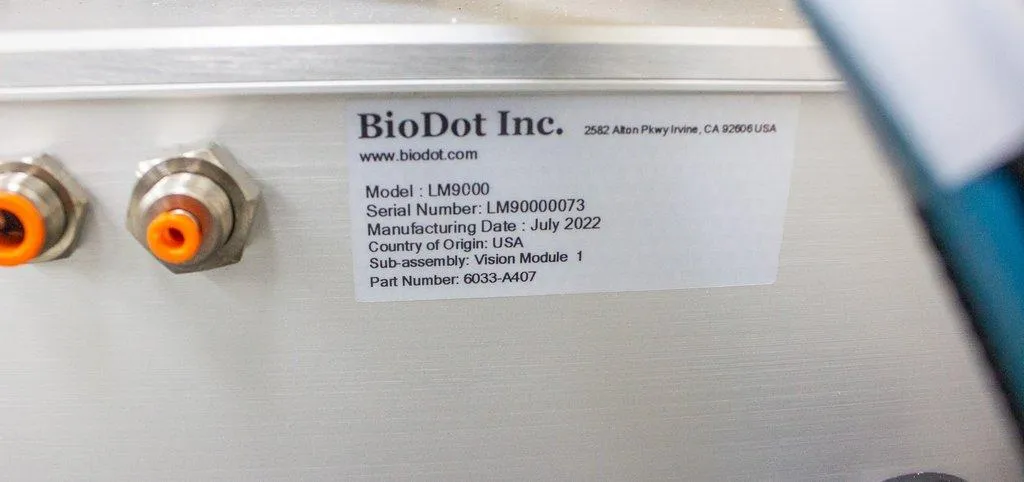

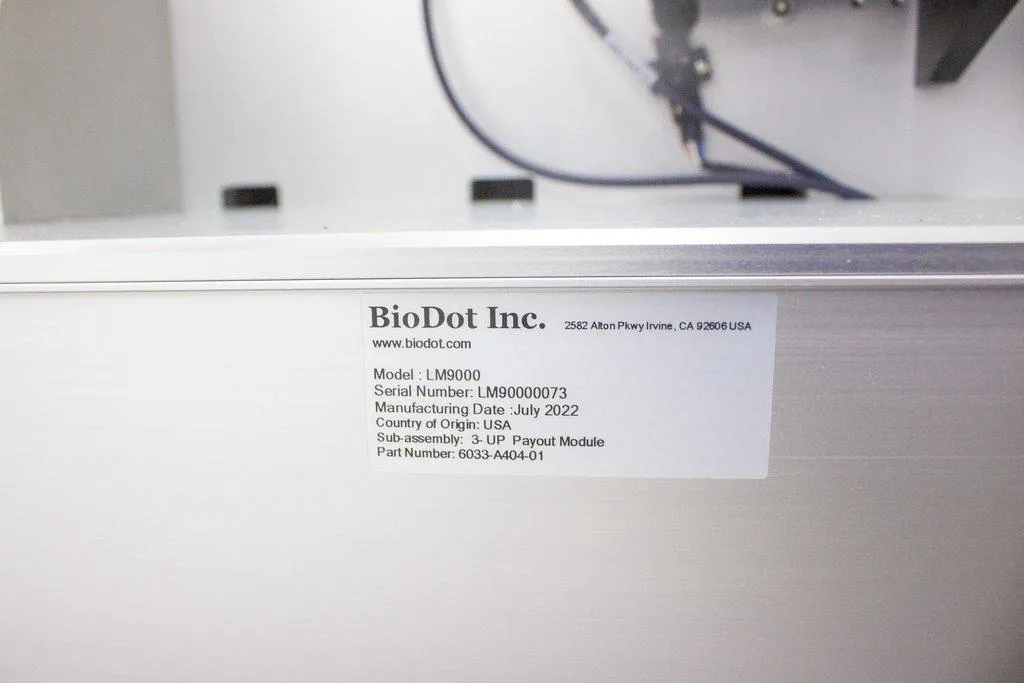

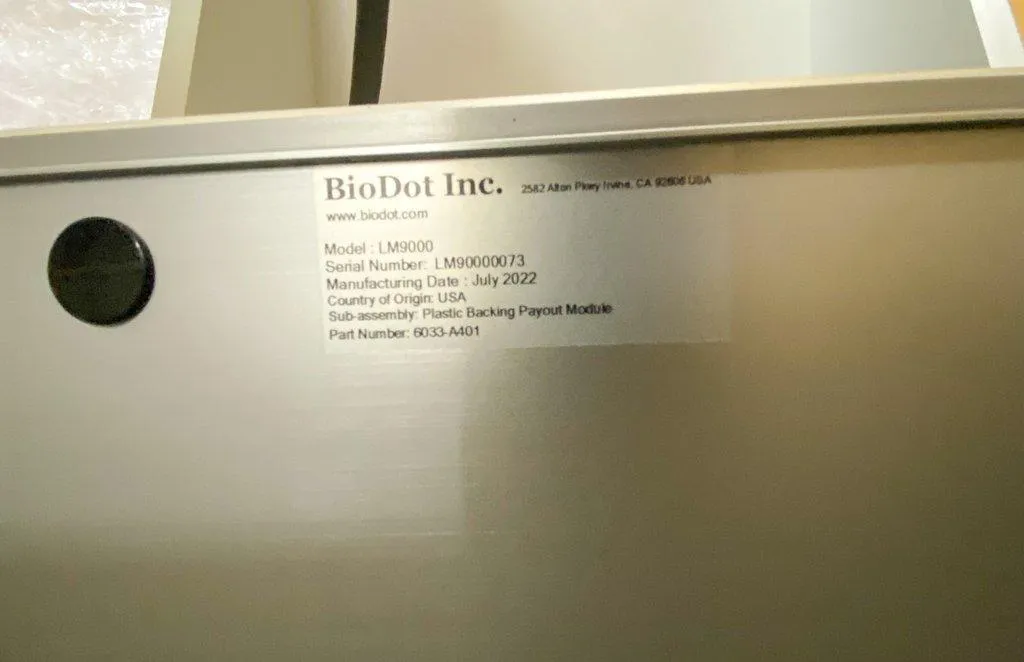

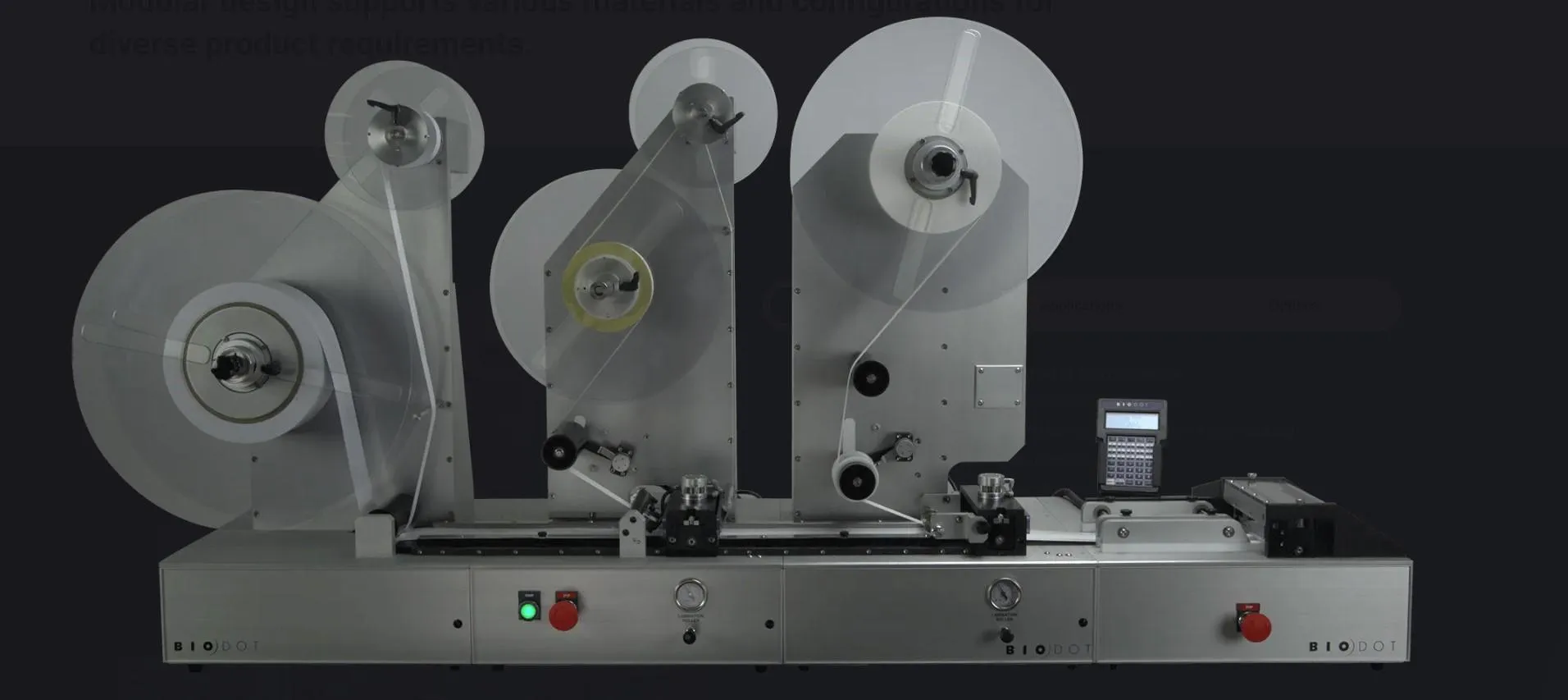

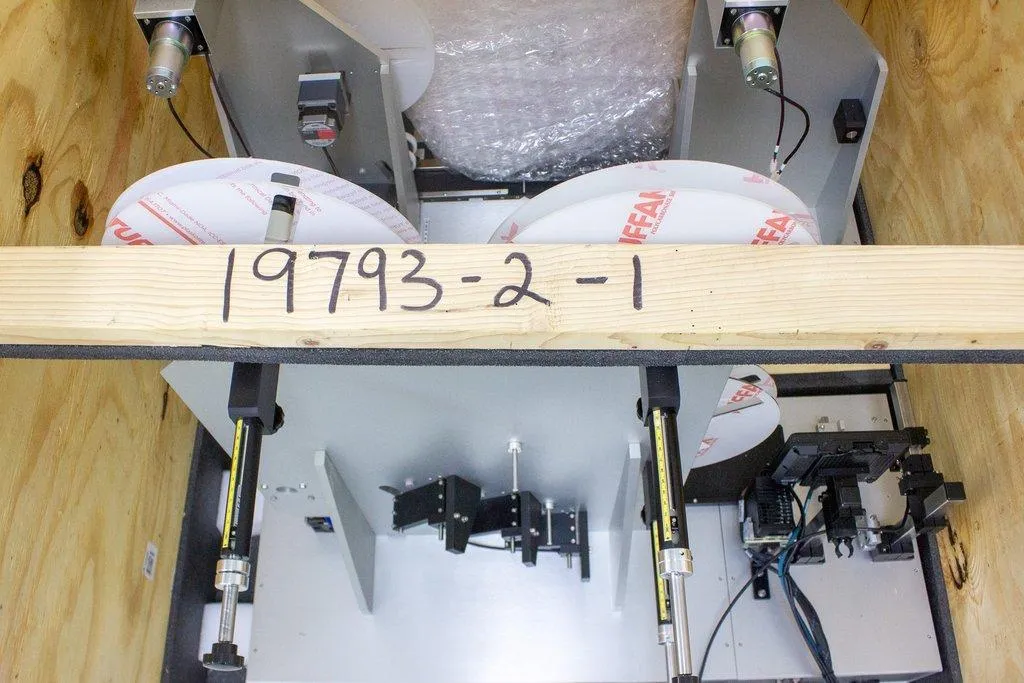

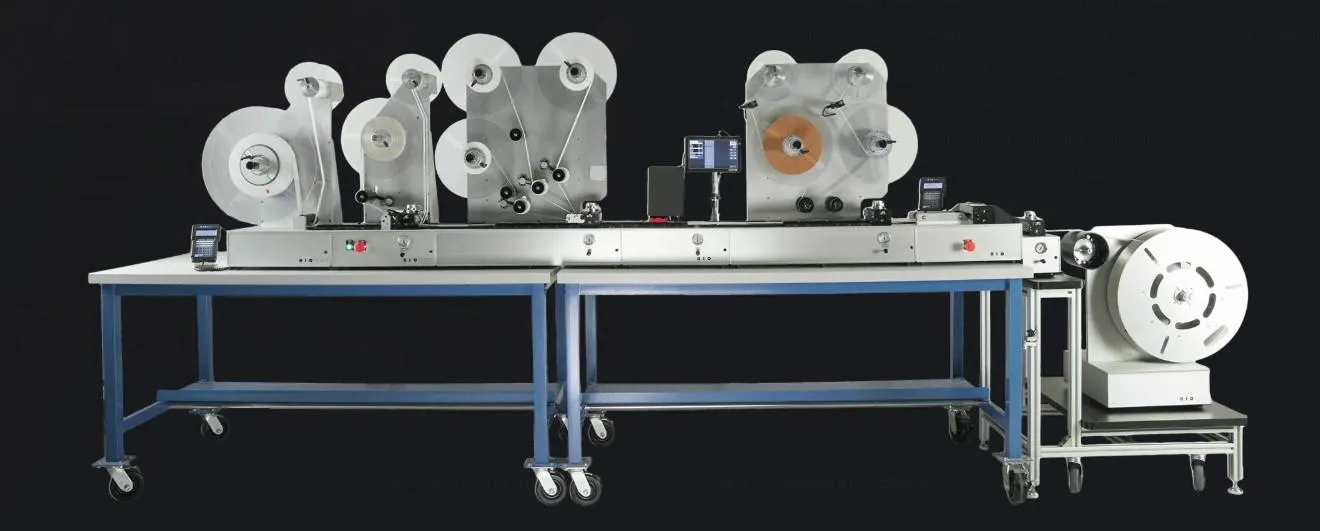

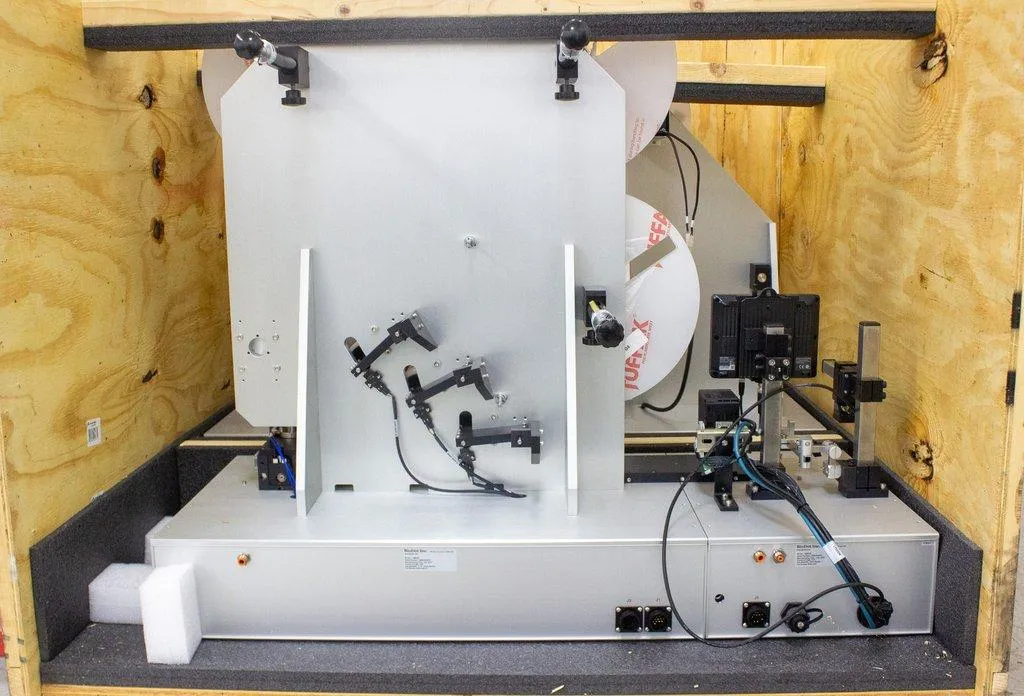

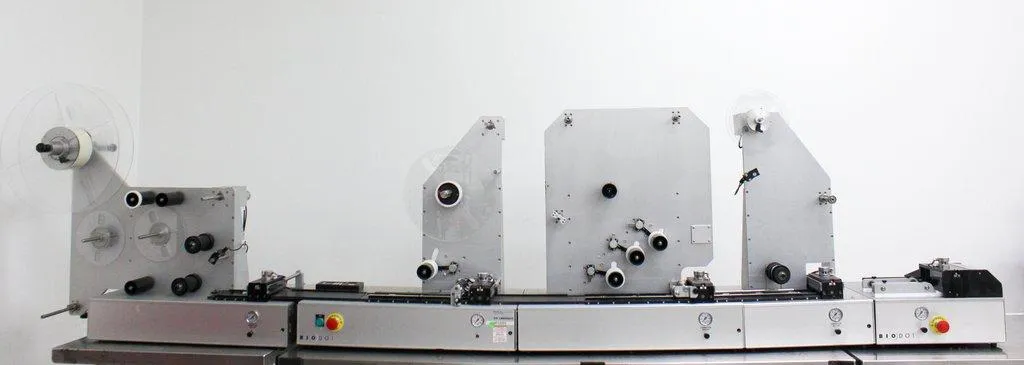

Includes: LM9000 Membrane Payout Module, Plastic Backing Payout Module, 3-UP Payout Module, Vision Module. Unit brand NEW in crate. (Featured image for display purposes only)
Key Features
- Precision continuous lamination of web materials
- Flexible design for multiple processes or products
- Membrane payout module with micrometer controlled auto tracking
- Quick release and adjustable guide rollers
- Moderate and high volume production throughput
- Data storage to support multiple setups
- Chassis mounted
Specifications
- Backing Width: Up to 100 mm
- Backing Reel Core: 3/6.0 in. (76/152 mm)
- Backing Reel OD max: 18 in. (458 mm)
- Payout Width: Up to 100 mm
- Payout Reel Core: 3.0 in. (75 mm)
- Payout Reel OD max: 12/16.0 in. (304/406 mm)
- Liner Take-up Reel OD max: 8.0 in. (200 mm)
- Linear Web Speed: Up to 100 mm/sec
- Lamination Tolerance: Typically < ± .25 mm
- Lamination Roller Pressure: 0 - 40 PSI
- Dimensions (L x W x H): 79 in. x 20 in. x 34 in.* (2006 x 508 x 863 mm)
- Power Requirement: 110/220 VAC, 50/60 Hz
- Air Requirement: 60 - 125 psi (clean/dry air)
- Weight: 550 lbs
Weight
Metric: 249.48 kg
Imperial: 550 lb
Dimensions
Metric: 200.6 cm x 50.8 cm x 86.3 cm
Imperial: 79 in x 20 in x 34 in
Harmonized Code
847989
Harmonized Code Details
Machines and mechanical appliances having individual functions, not specified or included elsewhere in this chapter, Parts of the goods of subheading 8479.89.90, Lamination machines
