Heidolph Hei-Torque 400 Overhead Stirrer 400 RPM 100L Mix High Viscosity
Heidolph
Details
-
CategoryHomogenizer / Stirrer
-
Dimension17.0in x 13.0in x 4.0in
-

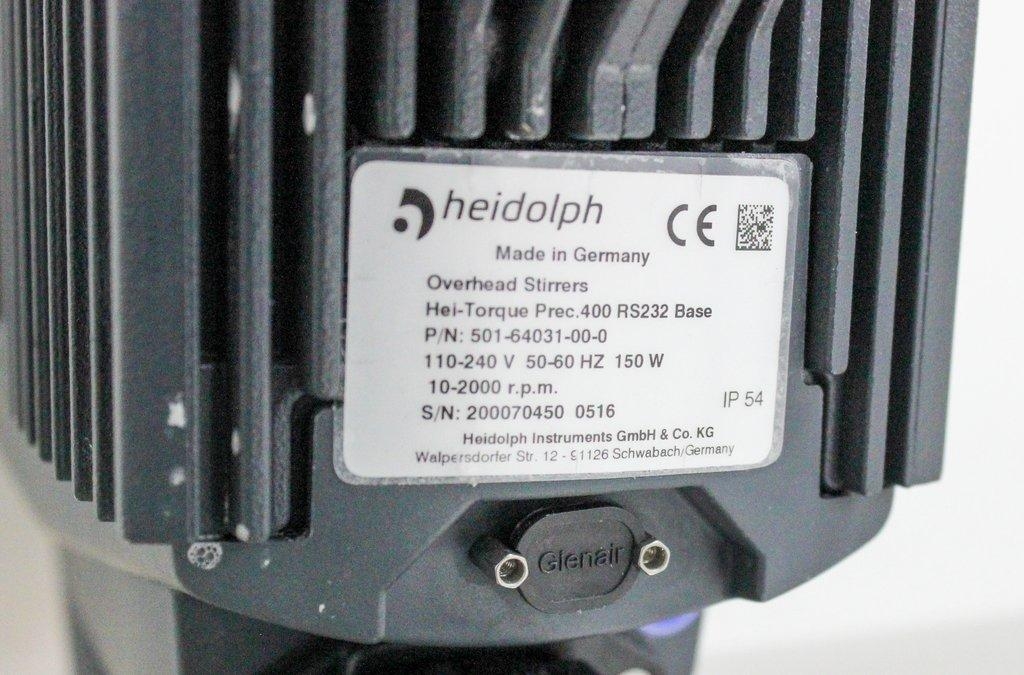

Serial200070450 0516
-
Shipping TypeFedEx Ground
-
ManufacturingDoes Not Apply
-
Voltage / Hertz120V/220V / 50Hz/60Hz
Description
This Heidolph Hei-Torque 400, manufactured in Germany, is a VG (Very Good) condition laboratory overhead stirrer designed for powerful stirring of up to 250,000 mPas viscosities or 100 liters of H2O. The device features a 2-gear stage design enabling efficient stirring at speeds up to 400 RPM, making it profoundly suitable for mixing highly viscous media. It can also operate up to 2,000 RPM in the second-speed gear. Key functionalities include ramp programming, process monitoring, and connectivity options with USB and RS232 interfaces for integration with computers, PLCs, or automation systems. The unit includes remote control and logging capabilities with the Hei-Control software. Its precise EC motor technology ensures minimal noise and safe operation with start/stop touch-function. The quick-action chuck accommodates multiple stirring tools, making it suitable for use in fume hoods or reactor drives.
Technician comment
Heidolph Hei-Torque 400 was tested to reach max set point RPM. Unit is preowned with slight wear from normal use. Only what is pictured included. Does not include stand. See photos for details.
Key Features
- 2-Gear Stage Design
- 400 RPM Speed Range
- 250,000 mPas Viscosity Capacity
- 100 Liters Volume Capacity
- USB/RS232 Connectivity
- Ramp Programming Capability
- Minimal Noise EC Motor

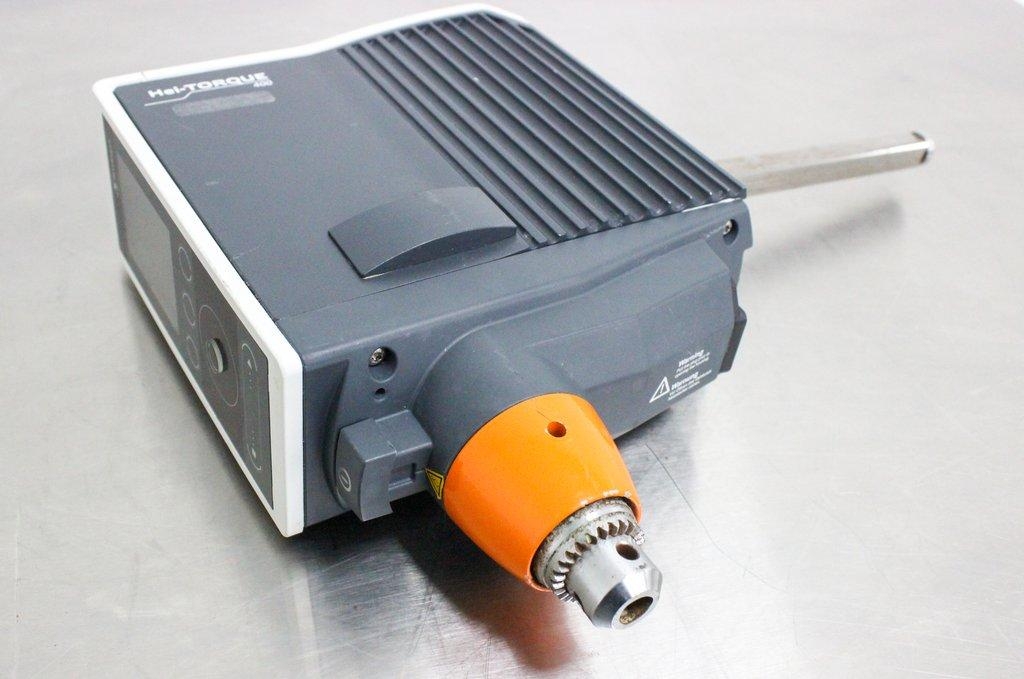

- Quick-action Chuck
Specifications
- Drive: EC Motor
- Speed Range: Gear I 10-400 RPM; Gear II 20-2,000 RPM
- Protection Class (EN 60529): IP54
- Acoustic Pressure: < 50 dB
- Rated Voltage: 100 – 240 V AC; 50/60 Hz
- Power Input: 150 W
- Max Torque: 400 Ncm
- Motor Protection: KTY Temperature Monitoring
- Overload Protection: Automatic Cut-out with Display
- Speed Control: Electronic
- Stirrer Shaft (ø in mm): 2.5 – 10.5
- Permissible Duty Cycle: Suitable for Continuous Operation
Weight
Imperial: 15.6 Pounds
Metric: 7.08 Kilograms
Shipping Dimensions
Imperial: 20.4 lb x 15.6 lb x 4.8 lb
Metric: 51.82 cm x 39.62 cm x 12.19 cm
Harmonized Code
847989
Harmonized Code Details
Code 847989 refers to 'Machinery having individual functions, not elsewhere specified or included in Chapter 84.' This code was chosen because the Hei-Torque 400 fits the description of specialized machinery not covered under specific codes.
