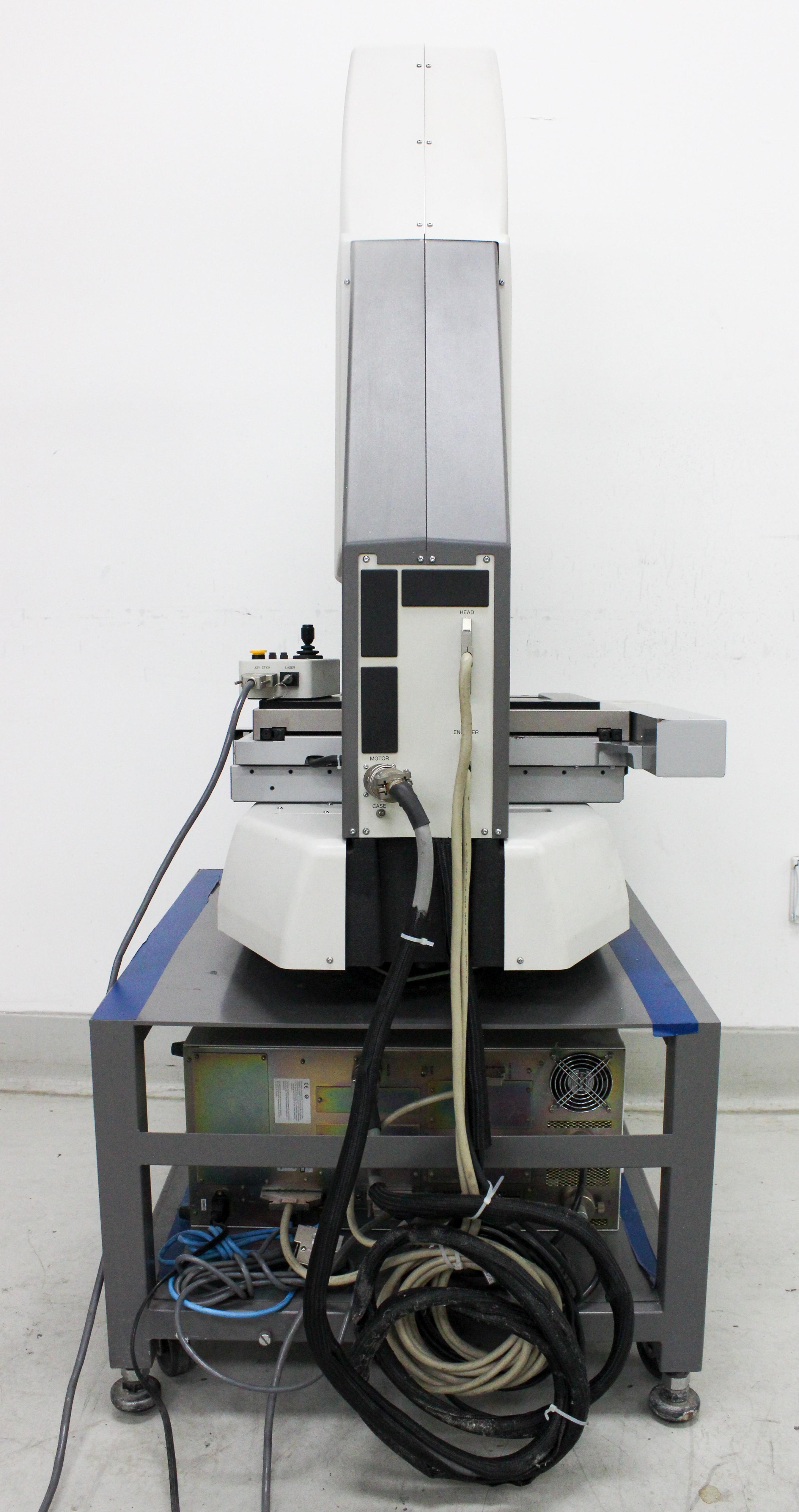

Nikon NEXIV VMR-3020 Type 1 Vision Measurement System with 15X Zoom
Nikon
Details
-
CategoryMicroscope / Imager
-
Dimension31.0in x 28.0in x 67.0in
-
Serial1303684
-
Shipping TypeFreight
-
ManufacturingDoes Not Apply
-
Voltage / Hertz120V/220V / 50Hz/60Hz
Description
The Nikon NEXIV VMR-3020 Type 1 is a reliable vision measurement system equipped with a 300 x 200 mm stage stroke. Known for its versatility, it is well-suited for measurements of mechanical, molded, and stamped parts among others. With a long working distance of 50mm and a 15X zoom, it delivers high precision across a variety of tasks, including semiconductor, substrate, and connector evaluations. Despite being unable to fully test in-house due to missing specialized software, this equipment powers on and appears functional, showing no known issues beyond cosmetic wear. The unit includes power cords and appears to have been sourced from a well-maintained lab environment.
Technician comment

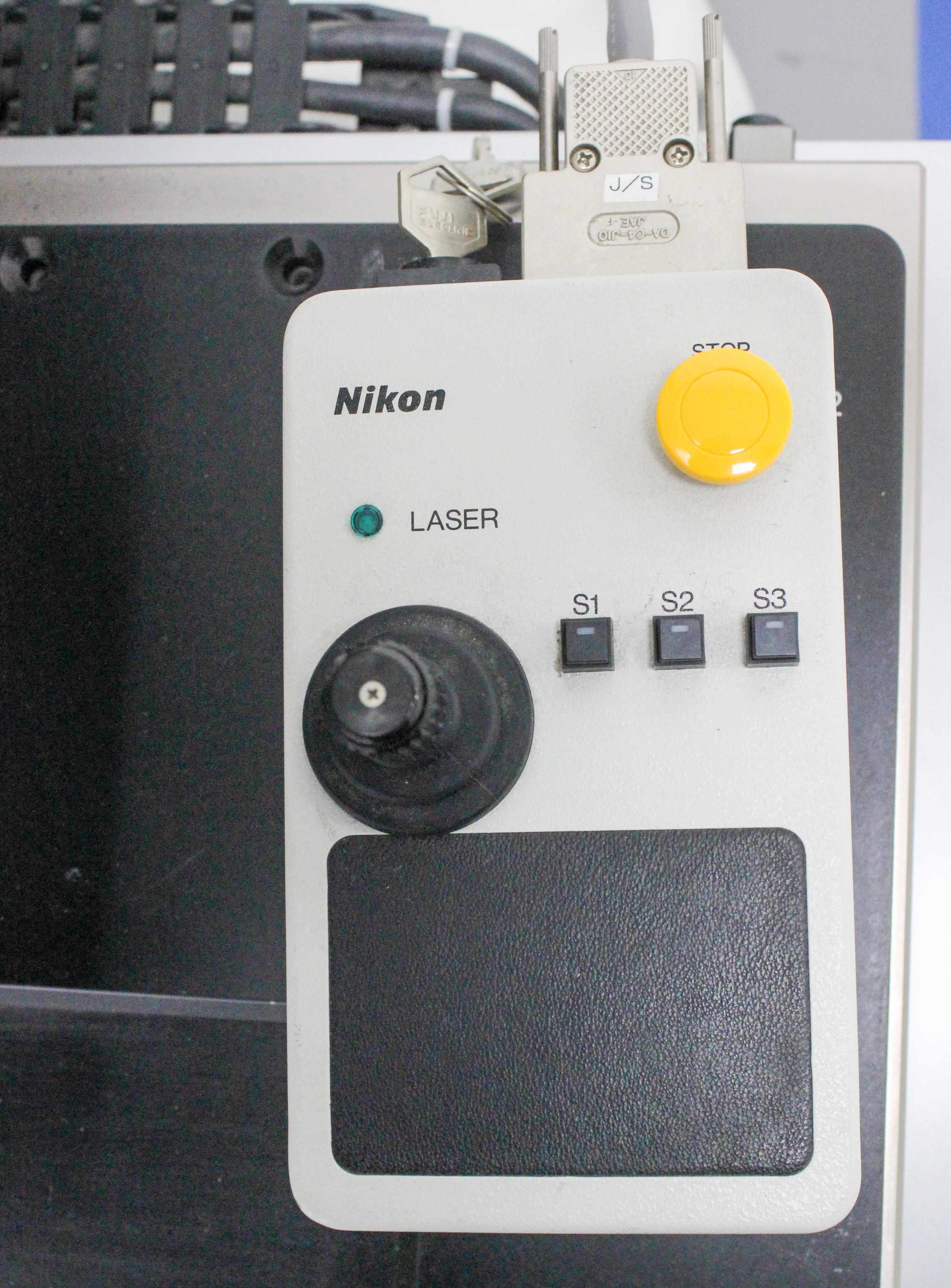

The Nikon VMR3020 Type 1 powers on with a working stage controller and responsive joystick. Unit was sourced from a working lab. Full testing is limited without specialized software, interfaces, or calibration setup; excludes PC and software. See photos for details.
Key Features
- 300 x 200 mm stage stroke for varied measurement tasks
- Flexible illumination choices for edge detection
- 15X zoom with 5-step magnification
- 50mm working distance accommodating height variances
- Linguistic evaluation and 3D profiling with Laser AF
Specifications
- Stroke (XxYxZ): 300 x 200 x 150 mm (11.8 x 7.9 x 5.9 in.)
- Minimum readout: 0.1µm
- Maximum workpiece weight: 20kg
- Measuring accuracy U1X, U1Y: 0.5 + 4L/1000µm
- Camera: B&W 1/3-in. CCD, color 1/3-in. CCD
- Power source: AC100V±10% 50/60Hz
- Power consumption: Max. 11A
- Dimensions: 690 x 730 x 1725 mm (27.2 x 28.7 x 67.9 in.)
Weight
Imperial: 528.0 Pounds
Metric: 239.5 Kilograms
Shipping Dimensions
Imperial: 37.2 lb x 33.6 lb x 80.4 lb
Metric: 94.49 cm x 85.34 cm x 204.22 cm
Harmonized Code
903180
Harmonized Code Details
903180 - Optical instruments and appliances, non-elsewhere specified. This code was selected based on the device's category as a vision measurement system with significant optical components.
