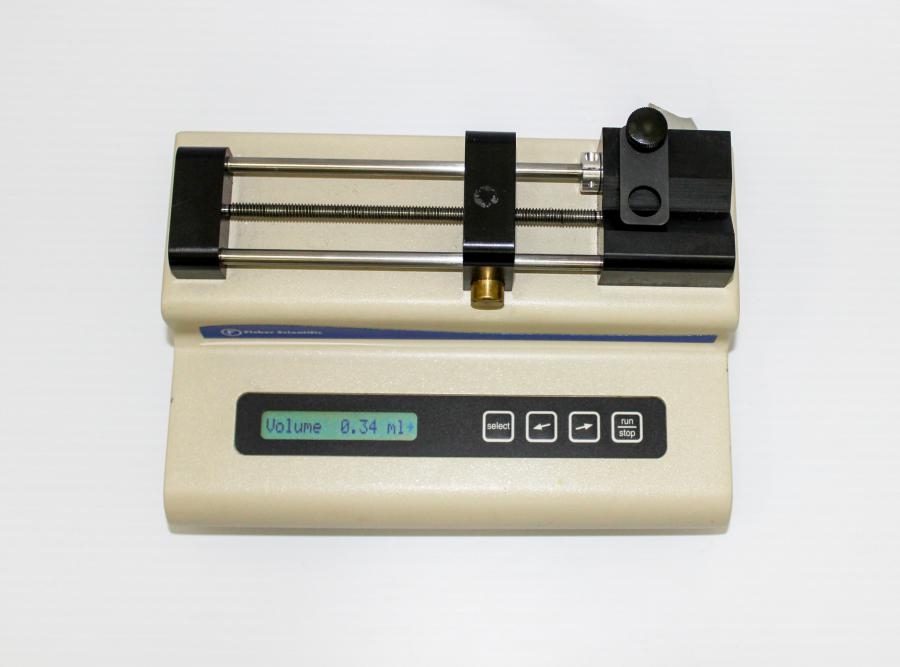

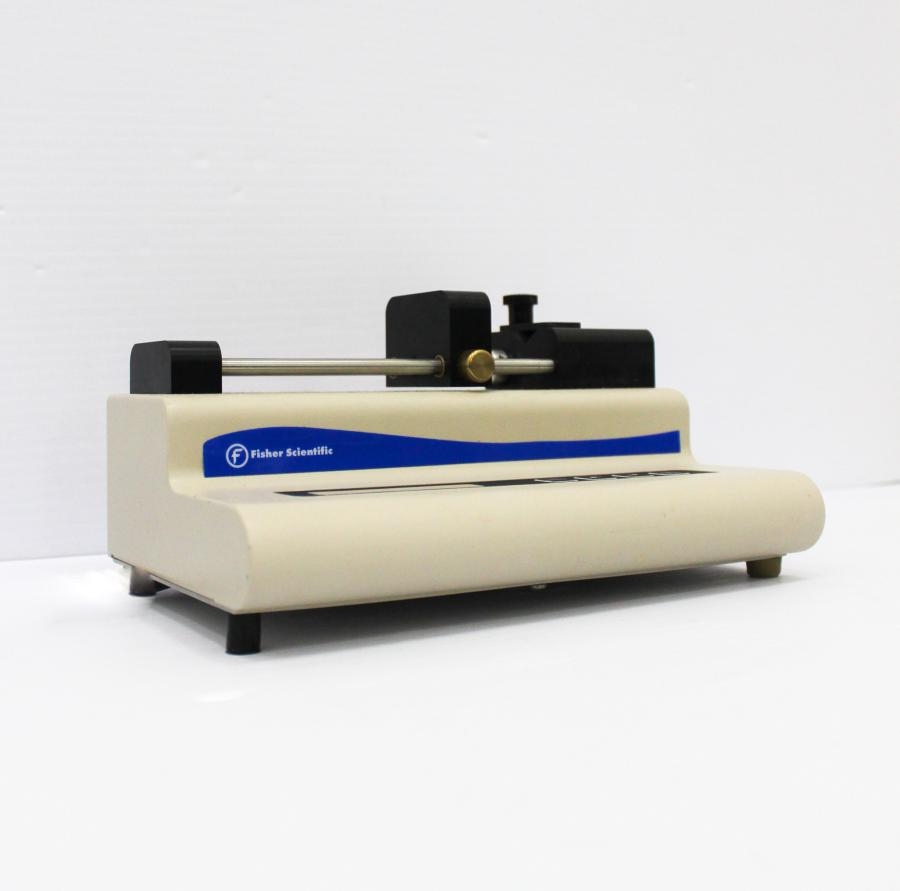

Fisher Scientific Laboratory Syringe Infusion Pump Model 78-0100I

Product Information

Fisher Scientific Laboratory Syringe Infusion Pump Model 78-0100I is a high-quality, economical pump suitable for laboratory use. It has been tested to specifications and has slight cosmetic blemishes from normal use. This single syringe pump is easy-to-use and combines precise flow with exceptional durability, making it a cost-effective solution for infusing fluids. Dispensing volume ranges from 10L to 60mL, with a wide flow range of up to 519mL/hour, and a high-visibility backlit LCD. It has an auto shutoff volume dispense mode, fast setup with a built-in syringe size table, and rapid adjustments with fast forward/reverse capability. It includes a stall indicator, power failure indicator, quick-release drive nut, and guide rod clamp to prevent syringe damage. Its durable housing with welded seams ensures reliability. Applications include calibrating, diluting, dispensing, dosing, emulsifying, fluid transfer, and infusion.

• Dispensing volume: 10L to 60mL
• Wide flow range up to 519mL/hour

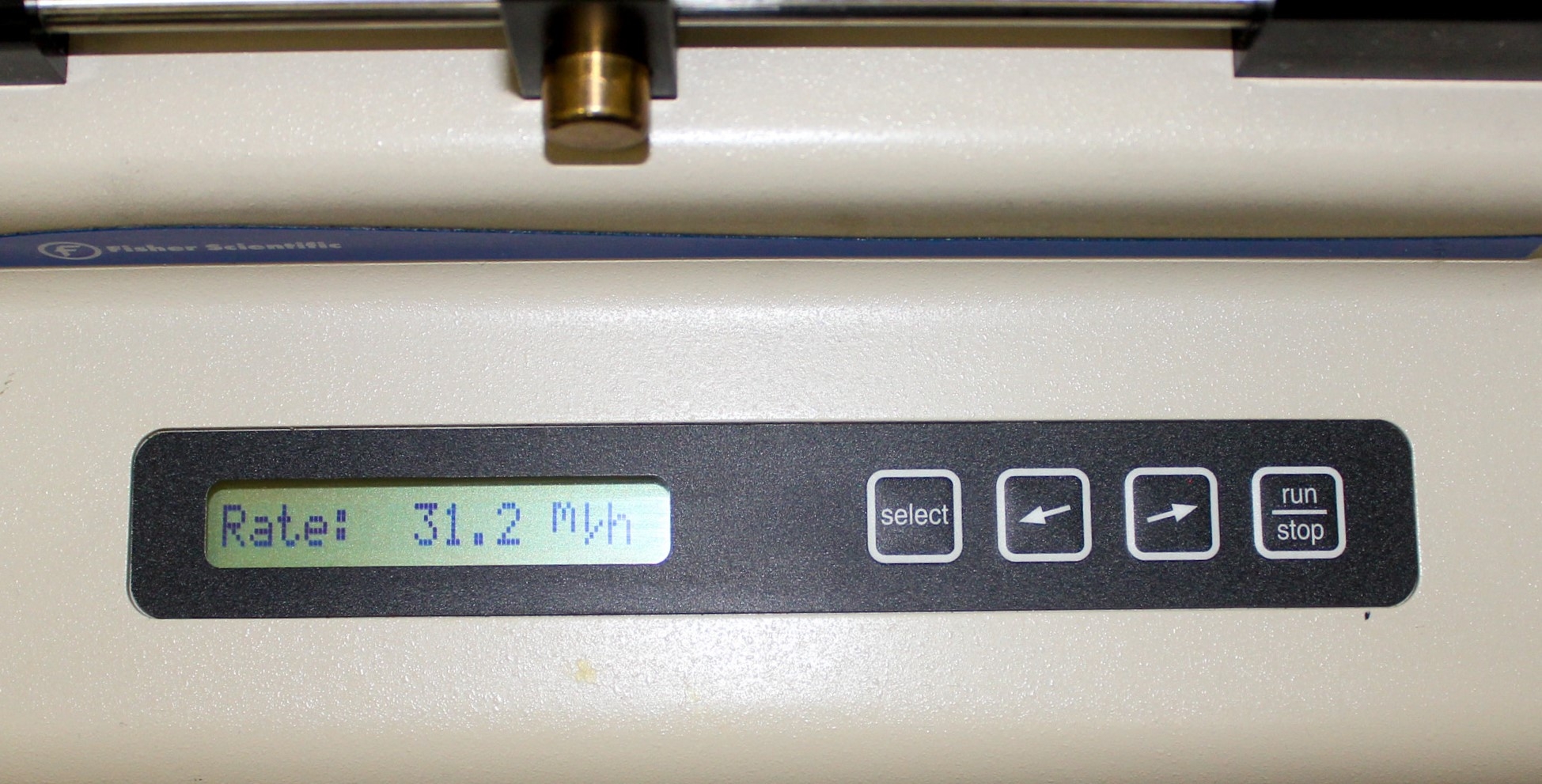

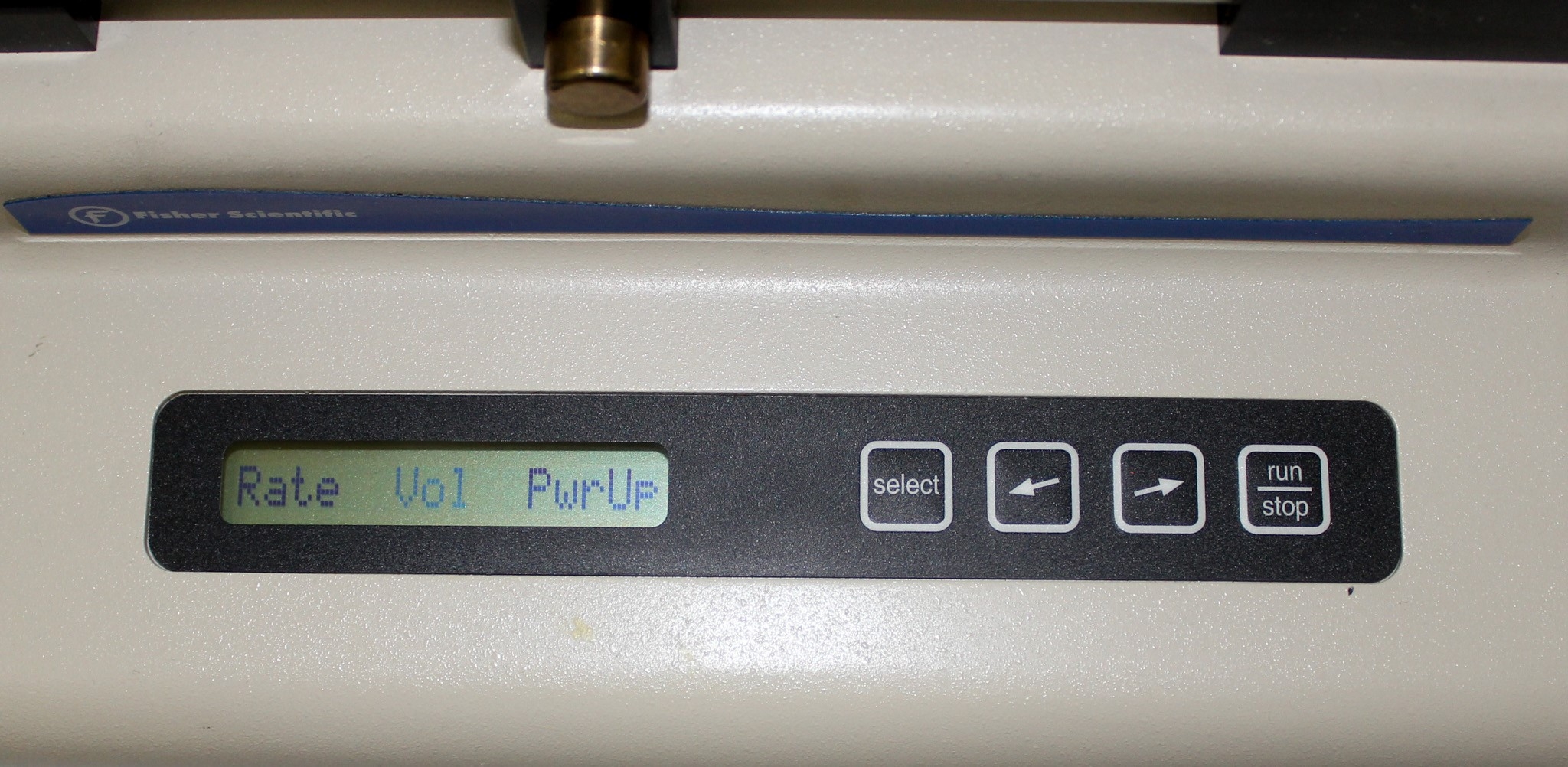

• High-visibility backlit LCD
• Auto shutoff volume dispense mode
• Fast setup with built-in syringe size table
• Rapid adjustments; fast forward/reverse
• Stall indicator and power failure indicator
• Quick-release drive nut for fast syringe installation and removal
• Guide rod clamp prevents syringe damage
• Durable housing with welded seams

• Model: Single Syringe Pump
• Capacity (Metric): 10 L to 60 mL
• Linear Force (English): 20 lb.
• Type: Syringe Pump
• Flow Rate: 519 ml/hr
• Electrical Requirements: 110-120 V 60 Hz
• Display Type: Backlit LCD
• Number of Channels: 1
• Linear Force (Metric): 9kg
• Reproducibility: 0.1%
• Applications: Calibrating, diluting, dispensing, dosing, emulsifying, fluid transfer, infusions
• Flow Rate Accuracy: <1%
• Frequency: 60 Hz

Metric: 4.5359237 kg
Imperial: 10.0 lb

Metric: 22.86 cm x 17.78 cm x 30.48 cm
Imperial: 9.0 in x 7.0 in x 12.0 in

901890

Medical, surgical, dental or veterinary instruments and appliances; other medical equipment
