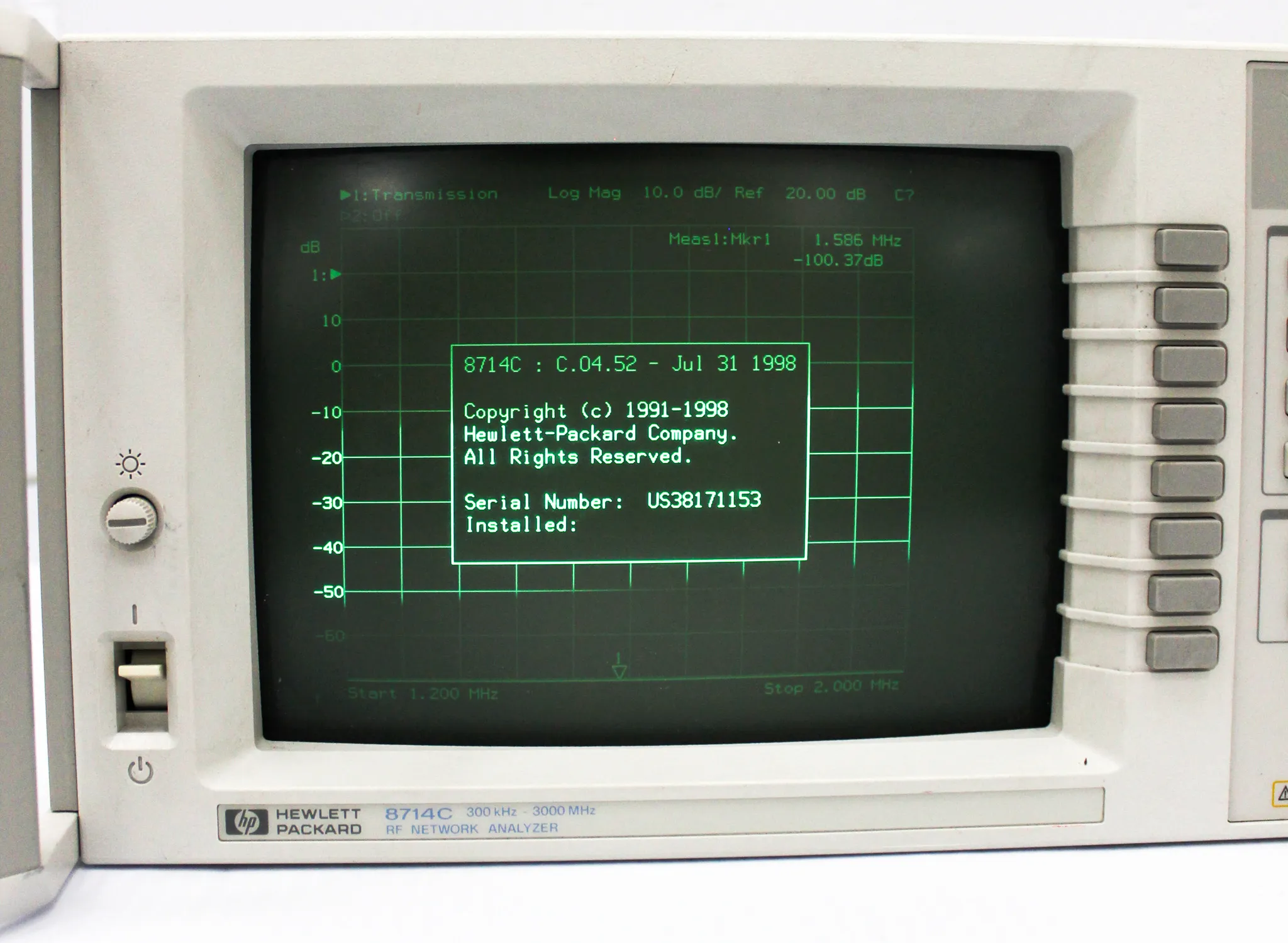

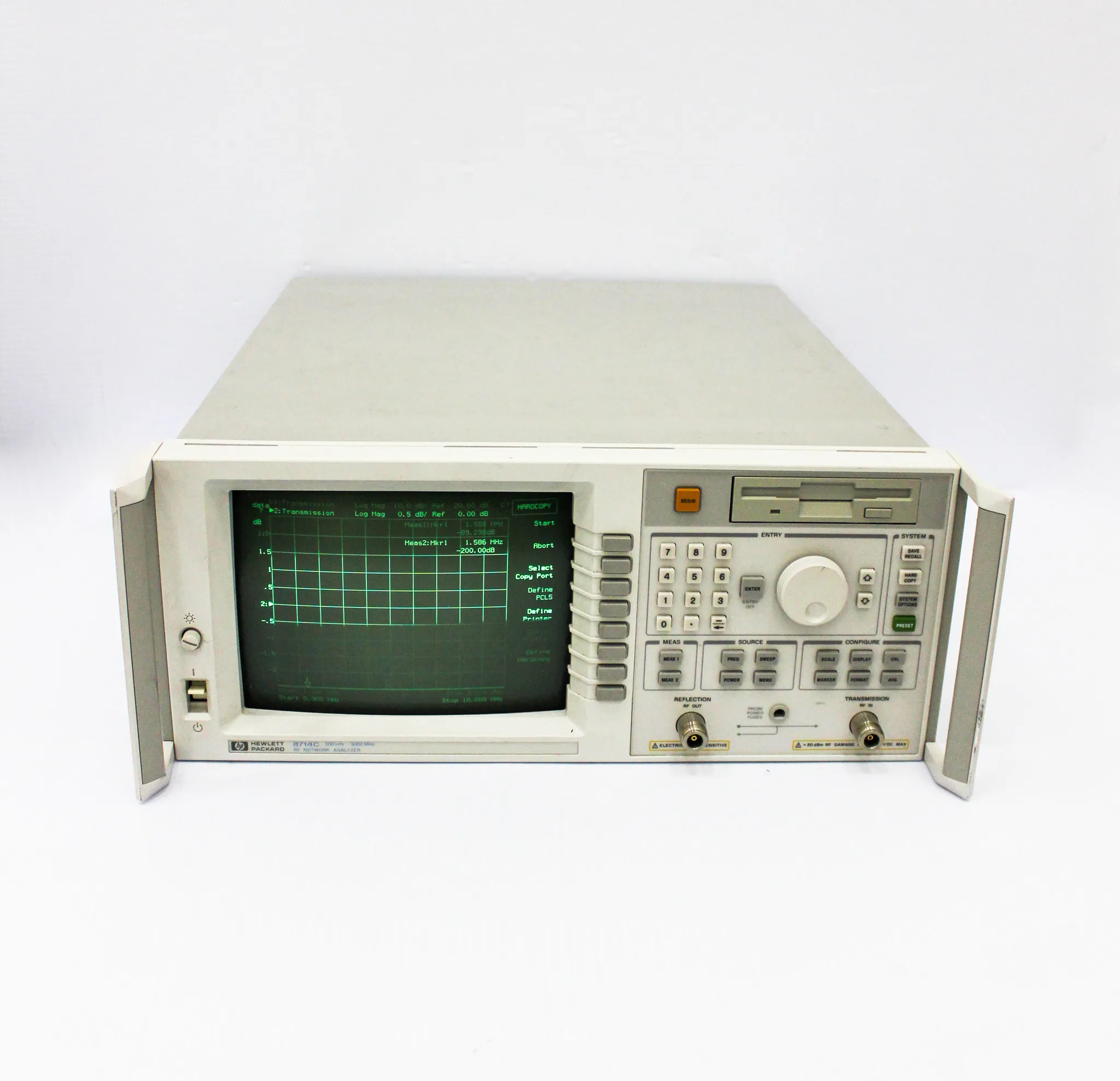

HP Hewlett Packard 8714C RF Network Analyzer 300kHz-3000MHz

Product Information

The HP Hewlett Packard RF Network Analyzer model: 8714C is a 300 kHz to 3 GHz RF Economy Network Analyzer. This unit has been tested to specifications and features a built-in transmission/reflection test set with a full range of magnitude and phase measurements. It integrates an RF synthesized source, transmission/reflection test set, multi-mode receivers, and display in one compact box. The 8714C is optimized for production measurements of reflection and transmission parameters and is easy to use. It provides enhanced measurement accuracy with advanced vector-error-correction techniques and a wide range of output power levels to test active devices and components. The 8714C is designed for use in various sectors including research and development, production, and quality control, and finds applications in telecommunications, aerospace, defense, and medical industries.

• Integrated transmission/reflection test set and synthesized source
• Narrowband and broadband detection
• Dynamic range of greater than 100 dB in narrow band measurement mode
• Advanced vector-error-correction techniques for enhanced measurement accuracy
• Wide range of output power levels to test active devices and components

• Connectivity Interface Type: GPIB
• Directivity(dB): 40dB
• Display / Meter Type:Digital / Monochrome
• Input Impedance: 50
• Maximum Input (dBm):23dBm
• Test Port Connector Type:Type N Female (50 Ohm)
• Minimum Frequency: 300kHz
• Maximum Frequency: 3 GHz

Metric: 25.4 kg
Imperial: 56 lb

Metric: 58.42 cm x 63.5 cm x 38.1 cm
Imperial: 23 in x 25 in x 15 in
