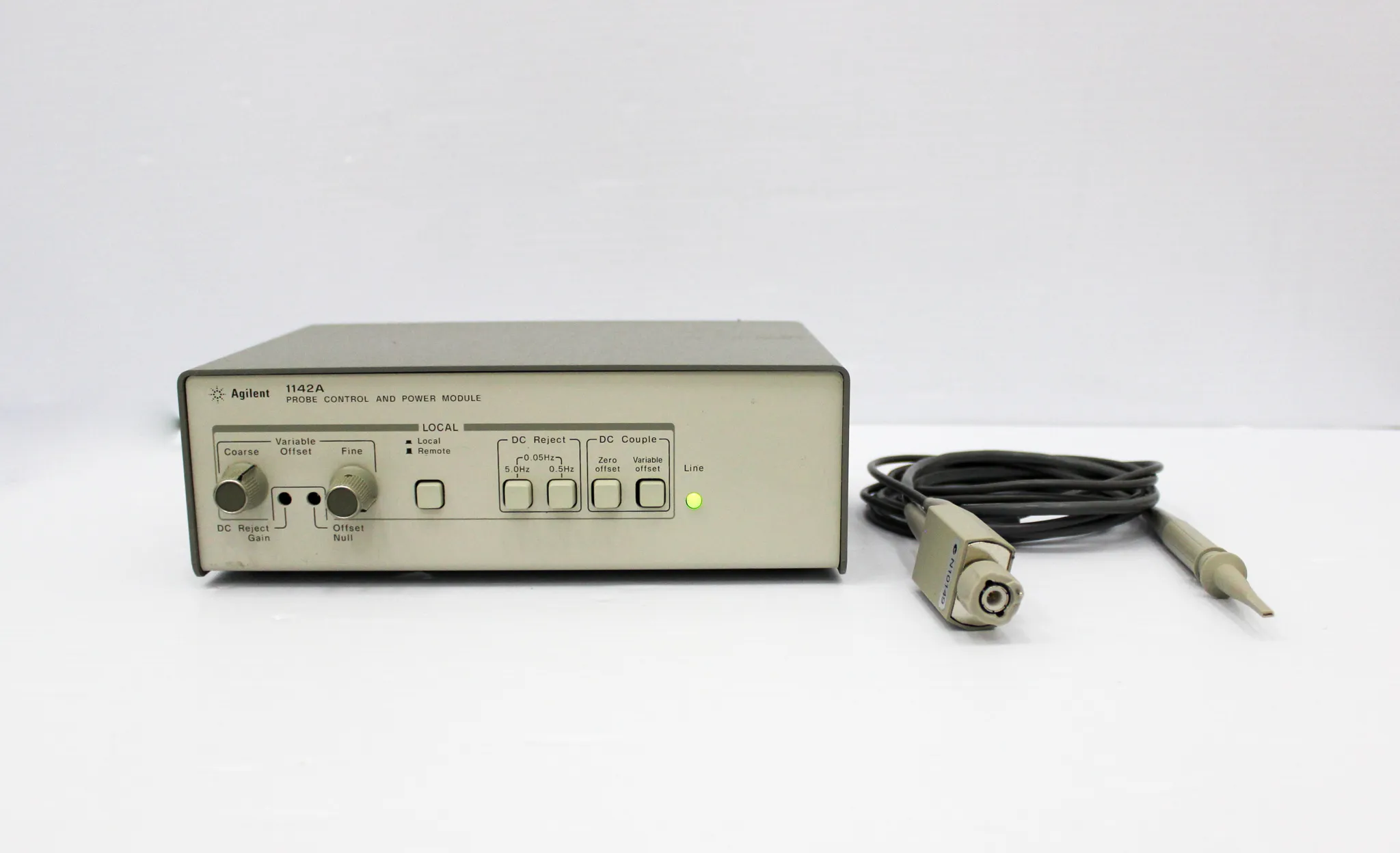

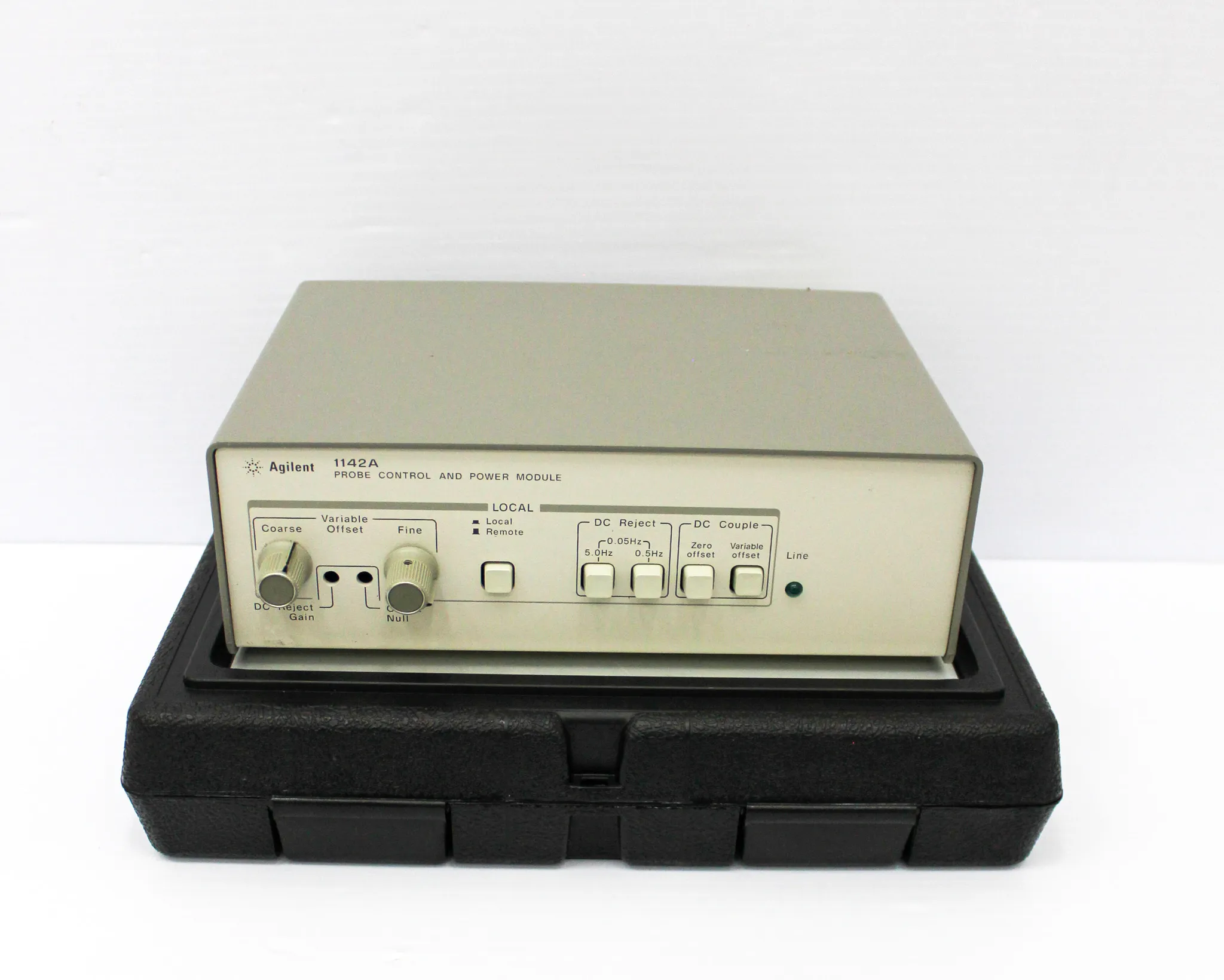

Agilent Probe Control and Power Module Model 1142A with 1144A Probe

Product Information

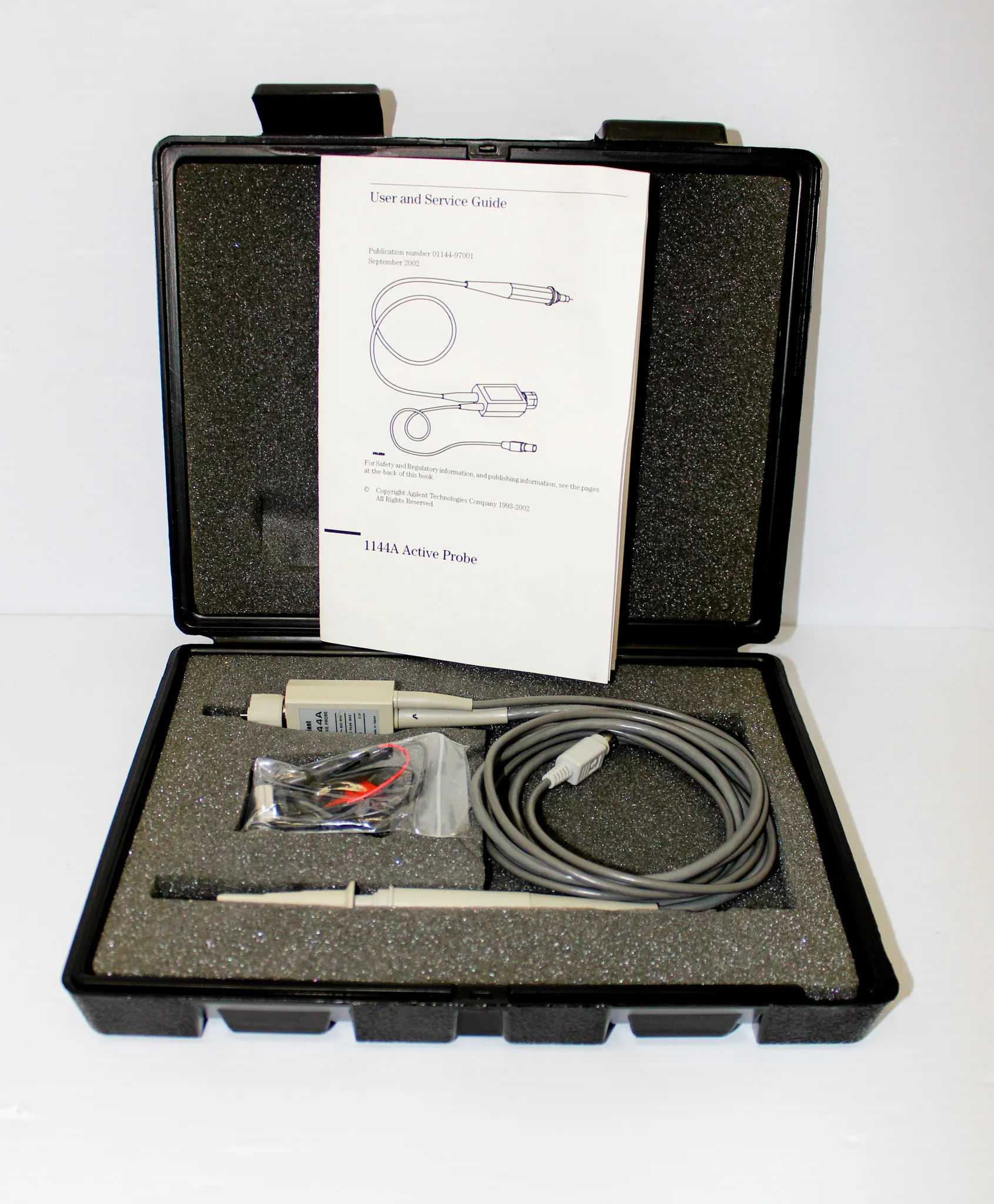

The Agilent Probe Control and Power Module Model 1142A is a versatile and reliable unit with wide-ranging applications in the field of electrophoresis. It powers and controls the 1141A Active Differential Probe, 1144A 800 MHz Active Single-ended Probe, and the 1145A 750 MHz Active Single-ended Probe. The unit has been tested to specifications and has slight cosmetic blemishes from normal use. The included 1144A Probe provides an excellent combination of high bandwidth, high input resistance, and low input capacitance. This module can be connected to any instrument with 50 Ohm inputs and is ideal for use with 6000 Series 300 MHz to 1 GHz and 54641A/D and 54642A/D oscilloscopes, providing power for two channels of active probing. In a laboratory setting, this module serves as a critical control and power unit for advanced electrophoresis setups, offering precise control and efficient power management. Whether analyzing DNA, RNA, proteins, or other biological samples, the Agilent 1142A Probe Control and Power Module is an indispensable tool in modern life science research and discovery.

• Powers and controls multiple types of probes
• Provides control over input coupling modes
• Includes high bandwidth probe for minimal circuit loading

• Bandwidth: 200 MHz
• Risetime: 1.75 ns (Calculated)
• Attenuation Ratio: 10:1 and 100:1 with attenuator
• High CMRR 3000:1 at 1 MHz 10:1 at 100 MHz
• Input Impedance Between inputs: 1 M, 7 pF
• Maximum Input 200 Vdc + peak ac Voltage (probe alone) 500 Vdc + peak ac (with attenuator)

Metric: 4.08 kg
Imperial: 8.98 lb

Metric: 22.86 cm x 17.78 cm x 10.16 cm
Imperial: 9 in x 7 in x 4 in

9027900000

The harmonized code 9027900000 is applicable to instruments and apparatus for physical or chemical analysis. This code is used because the Agilent Probe Control and Power Module Model 1142A falls under the category of laboratory instruments performing specific functions for scientific research.
