hp Agilent Tracor DC Power Supply Model 6286A 10A 20V 200W Used with 30-Day Warranty

Product Information

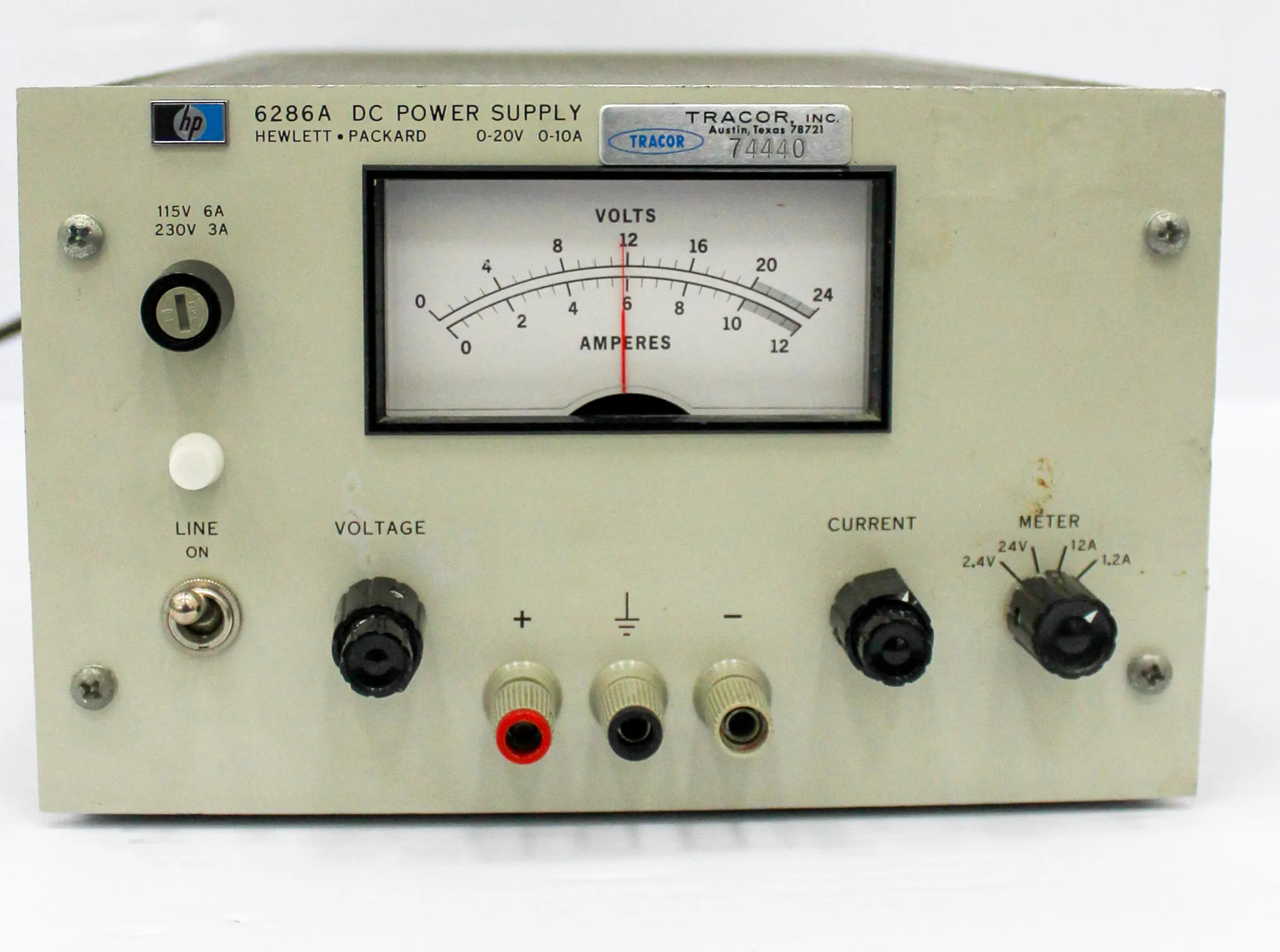

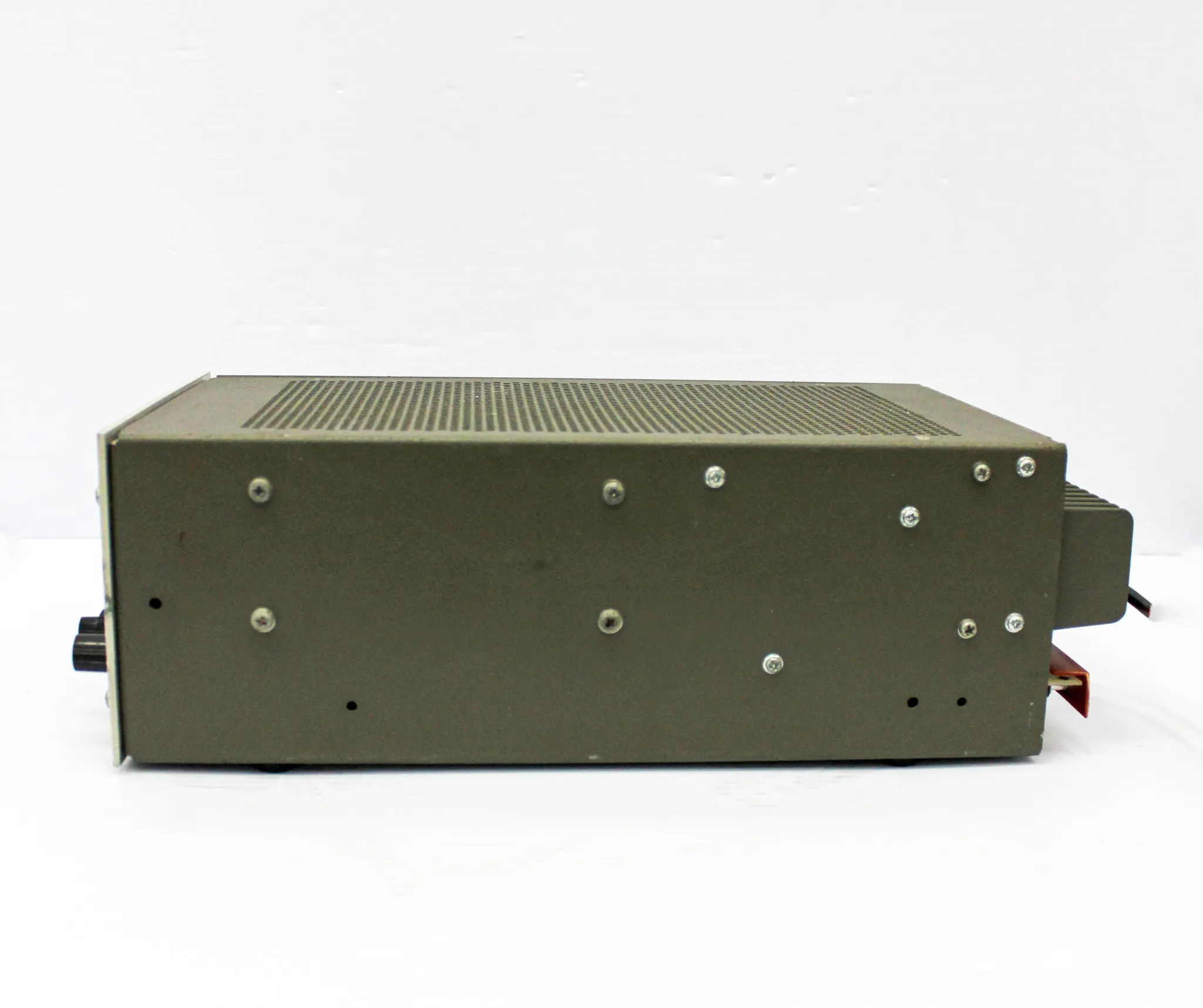

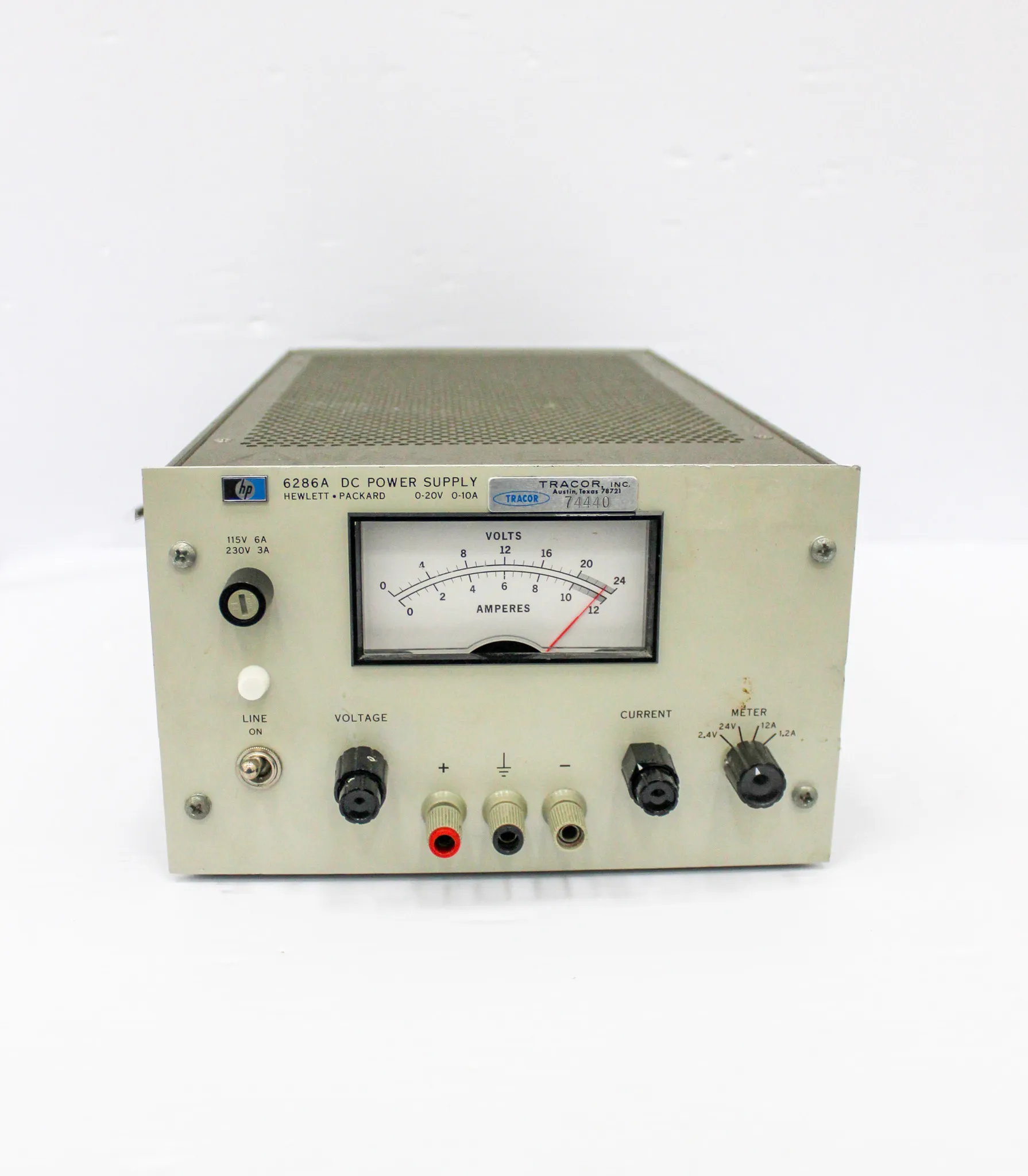

The hp Agilent Tracor DC Power Supply model 6286A has been tested to specifications and is in Very Good (VG) condition. It has slight cosmetic blemishes from normal use but functions as intended. The Agilent HP 6286A has 10-turn voltage and current controls that vary the voltage and current from zero to the maximum rated values. Crossover from constant voltage to constant current operation occurs automatically when the load current exceeds the control settings. It has additional features such as remote sensing and programming, auto-series, auto-parallel, and auto-tracking capabilities, front and rear output terminals, and floating output to serve as a positive or negative source. Typical applications include laboratory research, electronic equipment testing, and industrial settings. This power supply operates on 120V and 50-Hz AC input and has dimensions of 18 x 9 x 6 inches and a weight of 26 kg.

• Tested to specifications
• 10-turn voltage and current controls
• Remote sensing and programming
• Auto-series, auto-parallel, and auto-tracking capabilities

• Current: 10A
• Voltage: 20V
• Power: 200W
• AC Input: 50Hz
• Chassis: Slides
• Electrical power function: 120V

Metric: 26 kg
Imperial: 57.32 lb

Metric: 45.72 cm x 22.86 cm x 15.24 cm
Imperial: 18 in x 9 in x 6 in

9030330020

The harmonized code 9030330020 is for the instruments and apparatus for measuring or checking voltage, current, resistance, or power, with a recording device
