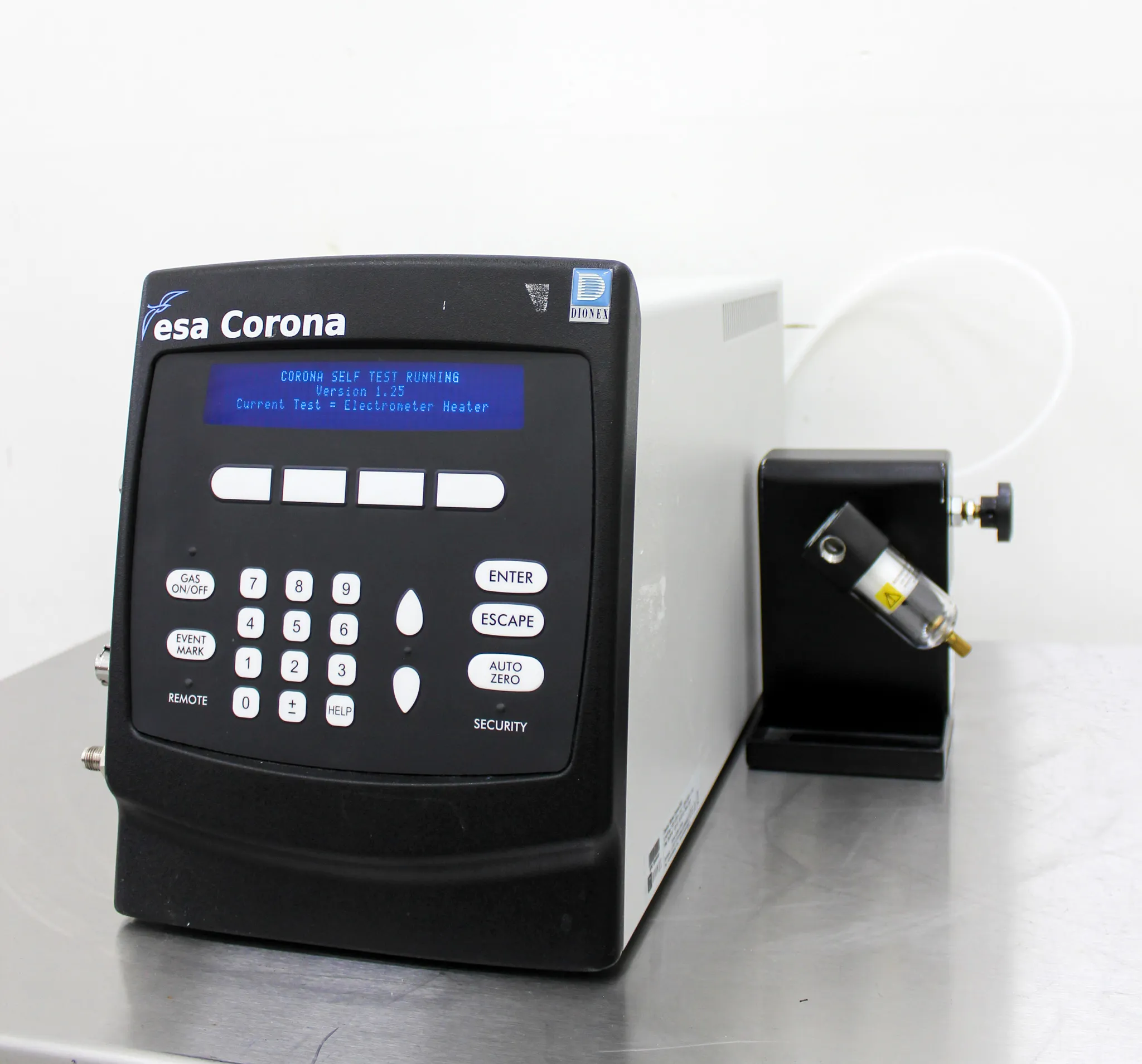

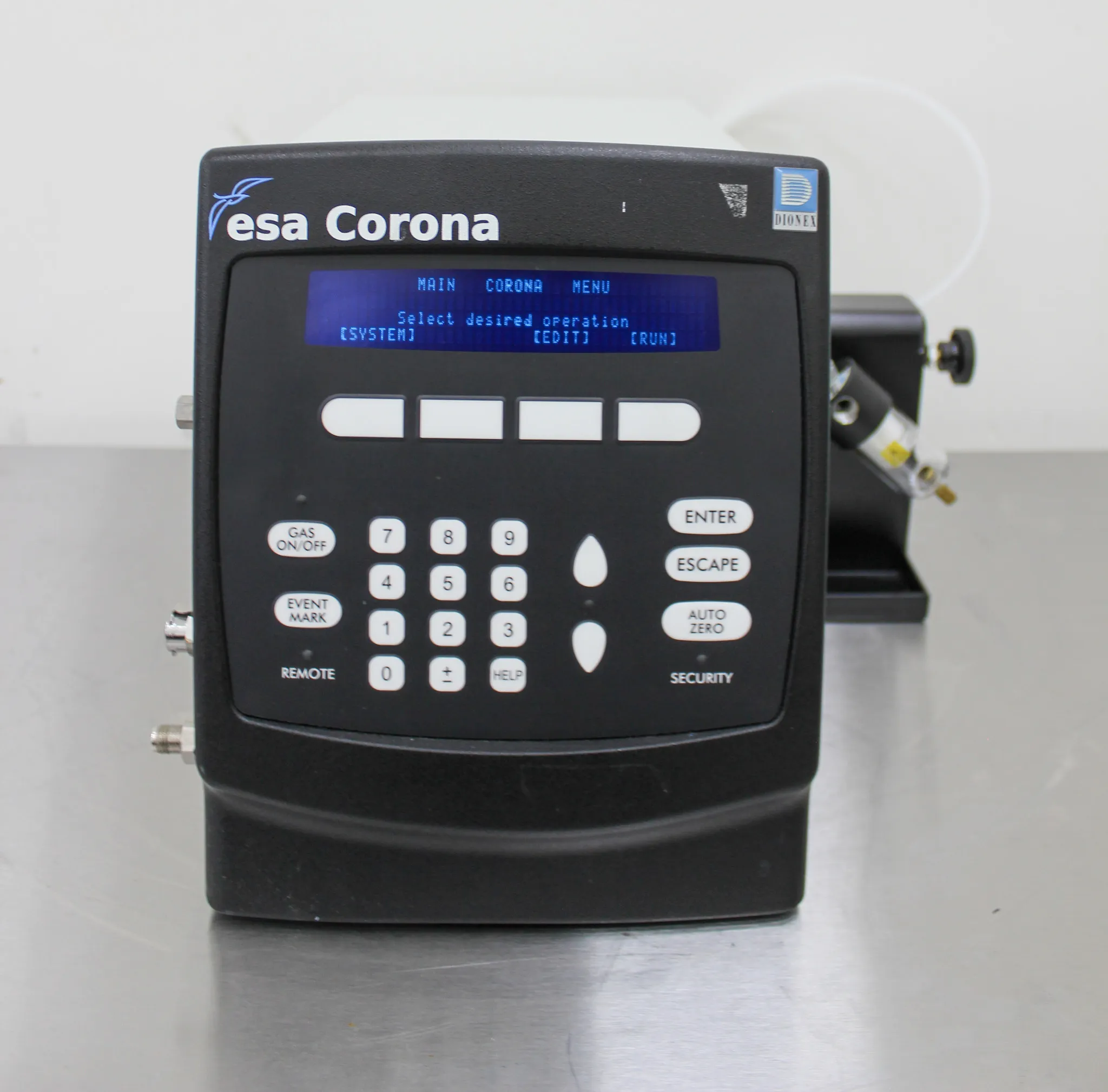

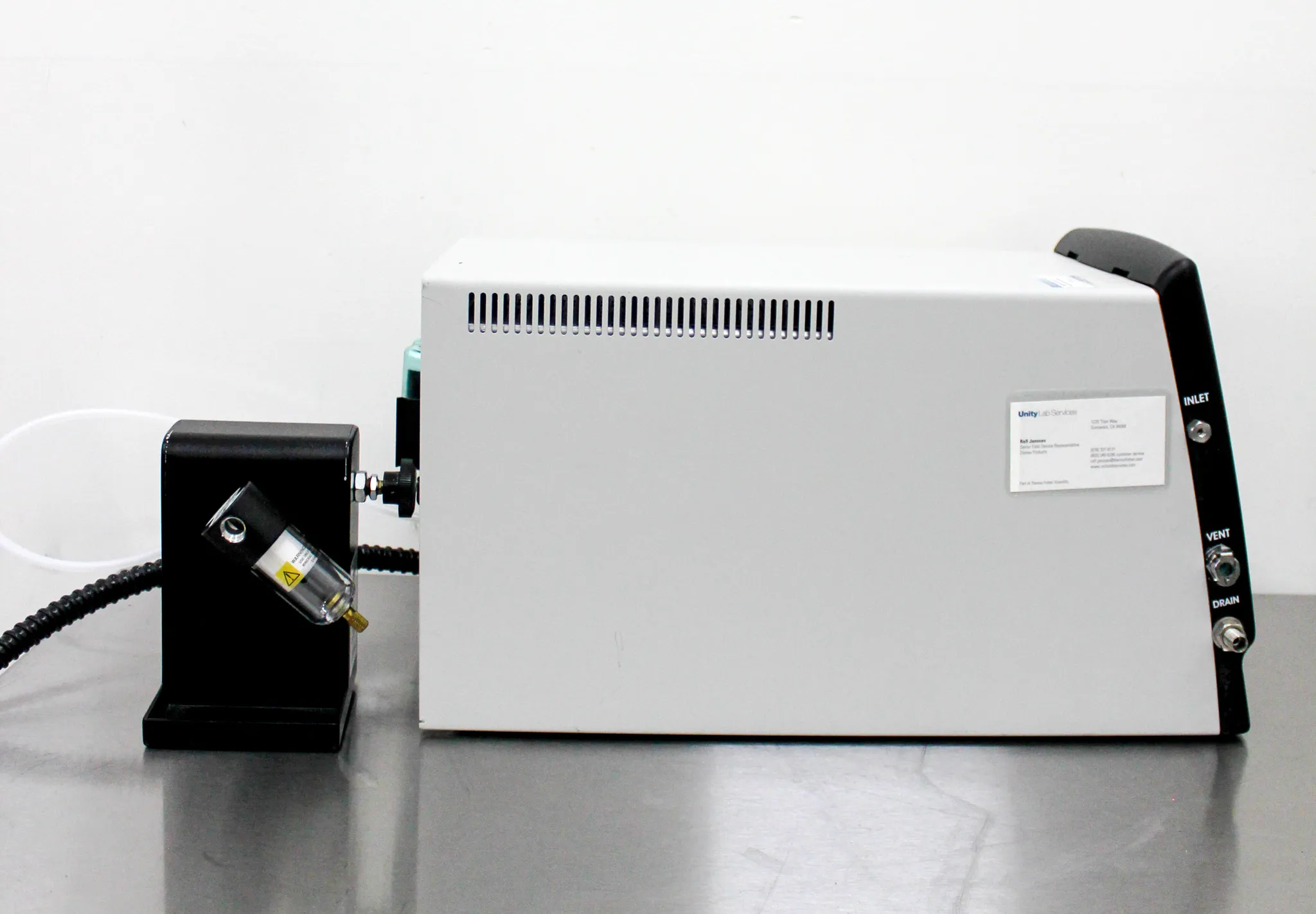

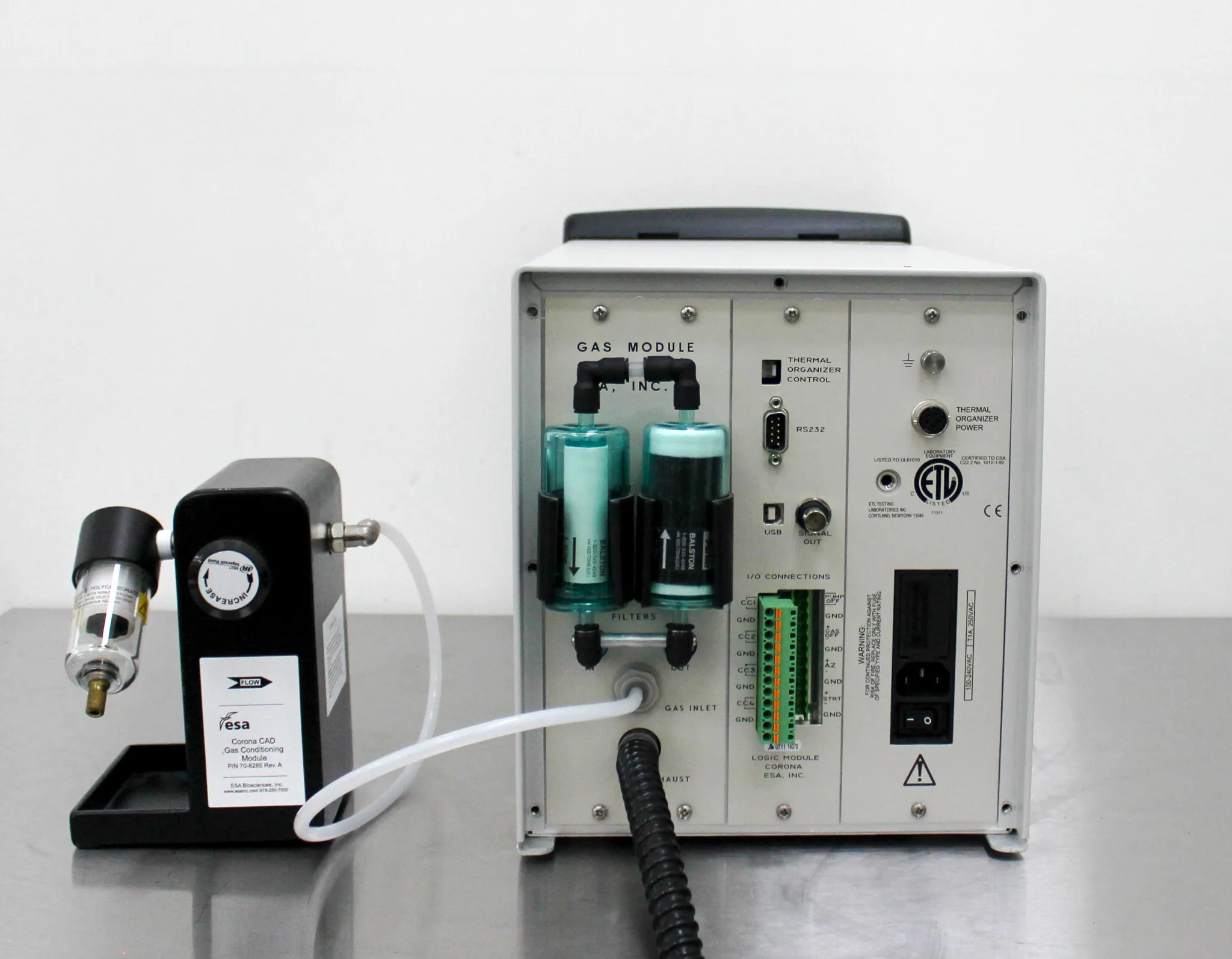

DIONEX esa Corona CAD Charged Aerosol Detector 70-9116

Product Information

As the quirky scientist examining this DIONEX esa Corona CAD Charged Aerosol Detector 70-9116, I can confirm that it has indeed been tested to specifications. Although it bears slight cosmetic blemishes from regular use, rest assured that this near universal detector for HPLC holds the power to deliver a quantitation that traditional universal detectors have long struggled to provide.

• Broad applicability, making it suitable for measuring virtually any non- and many semi volatile analytes including lipids, carbohydrates, surfactants, and polymers
• Response independent of chemical structure, allowing estimation of relative amounts of analytes
• Predictable response, simplifying methods development
• High sensitivity, with low nanogram levels of analytes being easily detected
• Wide and useful dynamic range, measuring quantities ranging from ng to g for real samples, not just standards
• Fully gradient compatible, offering simplicity in operation by just setting the gas and running

• Operating Mode: Charged Aerosol Detection
• Mobile Phase Flow Rate: Up to 2 mL/min
• Full Scale Output Range: 1 pA to 470 pA
• Filter Time Constants: None, Low, Medium, High
• Signal Output: 0 V to 1 V DC
• Output Resolution: 0.12 V at 1 V full scale (24 bit bipolar)
• Function Keys: Autozero, Event Marker, Gas On/Off
• Method Storage: Up to 25 methods
• Programmable Events: Gas (on/off)
• Set Output Contact Closures: 4, Autozero, Filter, Marker
• External Requirements power: 100-240 VAC, 50/60 Hz, 100 VA
• Operating Pressure: 35 psi (3.5 MPa)
• Gas Flow Rate: 4 L/min

Metric: 13.6078 kg
Imperial: 30 lbs

Metric: 73.66 cm x 40.64 cm x 60.96 cm
Imperial: 29 in x 16 in x 24 in

90272000

The DIONEX esa Corona CAD Charged Aerosol Detector 70-9116 falls under the category of "Chromatographs and Electrophoresis Instruments". This classification is suitable due to the device's function as a detector in high-performance liquid chromatography.
