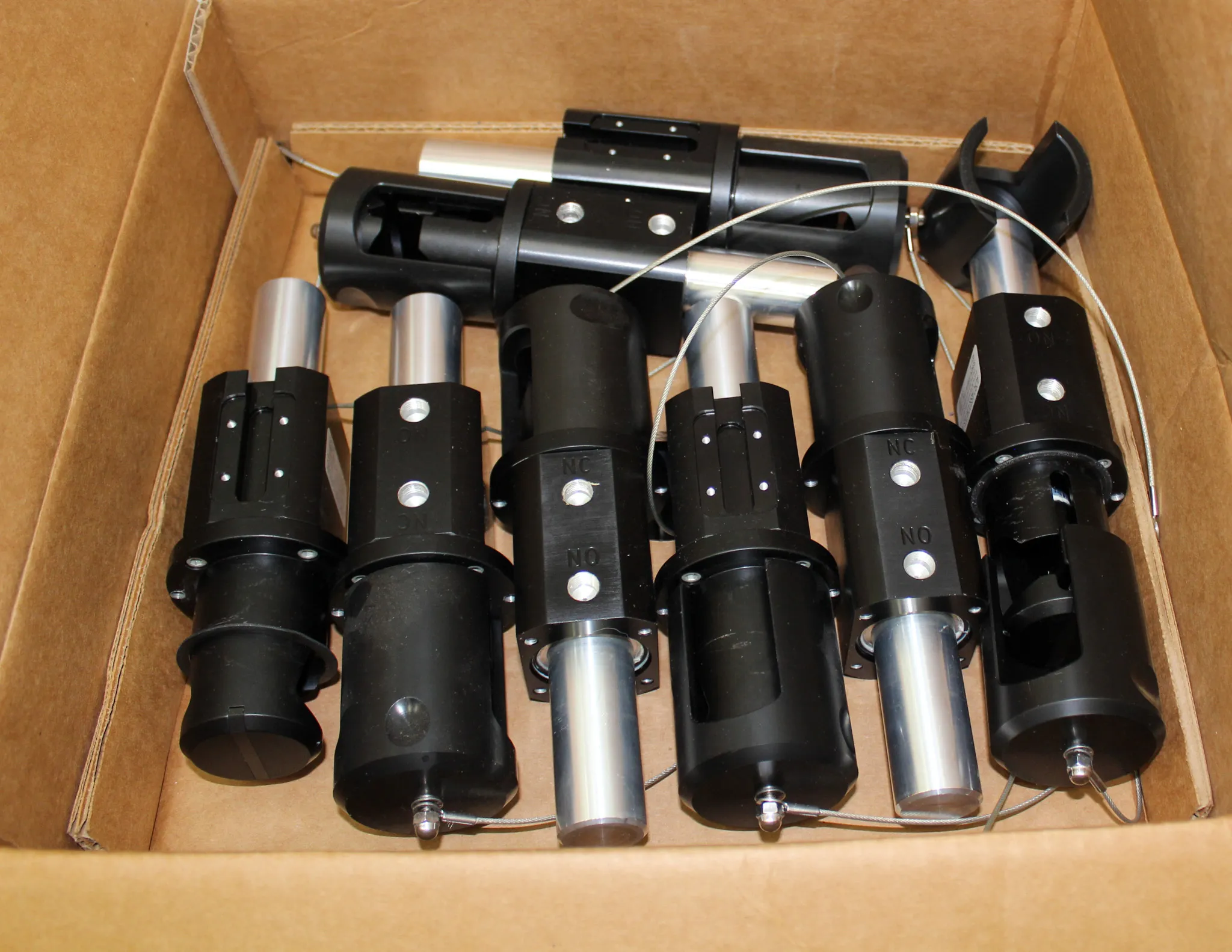

ACRO Associates Pneumatic Actuated Valves 935CN-SABP8-160-1000 (30/pc)

Product Information

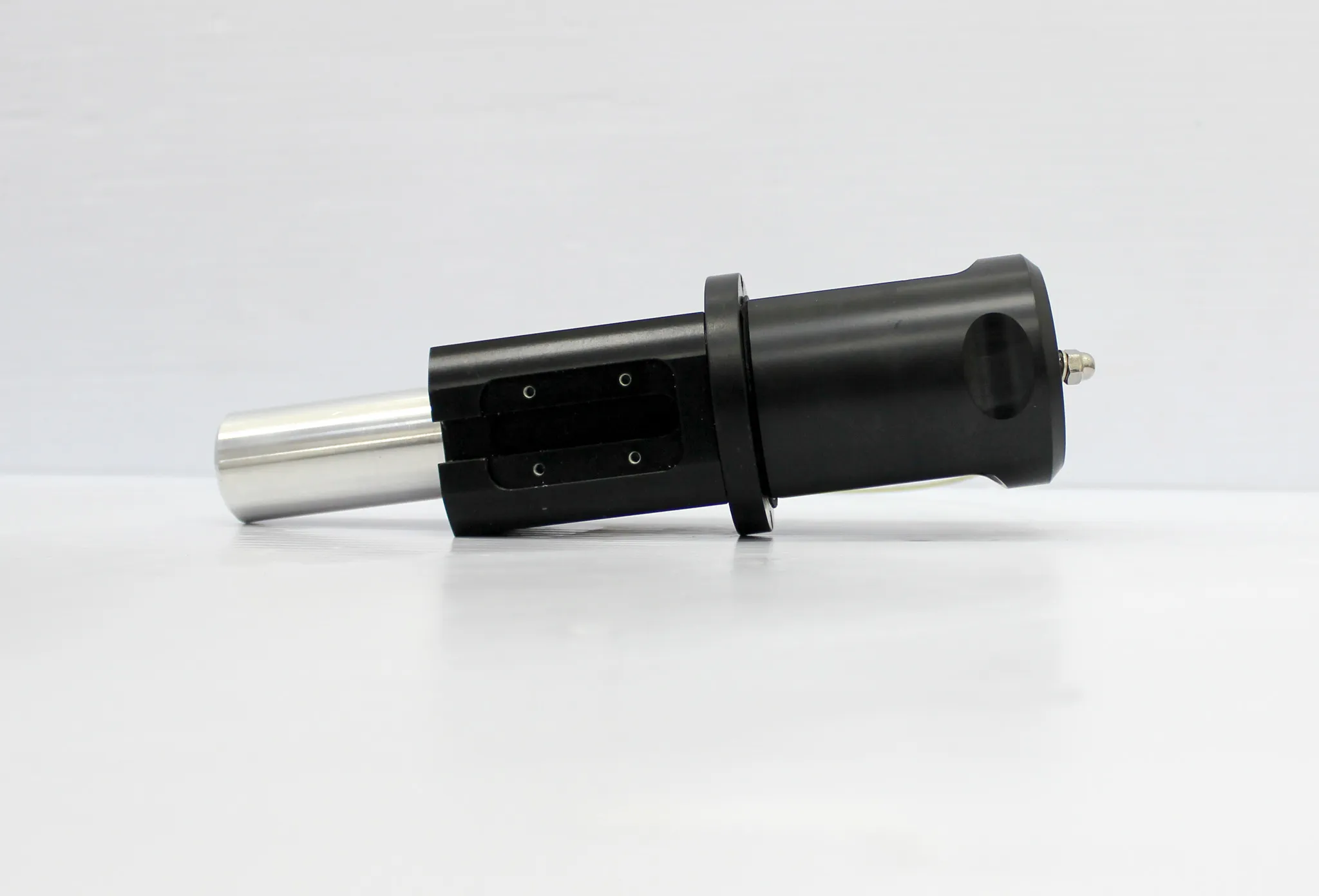

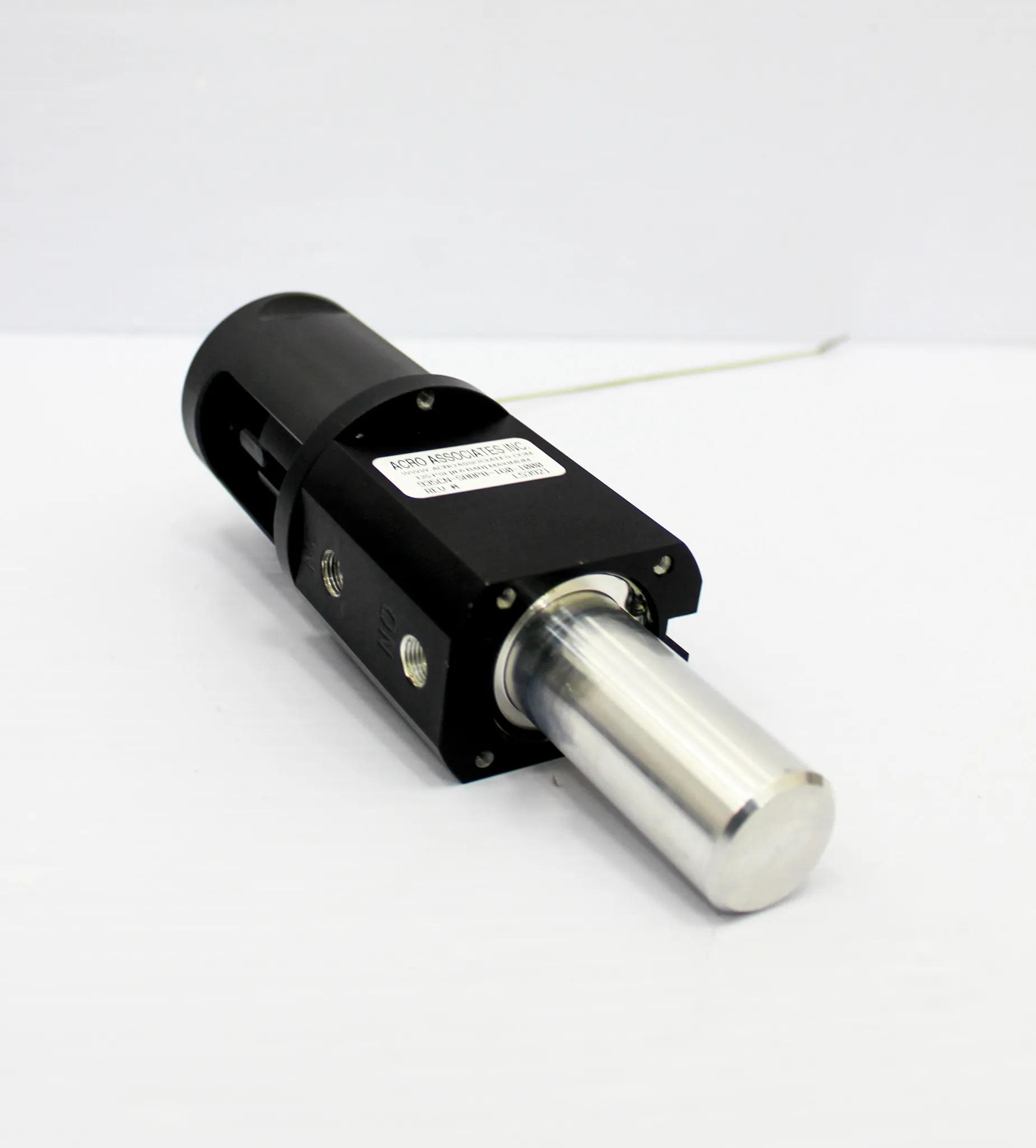

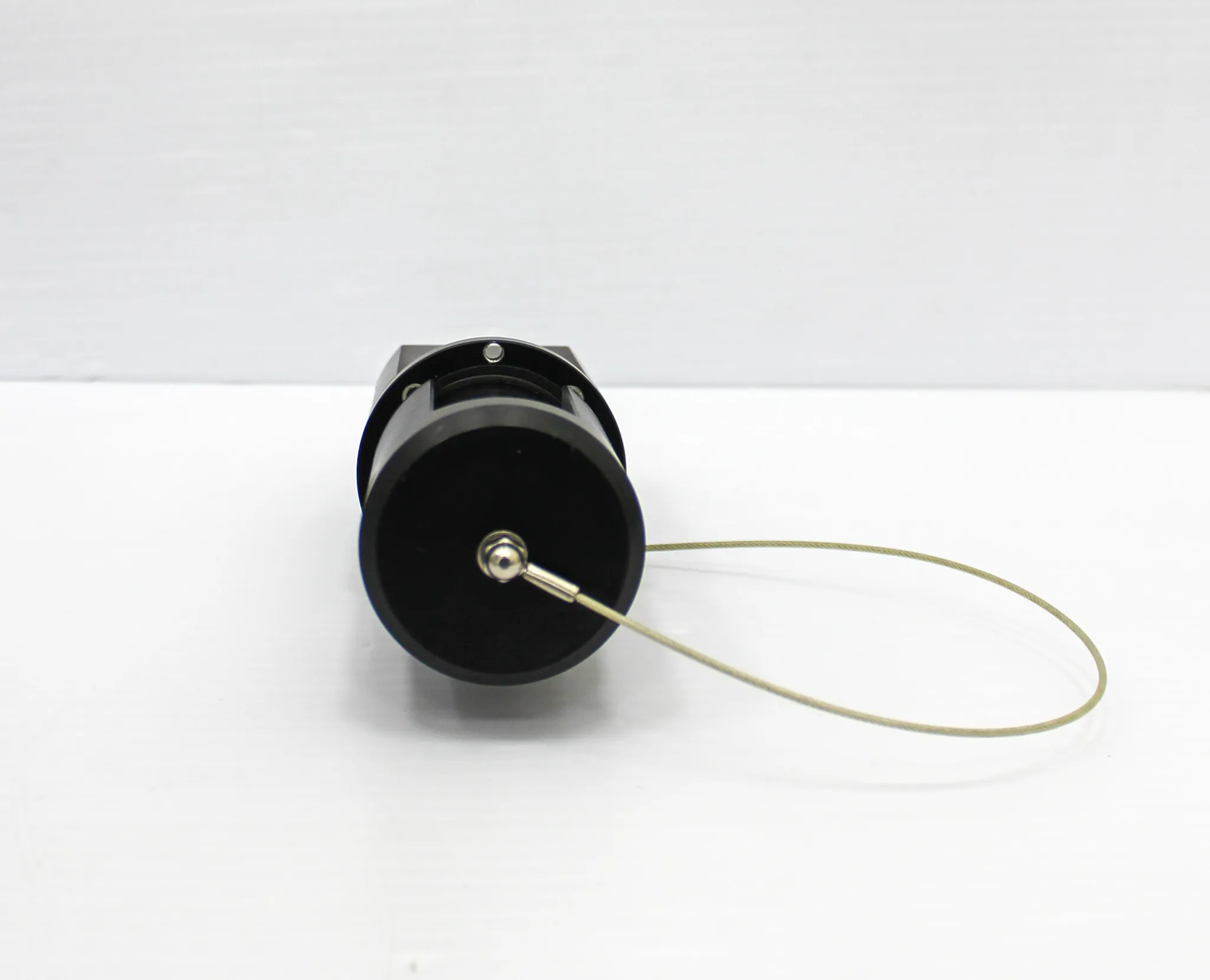

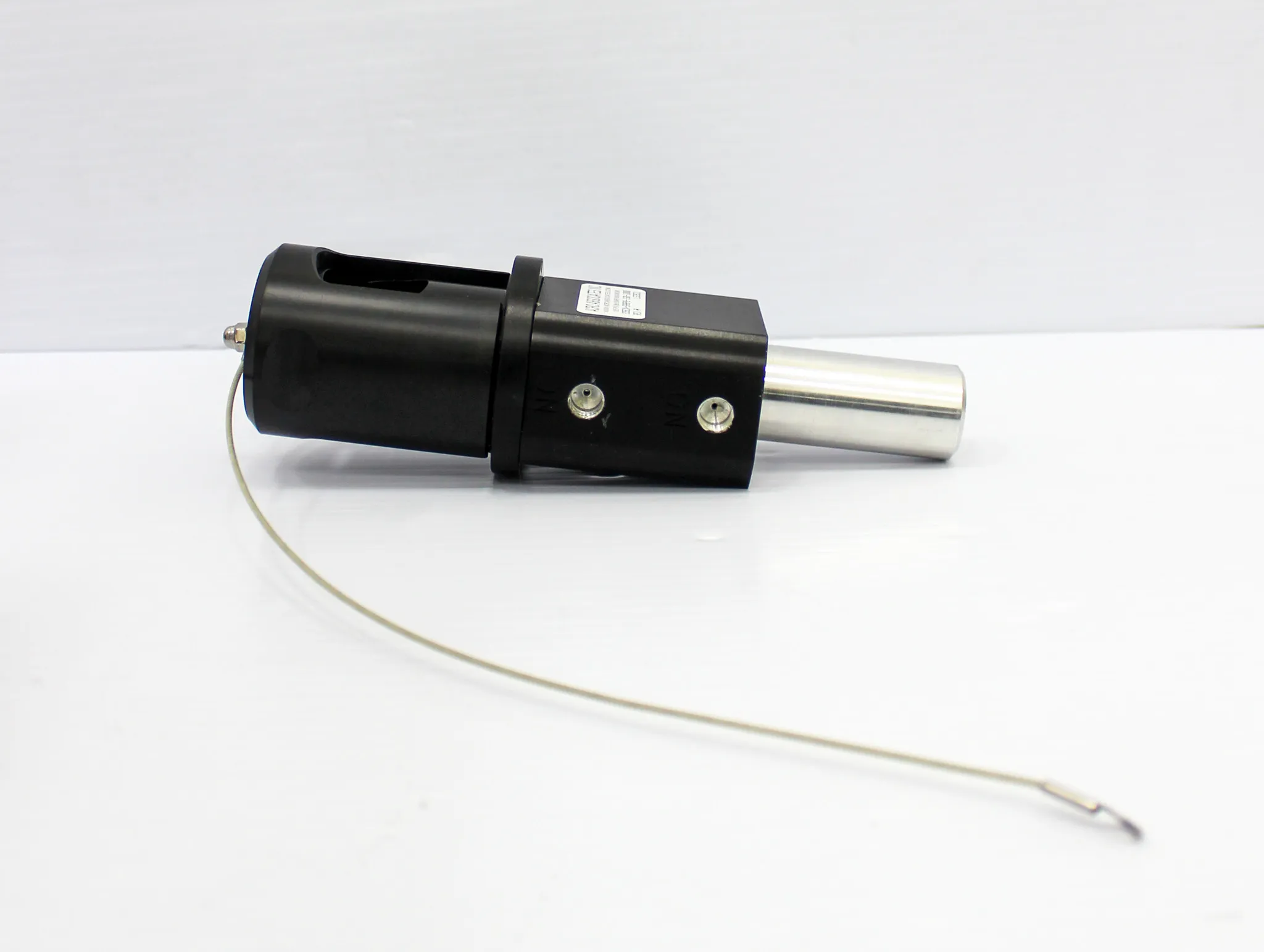

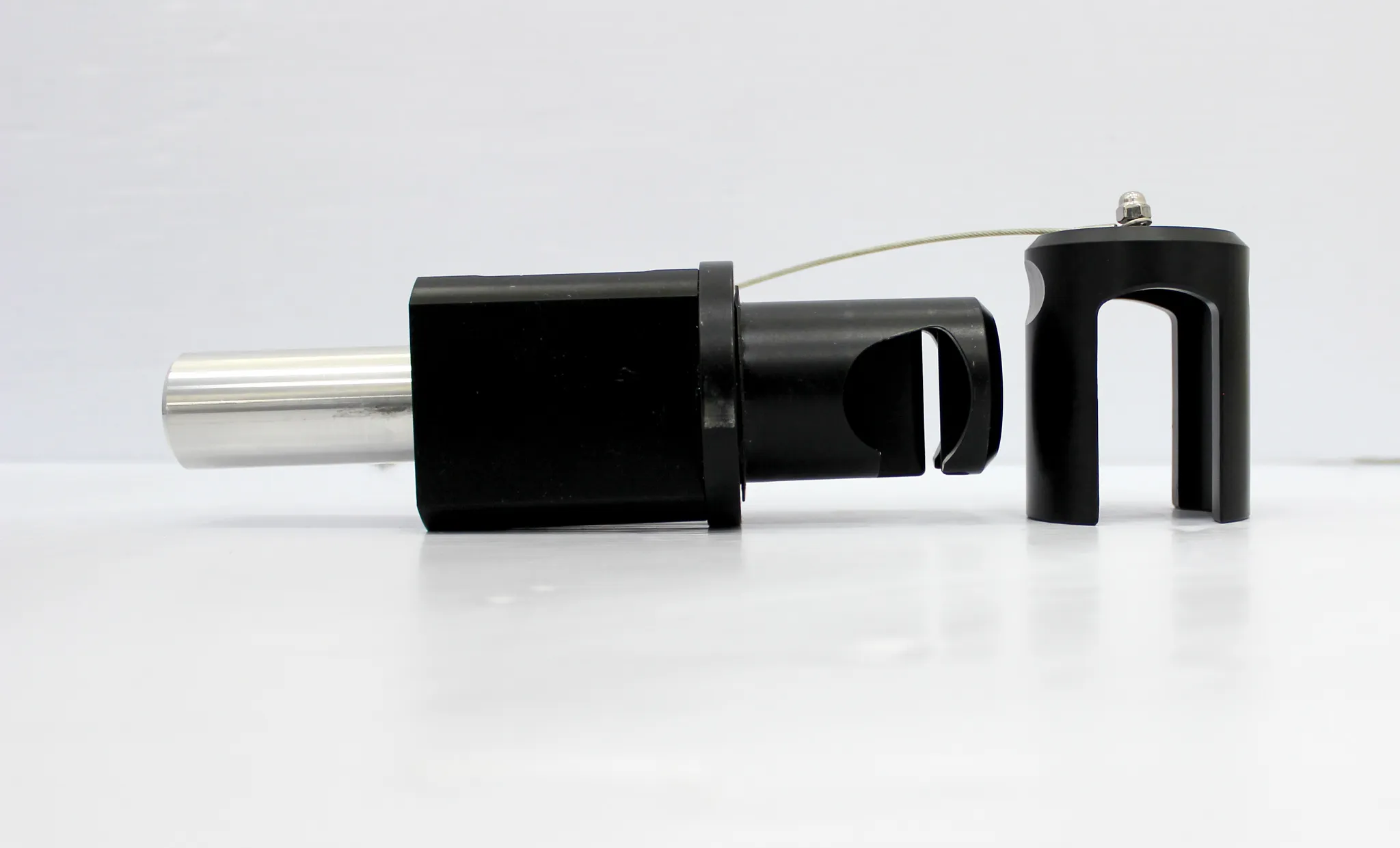

ACRO Associates pneumatic actuated valves 935CN-SABP8-160-1000 (30/pc) are designed for biopharmaceutical processing, food and beverage, and industrial applications requiring sterility and wash down procedures. These valves are pneumatically-actuated shelving pinch valves with a normally closed design. They offer a compact design, base or panel mounting, optional valve state detection sensors, and manual overrides. The valves are offered in black anodized aluminum or 316L stainless steel. Calibrated for pinch force, pinch gap, and stroke to ensure optimal performance.

• Pneumatically-actuated shelving pinch valves
• Compact design with base or panel mounting
• Calibrated for optimal performance

• Primary Brand: Bimba/Across
• Main function: Pneumatically actuated valve
• Product series / family name: '900' series
• Stroke length: 1" / 25.4mm

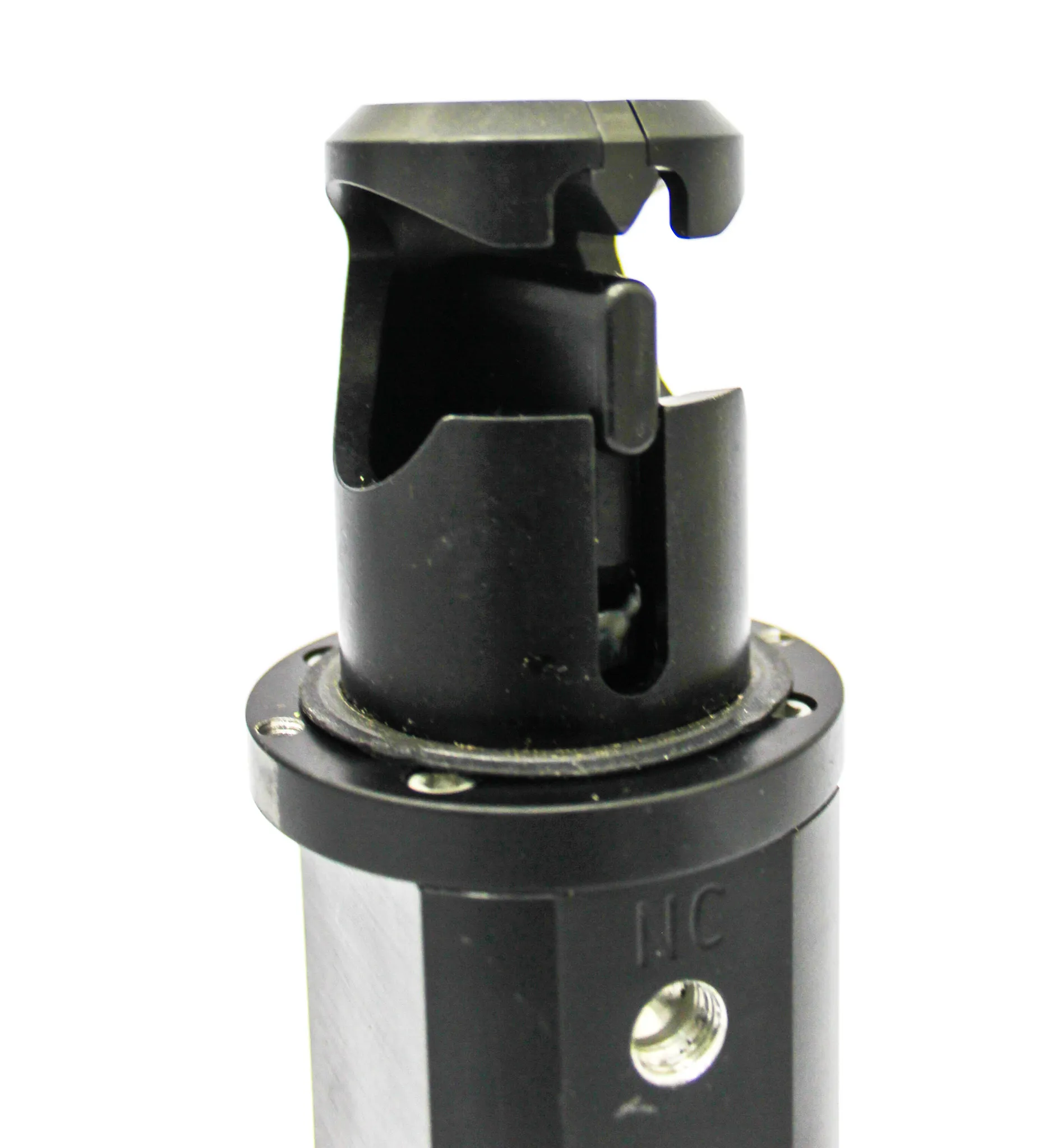

• Design: Normally Closed (NC) for washdown applications
• Pressure: 80...+125psi operating pressure
• Diameter: 2" / 50.8mm tub. slot, 0.16" / 16/100" / 4.06mm pinch gap
• Connection type: 1/8" NPT threaded NO/NC pneumatic ports (IN)
• Aluminium black body with panel splash seals
• Force: max. pinching 8lbf
• Mounting mode: through panel mounting
• Dimensions: H133.6mm x W57.2mm x D57.2mm
• Material: Aluminium black body with panel splash seals
• Manufacturer product status: Commercialized
• PSI Range per valve: 125 PSI (8.6 bar) maximum per valve
• Application type: Designed for biopharmaceutical processing; food and beverage; and industrial applications where sterility and wash down procedures are needed

Metric: 24.948 kg
Imperial: 55 lb

Metric: 20 cm x 21 cm x 19 cm
Imperial: 7.87 in x 8.27 in x 7.48 in

8481804000

Valves for oleohydraulic or pneumatic transmissions, with a pressure not exceeding 16MPa
