Harvard Apparatus Standard Infuse/Withdraw PHD ULTRA Syringe Pump 70-3007

Harvard Apparatus Standard Infuse/Withdraw PHD ULTRA Syringe Pump 70-3007

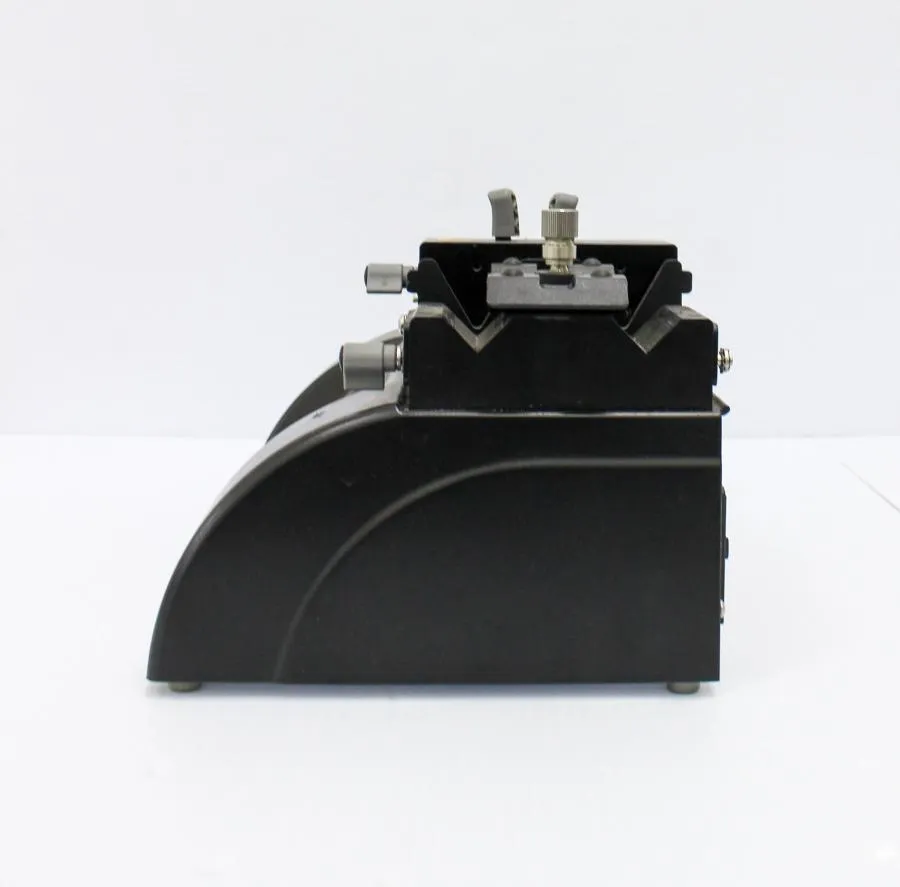

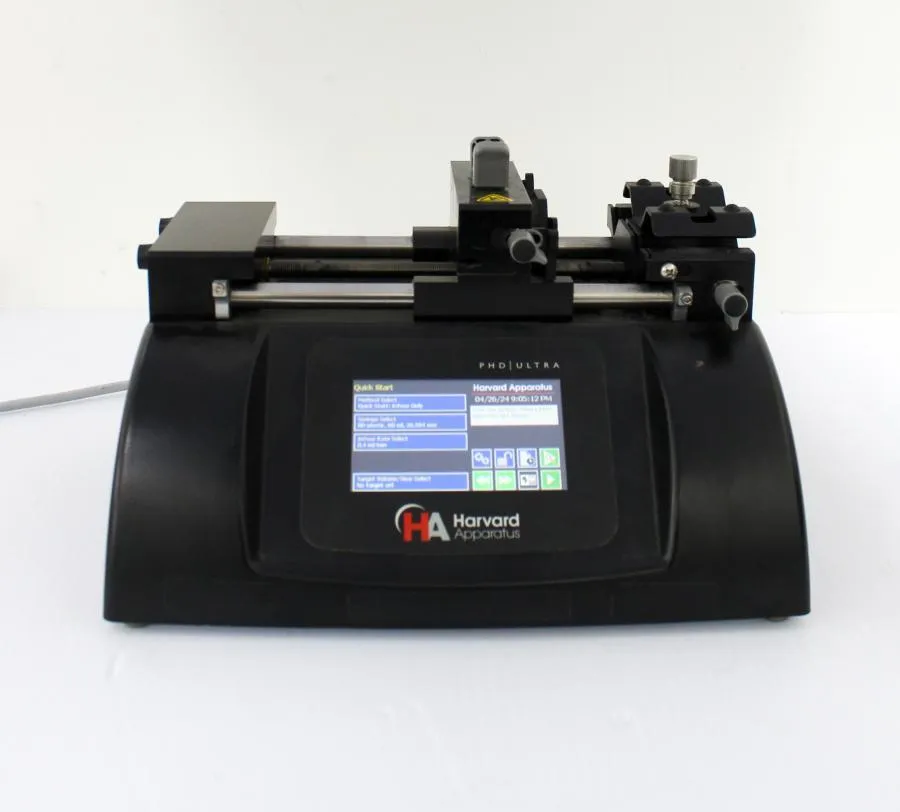

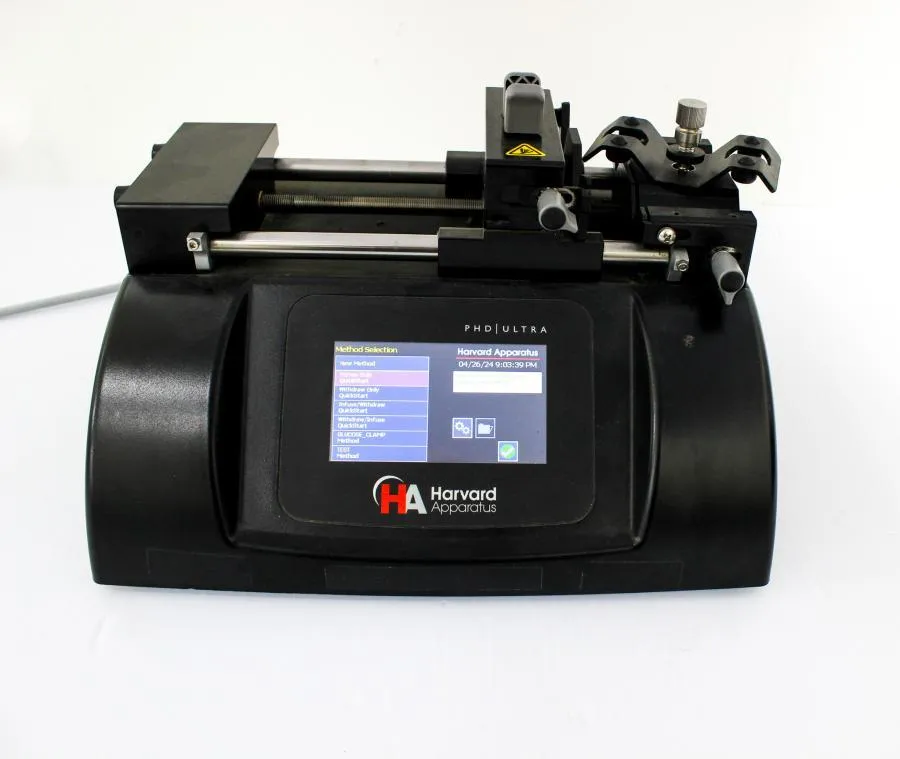

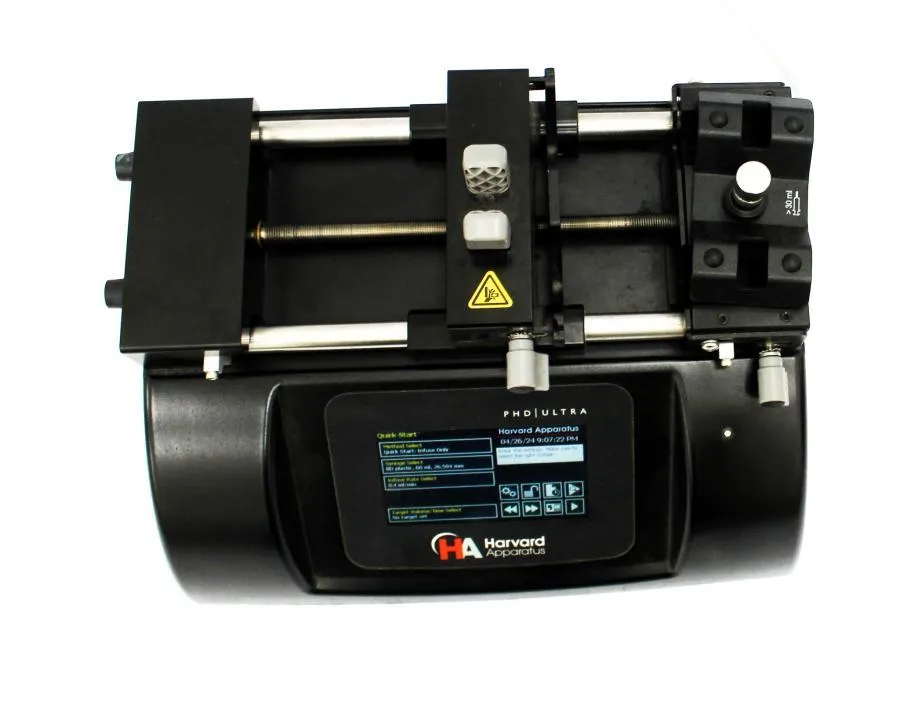

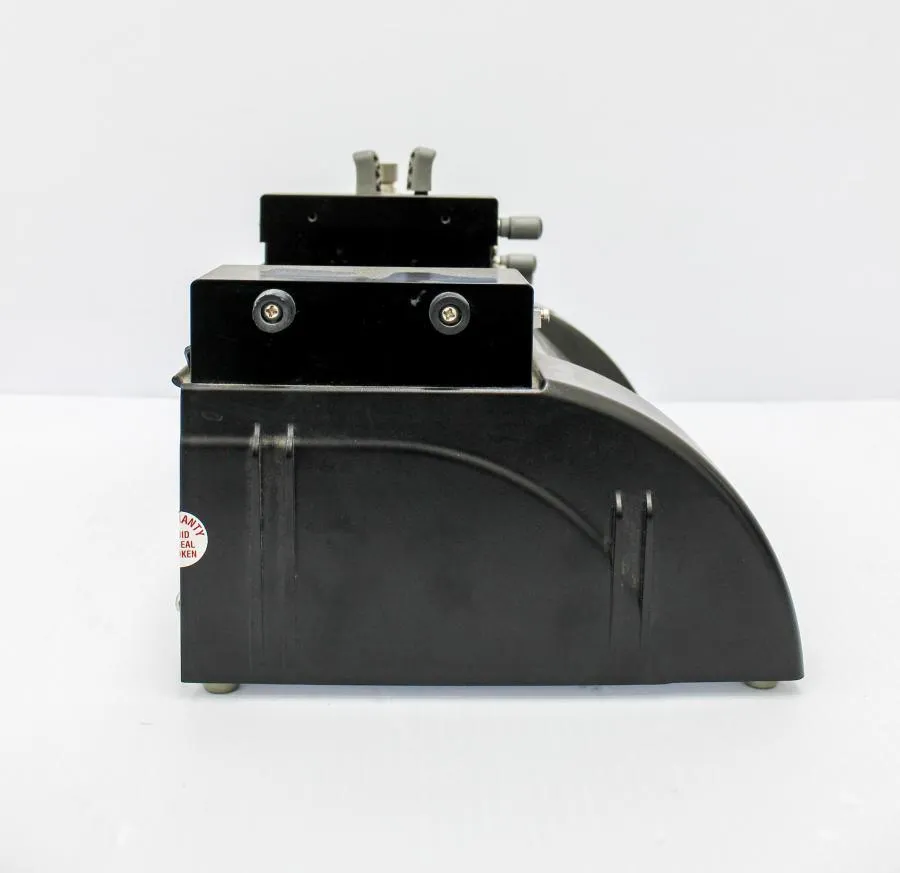

**This unit has been tested to specifications. Buyer can expect the same item pictured with 30-day warranty. See photos for details.

The PHD ULTRA is the solution for your most demanding fluidics applications. This pump represents the latest technology in syringe pumps and was developed utilizing the feedback of the world's largest populations of syringe pump users. The PHD ULTRA will change the way you think about syringe pumps. There are three major areas which make the PHD ULTRA the new standard for syringe pumps:

1. Superior mechanical drive mechanism and syringe holding mechanics to achieve the highest performance of any syringe pump

2. Integrated EZ PRO Software and user interface allow easy programming of methods from simple to complex, all without the use of a PC

• Preprogrammed methods for simple to complex operations that allow you to be up and running with the push of a button

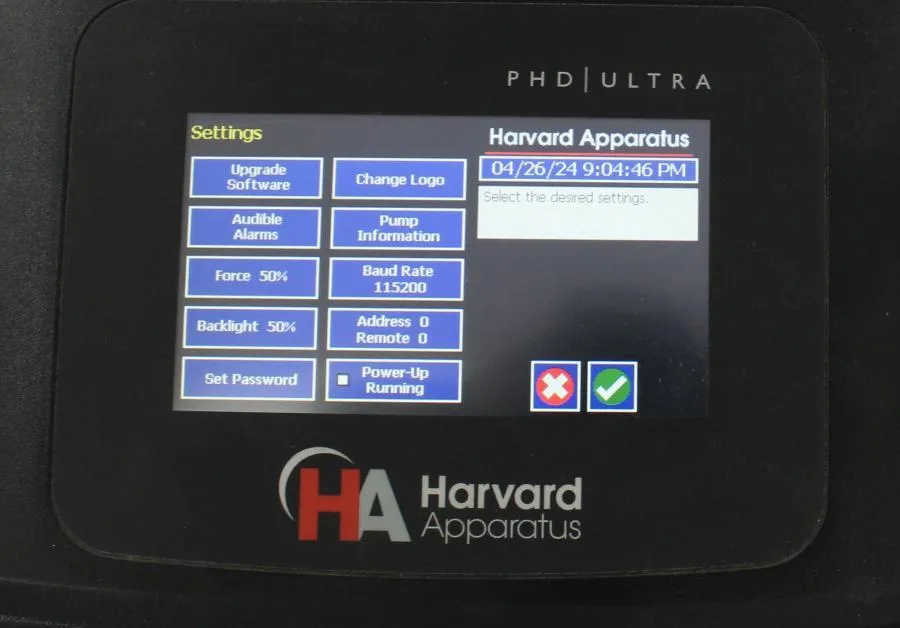

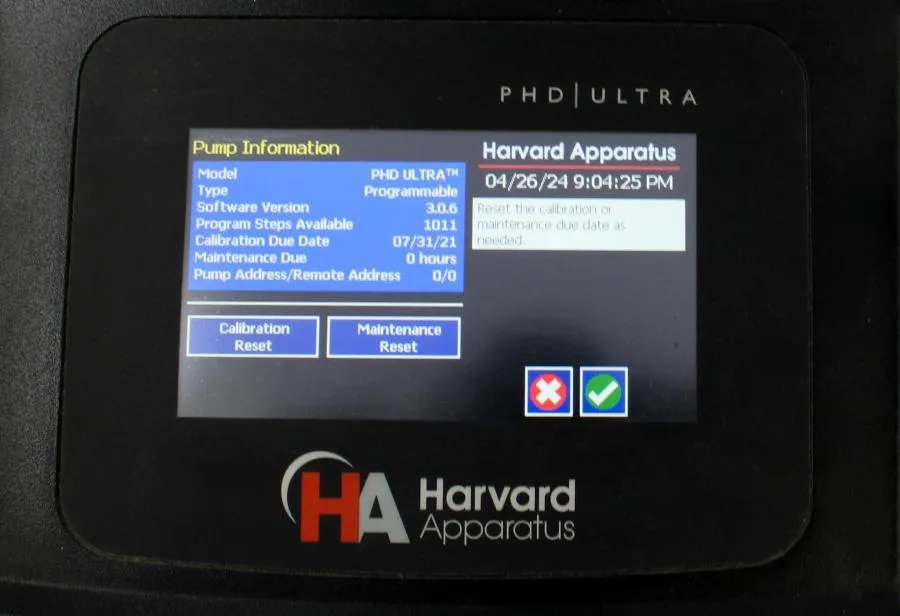

• LCD, high resolution color touch screen for powerful functionality, yet easy to use

3. Multiple levels of versatility

• Configurations: push-pull, standard, remote, high pressure, multi racks

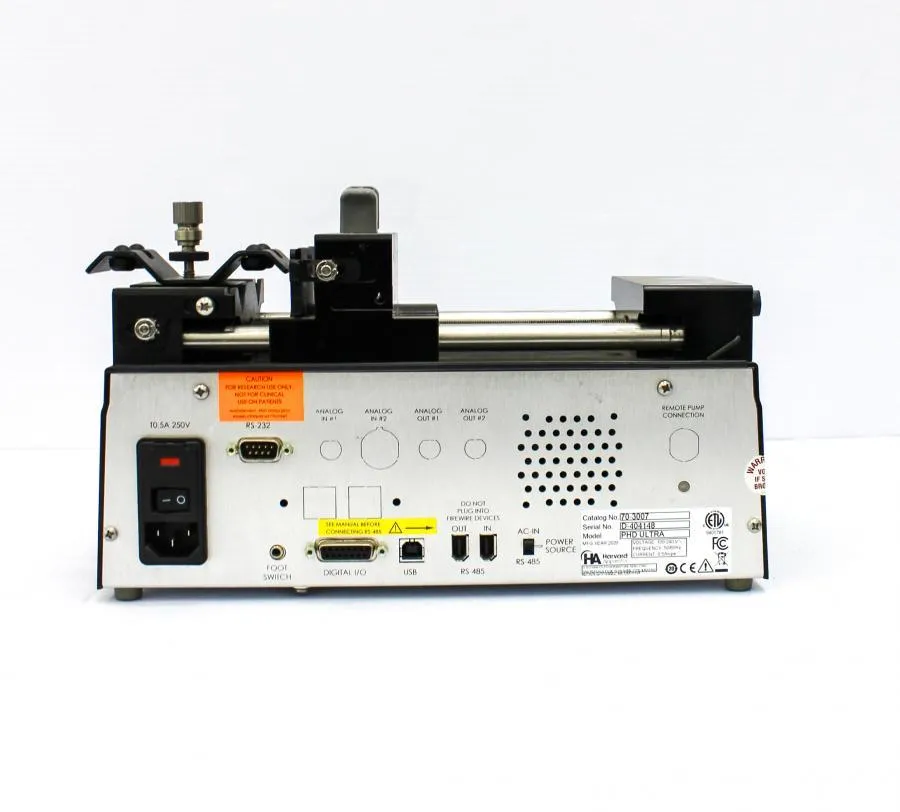

• Connectivity: RS-232 and USB for PC; RS-485 for pump to pump daisy chain

Features

• Superior drive mechanism for unmatched smooth flow, accuracy and precision
• From picoliter to 216 ml/min flow rates
• Advanced programming for true multi methods without a PC
• Quick start methods
• Alpha/numeric keyboard without a PC
• Real and relative time clocks
• Icon operation
• Color LCD touch screen
• Up-front control knobs for ease of operation
• Vertical or horizontal orientation
• Adjustable linear force to 75 lbs across the entire flow range
• Daisy chain
• Remote configuration available
• CE, ETL(UL, CSA), WEEE, EU RoHS + CB Scheme

Applications

• Nanofluidics
• Drug/Nutritional infusions
• Electro-spinning
• Reaction chamber addition
• Mass Spec calibration
• Feeding cells
• Low pressure chromatography
• Continuous flow
• Flow programming
• Gradients
• % composition step changes
• Large flow deliveries
• I/O interactive experiments

Highest Accuracy and Precision

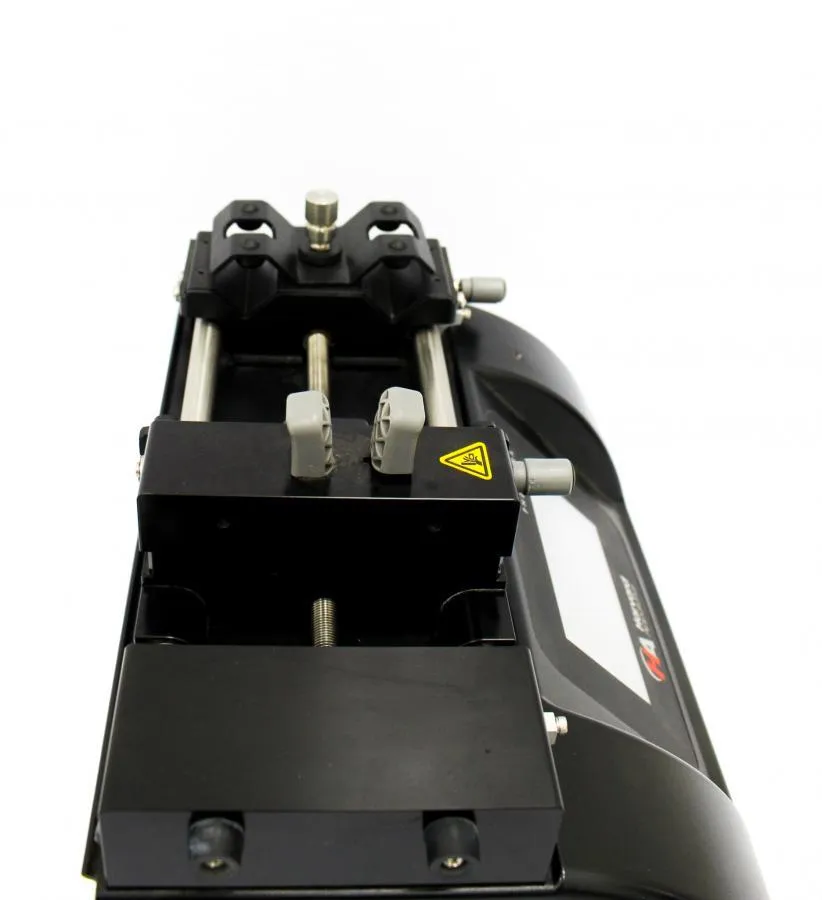

The PHD ULTRA™ syringe pump family has a fluidics drive mechanism which assures ease of use and high performance, for smoother, more accurate flow rates than any other syringe pump. Flow rates are accurate within 0.25% and reproducibility within 0.05%. A microprocessor-controlled, small step angle stepping motor drives a lead screw and pusher block. Advanced micro-stepping techniques are employed to further reduce the step angle to eliminate flow pulsation.
