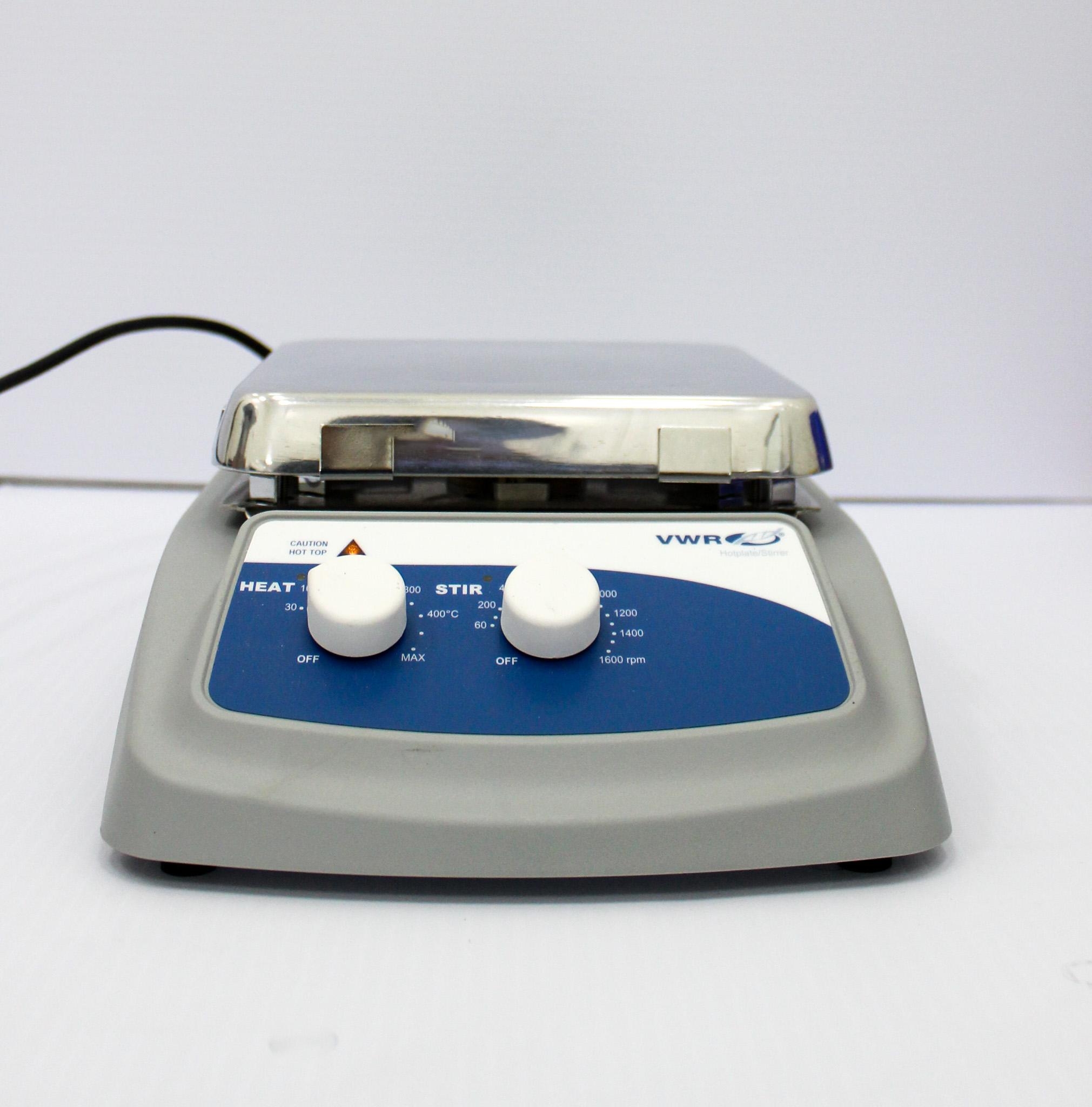

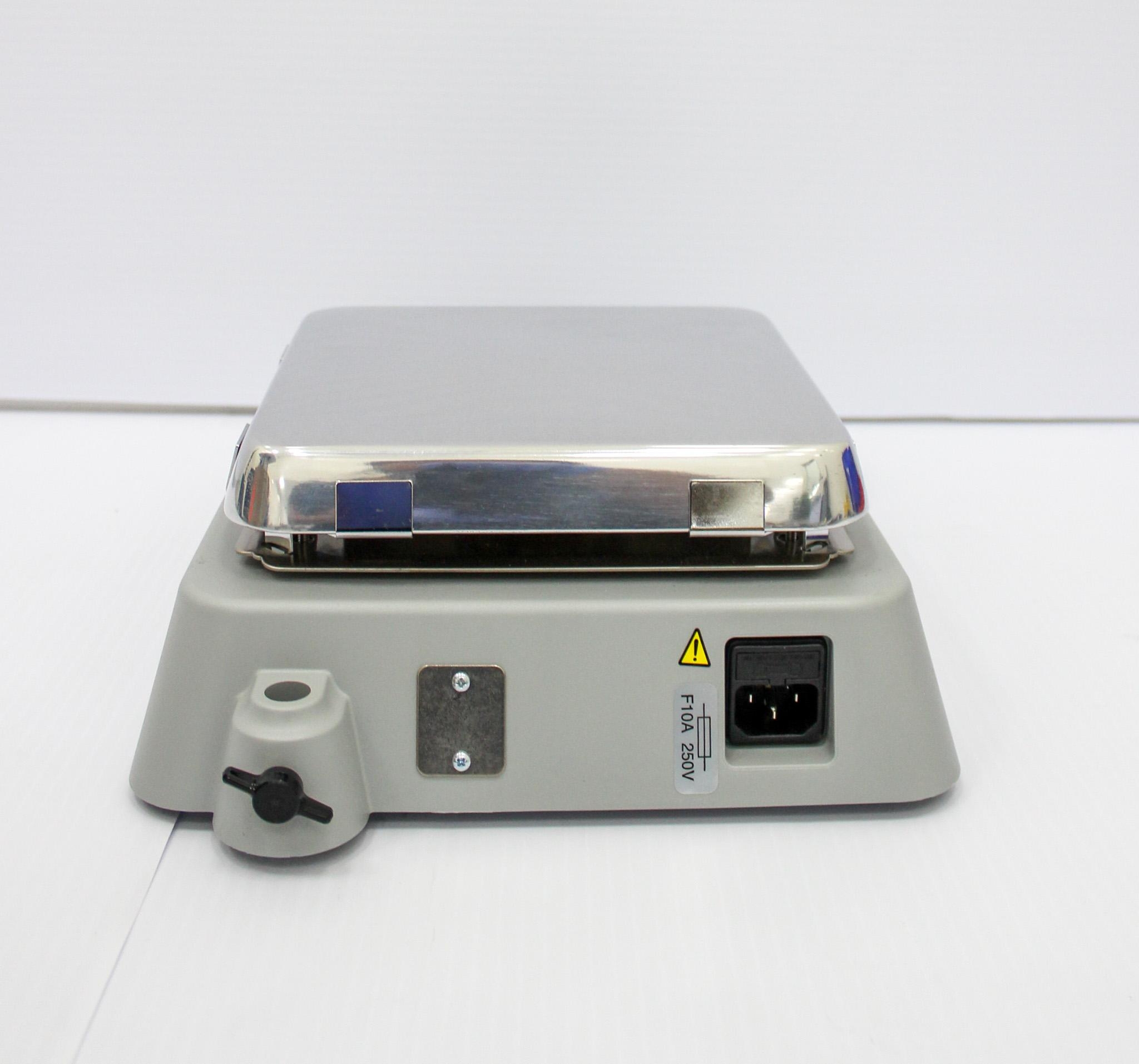

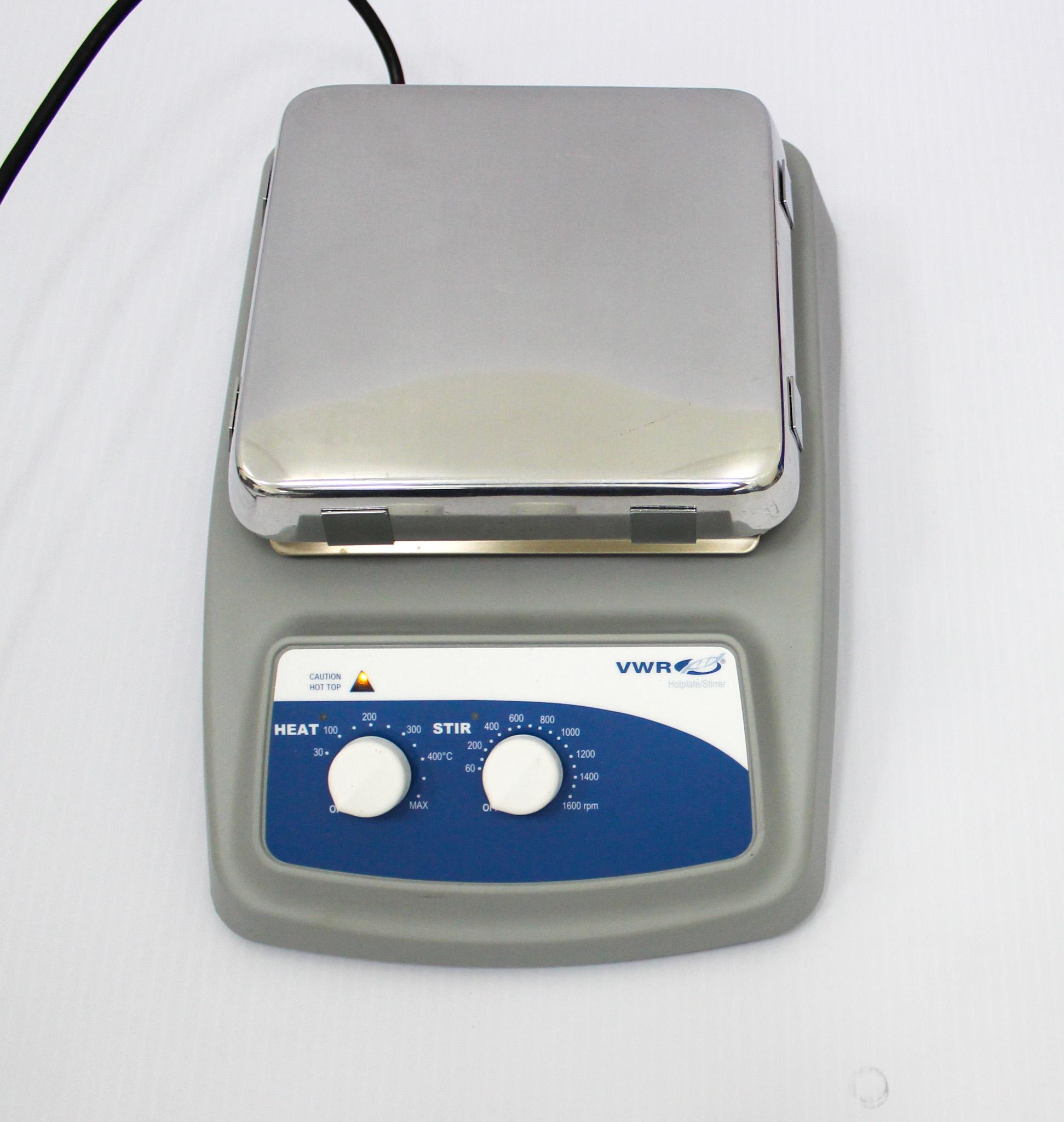

VWR VWR 7 X 7 Aluminum Hot Stirrer Plate 97042-638, 5-400C, 1600 RPM
VWR
Details
-
CategoryHomogenizer / Stirrer
-
Dimension16.0in x 9.0in x 5.0in
-
Serial201113001
-
Shipping TypeFedEx Ground
-
ManufacturingDoes Not Apply
-
Voltage / Hertz120V / 50Hz/60Hz
Description
The VWR 7 X 7 Aluminum Hot Stirrer Plate, model 97042-638, is a used laboratory hot plate in excellent condition, perfect for a variety of general-purpose laboratory applications. Manufactured by VWR, this unit is designed to provide reliable stirring and heating functions with minimal bench space. It features an aluminum top plate that ensures even heating, a cool-touch polymer housing for safety, and enhanced electronics for precise control. The unit's ramping feature prevents splashes and improves magnetic coupling during operation, with speeds ranging from 60–1600 RPM and temperature capabilities of up to 400°C. It operates on 120V and is built with safety in mind, including redundant safety controls and a visible hot warning light that remains lit when the unit is hot.
Key Features
- Even heating aluminum top plate
- 55°C to 400°C temperature range
- 60–1600 RPM stirring speed
- Low-profile design suitable for fume hoods
- Control via user-friendly dial adjustments
- Dependable continuous duty motor
- Ramping function for splash prevention
Specifications
- Plate Material: Aluminum
- Plate Dimensions: 10.2 x 10.2 cm (4" x 4")
- Overall Dimensions: 16.8W x 27.4L x 10.9H cm
- Electrical: 120V, 400W, 3.3A
- Speed Range: 60 - 1600 RPM
- Temperature Range: 5°C above ambient to 400°C
- Safety Features: Redundant safety controls, hot warning light
- Operating Conditions: 5 - 40°C (41 - 104°F)
Weight
Imperial: 8.4 Pounds
Metric: 3.81 Kilograms
Shipping Dimensions
Imperial: 19.2 lb x 10.8 lb x 6.0 lb
Metric: 48.77 cm x 27.43 cm x 15.24 cm
Harmonized Code
9027.80.50
Harmonized Code Details
9027.80.50 - Instruments and apparatus for physical or chemical analysis: Other instruments and apparatus using optical radiations or heating elements. This code fits because the hot stirrer plate is an apparatus using heating elements for laboratory purposes.
