Toshiba 1600EP 10 Kva Series UPS

Product Information

The Toshiba 1600EP 10 Kva Series UPS is a smart solution to power problems, offering more monitoring capabilities, flexibility, and features than previous models. It combines true on-line technology and state-of-the-art electronics to provide the most reliable UPS on the market. It has a capacity of 10kVA (8.5kW) and features LCD Display, Slide-out Battery Trays, Hot Swappable Batteries, Isolation Transformer, External Battery Interface, Modular Receptacle Panels, and Internal SNMP. The UPS is certified by UL 1778, CUL, FCC class A, IEEE 587, ANSI/C62.41, ISO 9001, NEMA/PE1-1993. It operates at a single-phase 208/240 Vac input voltage, with a frequency of 45-65Hz, and a power factor of >0.95. The battery is a valve regulated lead acid type, with a backup time of 14-5 min at full charge. The output voltage regulation is +/- 3% max, and the UPS has an efficiency of >85%.

• LCD Display for easy monitoring

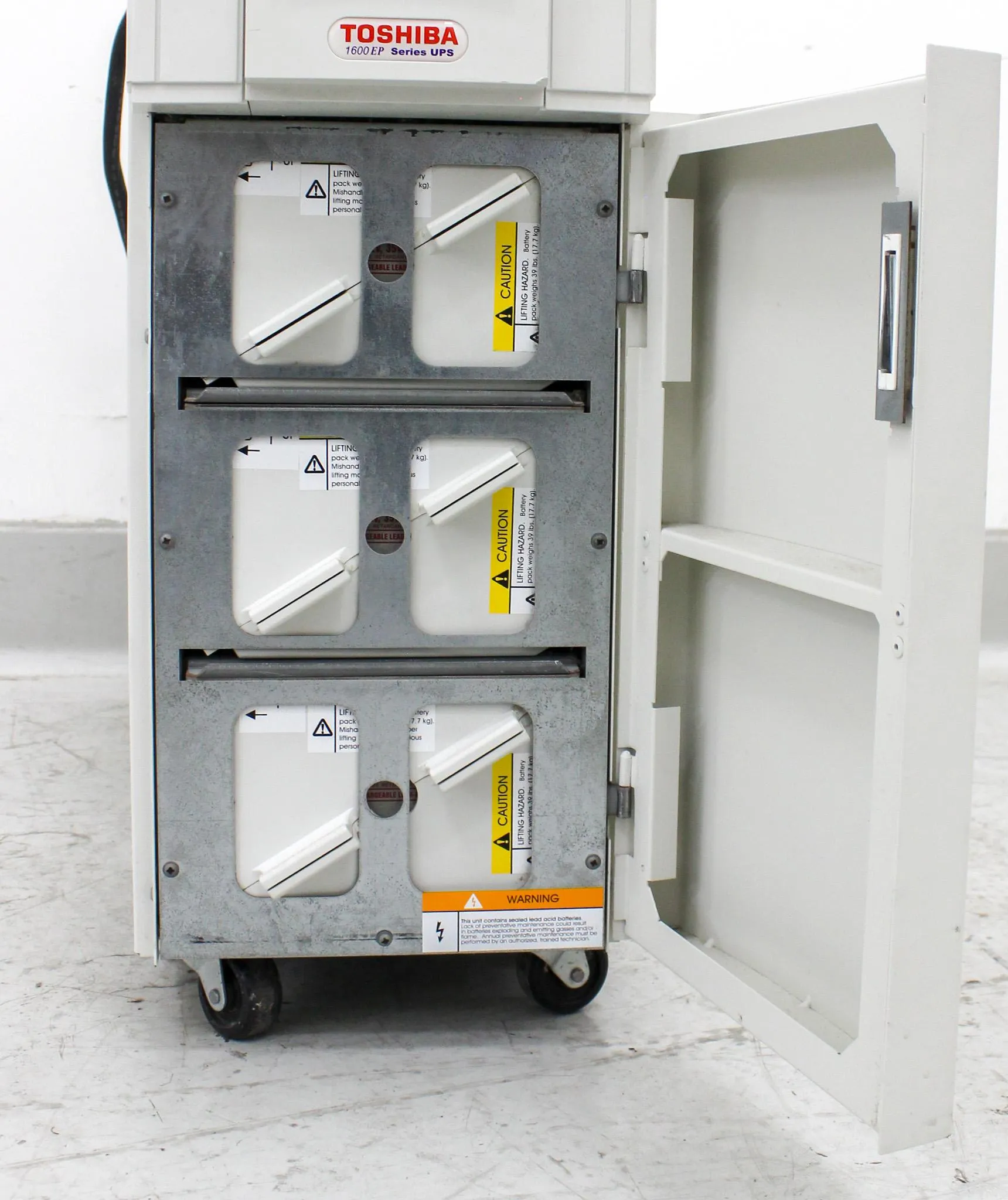

• Hot swappable batteries for continuous operation
• Isolation transformer for added safety
• External battery interface for expandable backup

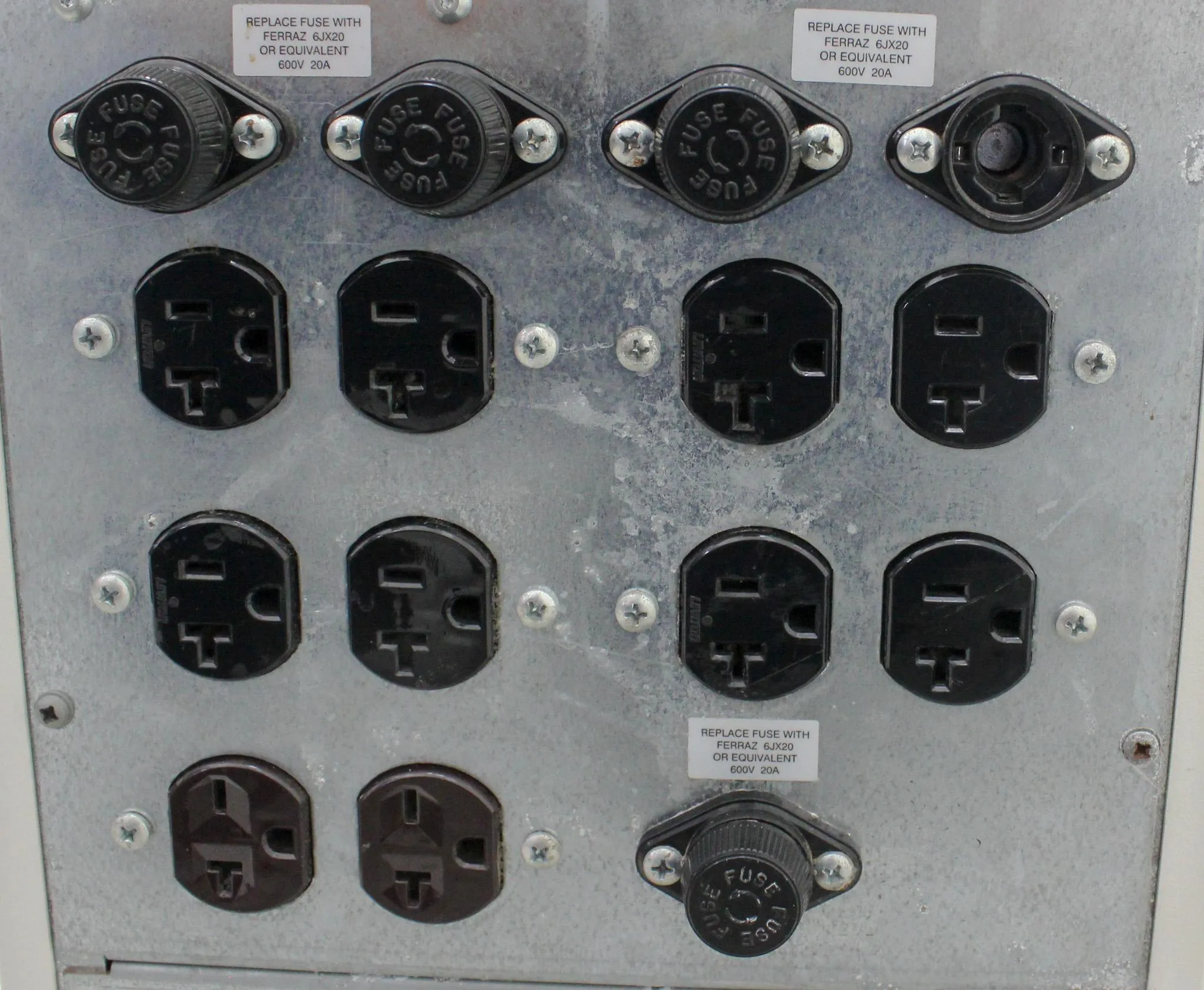

• Modular receptacle panels for flexible usage

• Capacity: 10kVA (8.5kW)
• Certifications: UL 1778, CUL, FCC class A, IEEE 587, ANSI/C62.41, ISO 9001, NEMA/PE1-1993
• Input Voltage: Single-phase 208/240 Vac, 230 Vac
• Input Frequency: 45-65Hz
• Power Factor: >0.95
• Battery Type: Valve Regulated Lead Acid
• Backup Time: 14-5 min
• Output Voltage Regulation: +/- 3% max
• Efficiency: >85%
• Weight: 490 kg
• Dimensions: 35cm x 10cm x 28cm
• Harmonized Code: 85044085 - Other electrical transformers having a power handling capacity not exceeding 10 kVA

Metric: 490 kg
Imperial: 1080.34 lb

Metric: 35 cm x 10 cm x 28 cm
Imperial: 13.78 in x 3.94 in x 11.02 in

85044085

This code covers electrical transformers with a power handling capacity not exceeding 10 kVA, which is applicable to the Toshiba 1600EP 10 Kva Series UPS.
