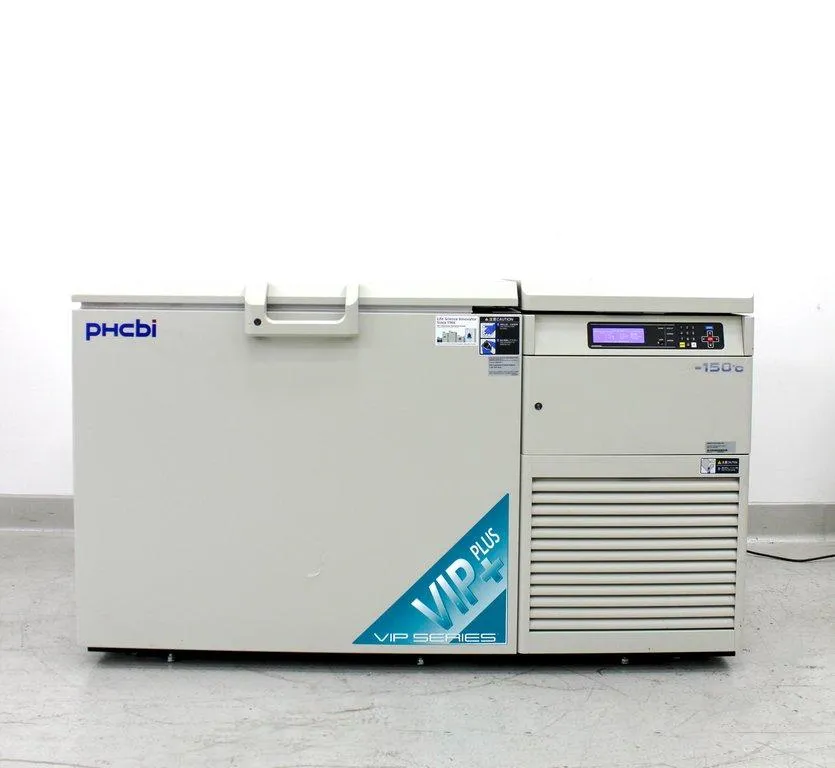

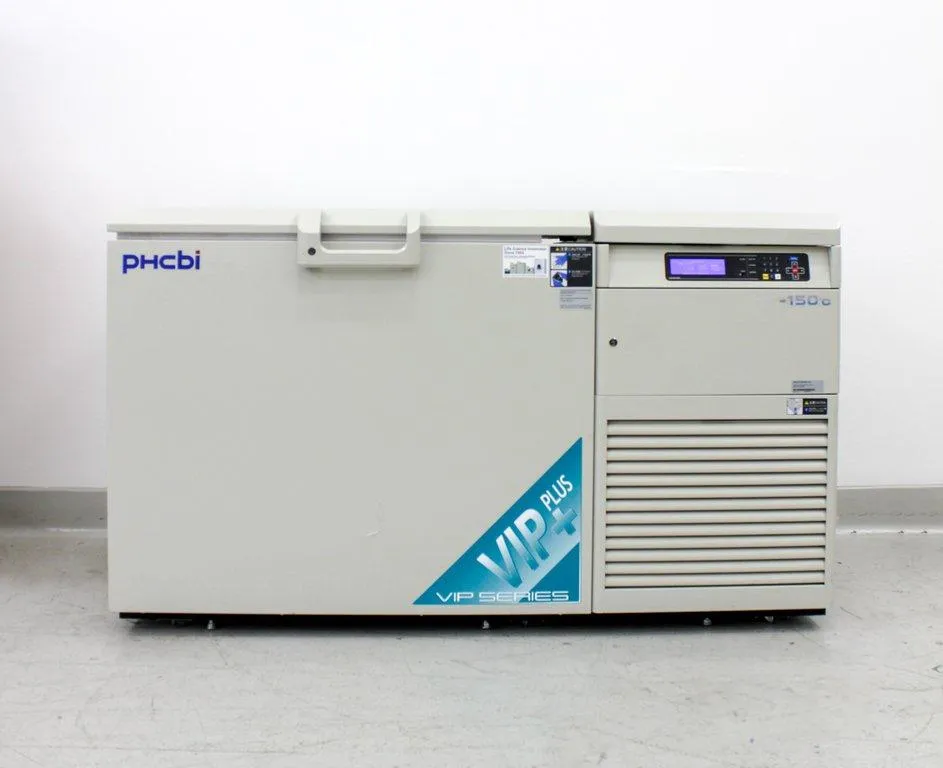

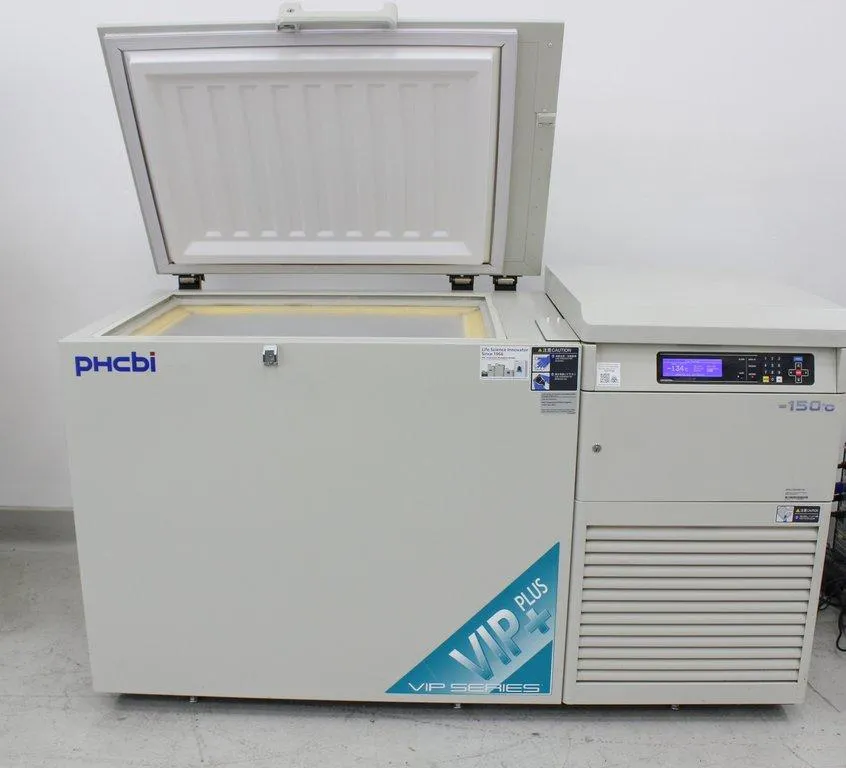

PHCbi Ultra-Low Temperature Cryogenic Freezer MDF-C2156VANC-PA
- Make phcbi
- Hertz 50Hz/60Hz
- Model Ultra-Low Temperature Freezer MDF-C2156VANC-PA
- Serial 18090052
- Weight 864.0 Lb
- Voltage 220V

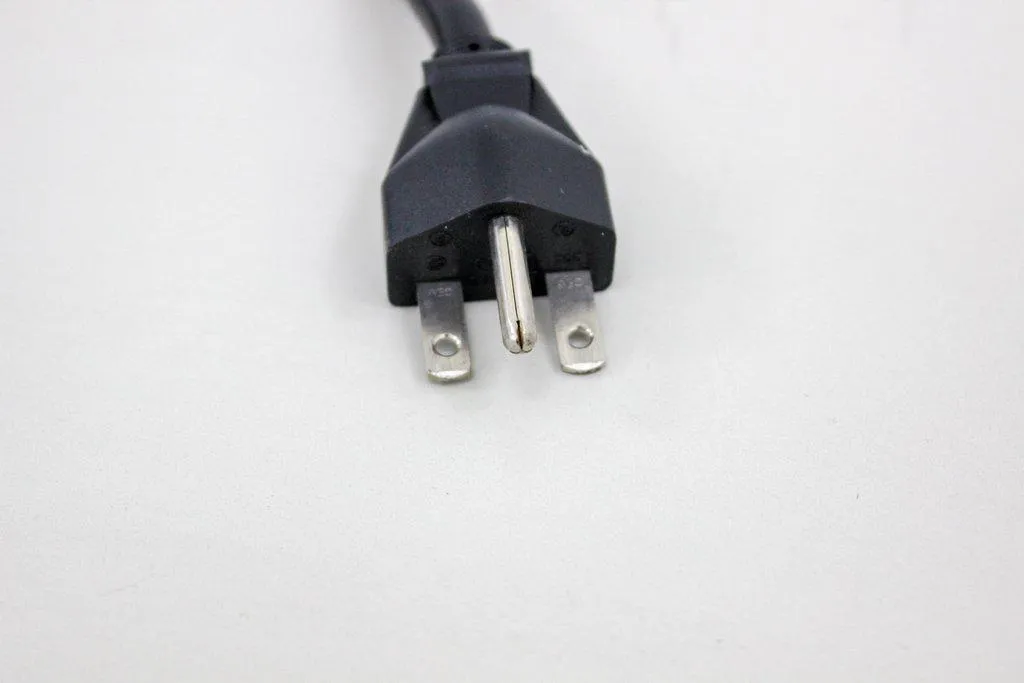

- Includes Power cord included |
- Warranty 30-Day Warranty On Part
- Dimensions 83.0in x 43.0in x 48.0in
- Shipping Type Freight
- Item Condition Good
- Manufacturing Date Does Not Apply
Product Information
The PHCbi VIP Plus 8.2 cu.ft. -150°C Cryogenic Freezer, Model MDF-C2156VANC0-PA, offers air phase cryogenic storage without the need for liquid nitrogen. It is powered by a robust auto-cascade refrigeration system, delivering superior cooling and temperature performance, faster pull-down speeds, and unsurpassed temperature uniformity. This innovative PHCbi brand -150°C cryogenic freezer eliminates hazardous operating conditions, frequent maintenance and cost requirements associated with LN2 storage while minimizing the possibility of cross contamination among multiple samples in cryogenic storage. The use of patented VIP Plus cabinet insulation technology dramatically reduces cabinet wall thickness, enabling higher capacity storage in a smaller footprint. This freezer is ideal for storage in laboratories and research facilities. The chest freezer eliminates the need for liquid nitrogen as the primary cooling medium, delivering superior uniformity at cryogenic temperatures without stratification, making it a reliable solution for cryogenic storage. The unit enables the storage of up to (165) 2″ boxes or (105) 3″ boxes, requiring only 13.07 sq.ft (1.15 m2 ) of lab space. Software not included.
Key Features
- Superior uniformity at cryogenic temperatures without stratification
- Patented VIP Plus cabinet insulation technology for higher capacity storage in smaller footprint
- Eliminates hazardous operating conditions and maintenance requirements associated with LN2 storage
- Minimizes the possibility of cross contamination among multiple samples in cryogenic storage
Specifications
- Dimensions, External: 68.1″ W x 30.1″ D x 39.8″ H (173 x 76.5 x 101 cm)
- Dimensions, Internal: 29.9″ Wx 19.5″ D x 24.2″ H (76 x 49.5 x 61.5 cm)
- Volume: 8.2 cu. ft. (231 L)
- Net Weight: 716.5 lbs. (325 kg)
- Capacity (2″ boxes): 165*
- Capacity (3″ boxes): 105*
- Cooling Performance: -150°C
- Temperature Setting Range: -125 to -152°C
- Temperature Control Range: -125 to -150°C
- Refrigeration System: Cascade with auto-cascade low stage
- Compressors: (2) 1100W, variable speed
- Noise Level: 51 dB(A)
Weight
Metric: 325 kg
Imperial: 716.5 lb
Dimensions
Metric: 173 cm x 76.5 cm x 101 cm
Imperial: 68.1 in x 30.1 in x 39.8 in
Harmonized Code
8418690090
Harmonized Code Details
8418690090 - Freezers; Other; Other; Other
