Endress Hauser Proline Promass A 300 Flowmeter Gas Liquid 0.1% Error
Endress & Hauser
Details
-
CategoryMeter
-
Dimension16.0in x 13.0in x 9.0in
-
SerialR704FD02000
-
Shipping TypeFedEx Ground
-
Manufacturing2020-07-01
-
Voltage / HertzDoes Not Apply / Does Not Apply
Description

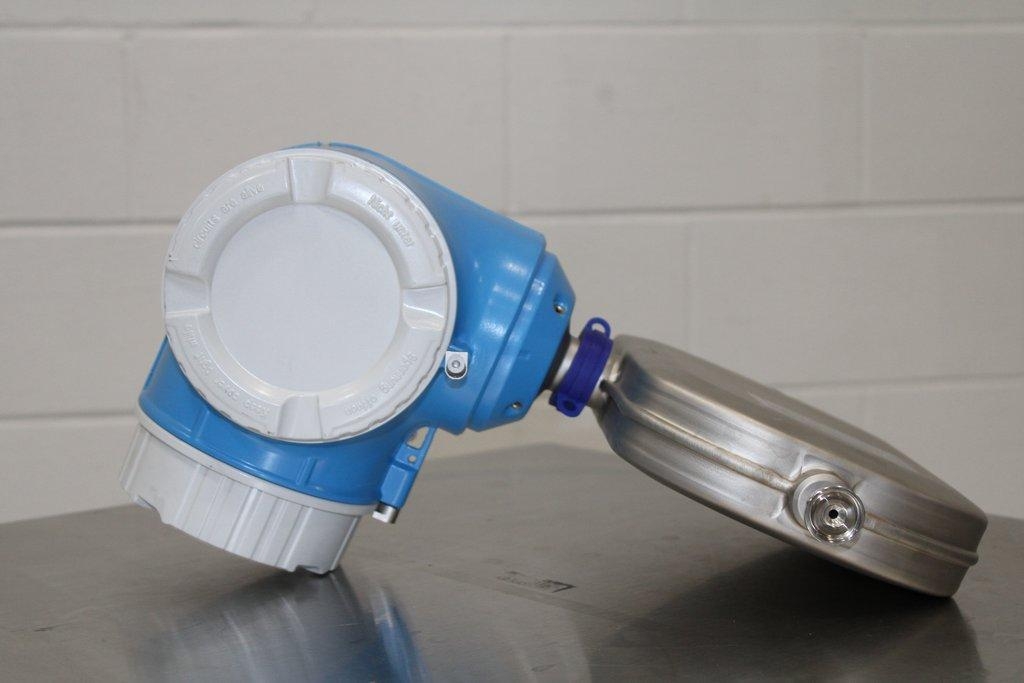

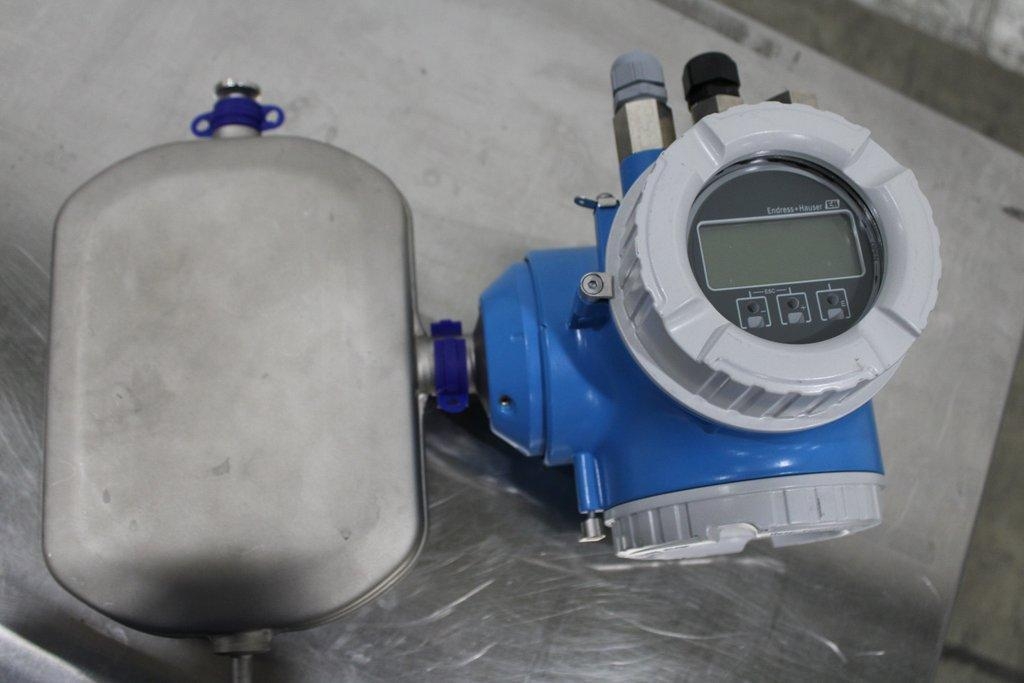

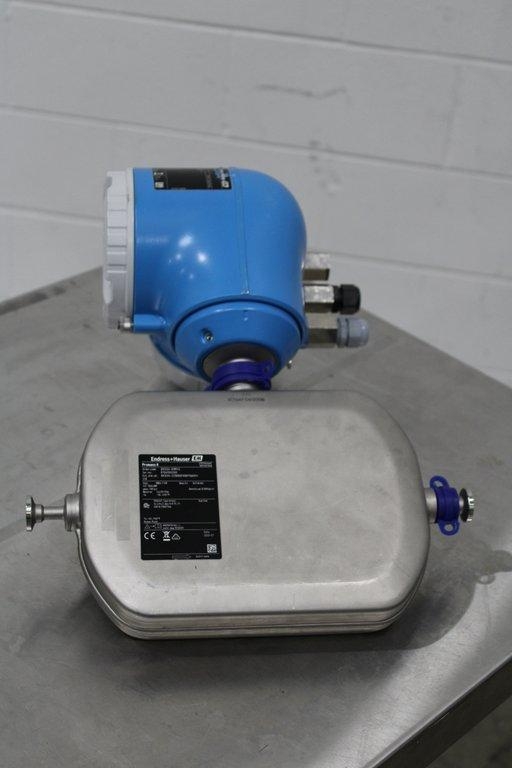

The Endress & Hauser Promass A 300, manufactured in 2020, is a precision Coriolis flowmeter designed for the accurate measurement of liquids and gases in industrial settings. Its space-efficient design allows for easy installation and operation. Ideal for high-pressure demanding applications, this single-tube system ensures precise measurement even at the lowest flow rates, withstanding pressures up to 430.9 bar (6250 psi) and temperatures up to 205°C (401°F). It features a compact dual-compartment housing, backlit display with touch control, and WLAN access. The self-drainable design resists internal clogging and corrosive conditions, offering measurement reliability supported by Heartbeat Technology. It supports numerous I/Os and Ethernet for enhanced connectivity, making it suitable for versatile process control.
Key Features
- Compact, space-saving single-tube design
- Accurate measurement for lowest flow rates
- Withstands up to 430.9 bar (6250 psi) pressure
- Supports medium temperatures up to 205°C (401°F)
- Resilient to corrosive environments and internal clogging
- Integrated Heartbeat Technology for reliable operation
- Comprehensive process and diagnostic access
- Backlit display with touch control and WLAN
Specifications
- Measuring principle: Coriolis
- Nominal diameter: DN 1 to 4 (1/24 to 1/8 inch)
- Max. Measurement Error: Liquid ±0.1%, Gas ±0.35%
- Process pressure: up to 430.9 bar (6250 psi)
- Temperature Range: Medium -50 to 205 °C (-58 to 401 °F)
- Measurement range: 0 to 450 kg/h (0 to 16.54 lb/min)
- Housing Material: Stainless steel for sensor and AlSi10Mg, CF3M for transmitter
- Wetted materials: Stainless steel 316L, Alloy C22
- Outputs: 4-20 mA HART, WirelessHART, Relay output
- Inputs: Status input, 4-20 mA input
- Digital Communication: HART, PROFIBUS DP/PA, Foundation Fieldbus
- Power Supply: DC 24 V, AC 100 to 230 V
Weight
Imperial: 32.4 Pounds
Metric: 14.7 Kilograms
Shipping Dimensions
Imperial: 19.2 lb x 15.6 lb x 10.8 lb
Metric: 48.77 cm x 39.62 cm x 27.43 cm
Harmonized Code
90261029
Harmonized Code Details
90261029 - Instruments and apparatus for measuring or checking the flow or level of liquids, nes. Suitable due to the equipment's function in measuring flow rates and overseeing liquid or gas processes in scientific and industrial settings.
