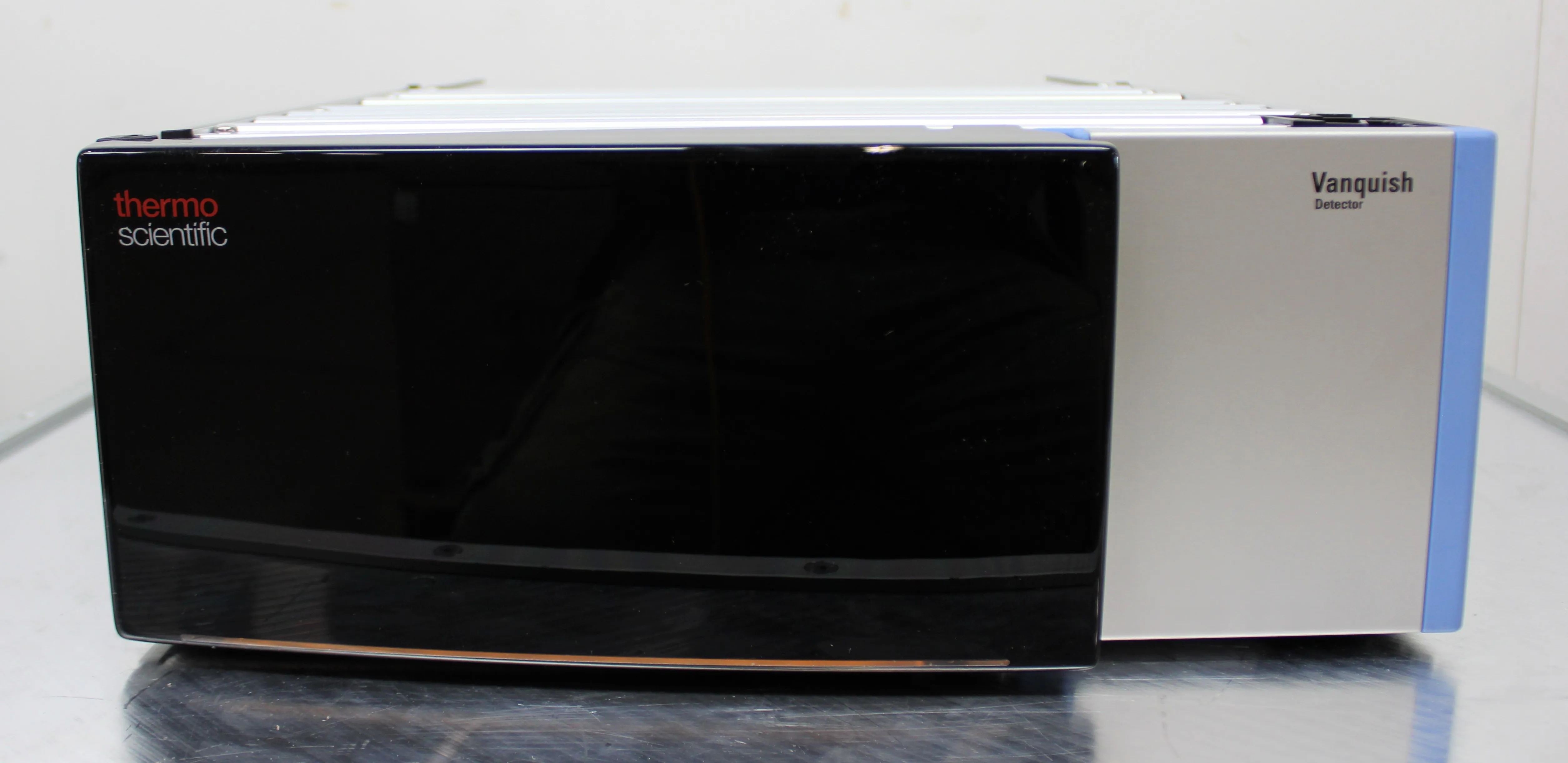

Thermo Scientific Vanquish Diode Array Detector

Product Information

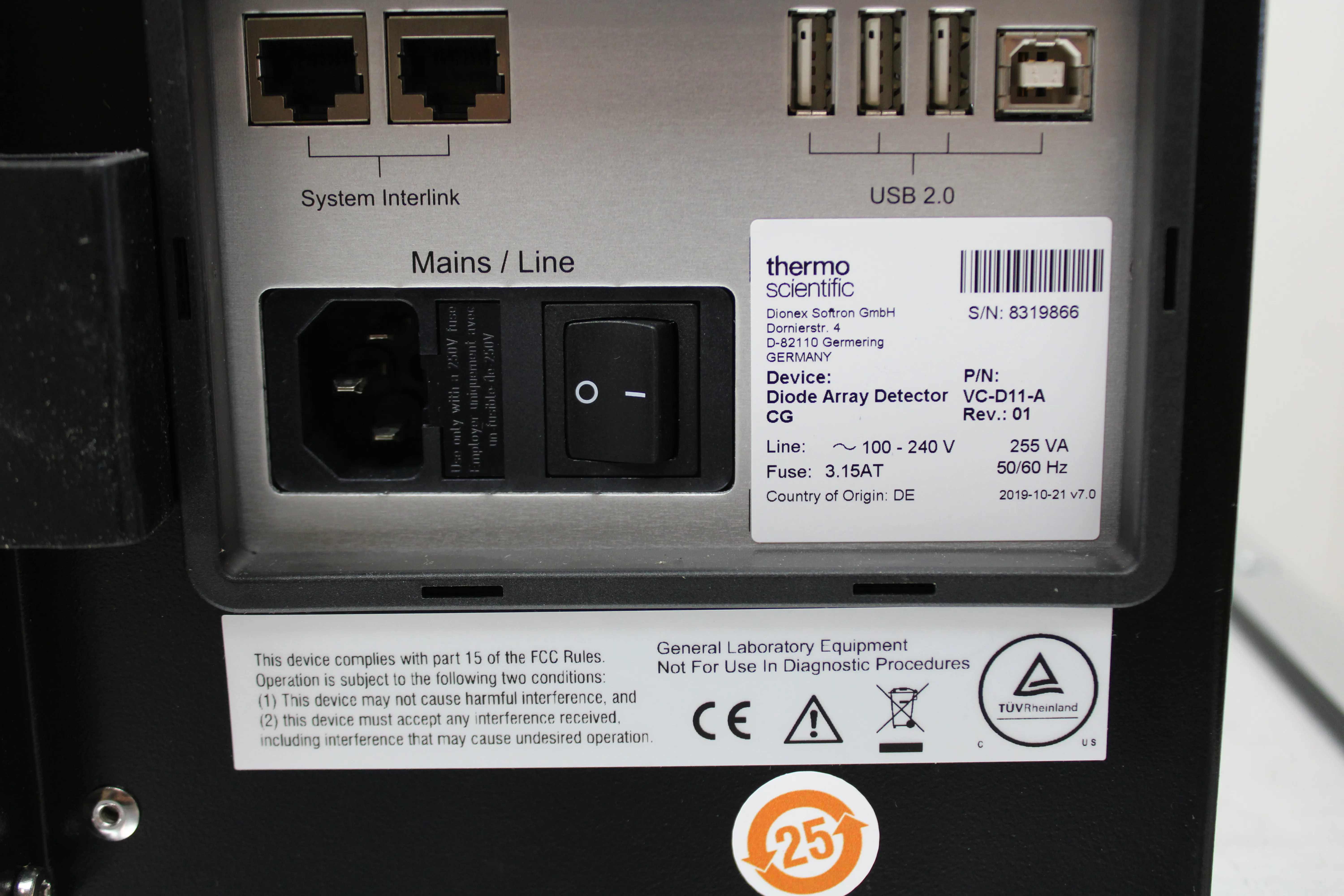

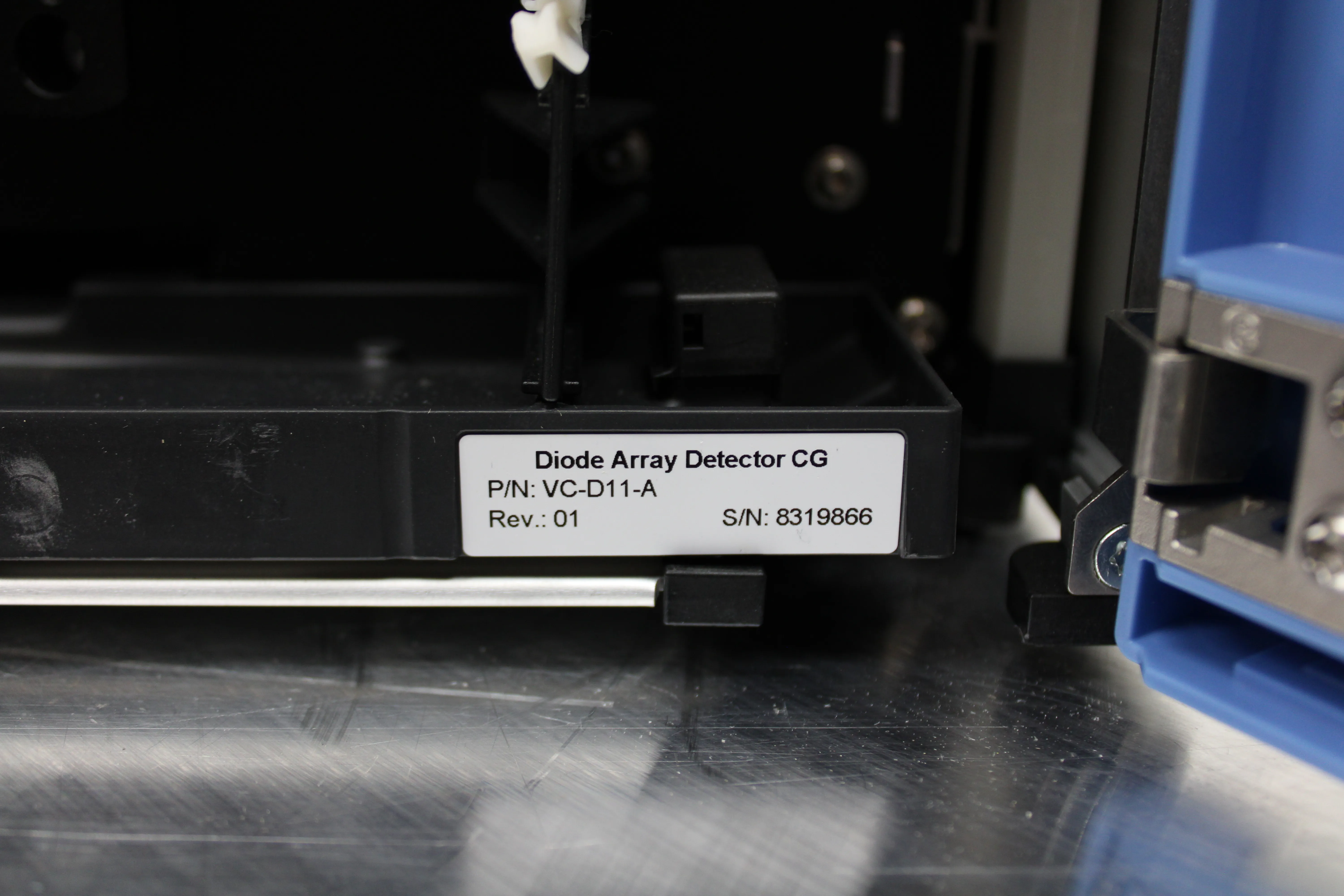

As a quirky, intelligent laboratory scientist, intimately familiar with the Thermo Scientific Vanquish Diode Array Detector, I present to you the best performance, reliability, and flexibility in HPLC and UHPLC detection. This detector offers excellent linearity, optimized noise performance, and features an ultra-wide dynamic range to allow the detection of highly concentrated main compounds alongside trace-level impurities. The Vanquish DAD HL uses Thermo Scientific LightPipe technology, achieving the best signal-to-noise performance through low baseline noise, a very long light path, and minimal dispersion. Used in UV-vis detection with up to 8 channels, this Single-Beam Diode Array Detector has a data collection rate of up to 125 Hz and connects to a PC via USB 2.0 with a 3-port HUB. The Voltage requirement is 100-240V AC, 50/60 Hz, with a maximum power of 250W/255VA. The product can be found in the REUZEit Netherlands - R, manufactured on October 21, 2019, with the serial number 8319866.

• Excellent linearity and optimized noise performance
• Ultra-wide dynamic range for highly concentrated main compounds and trace-level impurities
• LightPipe technology for the best signal-to-noise performance
• Data collection rate of up to 125 Hz
• Detectors use UV-vis detection with up to 8 channels

• Detector Type: Single-Beam Diode Array Detector
• Detection Mode: UV-vis Detection (Up to 8 Channels)
• Wavelength Range: 190-800 nm
• Dimension: 159 mm x 420 mm x 620 mm (6.3 in. x 16.5 in. x 24.4 in.)
• Weight: 16 kg
• Voltage: 100-240 V AC, 50/60 Hz, max. 250 W/255 VA

Metric: 16 kg
Imperial: 35.27 lbs

Metric: 159 cm x 420 cm x 620 cm
Imperial: 62.6 in x 16.5 in x 24.4 in

90272000

90272000: Spectrophotometers, photospectrometers and other instruments and apparatus for measuring or checking (of chapter 90)
