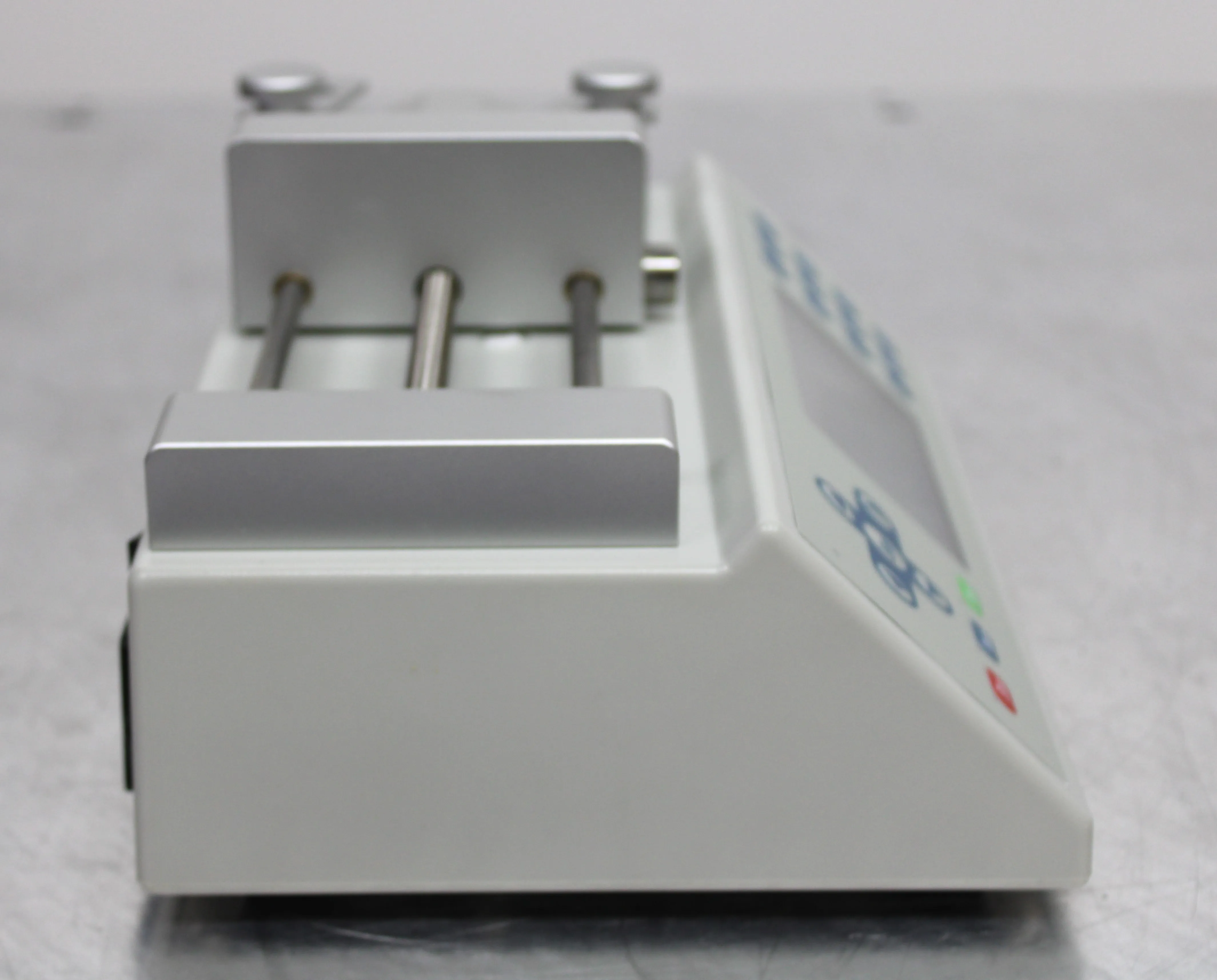

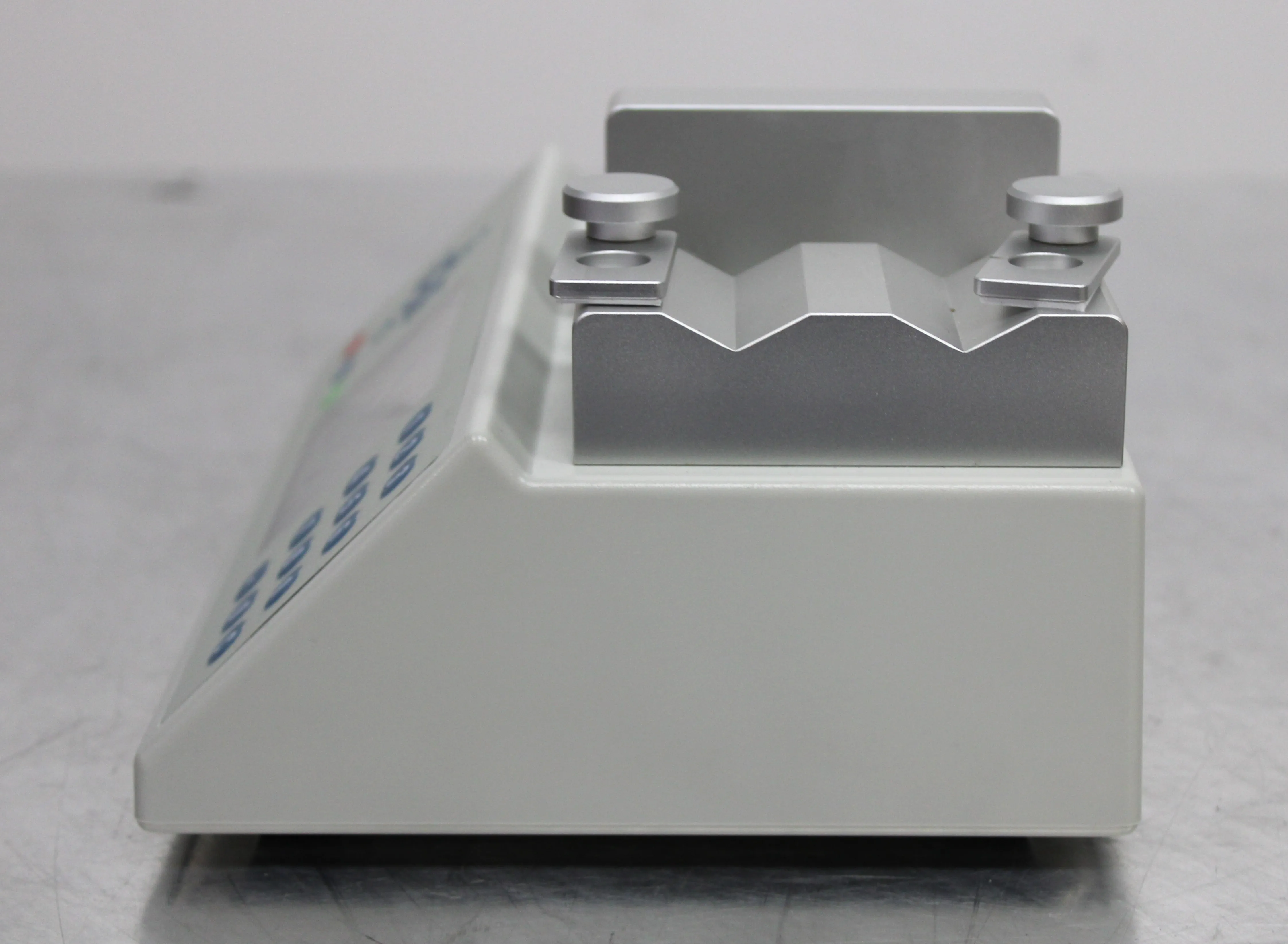

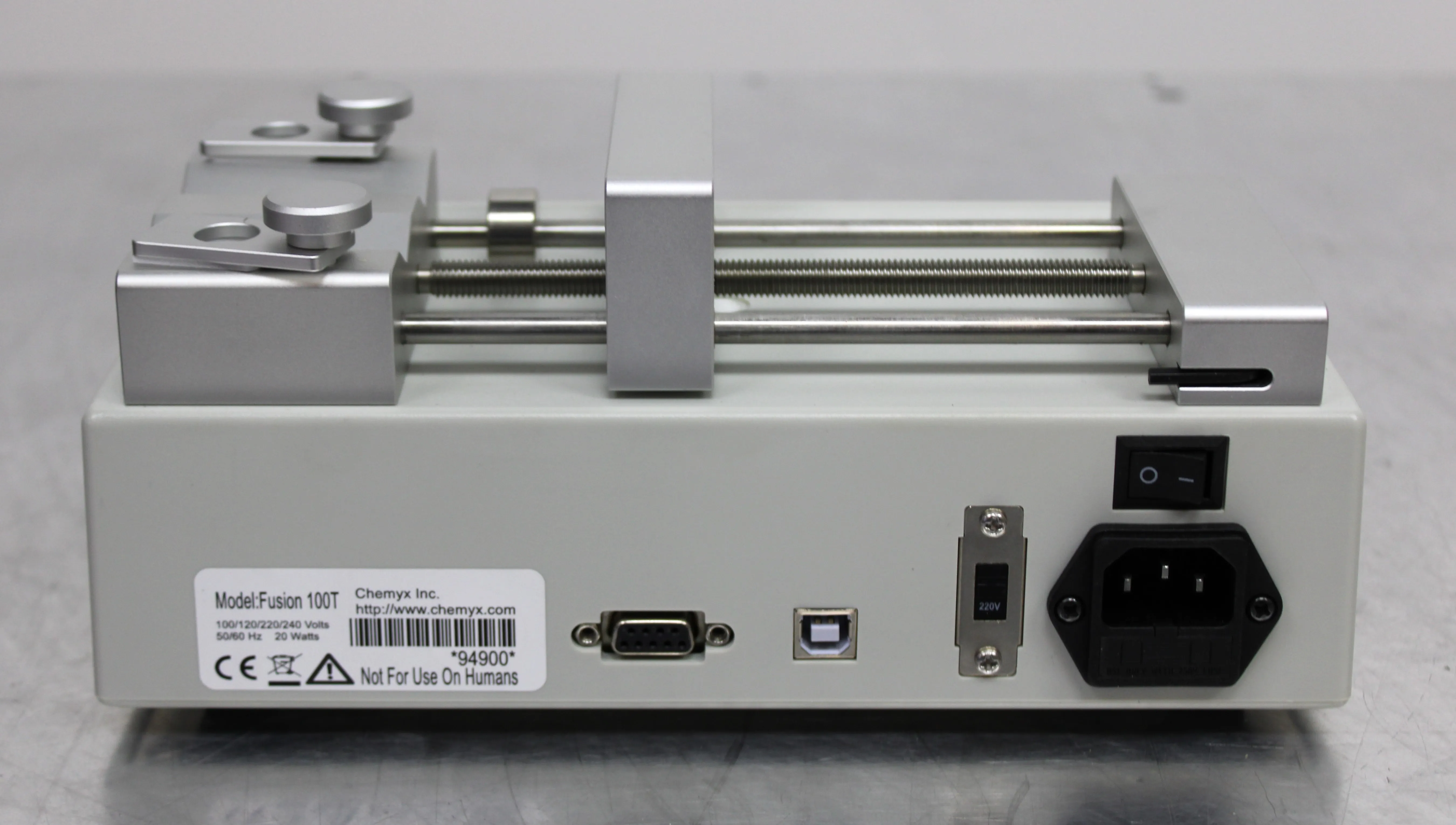

Chemyx Fusion 100T Dual-Channel Syringe Pump - Used Laboratory Equipment

Product Information

The Chemyx Fusion 100T is a dual-channel syringe pump designed to handle the majority of precision dosing applications with ease. It ensures pulseless, reproducible infusion pump rates for a wide range of analytical techniques in chemical, pharma, and biotech R&D. This precision infusion syringe pump holds syringes from 0.5L to 60 mL and offers rates from 0.0001 L/min to 140 mL/min. With an easy-to-operate touchscreen and high precision components, it's compatible with lab automation programs like LabVIEW and MATLAB.

• Dual-channel syringe pump
• Pulseless, reproducible infusion pump rates
• Holds 0.5L to 60 mL syringes
• Touchscreen control with USB, RS232, and TTL connectivity
• High precision components for microflow applications
• Supports a variety of precision microflow applications
• Compatible with LabVIEW and MATLAB

• Mode: Infuse Only
• Accuracy: < 0.35%
• Reproducibility: < 0.05%
• Syringe Size (Min/Max): 0.5L to 60mL
• Minimum Flow Rate: 0.0001 L/min (with 0.5L syringe)
• Maximum Flow Rate: 157 mL/min (with 50mL syringe)
• Linear Force: 35lb (15.9kg)
• Display: 4.3 inch LCD Touch Screen
• Connectivity: USB-B, RS232 and TTL Ports
• Power: 110/220 VAC
• Weight: 7lbs (3kg)
• Motor Drive: 0.9 Stepper Motor with Micro-stepping
• Step Resolution: 0.098 m/step
• Operating Temperature: 4C to 40C (40F to 104F)
• Storage Temperature: -10C to 70C (14F to 158F)
• Humidity: 20% to 80% RH, non-condensing

Metric: 3 kg
Imperial: 7 lbs

Metric: 24 cm x 17 cm x 8 cm
Imperial: 9.45 in x 6.69 in x 3.15 in
