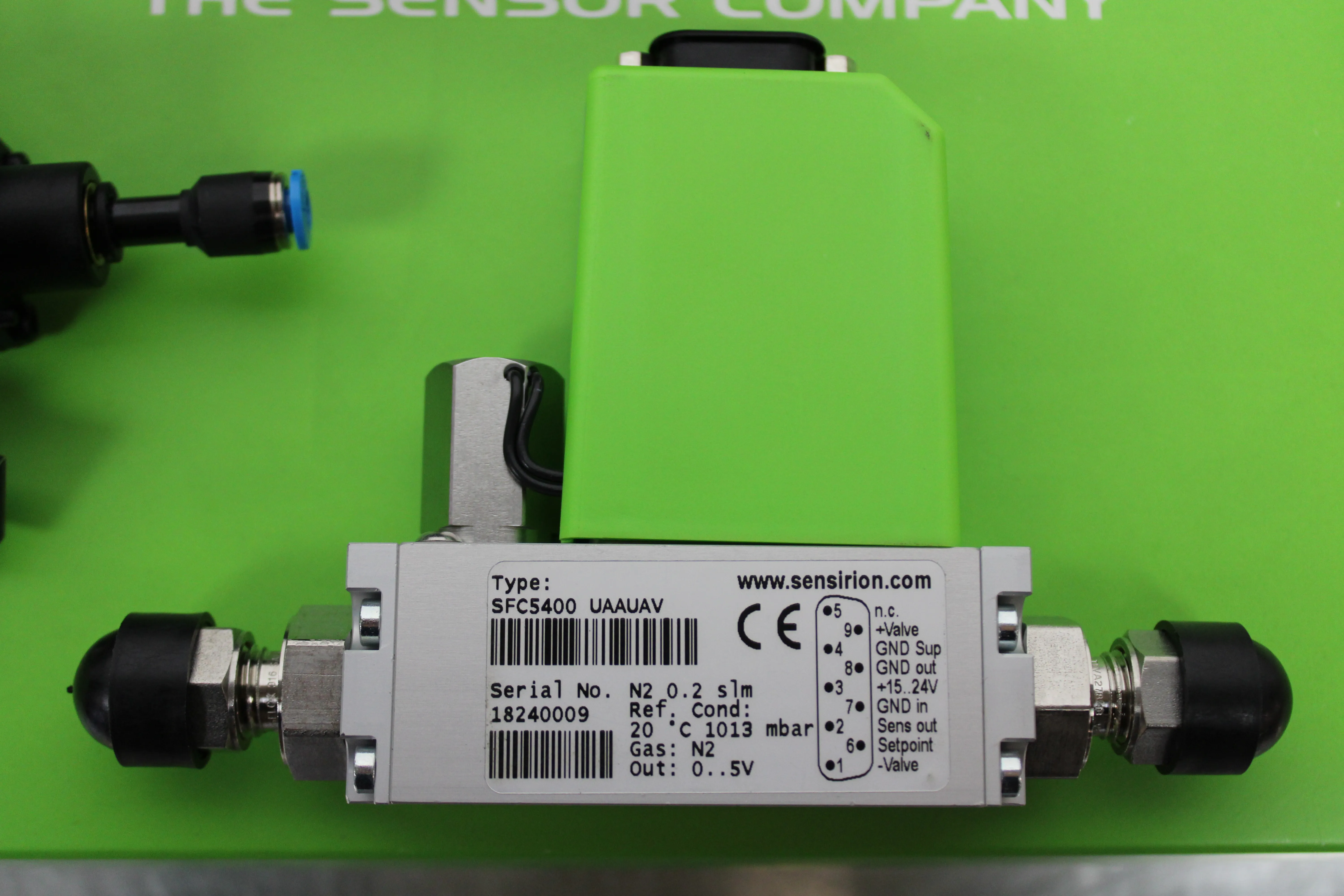

Sensirion SFC5400 UAAUAV/SFM4100-Air Gas Analyzer Mass Flow Controller and Flow Meter

Product Information

The Sensirion SFC5400 UAAUAV/SFM4100-Air is a gas analyzer designed for excellent accuracy and repeatability with a wide control and measurement range. It is calibrated for multiple gases, has a digital interface with temperature-compensated output, ultra-fast settling time, and pressure resistance up to 10 bar. The mean time between failures is an impressive 169 years with no drift and no re-calibration required in the field. The NIST-traceable calibration makes it reliable for various applications. The SFM4100 gas flow meter series is a versatile OEM gas flow meter designed for demanding volume applications. It has typical accuracy, calibration for air and nitrogen, and flow sensor output for flow and temperature.

• Excellent accuracy and repeatability
• Calibrated for multiple gases
• NIST-traceable calibration
• Ultra-fast settling time (<100 ms)
• Pressure resistance up to 10 bar
• No drift and no re-calibration required

• Mass flow controller and flow meter
• Full scale flow rate: 1, 2, 5, 10, 20, 50 and 100 slm, 50, 100, 200 and 500 sccm
• Accuracy: 0.08% FS or 0.8% SP
• Maximum operating pressure: 5 bar
• Calibration for multiple gases: Air, O2, N2, Ar, CO2, He, H2, CH4, N2O, SF6 and C4F8 flow
• Fluidic connector ports compatible with Swagelock, VCO, VCR, Downmount
• Supply voltage: 14 - 26.4V
• Average supply current: 50,000uA
• Max. supply current: 320,000uA
• Interfaces: Analog voltage, Analog current, Device net, IO link, RS485
• Size (LxWxH): 101.1 x 24.4 x 91mm

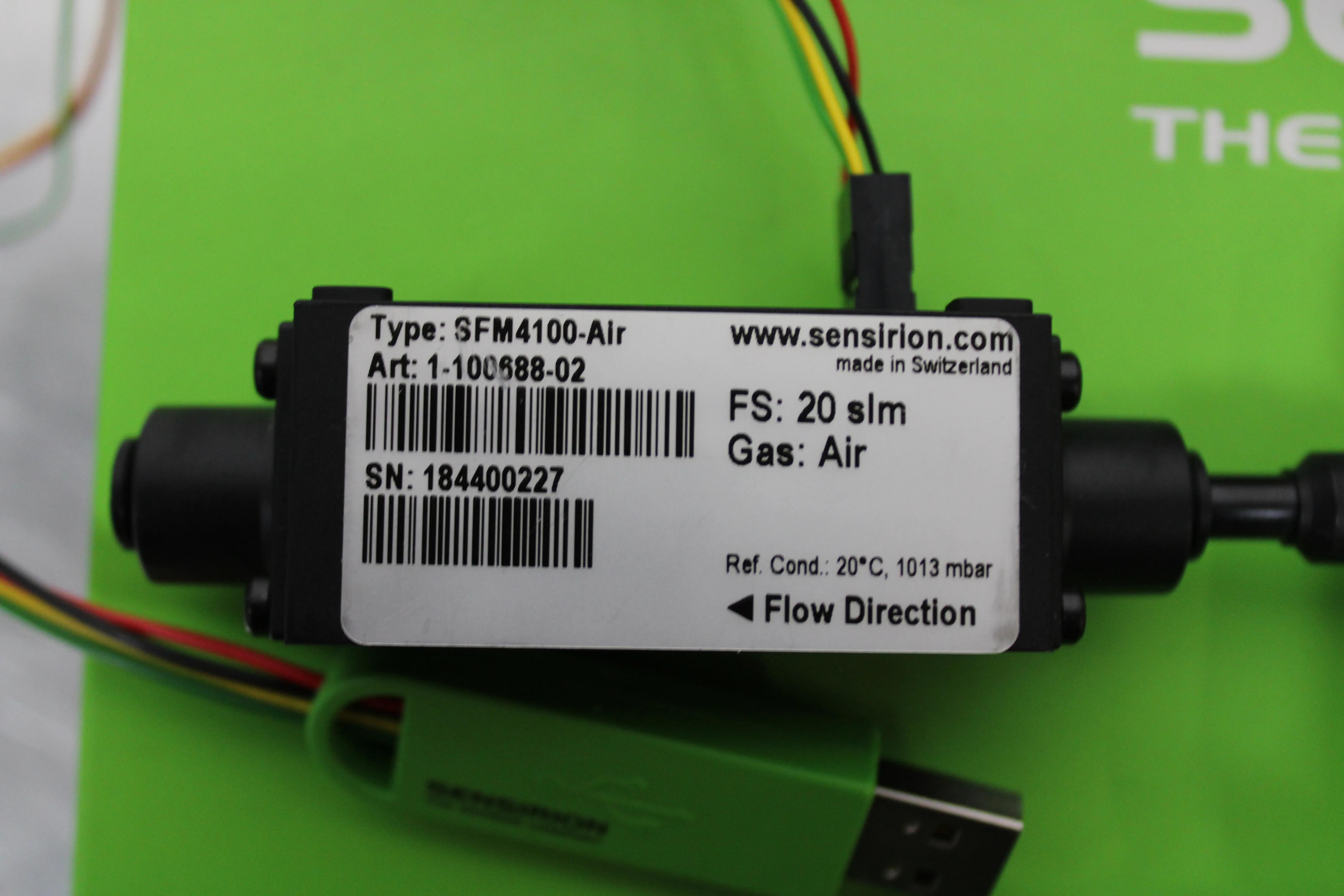

• SFM4100 Series: Versatile OEM gas flow meter for demanding volume applications
• Full scale flow rate: 0 - 20 slm
• Typical accuracy: 3% m.v.
• Calibration: Air and N, Sensor output: Flow and T
• Maximum operating pressure: 6 bar
• Fluidic connector ports: Legris carstick (6 mm)
• Supply voltage: 3.5 - 17V
• Max. supply current: 12,500uA
• Interfaces: IC
• Size (LxWxH): 93 x 31.88 x 27.2mm

Metric: 1 kg
Imperial: 2.20462 lb

Metric: 24.1 cm x 6.2 cm x 9.1 cm
Imperial: 9.49 in x 2.44 in x 3.58 in

9027.80.11

9027 Instruments and apparatus For physical or chemical analysis. for gas
