Thermo ThermoFlex 1400 Recirculating Chiller 1,400W 5C-90C Turnkey
Thermo Fisher Scientific
Details
-
CategoryChiller / Heater
-
Dimension102.0cm x 53.0cm x 89.0cm
-
Serial0110696101130815
-
Shipping TypeFedEx Ground
-
ManufacturingDoes Not Apply
-
Voltage / HertzDoes Not Apply / 50Hz/60Hz
Description

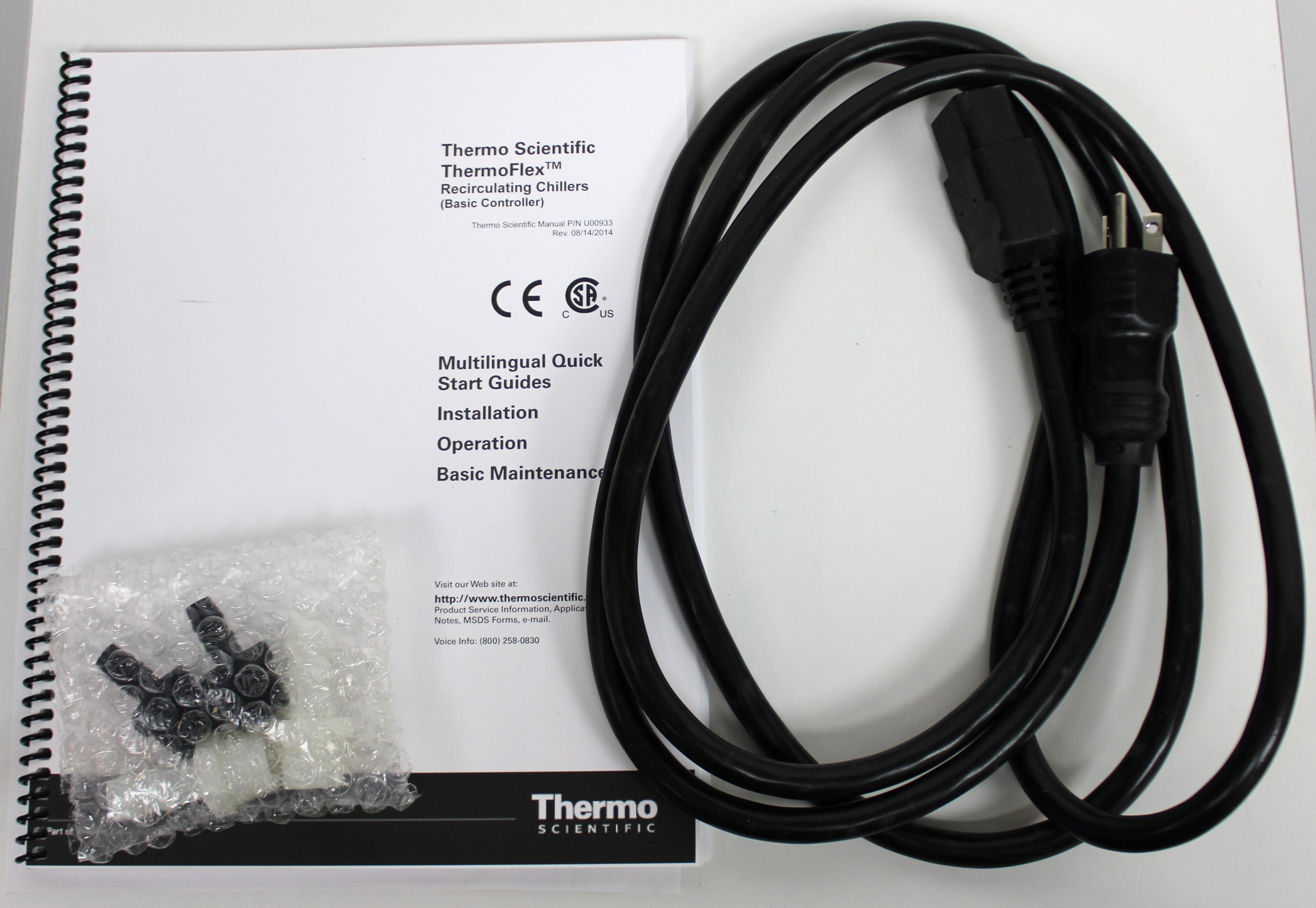

The Thermo ThermoFlex 1400 Recirculating Chiller from Thermo Fisher Scientific is engineered for applications necessitating reliability, ease of use, and maintenance simplicity. This unit, catalog number TF1400, works with 115V and showcases no signs of wear. Offering a cooling capacity of up to 1,400 watts at 60Hz and 1,170 watts at 50Hz, it operates efficiently within a temperature range of 5C to 90C. With a pump capacity reaching up to 4.0 gpm at 60 psig, this chiller is optimized for demanding laboratory environments. Additional configuration options such as fluid filtration, DI support, auto refill, and flow control with readout are available, aligning with precise lab requirements. Notably, the chiller features low-noise operation (<58 dBA), contributing to a safe and stress-reduced work environment. Ideal for maintaining temperature stability with an accuracy of 0.1C, this system is fully functional, turnkey, and includes a user manual for guidance. Computer and software are not included.
Key Features
- Cooling Capacity: Up to 1,400 watts (60Hz), 1,170 watts (50Hz)
- Temperature Range: 5C to 90C
- Pump Capacity: Up to 4.0 gpm at 60 psig
- Noise Level: <58 dBA
- Temperature Stability: 0.1C
- Configuration Options: Fluid Filtration included, DI Support, Auto Refill, Flow Control with Readout
- Condenser Type: Air or Water-cooled
- Certifications/Compliance: CE, CSA Semi S2
Specifications
- Cooling Capacity: 1400W at 60Hz, 1170W at 50Hz
- Temperature Range: 5 to 90 degrees Celsius
- Pump Capacity: Up to 4.0 gpm (15.1 L/min) at 60 psig
- Noise Level: <58 dBA
- Temperature Stability: ±0.1 degrees Celsius
- Power Requirement: 115V
- Condenser Type: Air/Water-cooled
- Certifications: CE, CSA Semi S2
Weight
Imperial: 209.0 Pounds
Metric: 94.8 Kilograms
Shipping Dimensions
Imperial: 48.19 lb x 25.04 lb x 42.05 lb
Metric: 122.4 cm x 63.6 cm x 106.81 cm
Harmonized Code
8418690090
Harmonized Code Details
8418690090 - Machinery and apparatus for refrigeration, for other purposes; inclusive for temperature control applications in labs, appropriate for this chiller.
