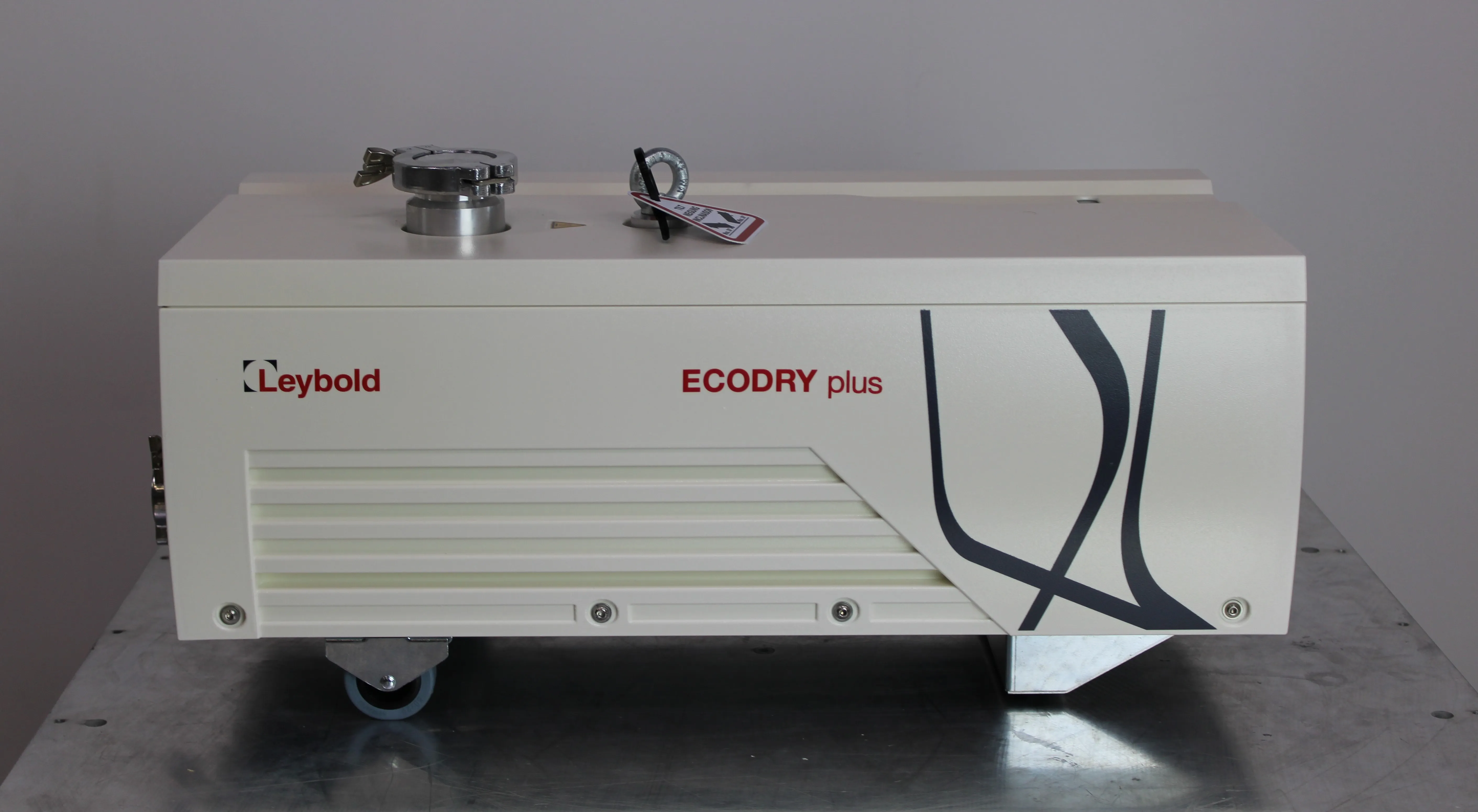

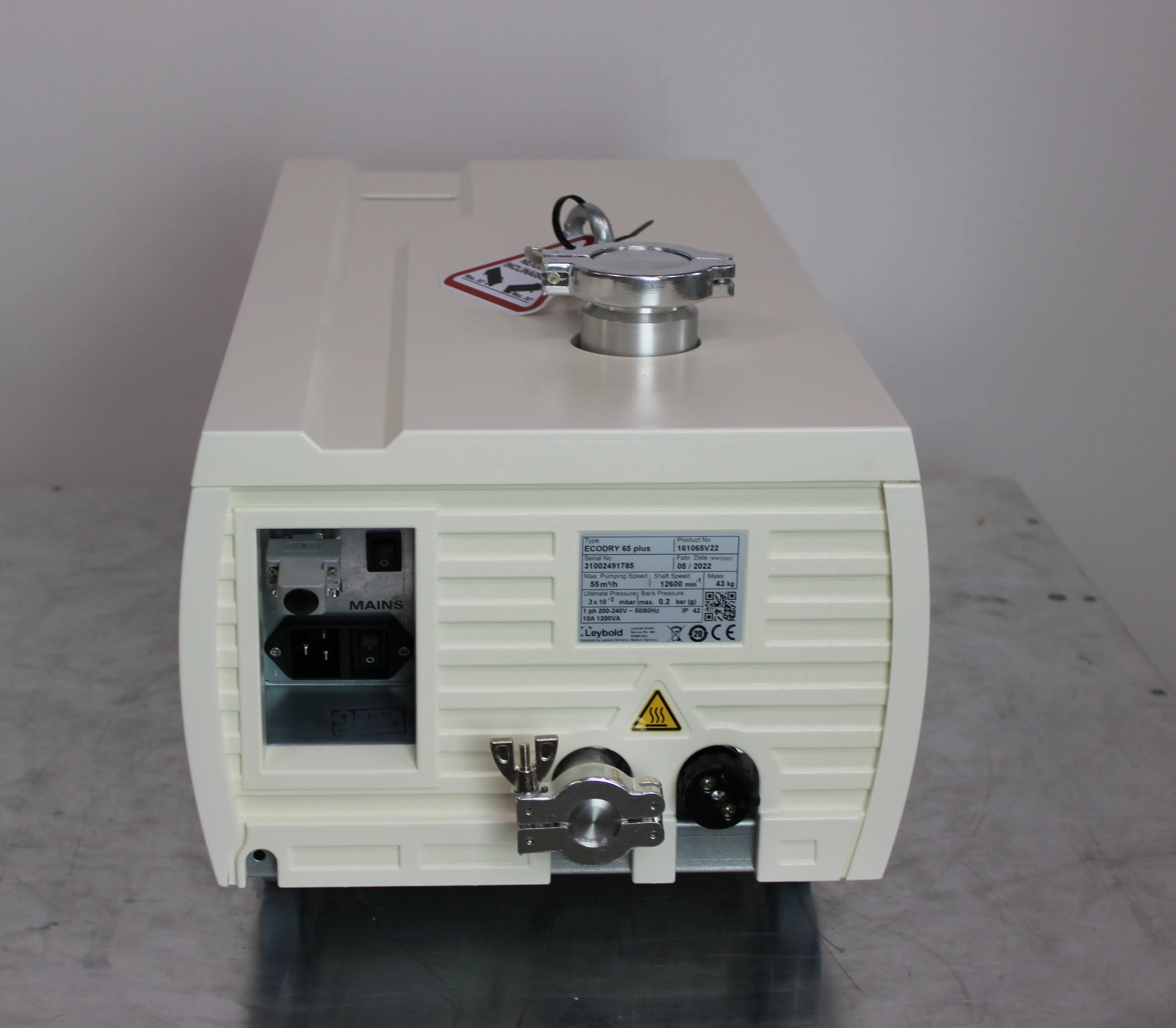

Leybold ECODRY 65 Plus Pump 161065V22 REF: 990600 Vacuum Pump

Product Information

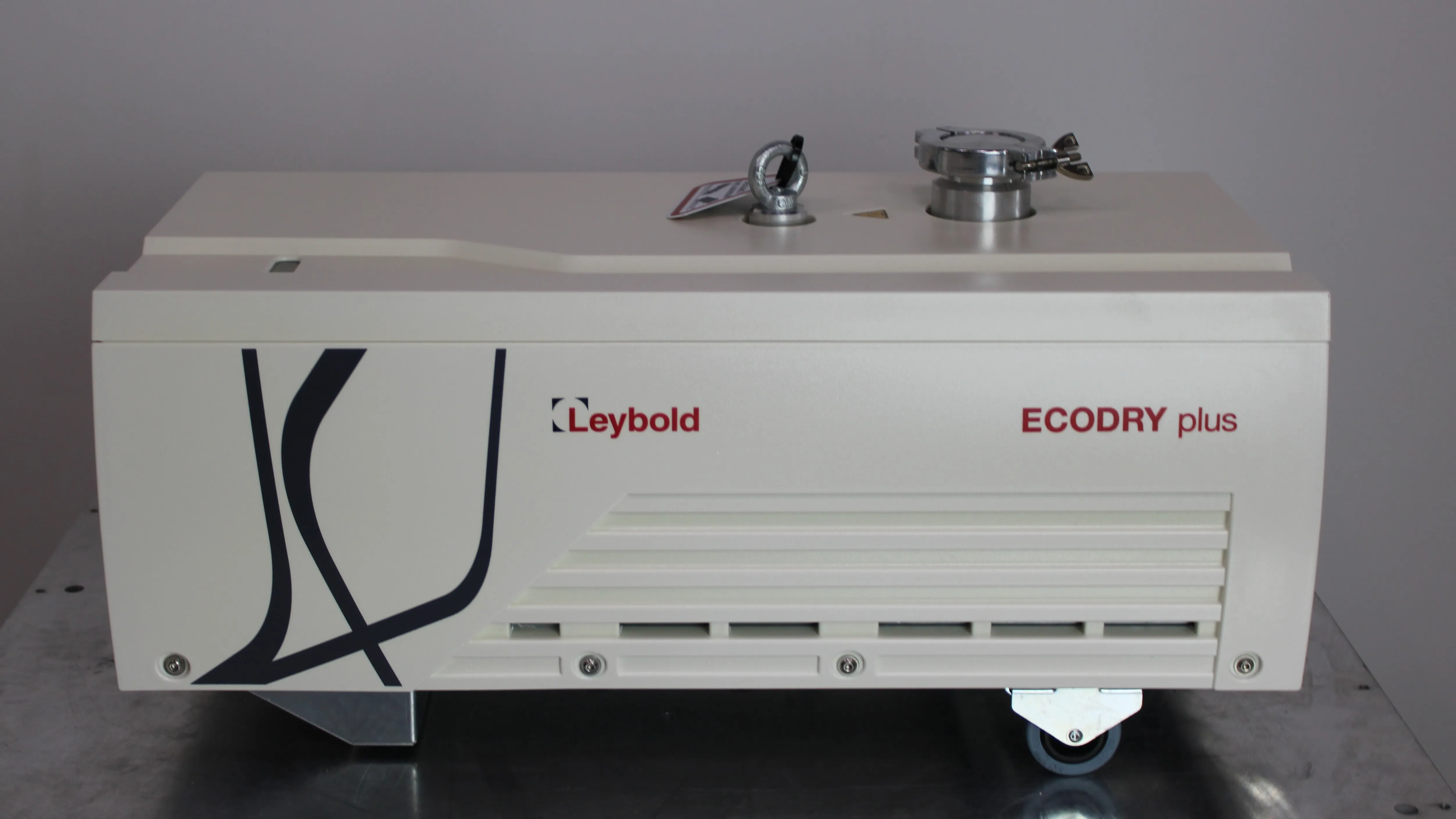

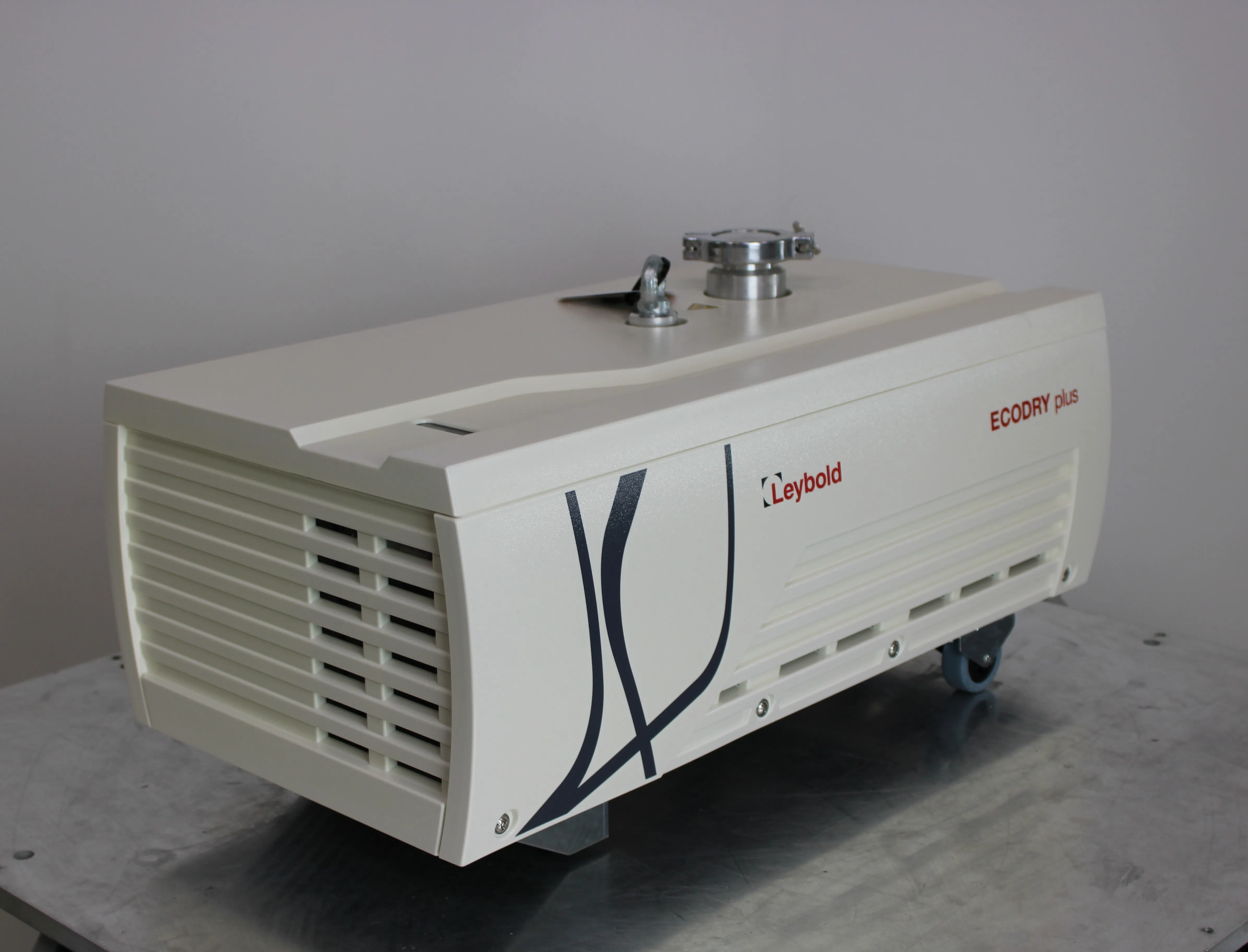

Leybold ECODRY 65 Plus Pump 161065V22 REF: 990600 is a top-of-the-line dry-compression multi-stage Roots vacuum pump, delivering excellent noise reduction, designed for use in quiet and clean environments, such as research laboratories. It provides stable vacuum performance for many years without maintenance. The pump stands out due to its quiet operation, clean suction chamber, oil-free and wear-free operation, and compact, easy-to-use design. This vacuum pump is ideal for applications in analysis and research laboratories for its outstanding noise reduction, clean operation, and reliable vacuum performance without maintenance.

• Oil-free and wear-free suction chamber
• Lower than 52 dB(A) noise level
• Compact and easy to reposition design

• Manufacturer: Leybold
• Model: ECODRY 65 Plus
• Pumping Speed at 50Hz: 32.0 CFM, 907 L/min, 15.1 L/s, 54.4 m3/hr
• Max Water Vapor Pumping Rate (with gas ballast): 500 g/hr
• Ultimate Pressure Total With Gas Ballast: 3.00 x 10-2hPA, 3.00 x 10-2mbar, 3.00 Pa, 2.30 x 10-2Torr
• Noise: 52.0 db(A)
• Compression Stages: 7
• Weight: 43.0 kg
• Dimensions: 600 x 320 x 298 mm
• Lubrication Type: Dry
• Vacuum Range: Medium Vacuum (1 - 10-3Torr)
• Technology Type: Multi-Stage Roots

Metric: 43 kg
Imperial: 94.8 lbs

Metric: 600 cm x 320 cm x 298 cm
Imperial: 236.22 in x 125.98 in x 117.32 in

84141000

84141000: Vacuum Pumps - specifically designed for laboratory use, based on the technical features and applications of the product.
