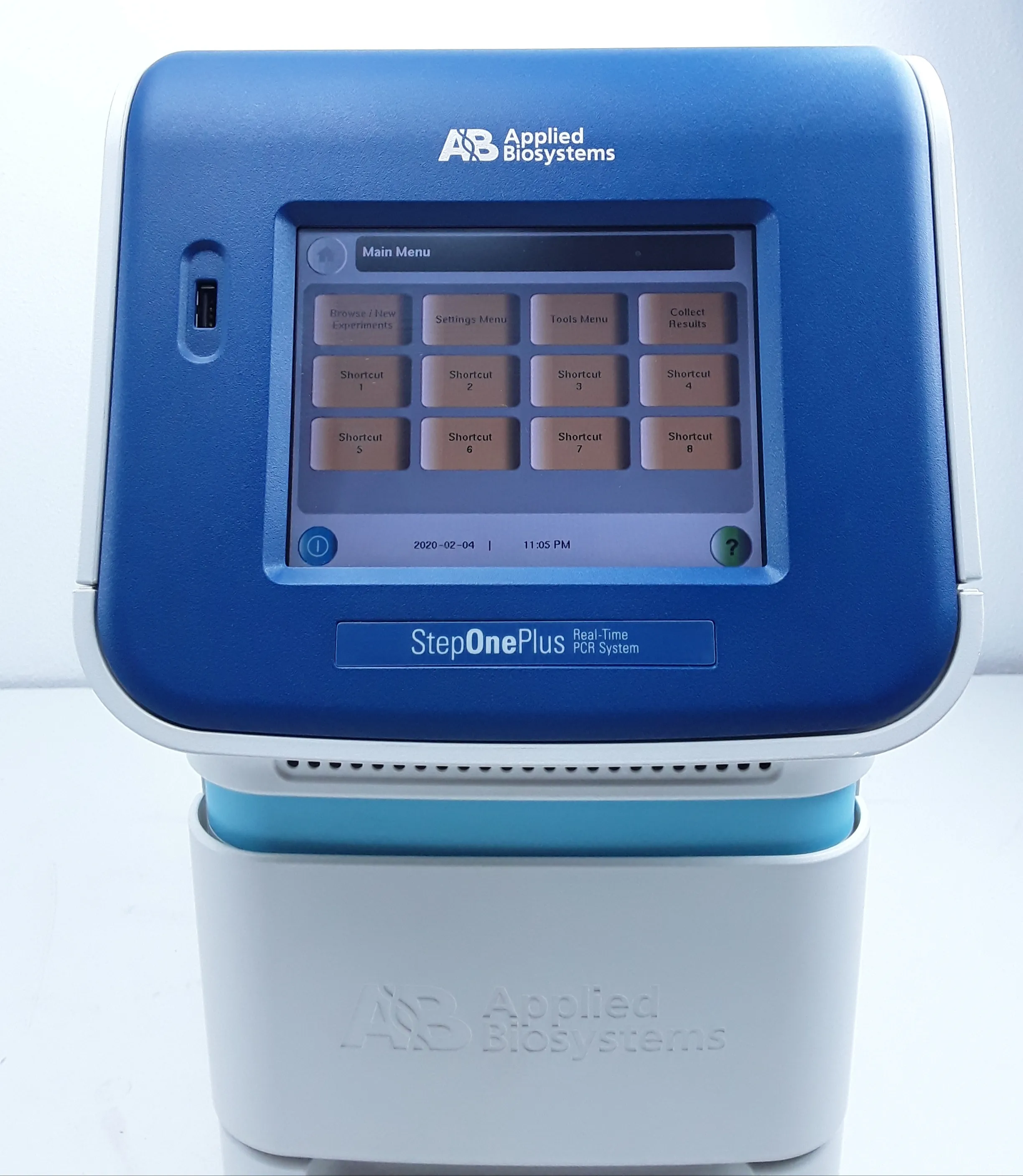

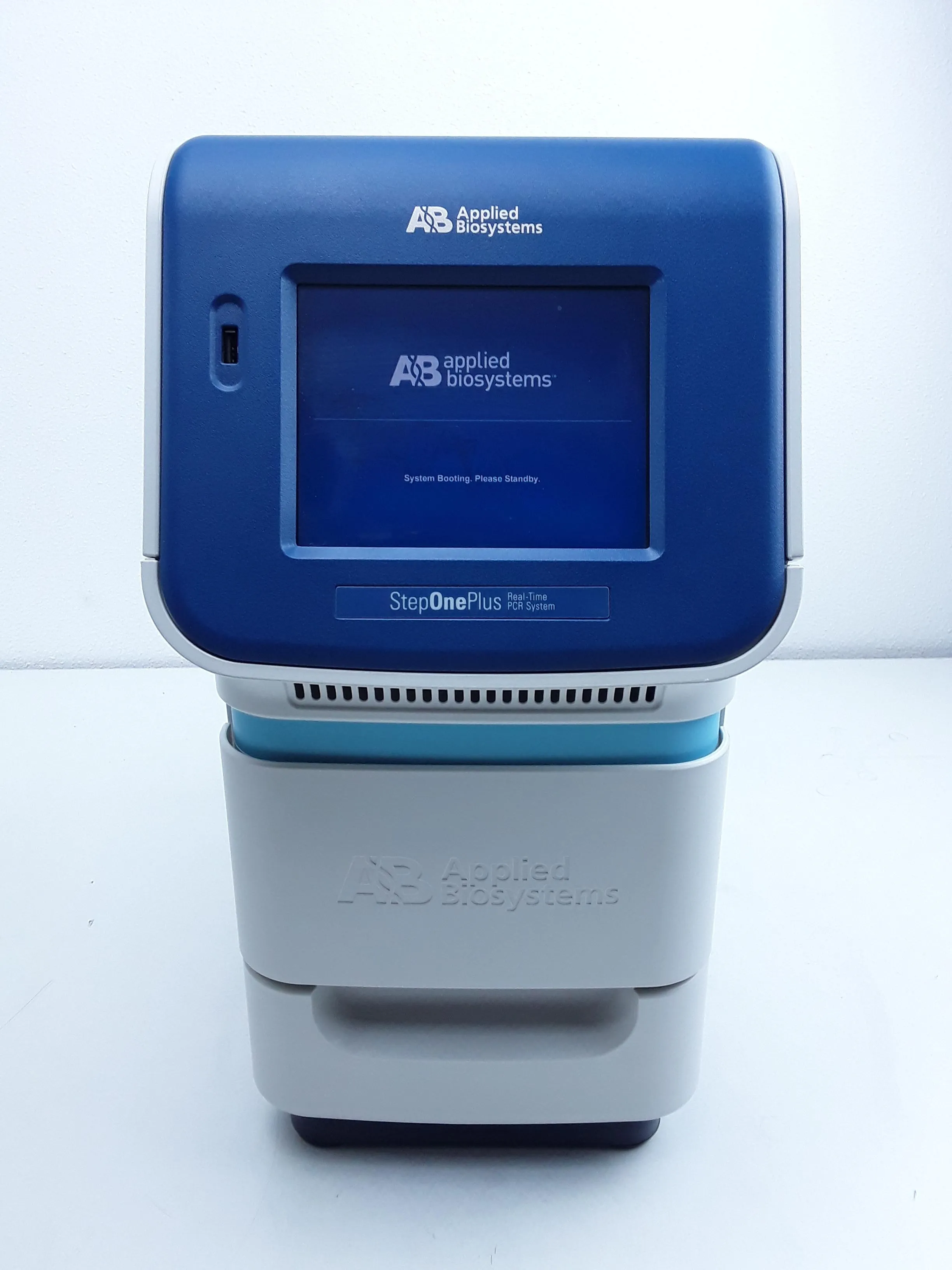

Applied Biosystems StepOne Plus Real-Time PCR System 96-Well

Product Information

The Applied Biosystems StepOne Plus Real-Time PCR System is a 96-well Real-Time PCR instrument perfect for both first-time and experienced users. Utilizing robust LED based 4-color optical recording, the StepOnePlus Real-Time PCR System is designed to deliver precise, quantitative Real-Time PCR results for a variety of genomic research applications. It's great for DNA quantification, gene expression analysis, pathogen detection, and microRNA analysis with fast and standard reaction modes. If you're a seasoned research pro or just starting out, you'll love the sensitive 4.6C/sec peak block ramp rate, 0.1 to 30 µm reaction volume range, and the sustainable packaging. Did you know this beauty has a sensitivity of 1 copy, a linear dynamic range greater than 9 log units, and a thermal cycling system that's Peltier-Based? You might even be blown away by how the 4 emission filters, blue LED excitation source, and photodiode deliver fast and standard run times. Did we mention that it has a temperature range of 4-100°C, with 0.25°C temperature accuracy and uniformity? Yep, this StepOnePlus is the real deal for real-time PCR experiments!

• Robust LED based 4-color optical recording
• Linear Dynamic Range greater than 9 log units
• Sustainable packaging
• Thermal Cycling System: Peltier-Based
• Dynamic range of reaction volume 10-30 µL (Standard curve experiments: 40 µL in standard mode is validated)

• Calibrated Dye: FAM, JOE, NED, ROX, SYBR Green I, TAMRA, VIC

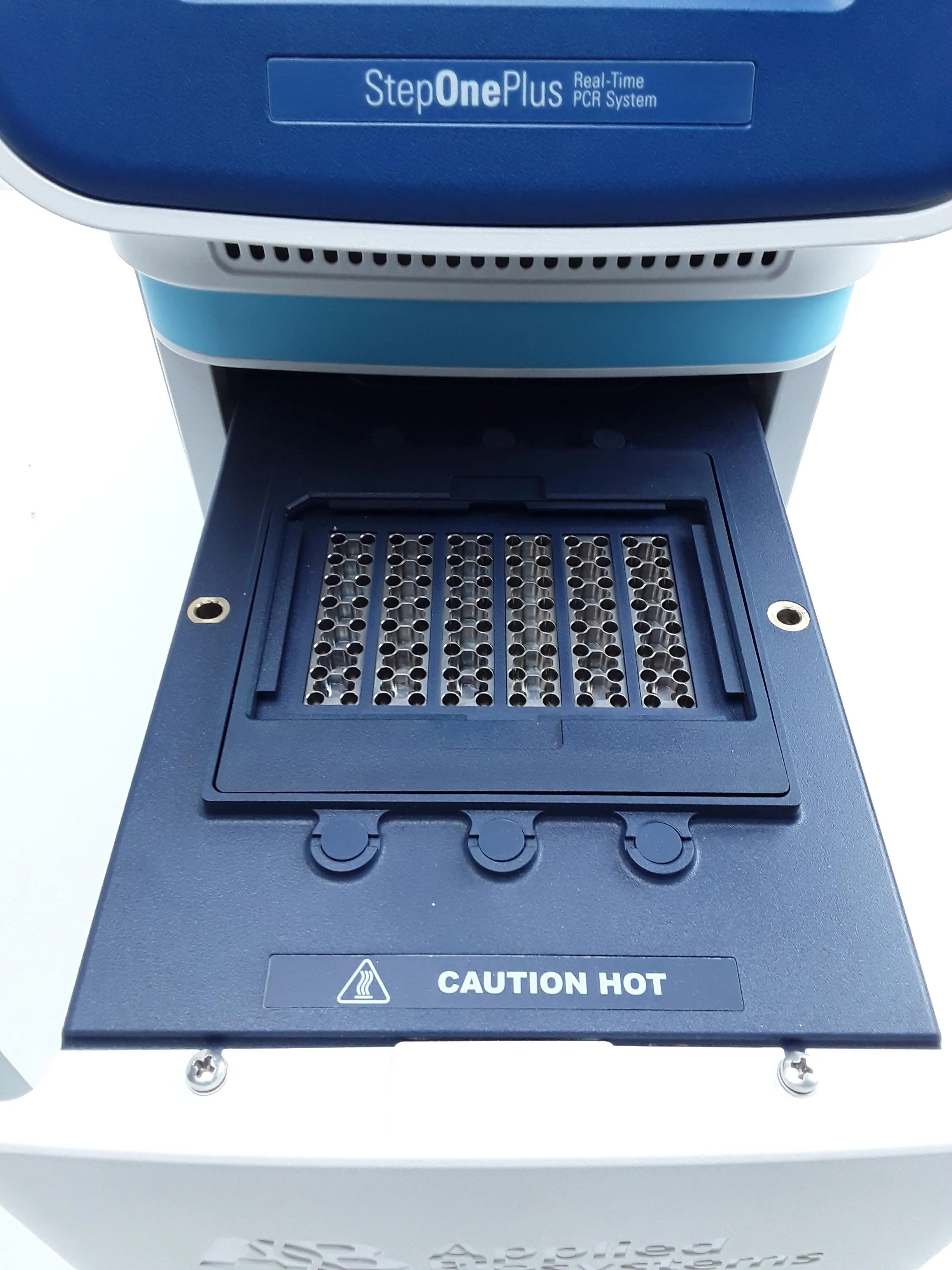

• Capacity: 1 x 96-well plate, 12 x 8-tube strips, 96 x 0.1 ml tubes
• Detection Method: Primer-Probe Detection, SYBR
• For Use With (Equipment): StepOnePlus
• Format: 0.1 ml tubes, 8-tube strips, 96-well plate
• Dynamic Range: Linear Dynamic Range greater than 9 log units (detection)
• Green Features: Sustainable packaging
• Optics: 4 emission filters, Blue LED excitation source, photodiode
• Peak Block Ramp Rate: 4.6C/sec
• Product Size: 1 instrument
• Reaction Speed: Fast, Standard
• Reaction Volume Range: 10-30 µL (Standard curve experiments: 40 µL in standard mode is validated)
• Run Time: <2 hrs run (Standard Mode), <40 min run (Fast Mode)
• Sample Ramp Rate: Fast mode: 2.2C/sec, Standard mode: 1.6C/sec
• Sensitivity: 1 copy
• Temperature Accuracy: 0.25°C (35 to 95°C) of display temperature
• Temperature Range: 4-100°C
• Temperature Uniformity: 0.25°C (35 to 95°C) of setpoint/display temperature
• Thermal Cycling System: Peltier-Based System

Metric: 25 kg
Imperial: 55.1155 lbs

Metric: 19.291349 cm x 9.842525 cm x 20.078751 cm
Imperial: 7.59 in x 3.88 in x 7.92 in

902780

This code refers to instruments and apparatus for physical or chemical analysis, using optical radiations (UV, visible, IR). The choice is based on the specific application of the PCR system in real-time genetic analysis, which falls under this category.
