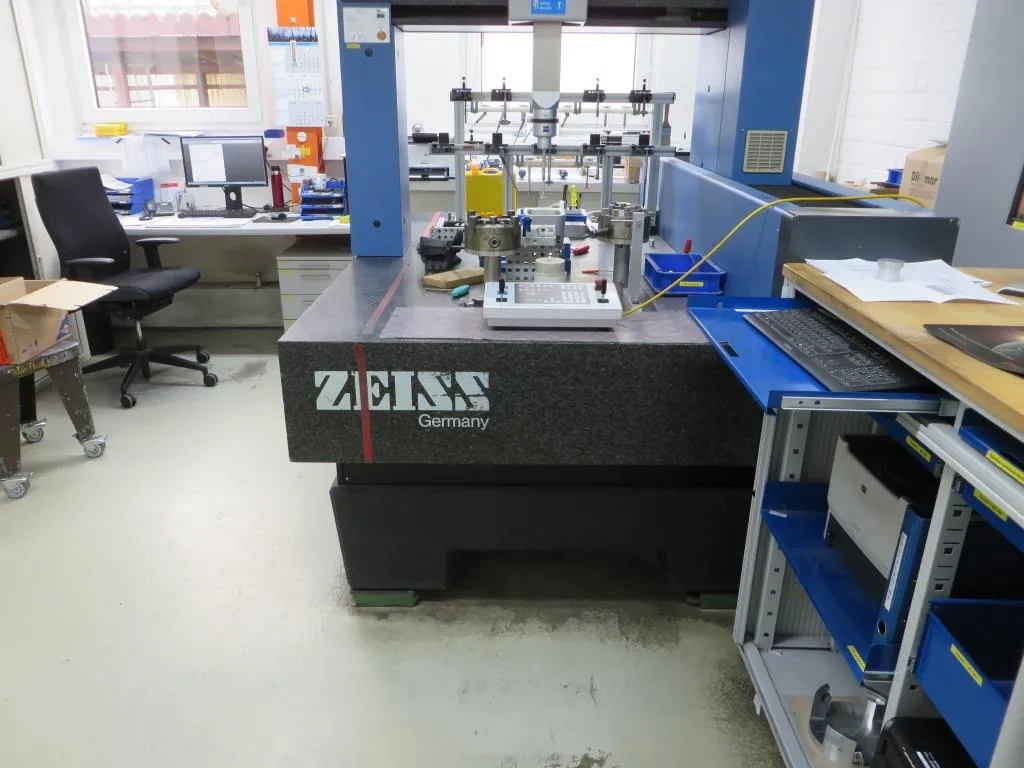

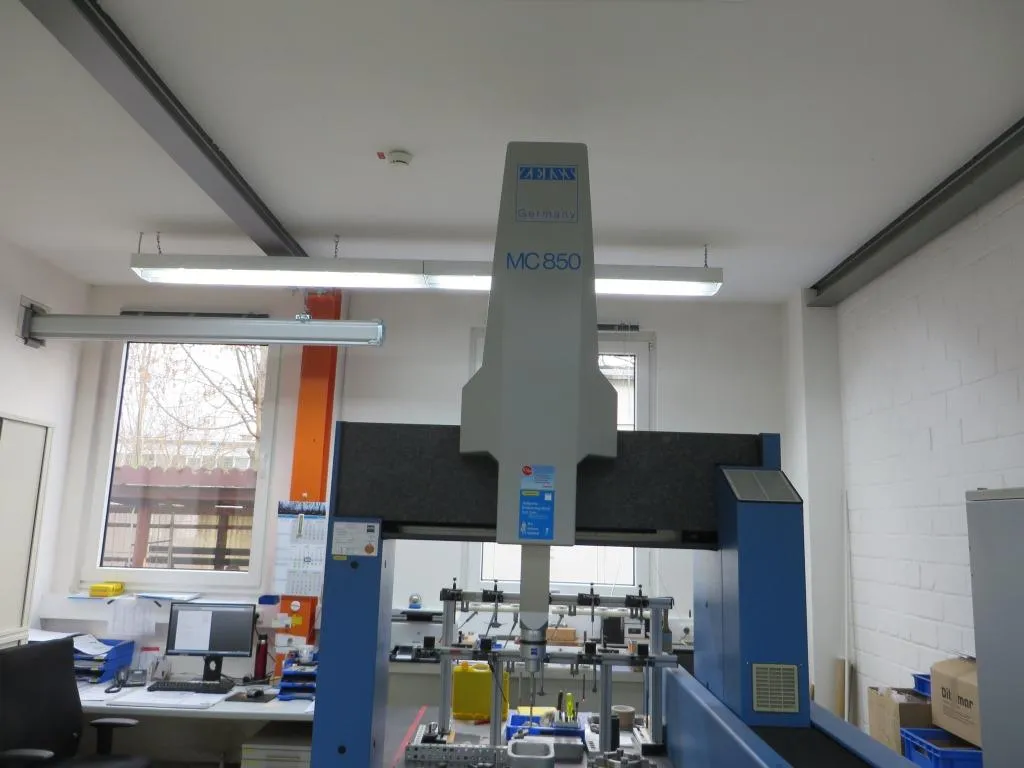

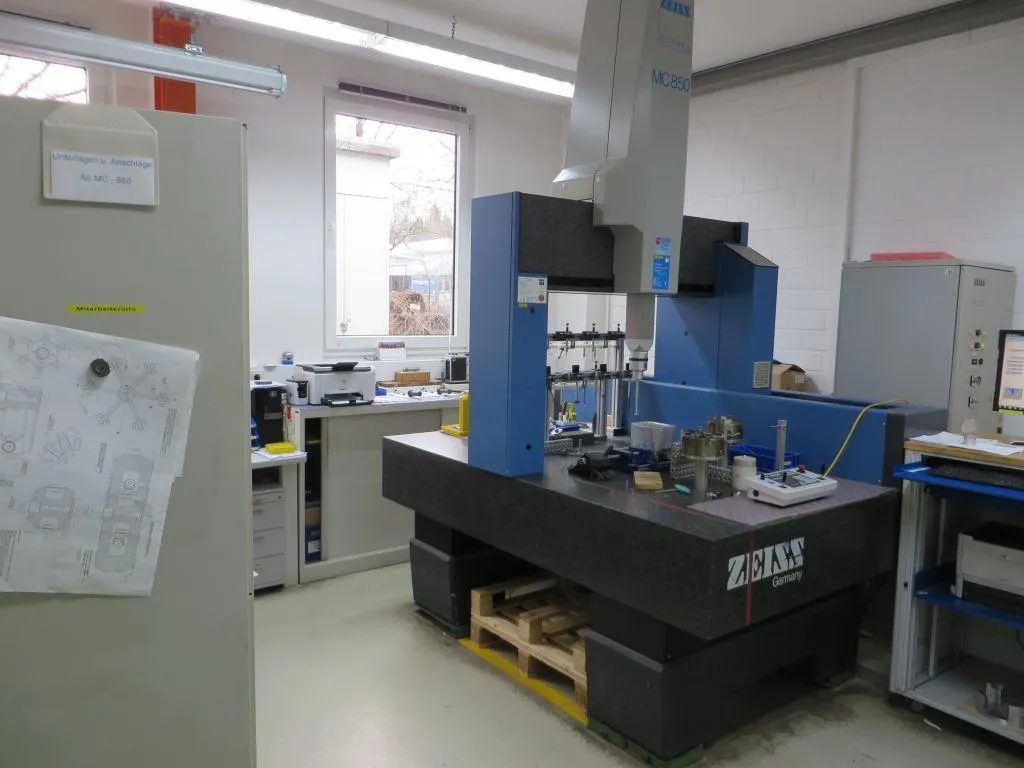

ZEISS MC850 Coordinate Measuring Machine

Product Information

The ZEISS MC850 is a high-precision Coordinate Measuring Machine with a rich history of application in the measurement technology space. This model was manufactured by Zeiss and is known for its reliable performance and precision measurements. Typically used for quality assurance, the ZEISS MC850 can measure the coordinates of workpieces with an X(mm) range of 850, Y(mm) range of 1200, and Z(mm) range of 600. The machine also has a permissible workpiece mass of 1000kg to 1500kg. It features Zeiss PHOCOSIN length measurement systems, highly dynamic servo drives, and effective passive vibration damping. The device supports a range of electrical connection values, air supply options, and can operate under specific environmental temperature conditions as per the specifications. Although it has a manufacturing date of the same year, this machine has been used and the listing mentions it was originally used in Germany and not available until July 19th, possibly indicating a re-listing or availability change.

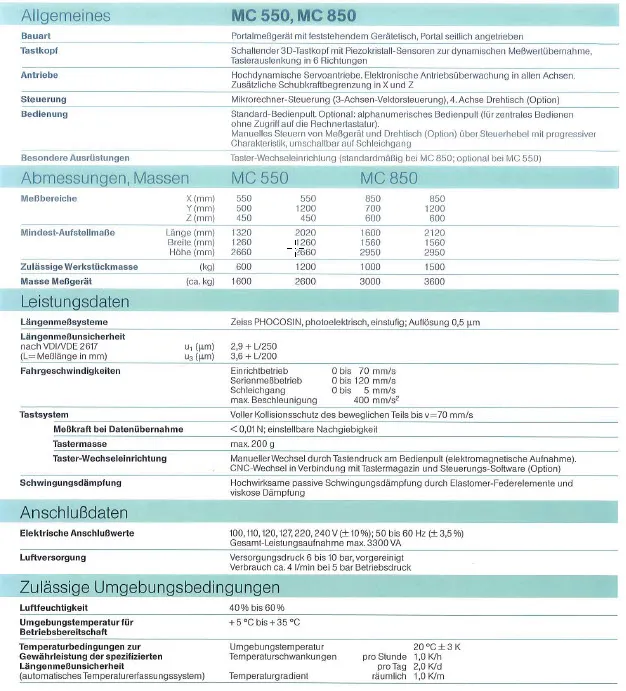

• High-precision coordinate measuring machine
• X(mm) range: 850, Y(mm) range: 1200, Z(mm) range: 600
• Permissible workpiece mass: 1000kg to 1500kg
• Zeiss PHOCOSIN length measurement systems
• Highly dynamic servo drives
• Electrical connection values: 100, 110, 120, 127, 220,240 V
• Supply pressure: 6 to 10 bar for air supply
• Operating temperature: +5°C to +35°C

• Dimensions (cm): X: 1600-2120, Y: 1560-1560, Z: 2950-2950
• Voltage: 230V
• Hertz: 50Hz/60Hz
• Battery-powered: No
• Weight (kg): 105.8
• Weight (lbs): 105.8
• Resolution: 0.5 microns
• Touch system: Full collision protection up to v = 70 mm/s
• Electrical connection values: 100, 110, 120, 127, 220,240 V (x 10%); 50 to 60 Hz (x 3.5%) Total power consumption max. 3300 VA
• Ambient temperature for operational readiness: + 5 C to+ 35 C
• Ambient Temperature: 20 C-3 K Temperature fluctuations: per hour 1.0 K/h / per day 2.0 KidTemperature gradient: equivalent to 1.0 Kirn

Metric: 105.8 kg
Imperial: 105.8 lbs

Metric: 295.0 cm x 223.5 cm x 56.0 cm
Imperial: 116.14 in x 87.99 in x 22.05 in
