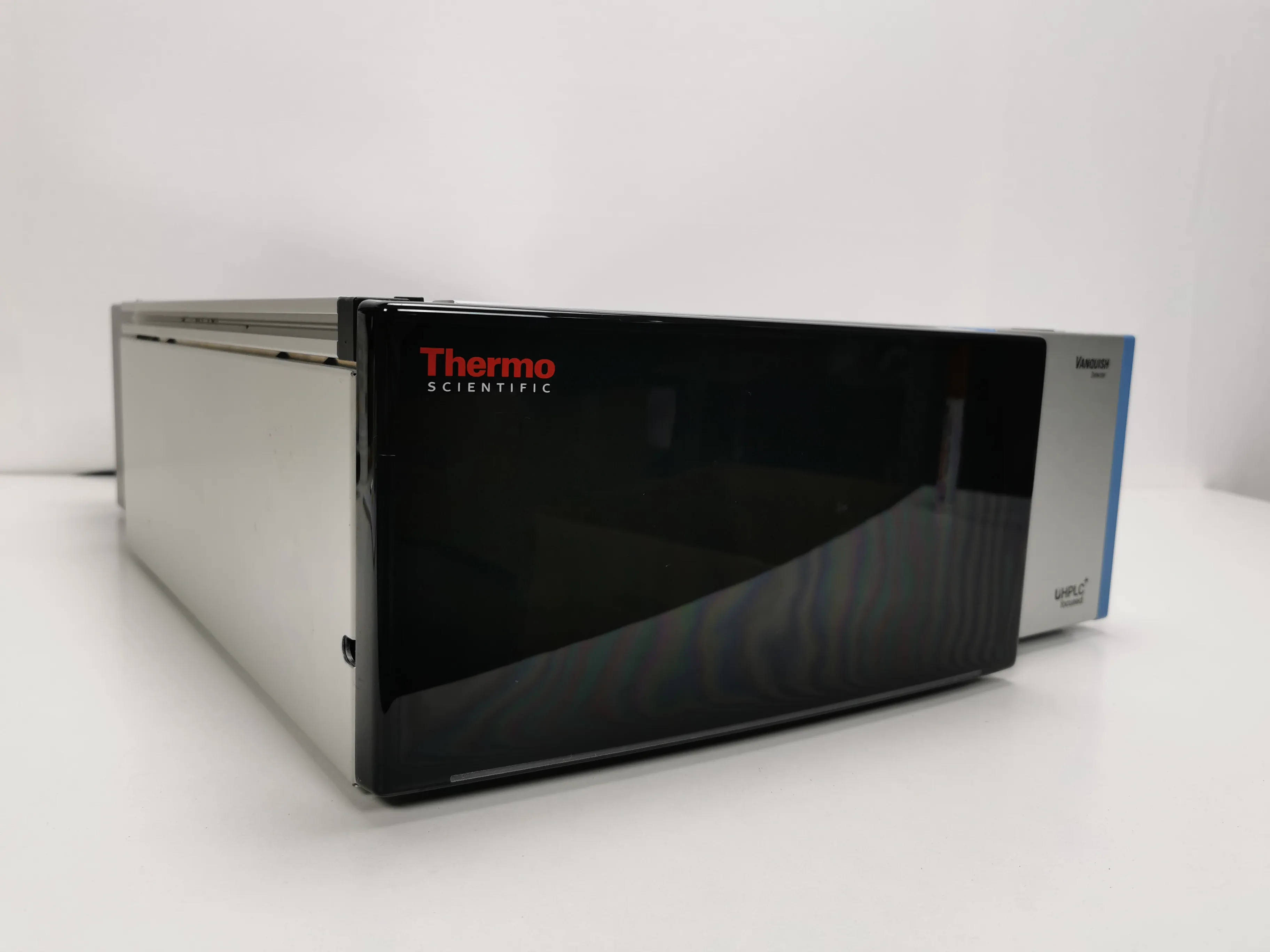

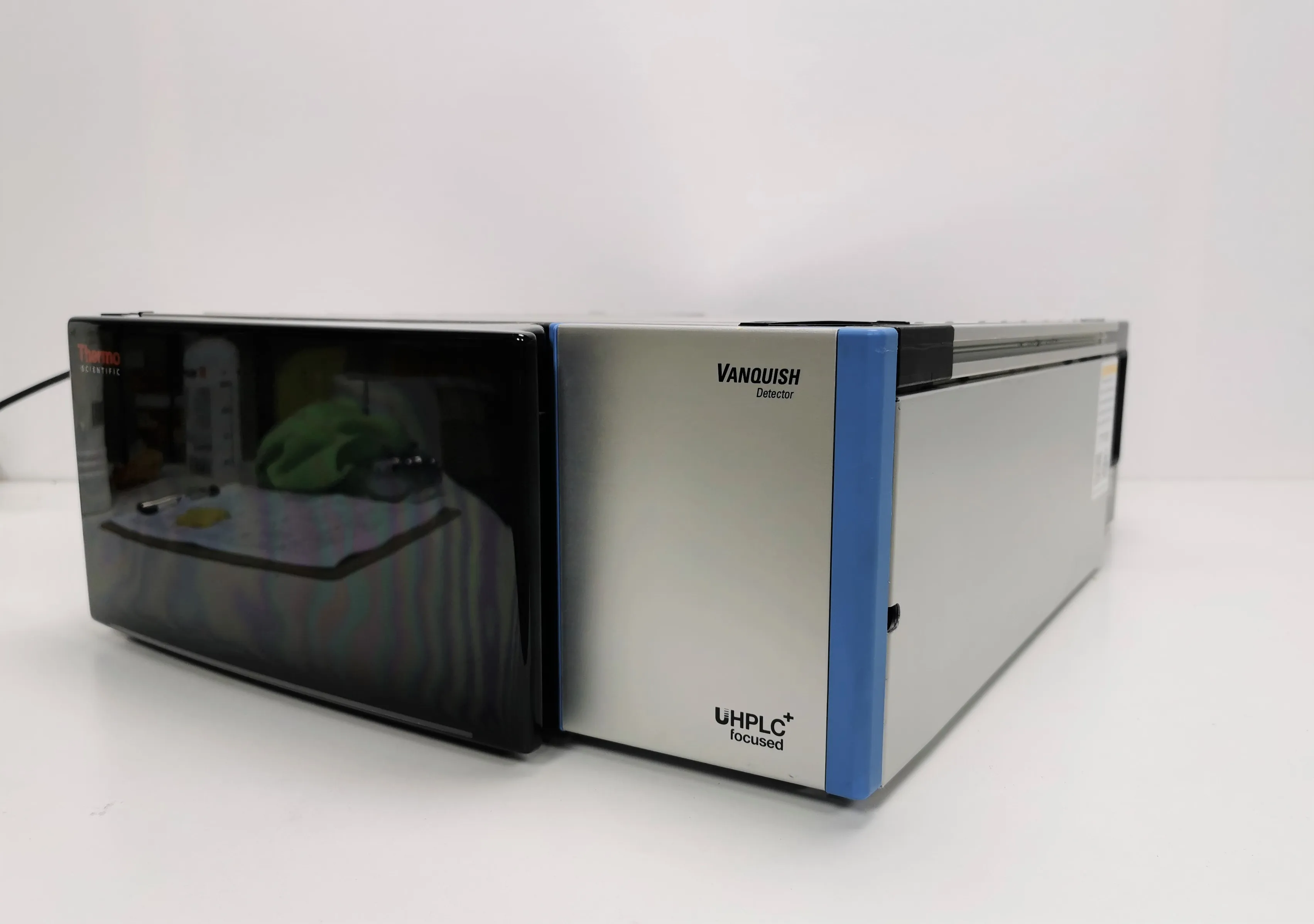

Thermo Scientific Vanquish Diode Array Detector HL
- Make Dionex
- Hertz 50Hz/60Hz
- Model Diode Array Detector HL
- Serial 8300030
- Weight 42.0 Kg
- Voltage 120V/220V
- Includes Power cord included |
- Warranty 30-Day Warranty, 100% Parts and Labor
- Dimensions 62.0cm x 42.0cm x 17.0cm
- Shipping Type FedEx Ground
- Item Condition New
- Manufacturing Date 2014-04-30
Product Information
The Thermo Scientific Vanquish Diode Array Detector HL is designed to provide exceptional performance, reliability, and flexibility in HPLC and UHPLC detection. It offers excellent linearity, optimized noise performance, and ultra-wide dynamic range. The Diode Array Detector features industry-leading linearity, reduced interfering refractive index, and Data acquisition at rates up to 250 Hz. This detector is easy-to-use with intuitive user interaction, convenient flow cell, and lamp usage tracking.
Key Features- Industry-leading linearity with up to 2.7 AU
- Data acquisition at rates up to 250 Hz with ultrafast separations support
- Predictive performance functions for lamp age, intensity degradation, and leak detection
- Easy-to-use detector with integrated wavelength validation
- Type: Single-Beam, Reverse-Optics Design with Concave Holographic Grating
- Data Collection Rate: Max. 200 Hz (including 3D acquisition)
- GLP Features: Predictive performance functions, all system parameters logged in Chromeleon CDS Audit Trail
- Drift: < 0.5 mAU/hour (at 230 nm)
- Noise: < 3 AU (at 230 nm)

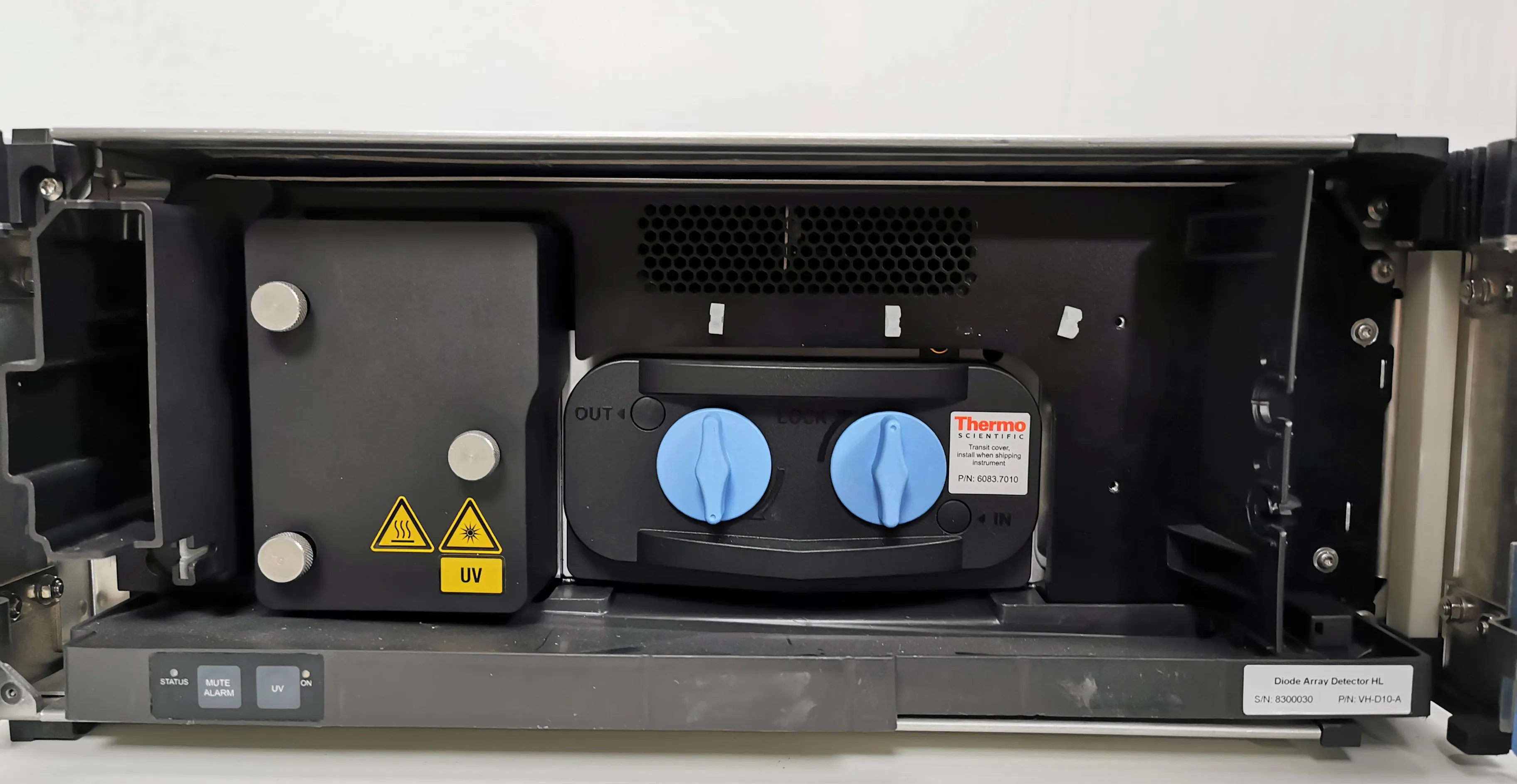

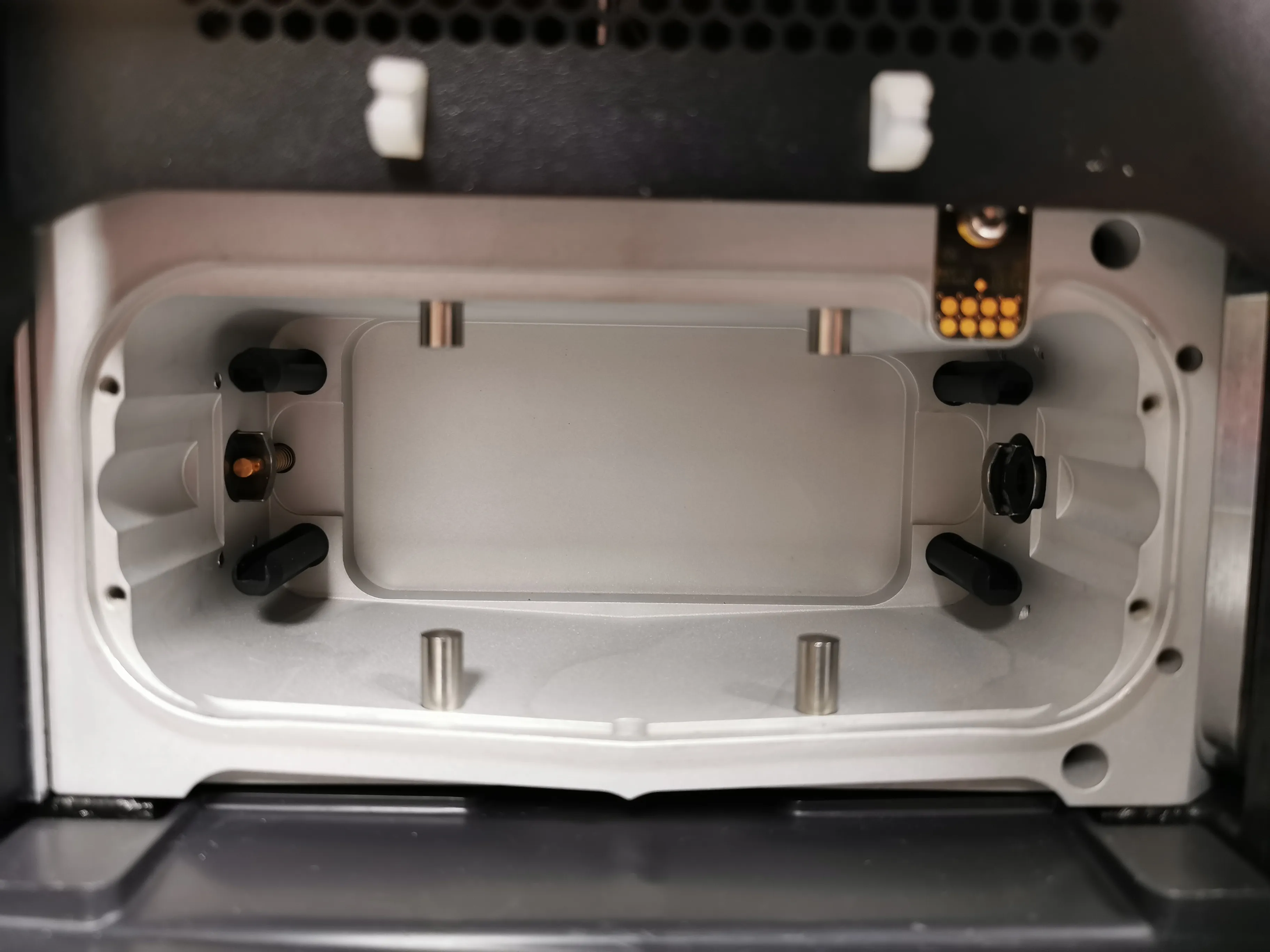

- Flow Cell Volume: Standard, LightPipe flow cell, 10 mm
- No. of Channels: 10 + 3D field
- Wavelength Accuracy: 1 nm
- Wavelength Range: 190 to 680 nm
- Max. Cell Operating Pressure: Limit 6 MPa (60 bar, 870 psi)

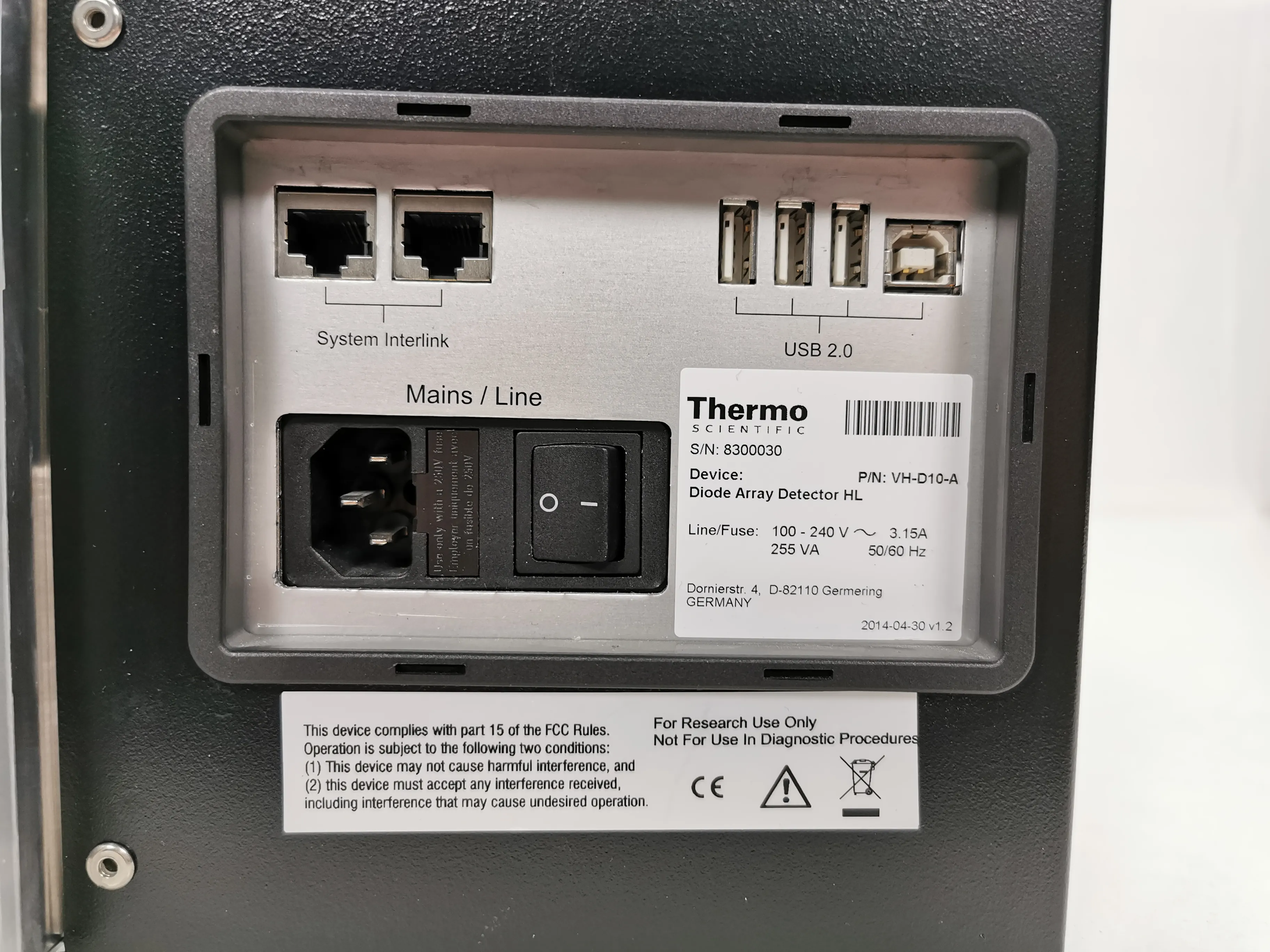

- PC Connection: USB 2.0; 3-port-HUB to connect further Vanquish modules
- Photodiode Array: 1024 element
- Safety Features: Power-up diagnostics of optics, cooling fans, motors, and electronics
- Spectral Bandwidth: Pixel resolution: 0.5 nm (average), Optical resolution: 1 nm (FWHM with 1 nm slit width)
- Temperature Range: 5°C to 35°C; 20% RH to 80% RH (non-condensing)
- Validation Functions: Internal validation with holmium oxide filter
- Wavelength Repeatability: 0.1 nm
Metric: 41.96 kg
Imperial: 92.59 lbs
Metric: 24.409462 cm x 16.535442 cm x 6.692917 cm
Imperial: 9.625 in x 6.517 in x 2.635 in
902730
Harmonized Code Details902730 - Spectrometers, spectrophotometers and spectrographs using optical radiations (UV, visible, IR)
