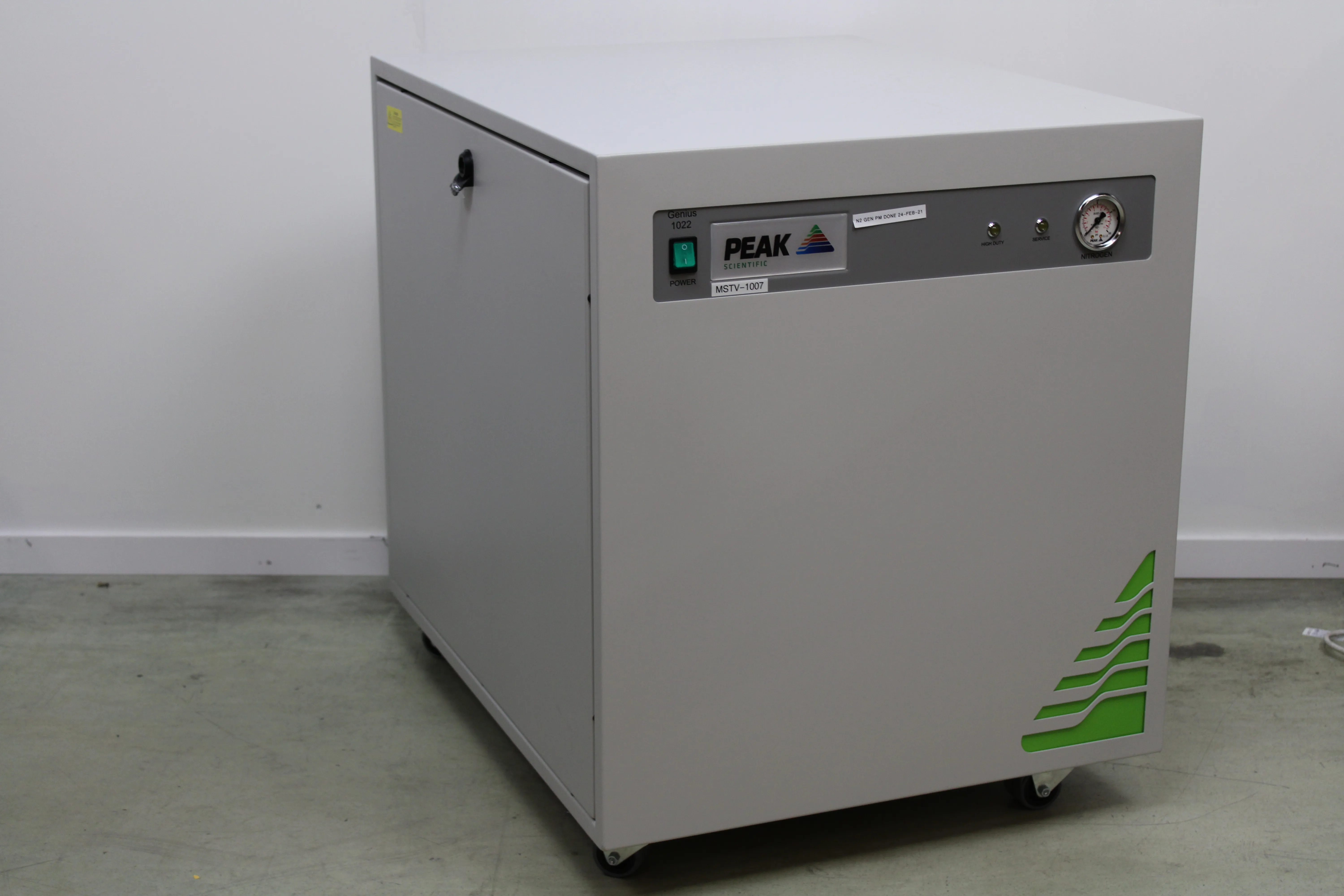

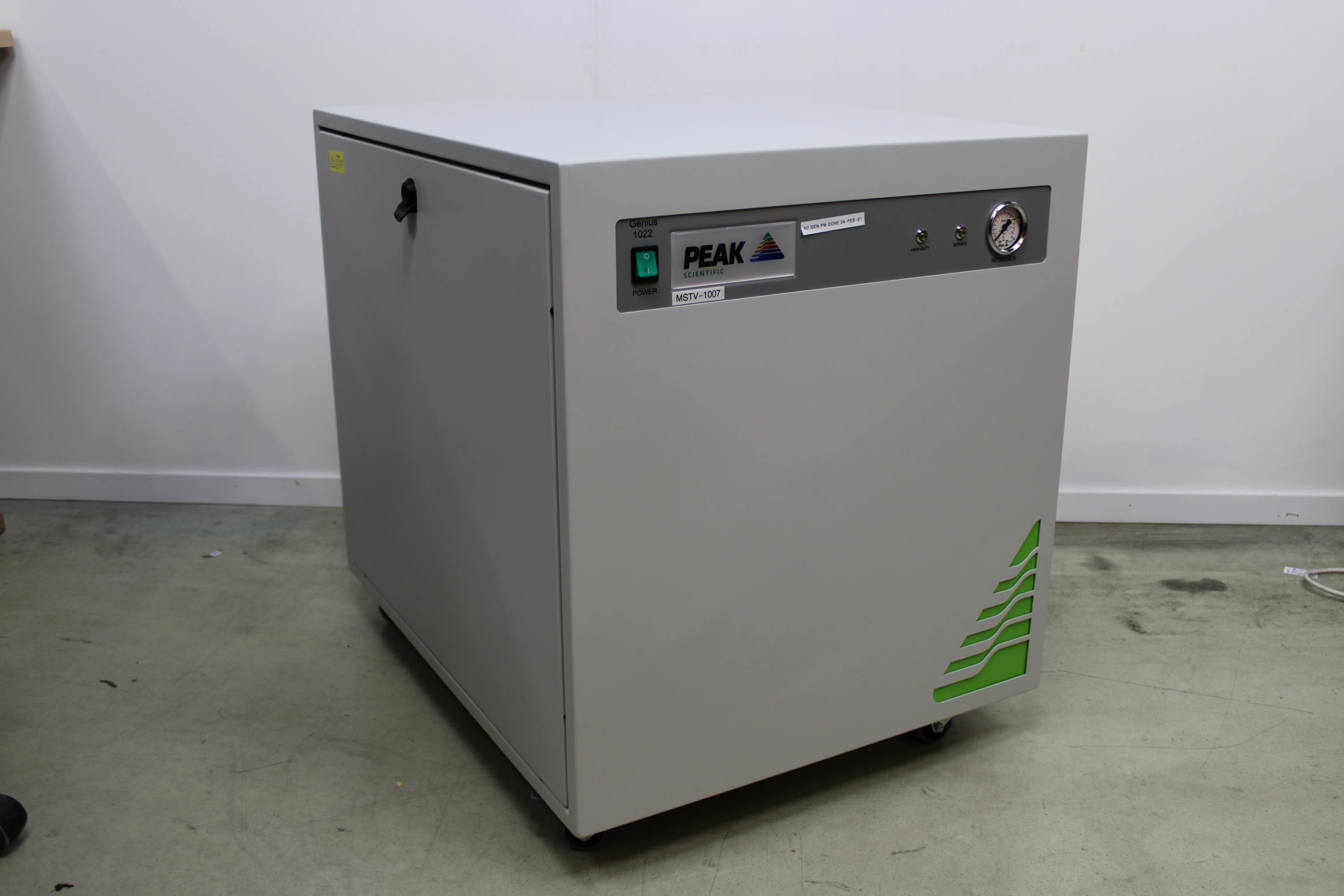

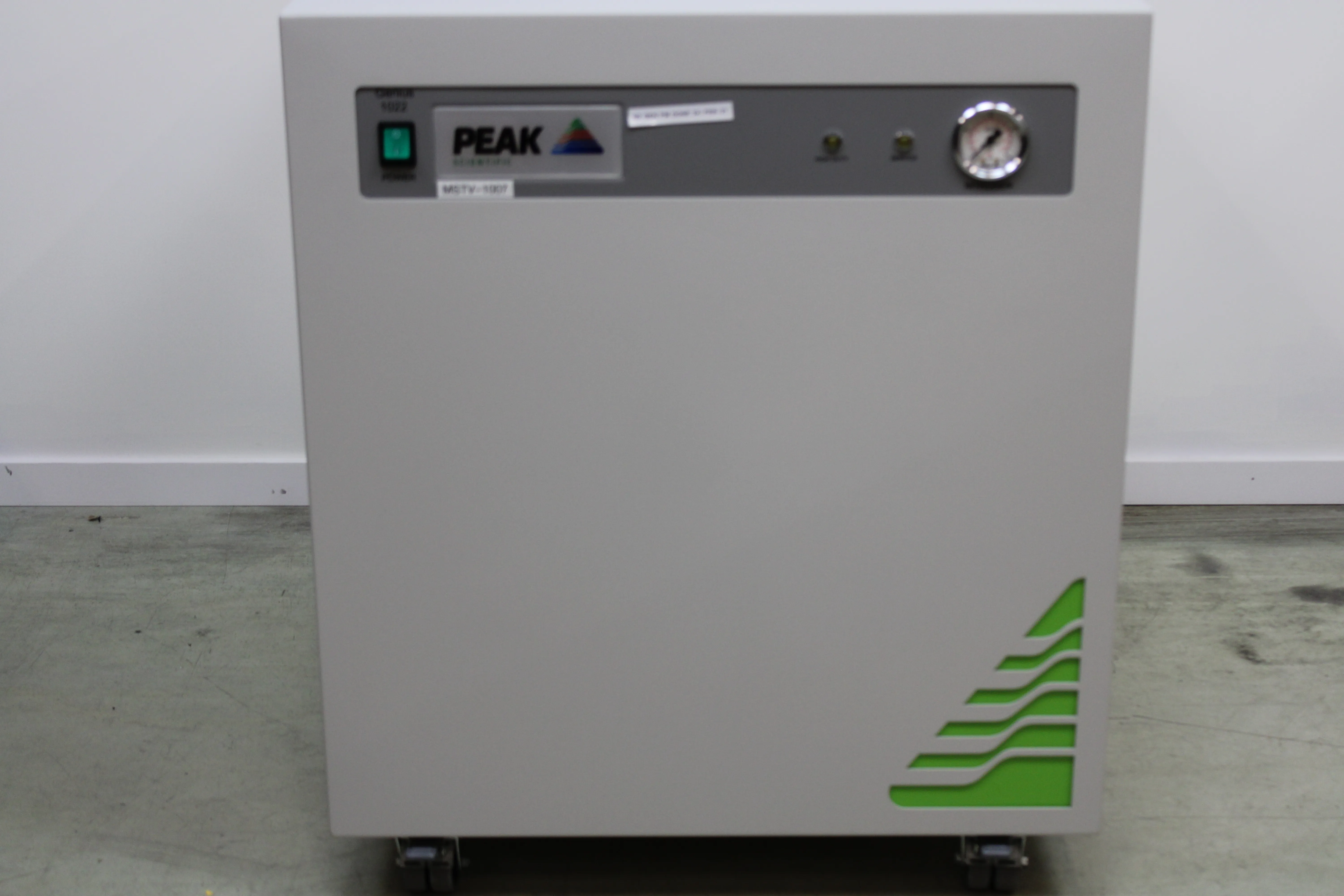

Peak Scientific Genius 1022 Nitrogen Generator Gas Generator

Product Information

The Peak Scientific Genius 1022 Nitrogen Generator is a powerful solution, designed especially for LC-MS/MS applications. The machine delivers a whopping 32L/minute of laboratory-grade nitrogen at 116psi. Its compressor-based technology eliminates the need for an external air supply, making it highly economical in terms of lifetime running costs. The Genius 1022 also features the latest generation compressors located in an insulated chamber, which significantly reduces noise and vibration. Constructed for Thermo Fisher Scientific applications, the Genius 1022 is known for its compact single source gas solution for the Q-Exactive series of LC-MS/MS instruments.

• Delivers up to 32L/min of nitrogen at 116psi
• Compressor-based solution, eliminating the need for an external air supply
• High-specification latest generation compressors located in an insulated chamber, reducing noise and vibration

• Gas Outlets Fitting: 1x 1/4 BSPP
• Start Up Time: 30 mins
• Power Consumption: Up to 1680 VA
• Voltage: 230 10% V
• Frequency: 50 / 60 Hz
• Current: 7 A
• Heat output: 5729 BTU
• Max Operating Temp: 35C / 95F
• Particles: <0.01m
• Phthalates: None
• Suspended Liquids: None
• Accreditations: CSA, FCC, CE
• Gas Type: Nitrogen
• Max Gas Flow: 32L/min
• Max Output Pressure: 116psi/8bar

Metric: 59.97 kg
Imperial: 132.27 lbs

Metric: 75 cm x 60 cm x 71 cm
Imperial: 29.53 in x 23.62 in x 27.95 in

9027200000

The harmonized code 9027200000 is for gas analysis or gas flow measurement apparatus; gas meters; automatic regulating or controlling instruments and apparatus.
