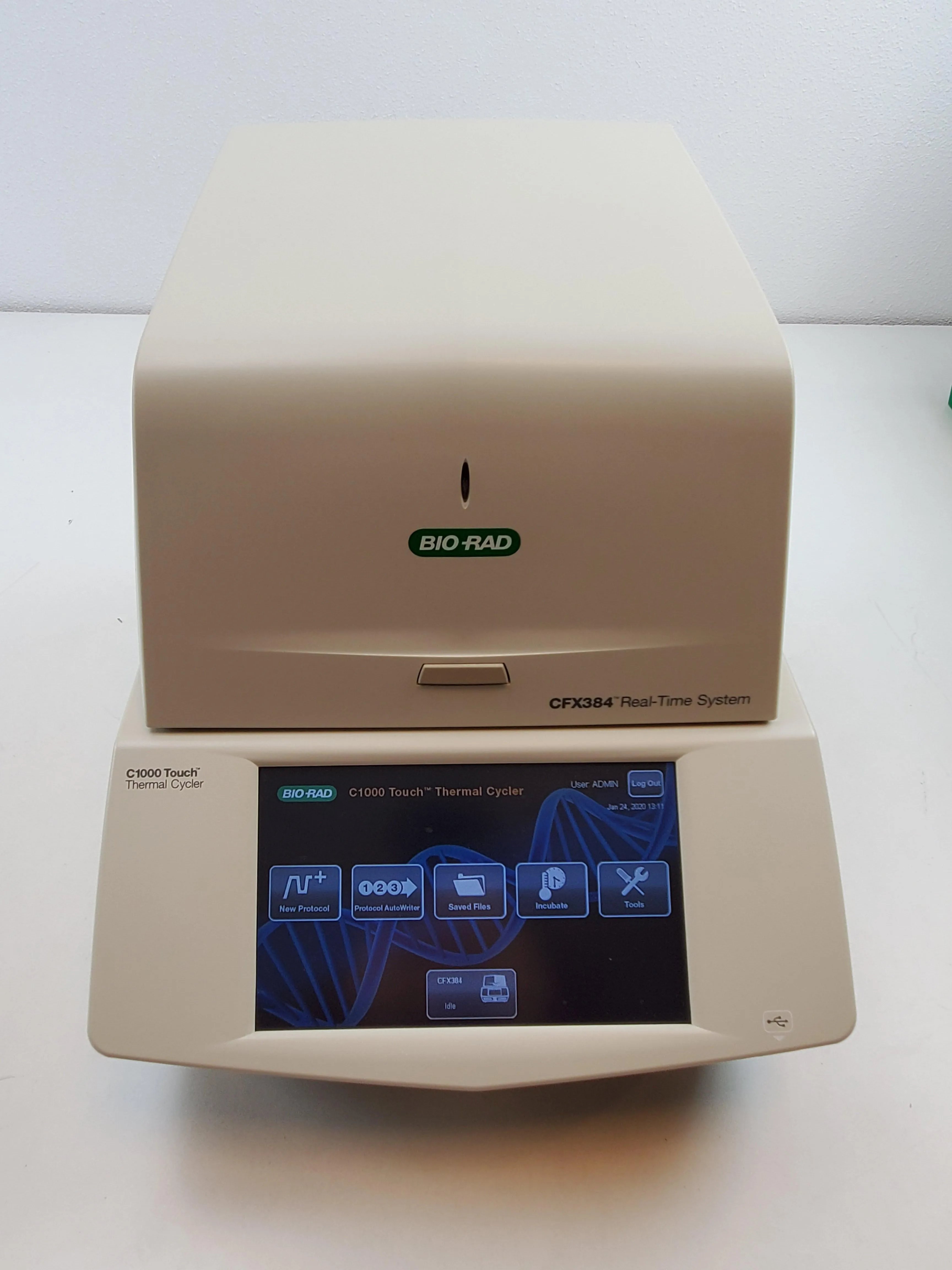

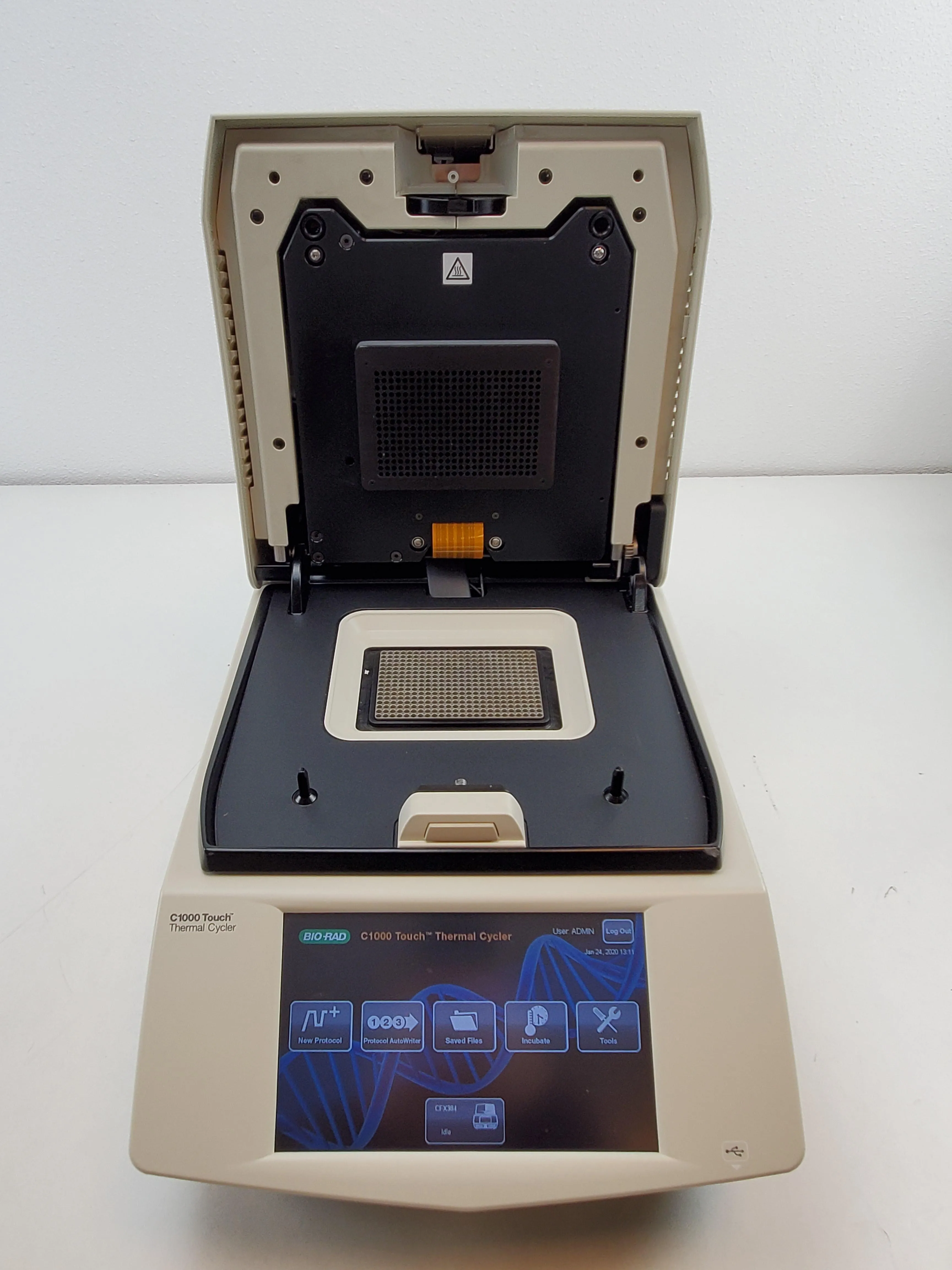

BIO-RAD CFX384 Optics Module; C1000 Touch Thermal Cycler

Product Information

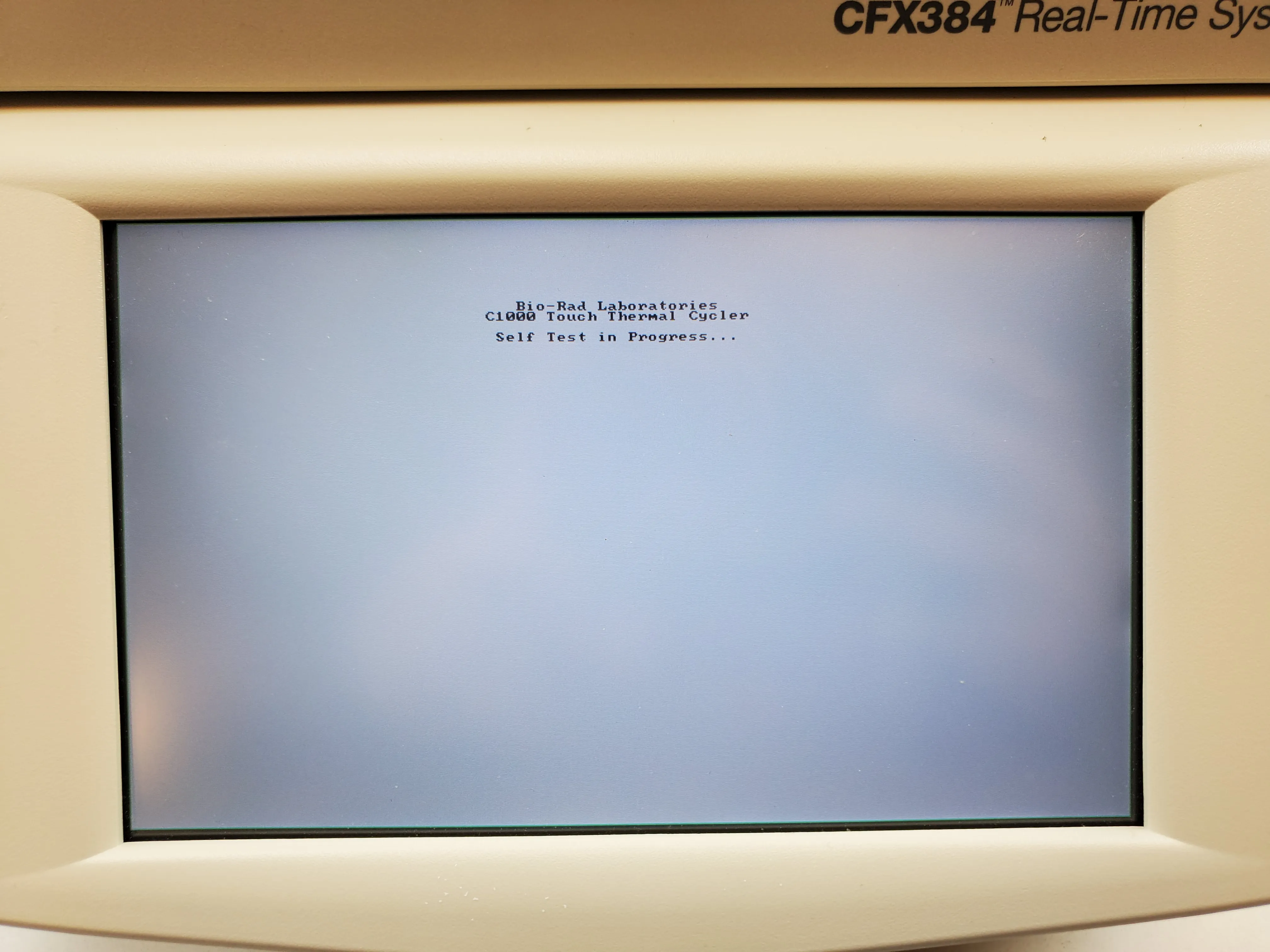

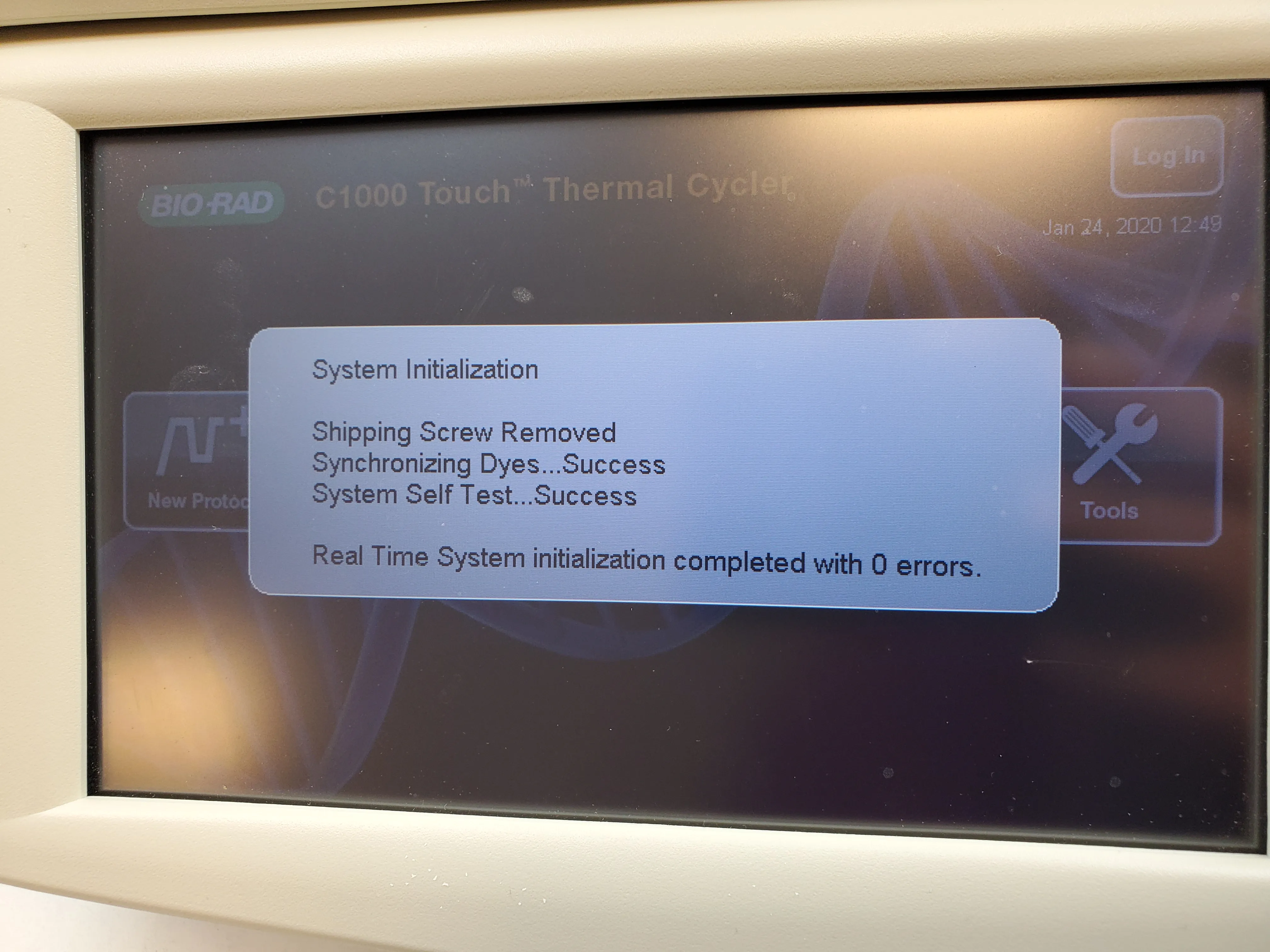

TEST RESULTS Operator IDANDBIO Comments: BY ANDBIO REUZEIT Instrument SN: CT006950 Block SN: RN034491 Block Type: CFX96 PXA270: 1.102.548.801 8051: 54.0.0.0 DSP: 1.124.0.0 HC12: 1.0.176.0 FX2: 1.35.0.0 LED Test LED test passed. The LED turned on and off. Fans Test Fan low speed test passed. Fan medium speed test passed. Fan high speed test passed. Beeper Test Beeper test passed. Beeper was audible to operator. Self Test System self test passed. Lid Test Open lid test passed. Close lid test passed. Protocol Test Protocol 1 METHOD CALC HOTLID 105,30 VOLUME 30 TEMP 100.0,10 TEMP 4.0,10 TEMP 100.0,10 GRAD 46.0,70.0,10 TEMP 55.0,10 END Protocol 1 PASSED Protocol 2 METHOD CALC HOTLID 0,30 VOLUME 30 TEMP 35.0,5 PLATEREAD #h3F END Protocol 2 PASSED Protocol 3 METHOD CALC HOTLID 0,30 VOLUME 30 TEMP 35.0,5 PLATEREAD #h81 END Protocol 3 PASSED Start Time: 01/24/2020 12:31:02 End Time: 01/24/2020 12:42:08 CFX384 Optics Module The CFX 384 Touch Real-Time PCR Detection System is a powerful and precise real-time PCR instrument in a 384-well format. It is designed for researchers who require ease of use and rapid, high-throughput data acquisition. The CFX384 Touch System utilizes accurate temperature control and sensitive, 4-color detection optics, delivering reliable and repeatable qPCR results for singleplex or multiplex reactions. The integrated LCD touch screen allows scientists to quickly set up runs and monitor amplification traces in real-time or use CFX Maestro Software for easier experimental design and result analysis. The CFX384 Optics Module is interchangeably used with the C1000 Touch Thermal Cycler Chassis for PCR and real-time PCR. It can achieve up to four-target detection and offers unsurpassed thermal cycler performance. The C1000 Touch thermal cycler is a fully modular platform, capable of accommodating different throughput needs, linked to additional S1000 thermal cyclers or added PC control for up to 32 cyclers.

• High throughput data acquisition
• Accurate temperature control
• Rapid amplification trace monitoring
• Intuitive CFX Maestro Software
• C1000 Touch thermal cycler with modular platform

• Maximum ramp rate: 2.5 C/sec
• Average ramp rate: 2 C/sec
• Heating and cooling method: Peltier
• Lid temperature: up to 105 C
• Temperature range: 0-100 C
• Sample capacity: 384 wells
• Communication Interface: USB 2.0
• Sample size: 130l (520 recommended)
• Operating systems: Windows 7, Windows 8, Windows 10
• Multiplex analysis: Up to 4 targets per well
• Licensed for real-time PCR: Yes
• Electrical approvals: IEC, CE

Metric: 33 kg
Imperial: 72.75246 lbs

Metric: 46 cm x 33 cm x 37 cm
Imperial: 18.11 in x 12.992133 in x 14.566937 in
