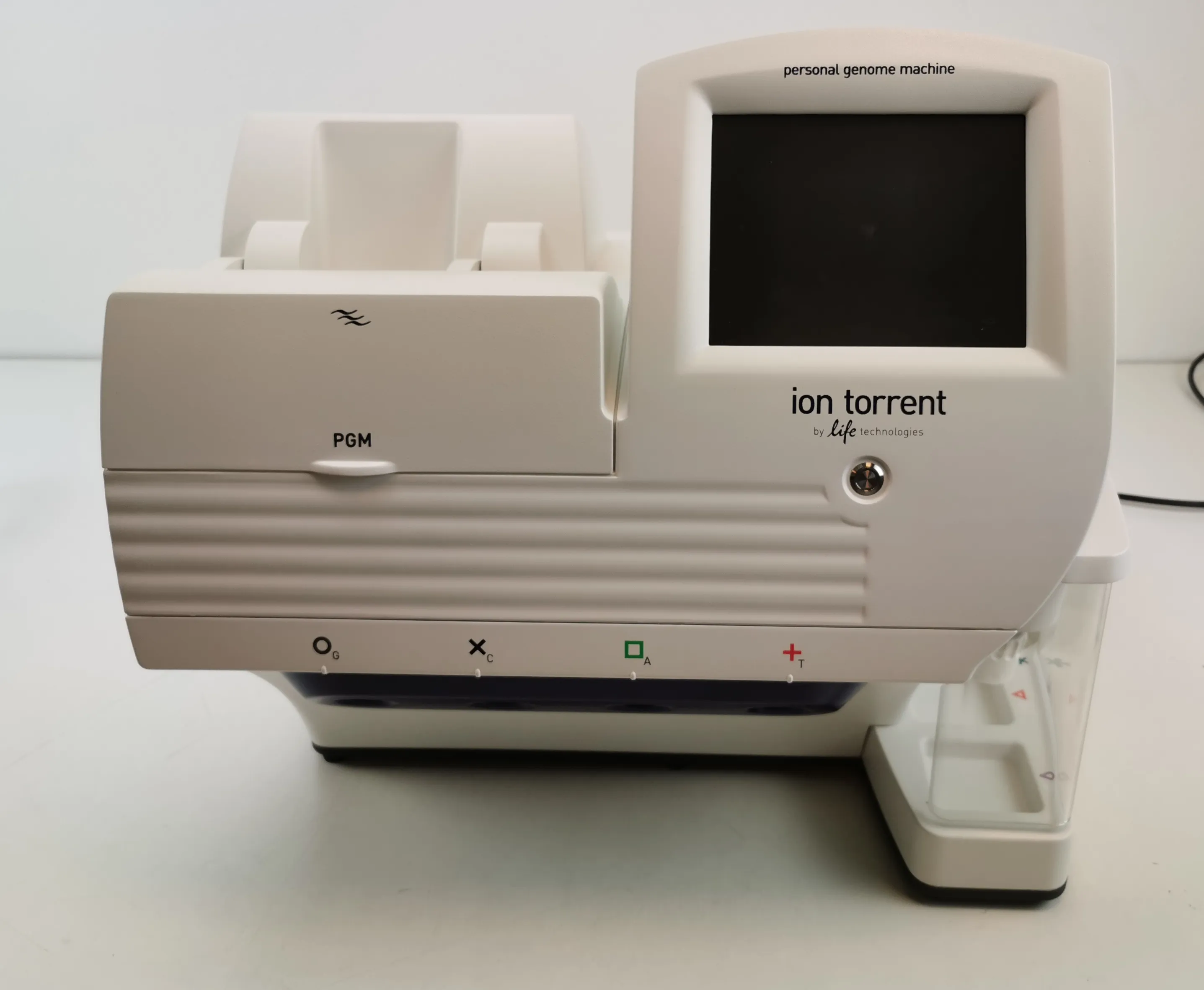

Ion Torrent 7467 Personal Genome PGM System

Product Information

Ion Torrent 7467 Personal Genome PGM System. The Ion PGM System combines semiconductor sequencing technology with natural biochemistry, creating a new democratized sequencing process, making it accessible and affordable for labs. This simple, yet powerful system is ideal for sequencing small genomes, targeted panels, and other applications. PostLight sequencing technology coupled with the world's smallest solid-state pH meter enables next-generation sequencing on your bench, providing easy, reliable and rapid results within hours. The system is equipped with a Touchscreen User Interface for easy operation. The system can offer real-time data output in BAM format and provides access to a web portal for data review and sharing.

• Real-time semiconductor sequencing technology
• Scalable and flexible sequencing results
• Touchscreen User Interface
• Provides real-time data output in BAM format
• Offers access to a web portal for data review and sharing

• CPU: Dual 6-core 2.66 GHz CPUs
• Capacity: 1 chip per run
• Chip Compatibility: Ion 314 Chip v2 BC, Ion 316 Chip v2 BC, Ion 318 Chip v2 BC
• Current Limit: 6.7 A (max)
• Data Output: BAM Files, FASTQ Files, SFF Files, VCF Files
• Dimensions: 24 in (61 cm) (W) x 20 in (51 cm) (D) x 21 in (53 cm) (H)

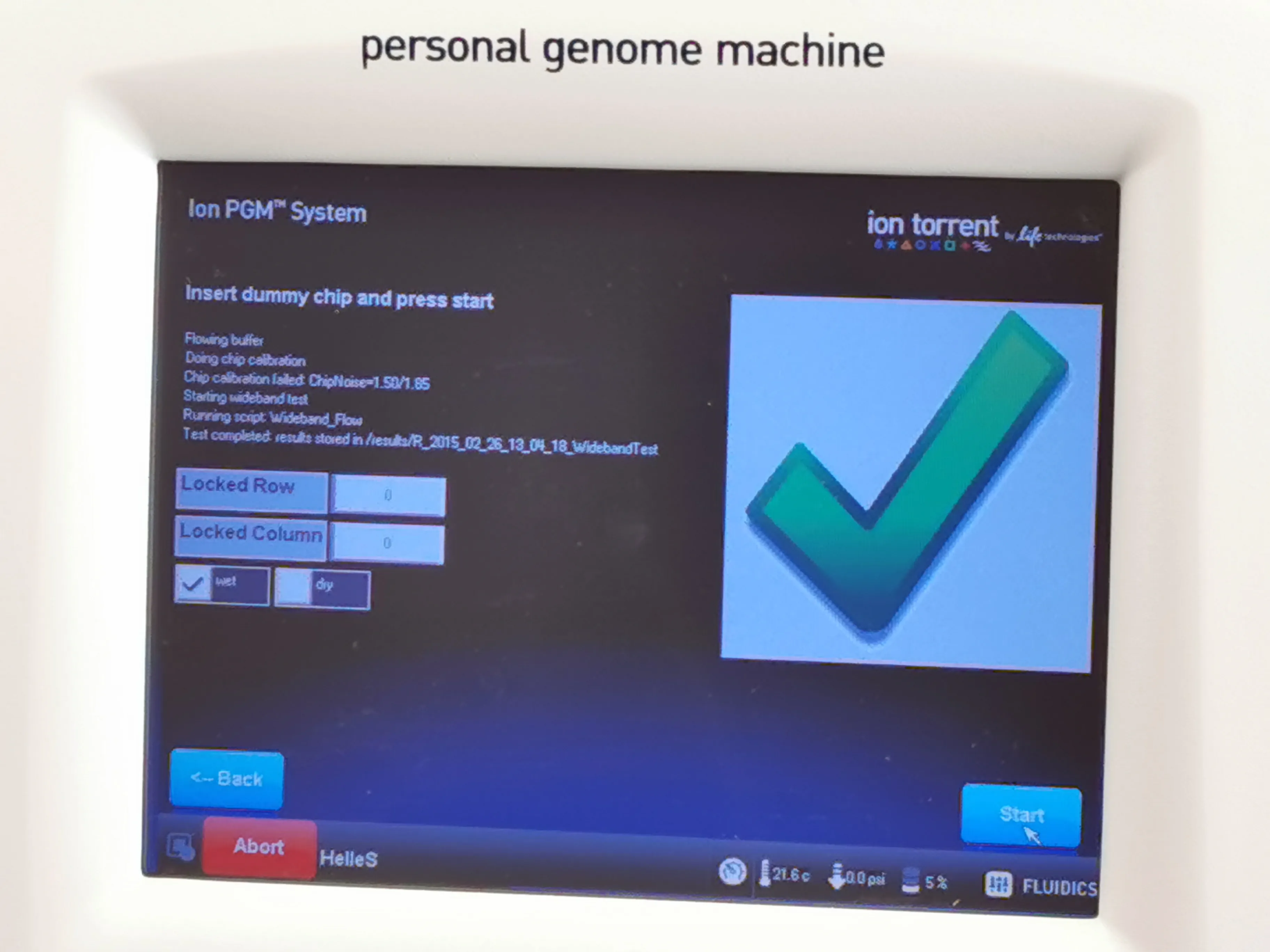

• Display Interface: Touchscreen User Interface
• External Computer: Torrent Server
• For Use With (Equipment): Ion PGM System
• Frequency: 50-60 Hz
• High Throughput Compatibility: High Throughput-Compatible, Multiplexing
• Instrument Memory: 48 GB RAM, Eight 2 TB Hard drives in RAID 5
• Operating System: Ubuntu 10.04
• Output: Ion 314 Chip v2: Up to 100 Mb, Ion 316 Chip v2: Up to 1 Gb, Ion 318 Chip v2: Up to 2 Gb
• Product Line: Ion Torrent, Personal Genome Machine (PGM)
• Product Size: 1 instrument
• Read Length: 35400 bases (average: 200 bases)
• Reads/Run: Ion 314 Chip v2: 400-500 thousand, Ion 316 Chip v2: 2-3 million, Ion 318 Chip v2: 4-5.5 million
• Run Time: Ion 314 Chip v2: 2.3 to 3.7 hr, Ion 316 Chip v2: 3.0 to 4.9 hr, Ion 318 Chip v2: 4.4 to 7.3 hr
• Sequencing Scale: 3 Mb to 2 Gb
• Technique: Post-Light Ion Semiconductor Sequencing
• Throughput: Up to 2 Gb per run
• Voltage Limit: 100 V (min) to 240 V (max)

Metric: 30 kg
Imperial: 66.1387 lbs

Metric: 61 cm x 51 cm x 53 cm
Imperial: 24.01575 in x 20.0787 in x 20.8661 in
