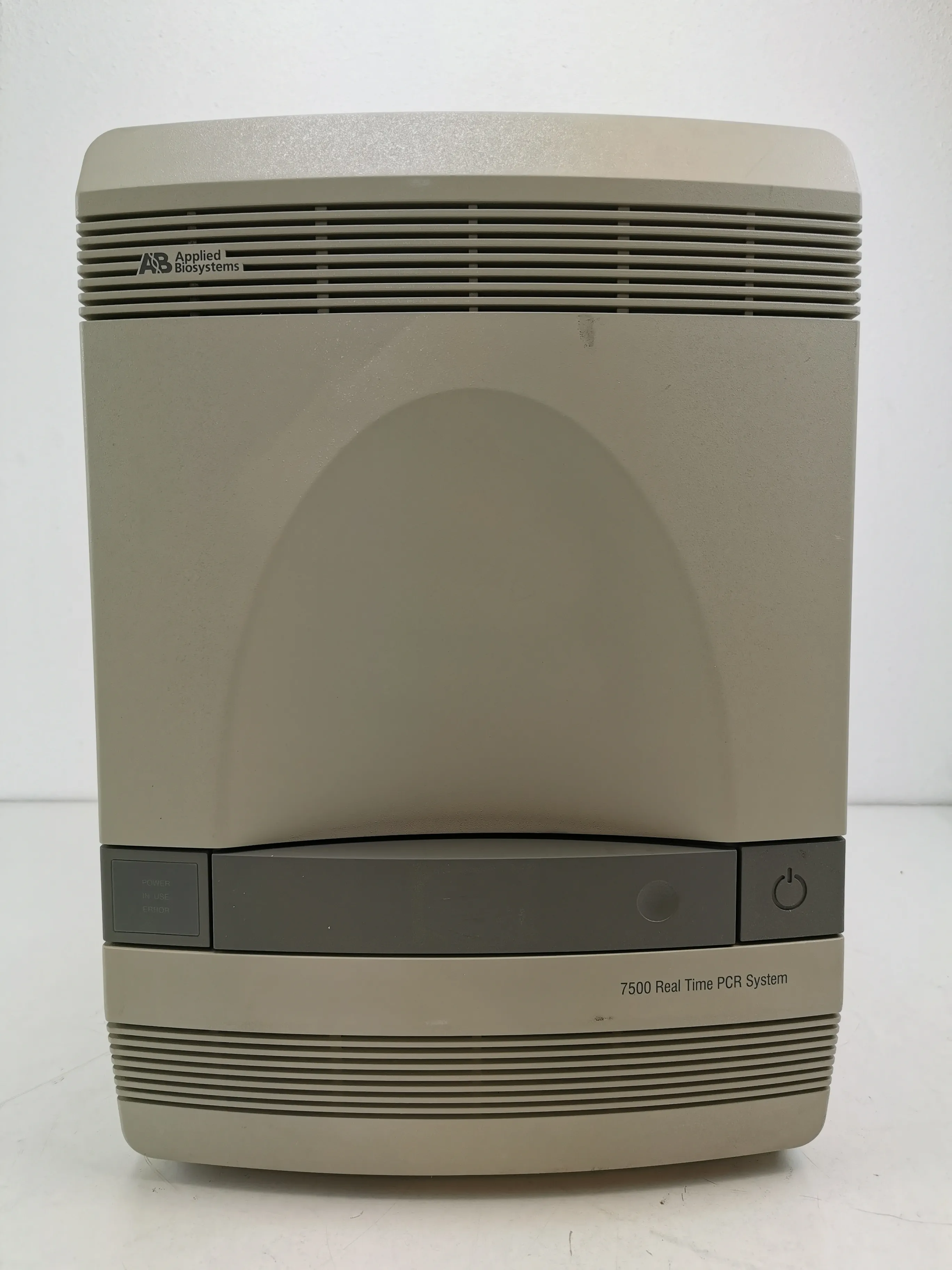

Applied Biosystems 7500 Real-Time PCR System

Product Information

The Applied Biosystems 7500 Real-Time PCR System is a top-performing, time-efficient unit designed for rapid cycling, delivering high-quality results in as little as 30 minutes. Optimized for Fast cycling, this system ensures thermal uniformity at top speeds with faster ramp rates for rapid results without compromising extension times or assay quality. The Fast block design ensures excellent precision in 10-30 ul reaction volumes, allowing for the use of TaqMan Fast Universal PCR Master Mix to run multiple Fast assays on one plate. With a dynamic range of 9 logs, sensitivity down to 1 copy of the human RNAse P gene, and a temperature range of 4.0-99.9°C, this Real-Time PCR system provides exceptional performance with the precision and confidence required in molecular biology research. It is fully certified and calibrated, ready for immediate use. Packed with unique features and manufactured to the highest standards, the 7500 Real-Time PCR System is a valuable addition to any research laboratory.

• Fast cycling design for rapid results without compromising quality
• Dynamic range of 9 logs for high sensitivity and precision
• Thermal uniformity with a temperature range of 4.0-99.9°C
• Capability to run multiple Fast assays on one plate using TaqMan Fast Universal PCR Master Mix
• Sensitivity down to 1 copy of the human RNAse P gene

• Dynamic Range: 9 logs
• For Use With (Equipment): 7500 Fast System

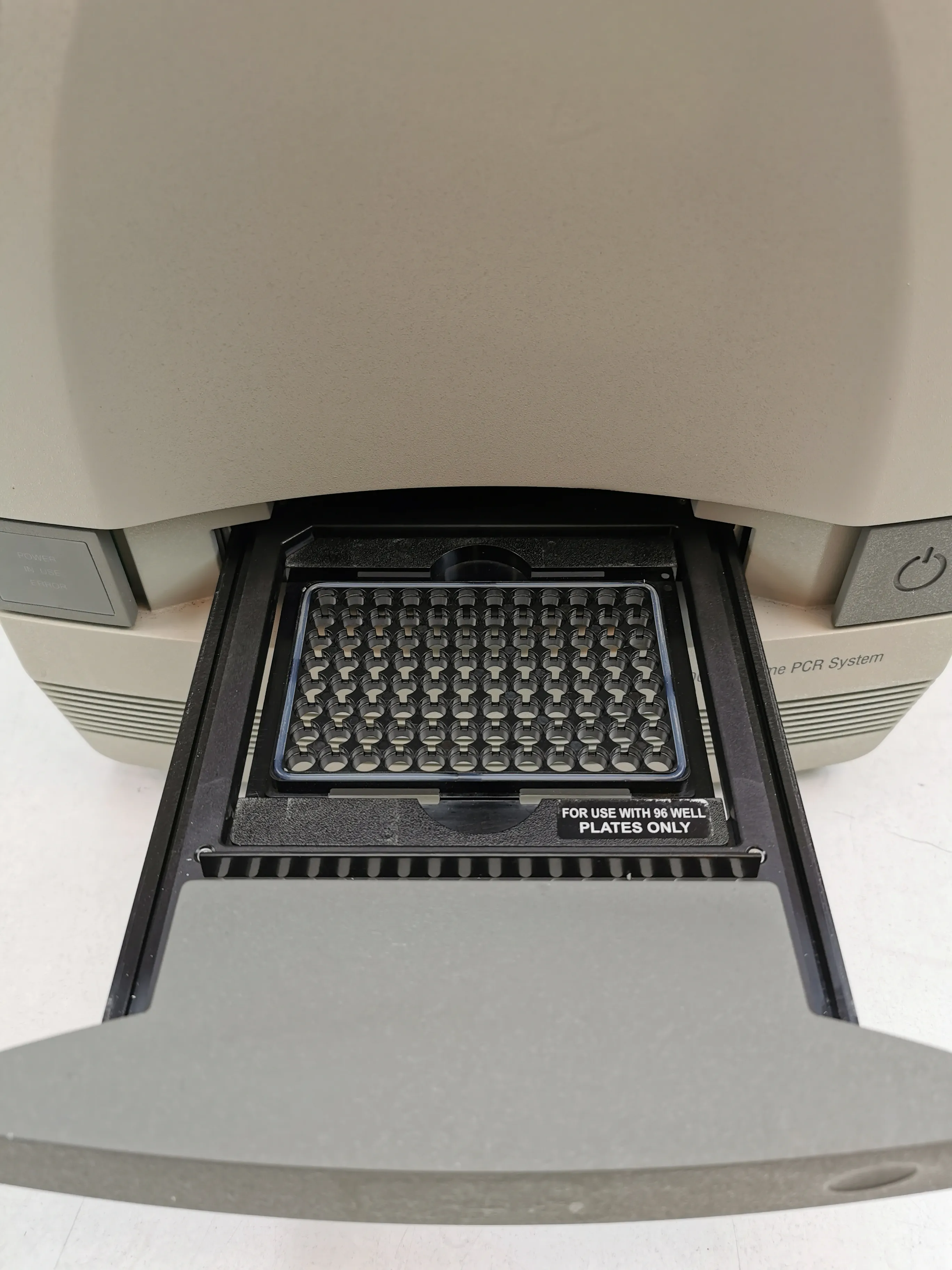

• Format: 8-well strips, 96-well plate
• Optics: CCD Camera, Five excitation and five emission filters, Halogen light source
• Peak Block Ramp Rate: 5.5°C/sec
• Precision: Distinguish between 5,000-10,000 genome equivalents (two-fold copy number difference) with 99.7% confidence
• Product Size: 1 system
• Reaction Speed: Fast, Standard
• Reaction Volume Range: 10-30 µl
• Run Time: <2 hrs (Standard), 36 min (Fast)
• Sample Ramp Rate: Fast mode: 3.5°C/sec, Standard mode: 1.6°C/sec
• Temperature Accuracy: 0.5°C
• Temperature Range: 4.0-99.9°C
• Temperature Uniformity: 1°C
• Thermal Cycling System: Peltier-Based System
• Throughput: 4 to 5 96-well plates per day

Metric: 35 kg
Imperial: 77.16 lbs

Metric: 46 cm x 35 cm x 50 cm
Imperial: 18.11 in x 13.78 in x 19.68 in

902780

902780 - Instruments and apparatus for physical or chemical analysis: Chromatographs and electrophoresis instruments
