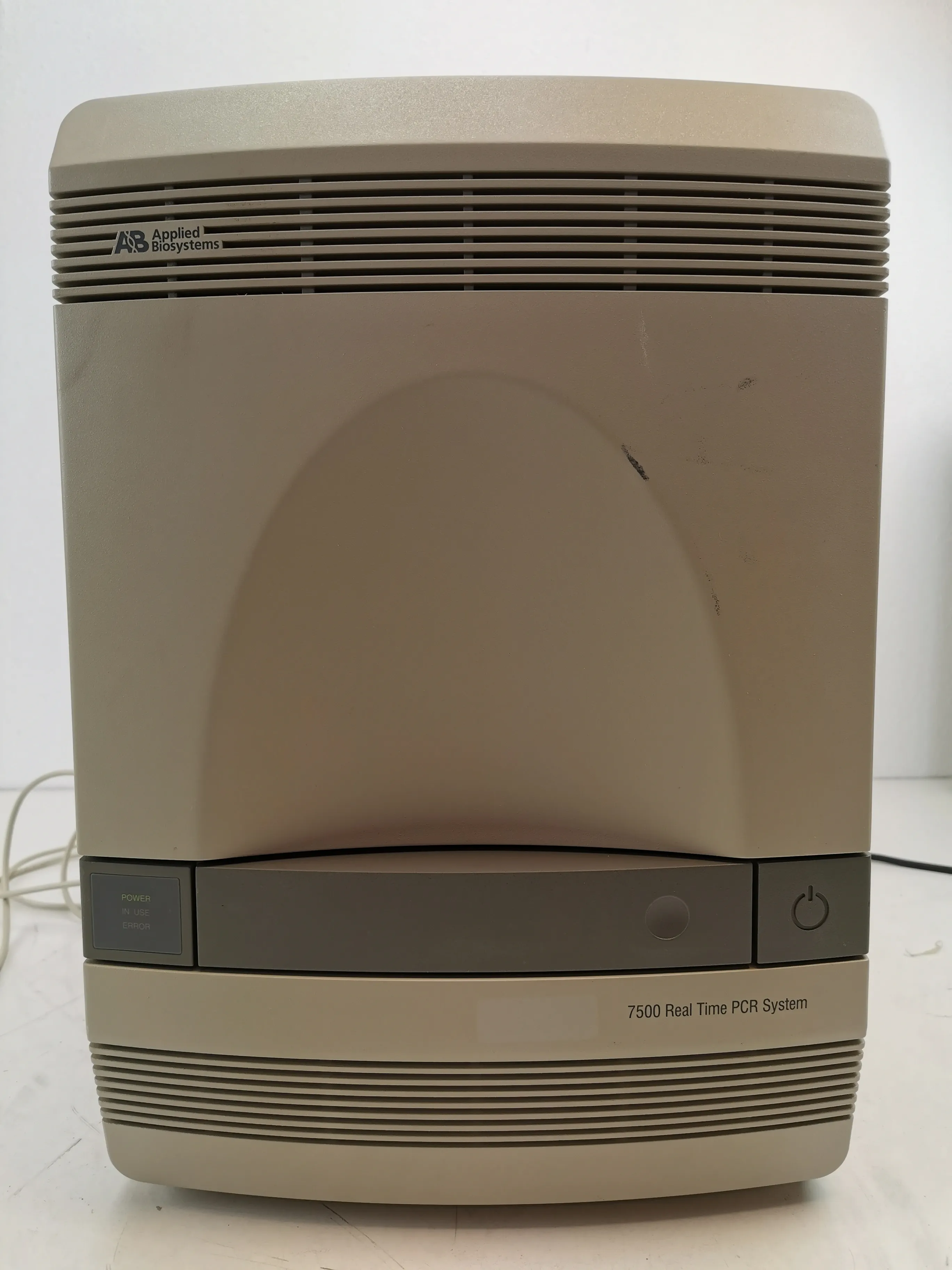

Applied Biosystems 7500 Fast Real-Time PCR System

Product Information

As a quirky, intelligent laboratory scientist, intimately familiar with the Applied Biosystems 7500 Fast Real-Time PCR System, I can assure you that this piece of equipment offers maximum performance in the minimum time. Fully optimized for Fast cycling, the 7500 Fast delivers high-quality results in as little as 30 minutes. The specially designed Fast block ensures thermal uniformity at top speeds, while faster ramp rates enable rapid results without compromising extension times or assay quality. The fast optical plates ensure excellent precision in 10-30 ul reaction volumes, and the usage of TaqMan Fast Universal PCR Master Mix allows you to run multiple Fast assays on one plate. Finish more runs per day with the excellent performance equivalent to that offered by the 7500 System.

• Fast cycling optimized
• Thermal uniformity
• Fast ramp rates
• Excellent precision
• High performance equivalent to 7500 system

• Dynamic Range: 9 logs of linear dynamic range
• For Use With (Equipment): 7500 Fast System

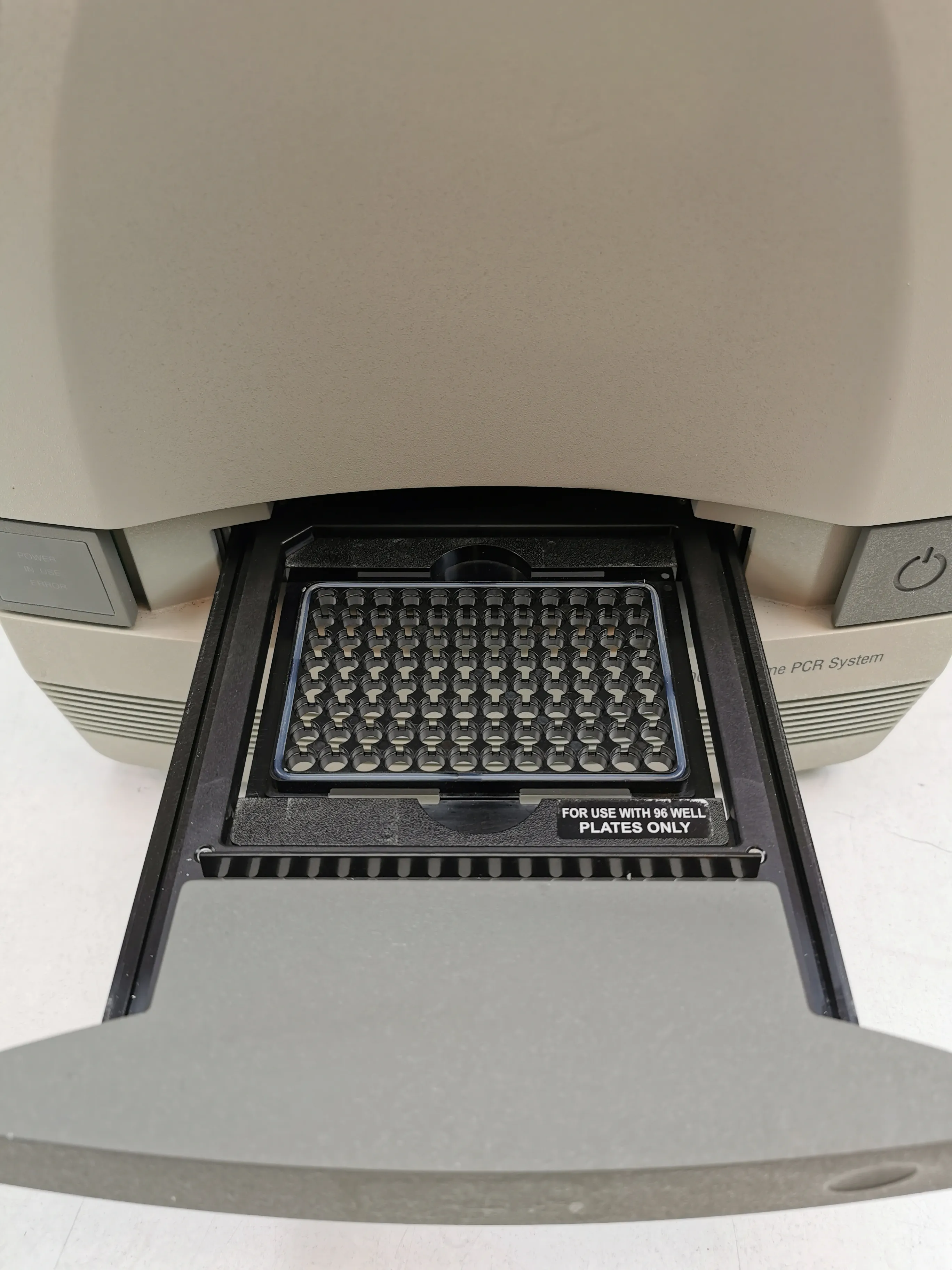

• Format: 8-well strips, 96-well plate
• Optics: CCD Camera, Five excitation and five emission filters, Halogen light source
• Passive Reference Dye: Other Passive Reference Dye, ROX (Pre-mixed), ROX (Separate Tube)
• Peak Block Ramp Rate: 5.5Csec
• Precision: Distinguish between 5,000-10,000 genome equivalents (two-fold copy number difference) with 99.7% confidence
• Reaction Speed: Fast, Standard
• Reaction Volume Range: 10-30 l
• Run Time: <2 hrs (Standard), 36 min (Fast)
• Sample Ramp Rate: Fast mode: 3.5Csec, Standard mode: 1.6Csec
• Sensitivity: Down to 1 copy of human RNAse P gene
• Temperature Accuracy: 0.5C
• Temperature Range (Metric): 4.0-99.9C
• Temperature Uniformity: 1C
• Thermal Cycling System: Peltier-Based System
• Throughput: 4 to 5 96-well plates per day

Metric: 34.96 kg
Imperial: 77.16 lbs

Metric: 18.11 cm x 13.78 cm x 19.69 cm
Imperial: 7.13 in x 5.43 in x 7.75 in

903180

903180 - Measuring or checking instruments, appliances and machines, not specified or included elsewhere in this chapter; profile projectors
