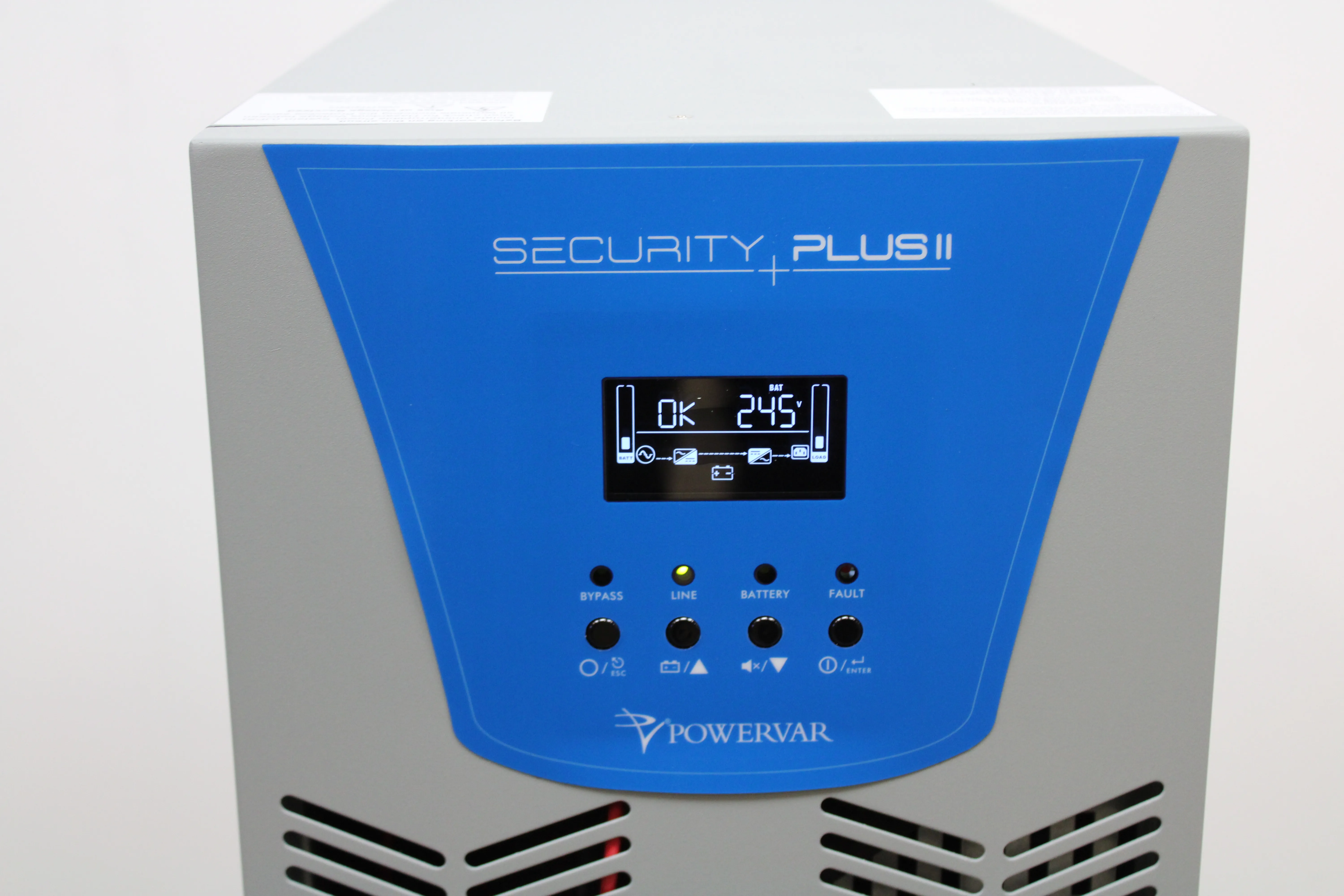

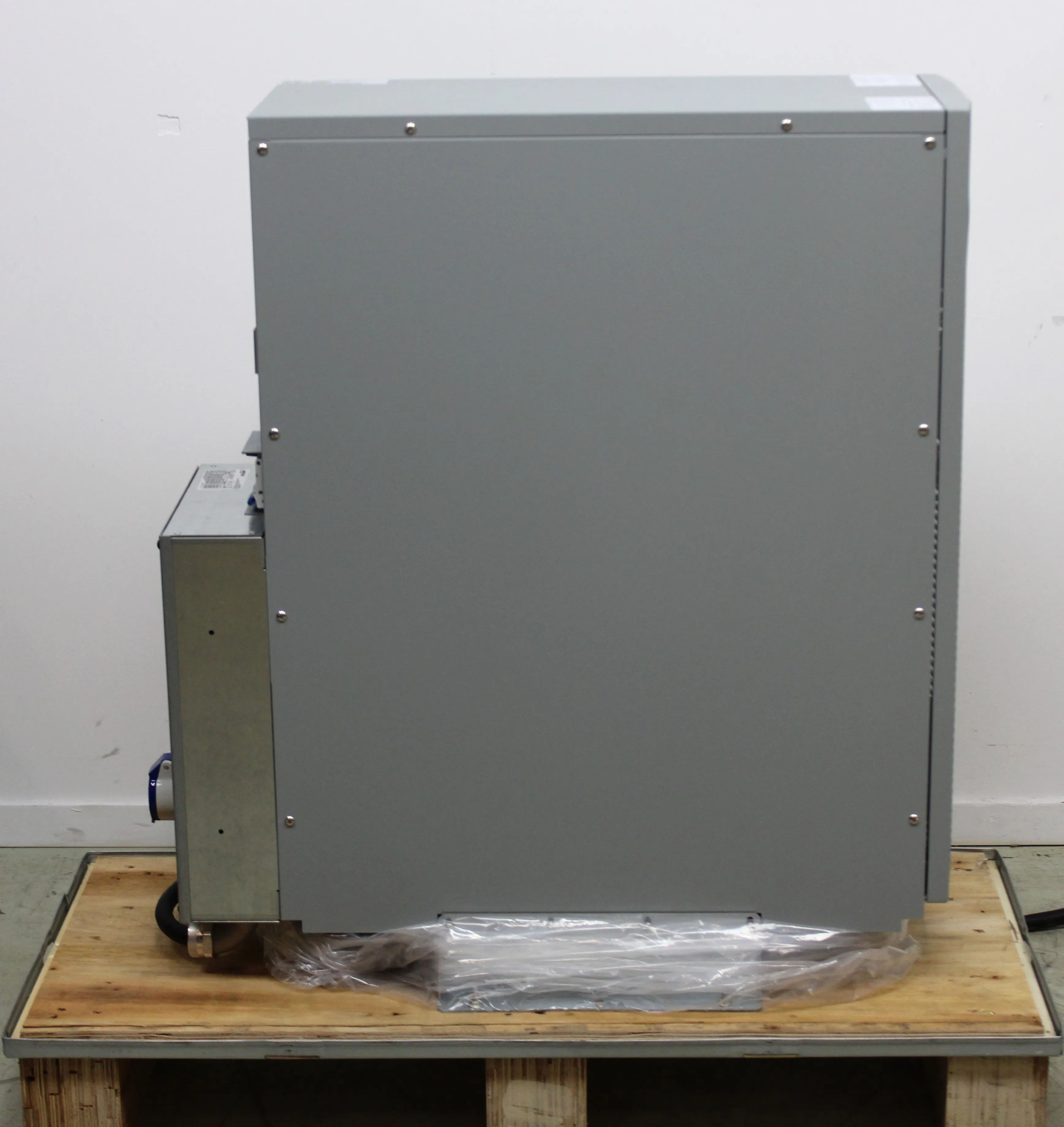

Powervar Security Plus II UPS Power Supply

Product Information

The Powervar Security Plus II UPS Power Supply is an advanced power protection system delivering industry-leading capacity and efficiency within a compact form factor. The system features Powervar's proven low impedance isolation transformer technology and an unprecedented load inrush capacity, making it the most reliable power protection solution available in the market. The device has never been used and comes with a 30-Day Warranty, 100% Parts and Labor. The system supports a range of input and output voltage options, tight voltage regulation, low input THDi, and high load inrush capacity, making it suitable for mission-critical applications in laboratories, pharmaceutical facilities, and research institutions.

• Industry-leading capacity and efficiency
• Proven low impedance isolation transformer technology
• Unprecedented load inrush capacity
• Seamless performance and a positive return on investment
• Supports a range of input and output voltage options
• Integrated SNMP card slot and ECO mode

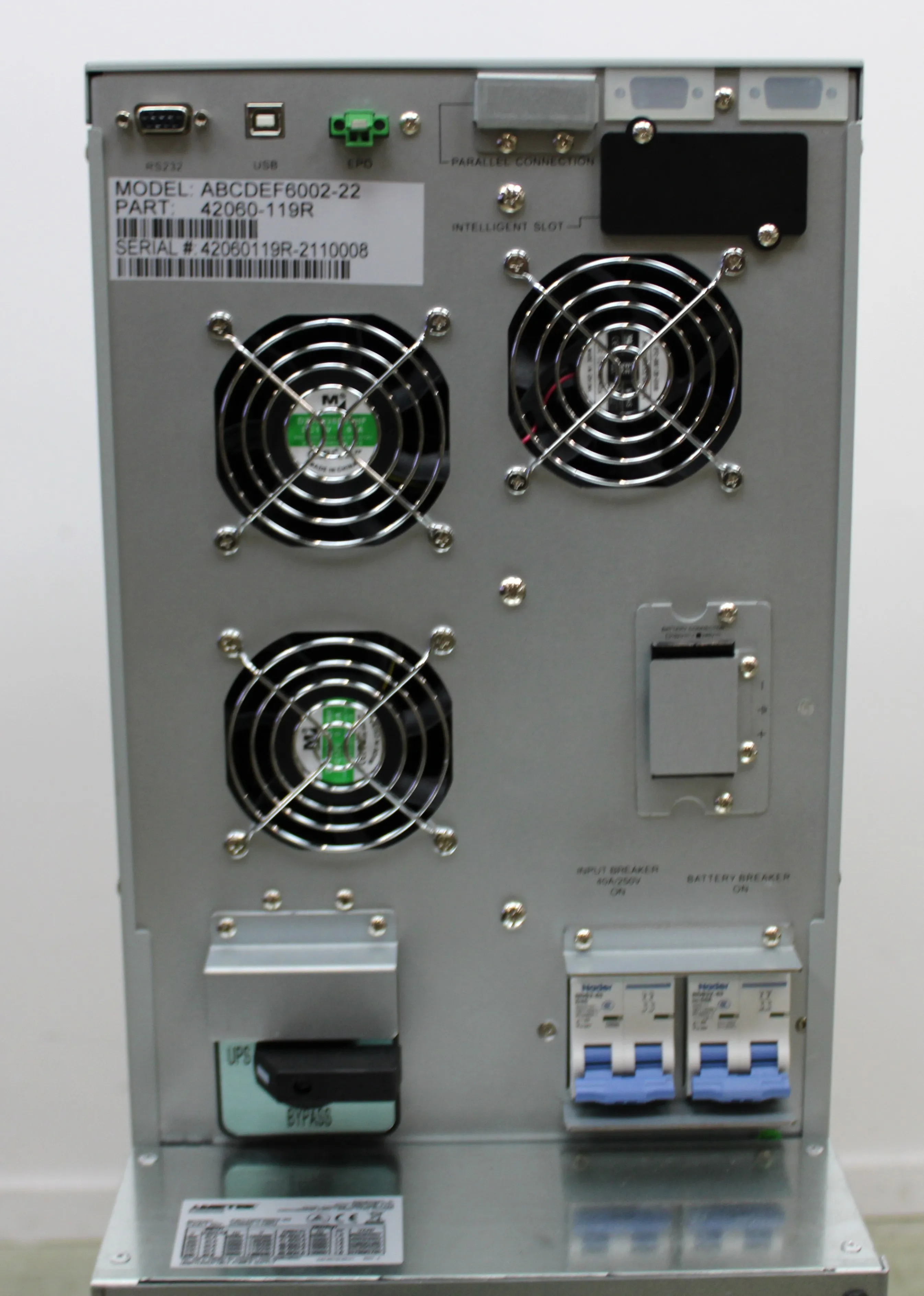

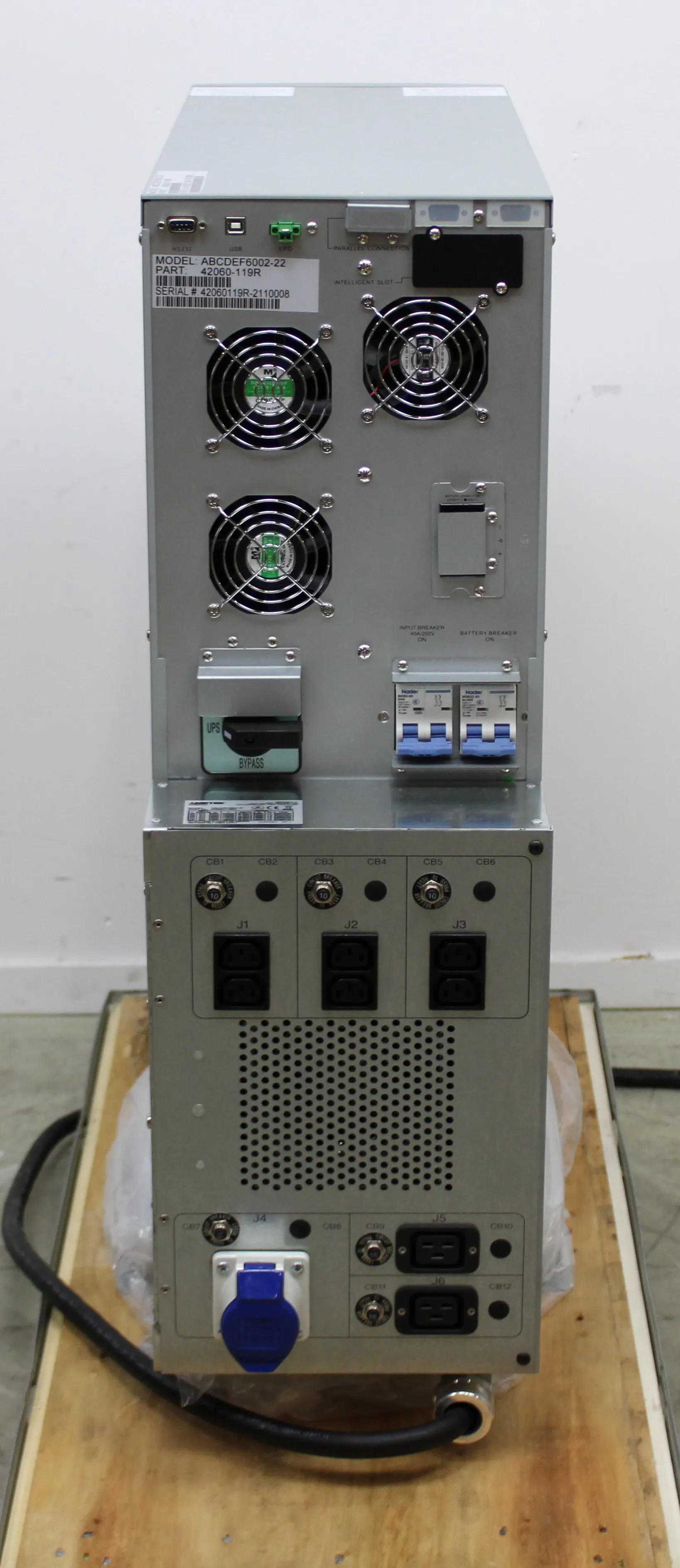

• CE marked and customizable back panel

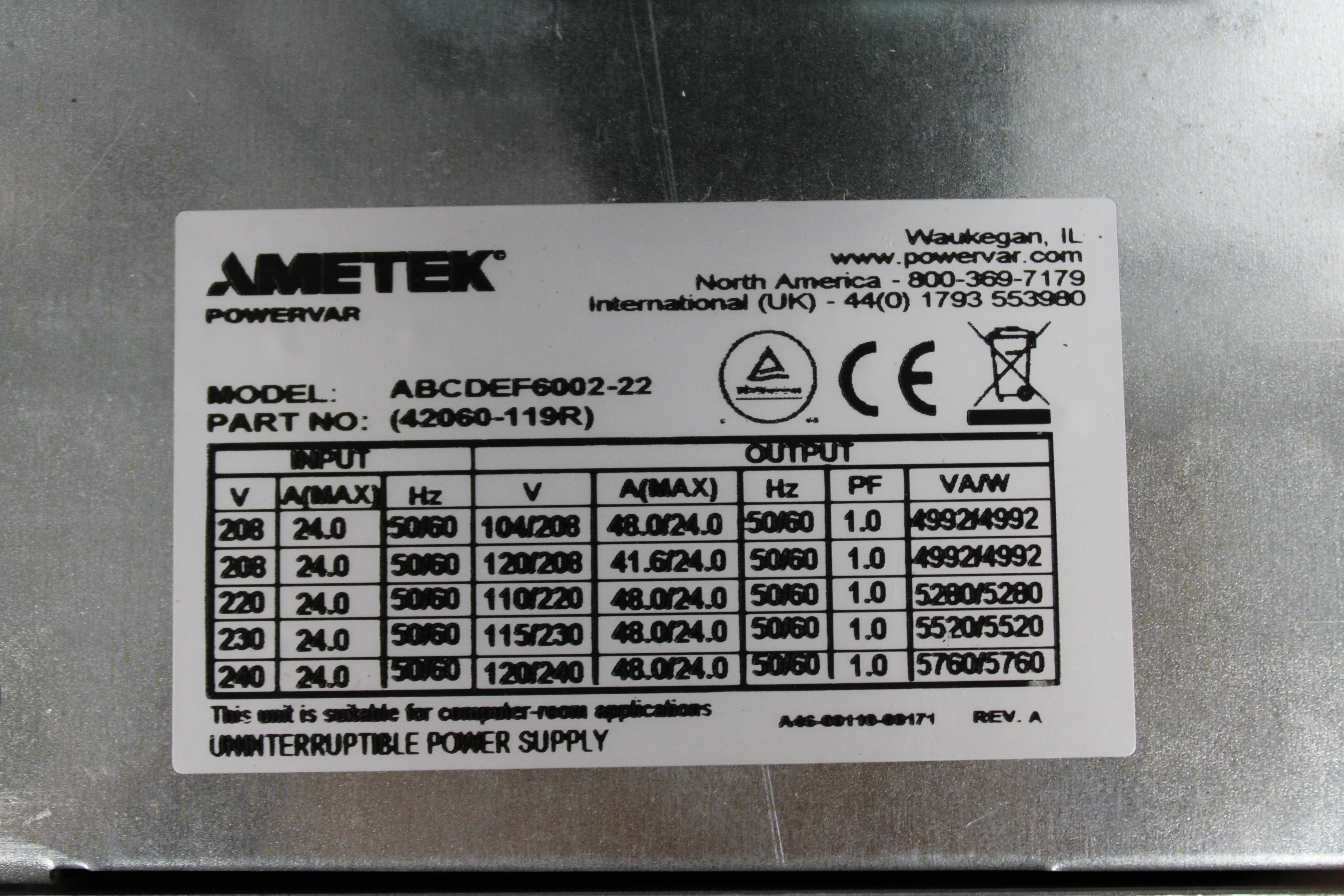

• Power Rating (VA/Watts): 6000 / 5400, 6000 / 6000
• Type: Online (Double Conversion) With Isolation
• Inverter Waveform: Pure Sine Wave
• Transfer Time: 0 ms (Always Engaged)
• Frequency: 50/60 Hz, 50 or 60 Hz +/-5% (Auto Sensing)
• Input Voltage: 200, 208, 220, 230, 240, 200, 208, 220, 230, 240
• Output Voltage: 120, 200, 208, 220, 230, 240, 120, 208, 220, 230, 240
• Input Voltage Range: 140 To 276 Volts, 110 To 280 Volts
• Output Regulation (On Mains): 3%, 2%
• Output Regulation (On Battery): 3%, 2%
• Backup Time at Full Load: >5 Minutes, 9 Minutes
• Recharge Time: 8 Hours To 90%, 4 Hours To 90%
• Batteries: 16x 12 Volt 7 Amp Hours, 20x 12 Volt 9 Amp Hours
• Input Plug: Hardwire

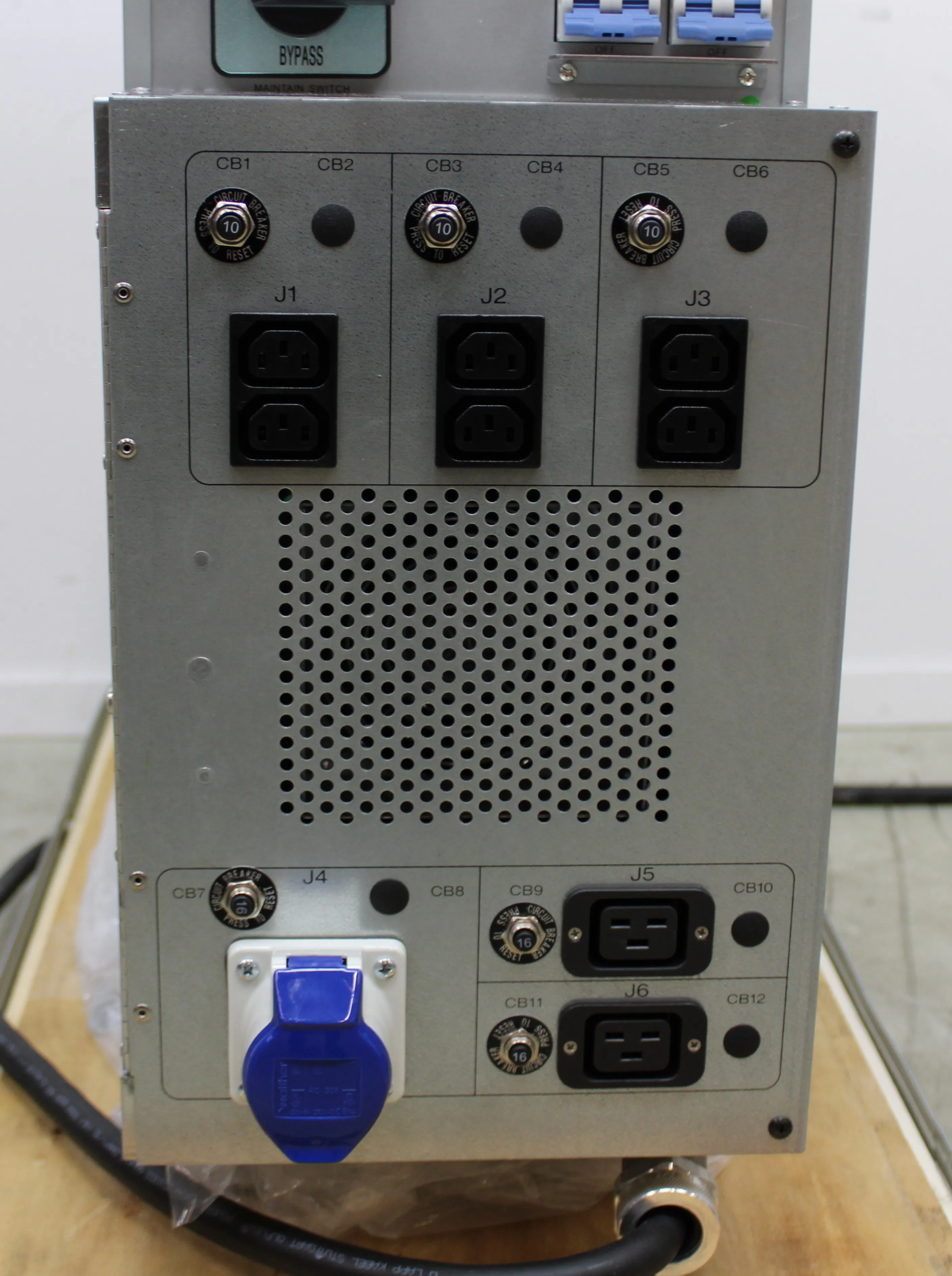

• Output Receptacles: Hardwire
• Temperature (Operating): 0 to 40°C (32 to 104°F)
• Humidity (Operating): 5% to 90% Non-Condensing, 20% to 95% Non-Condensing
• Altitude (Maximum Operating): 2,000m (6,500 ft), 1,000m (3,280 ft)

Metric: 178 kg
Imperial: 392.42 lb

Metric: 96 cm x 44 cm x 106 cm
Imperial: 37.8 in x 17.3 in x 41.7 in

850440

The chosen harmonized code is 850440 - Static converters, specifically designed for use in a central station, in which the output voltage is constant regardless of the input voltage, used with a power handling capacity exceeding 75 kVA. This code reflects the features and capacity of the Powervar Security Plus II UPS Power Supply.
