Thermo Scientific Dionex UltiMate DGP-3600RS Dual-Gradient Rapid Separation Pump

Product Information

Embrace the power of the ultrahigh-speed Thermo Scientific Dionex UltiMate DGP-3600RS to upgrade to online solid phase extraction, parallel LC, and tandem LC, yielding amplified sample throughput and superior resolution. With its dual-gradient technology, swap effortlessly between different applications, allowing two unique systems with distinct solvents and columns. This robust HPLC pump ensures automatic active baseline monitoring and intelligent run control, underpinning unattended application changes. Crafted by Thermo Fisher, the DGP-3600RS offers the capability to achieve higher resolution, enhanced sample preparation workflows, and expedited sample analyses. This cutting-edge technology is embraced by laboratories seeking to automate sample preparation, intensify sample throughput, and allowing higher resolution.

• Ultrahigh-speed pump for superior resolution and sample throughput
• Dual-gradient technology for effortless switching between diverse applications
• Automatic active baseline monitoring and intelligent run control
• Compatible with parallel LC, tandem LC, solid-phase extraction (SPE)
• Crafted by Thermo Fisher - a hallmark of robustness, efficiency, and accuracy

• For Use With (Equipment): 15-Pin D-Sub Connector for Solvent Rack/Degasser Connection
• Frequency: 100-120 V, 60 Hz; 200-240 V, 50 Hz
• Min. Flow Rate: 0.001 mL/min. (Recommended: 0.1 mL/min.)
• Operating Principle: Serial dual-piston
• Overall Depth: 20 in. (51 cm)
• Overall Height: 6.3 in. (16 cm)
• Overall Width: 16.5 cm
• Solvent Degassing: External (optional)
• Flow Accuracy: 0.1%
• Gradient Formation: Dual Low-Pressure Proportioning
• Max. Flow Rate: 8 mL/min.
• Type: Dual-Gradient Rapid Separation Pump
• GLP Features: Full support of Thermo Scientific Dionex AutoQ instrument qualification, qualification status and system wellness monitoring
• Flow Precision: <0.05% RSD or <0.01 min SD, whichever is greater
• Gradient Delay Volume: 325-1840 L (Depending on the SpinFlow mixer configuration) Default: 690 L
• Pressure Range: 2 to 103.4 MPa up to 5 mL/min; 2 to 80 MPa up to 8 mL/min

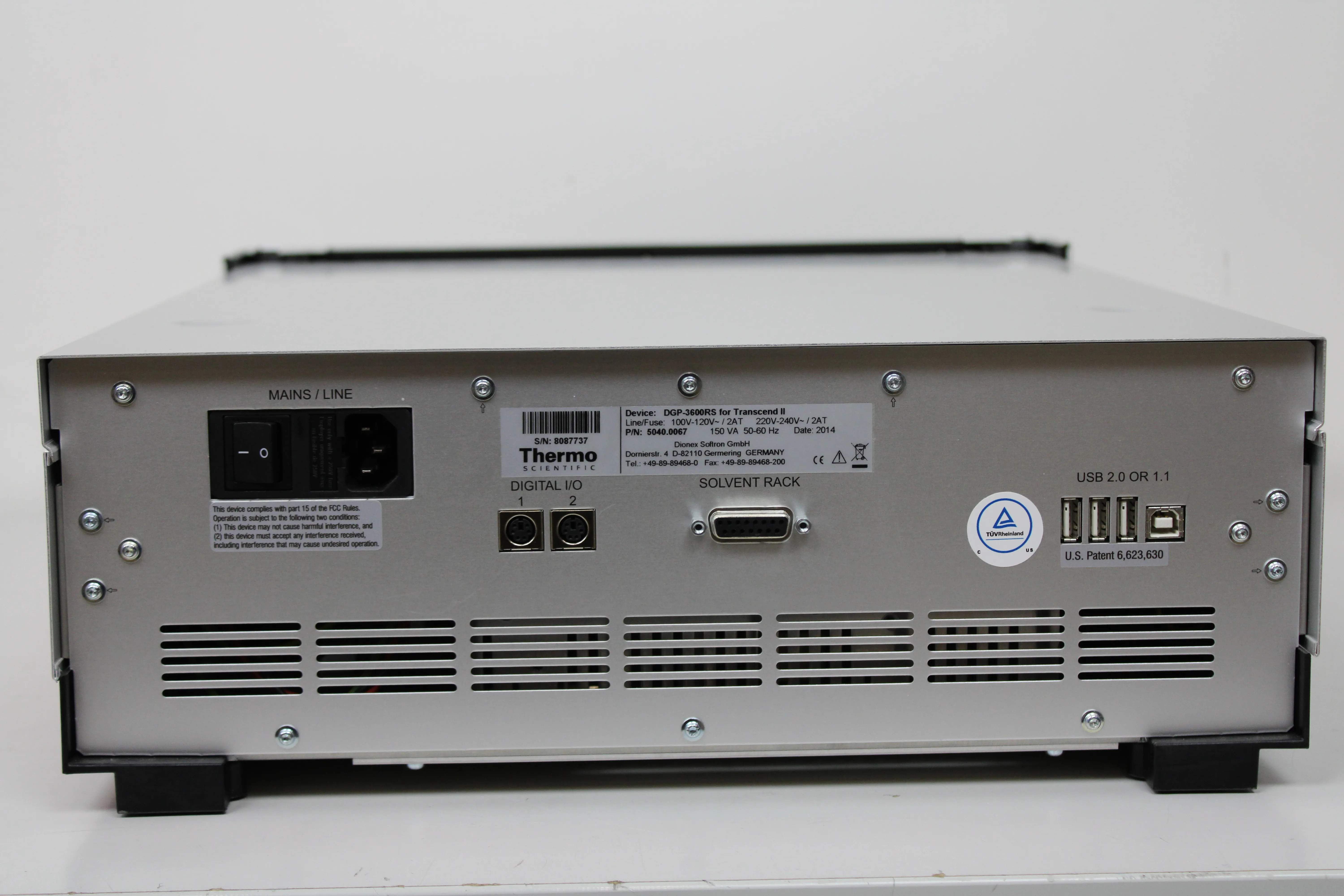

• I/O Interfaces: 2 digital inputs, 2 relay outputs
• No. of Eluent Lines: 6 (2 x 3)
• Proportioning Accuracy: 0.5% (full scale)
• Proportioning Precision: <0.15% SD
• PC Connection: USB for PC connection, USB hub with 3 sockets integrated
• Pressure Ripple: Typically: <0.2 MPa or <1% whichever is greater
• Voltage: 100-120 V, 60 Hz; 200-240 V, 50 Hz
• Weight: 16.5 kg (36.4 lbs)
• Description: Emission Sound Pressure Level: <70 dB(A) in 1-m-distance

Metric: 16.5 kg
Imperial: 36.4 lbs

Metric: 51 cm x 16.5 cm x 16 cm
Imperial: 20 in x 6.5 in x 6.3 in

9027200000

9027 - Instruments and apparatus for physical or chemical analysis, and the like
