BioTek Synergy H1M Plate Reader

Product Information

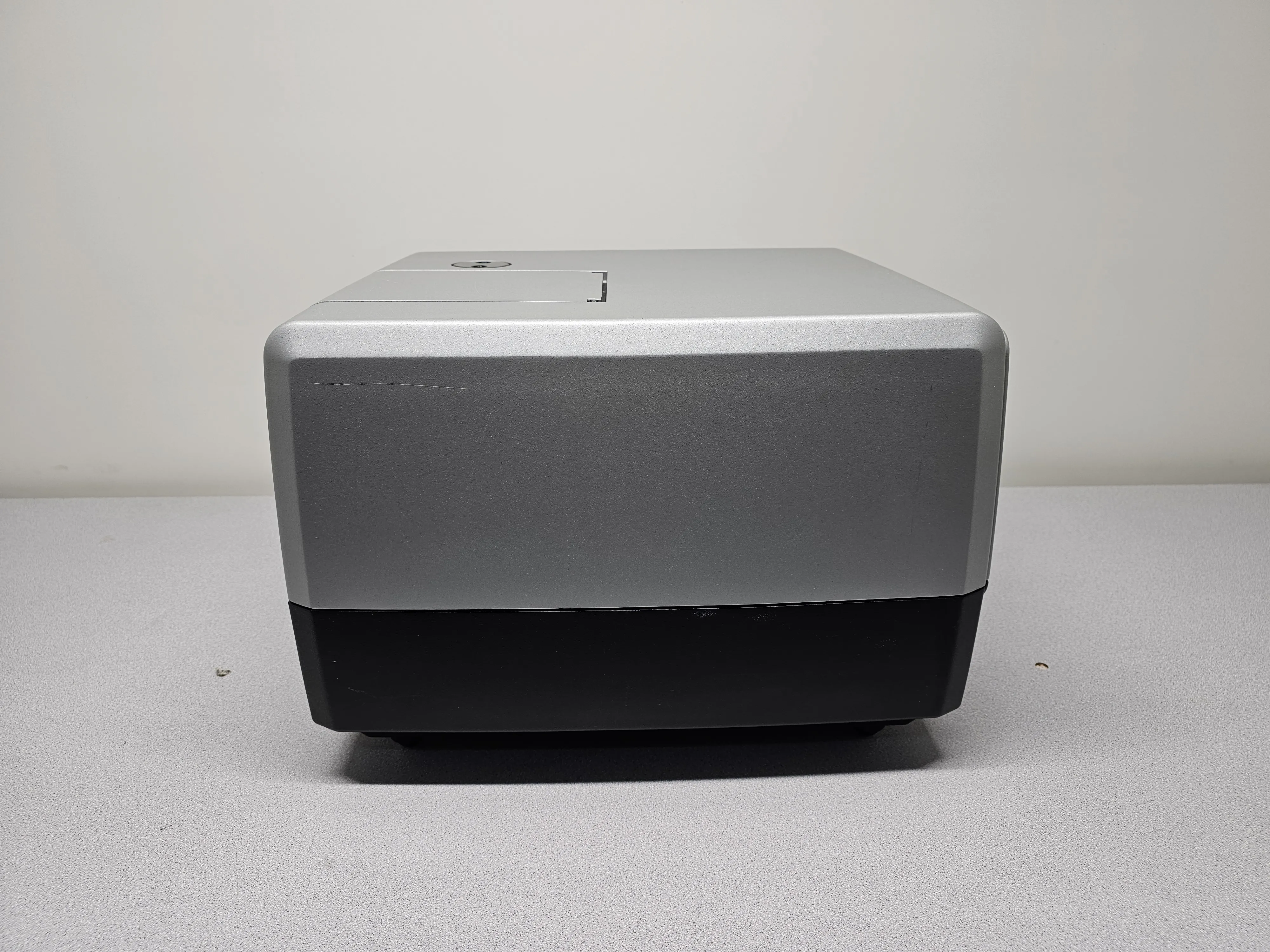

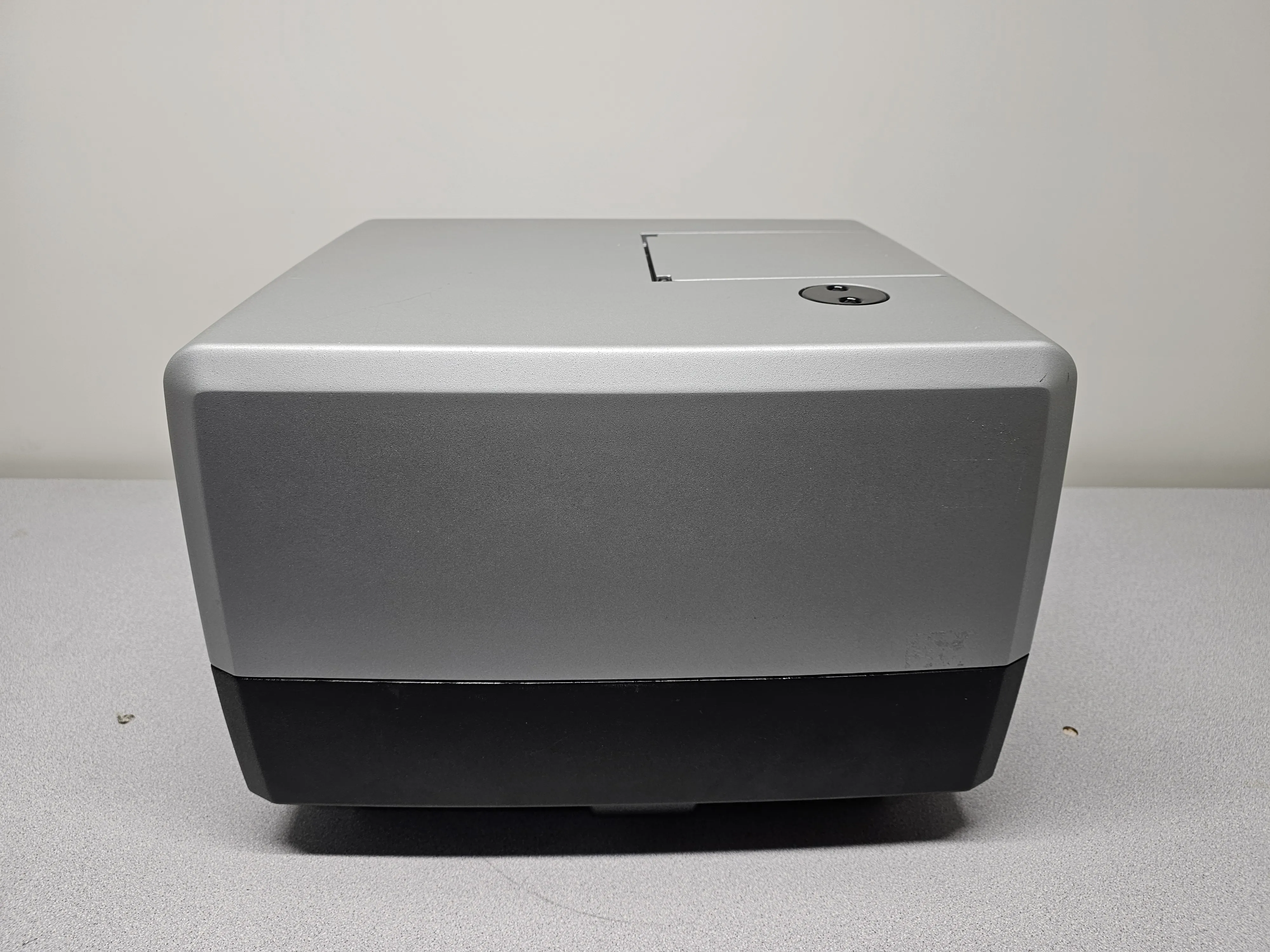

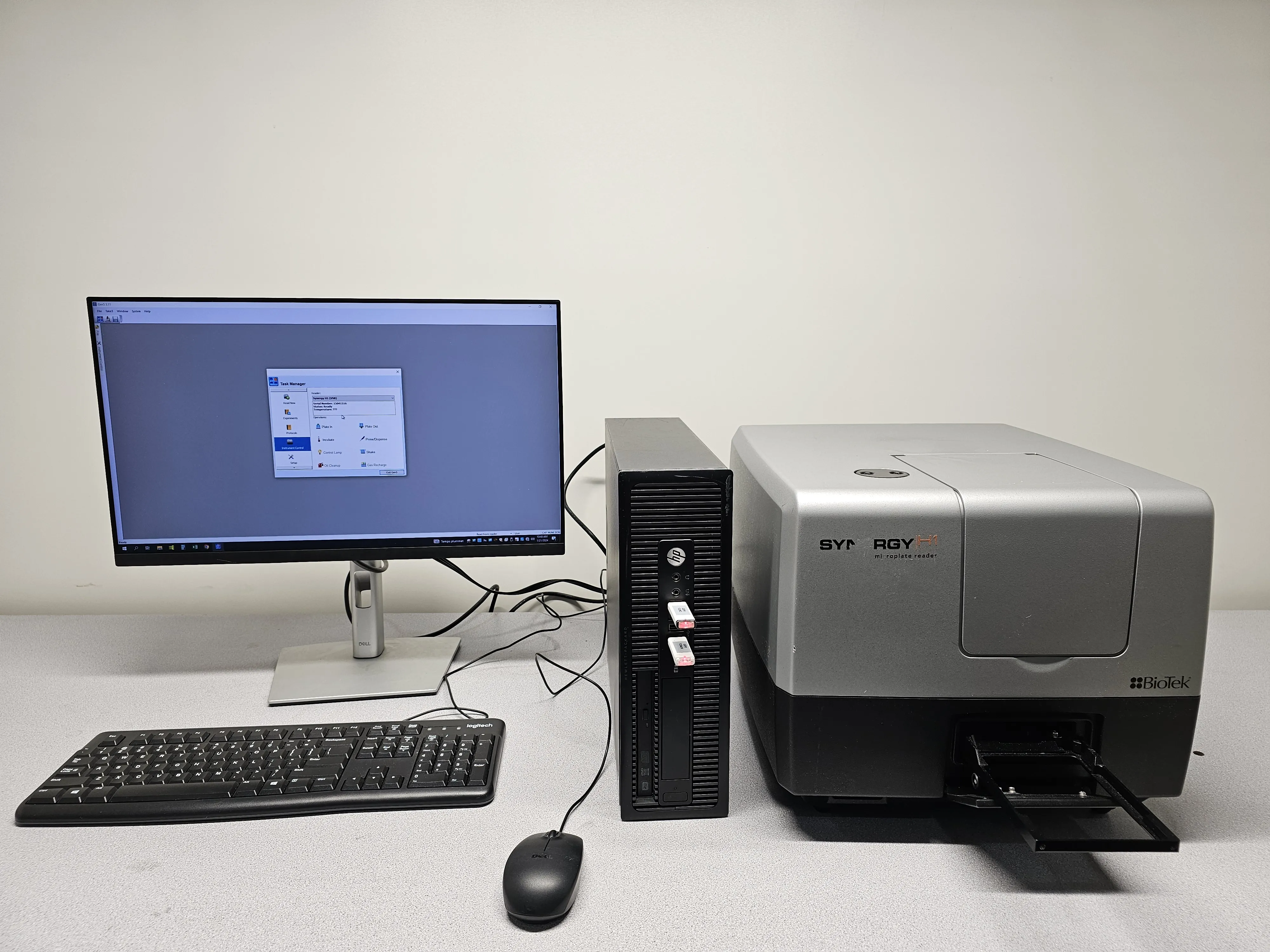

This BioTek Synergy H1M Plate Reader is a preowned reader fresh from a working lab, complete with a 30-day warranty. Featuring specs such as a 230 to 999 nm absorbance range, 96 and 384 well measurement speeds, linear, orbital, and double orbital shaking, this reader is a versatile workhorse. Use it for end point, kinetic, spectral scanning, and well area scanning.

Key Features

1. Preowned BioTek Synergy H1M Plate Reader
2. 230 to 999 nm absorbance range
3. 96 and 384 well measurement speeds
4. Linear, orbital, and double orbital shaking
5. End point, kinetic, spectral scanning, and well area scanning capabilities

Specifications

1. Manufacturer: BioTek Instruments
2. Model: Synergy H1M
3. Model No.: H1M

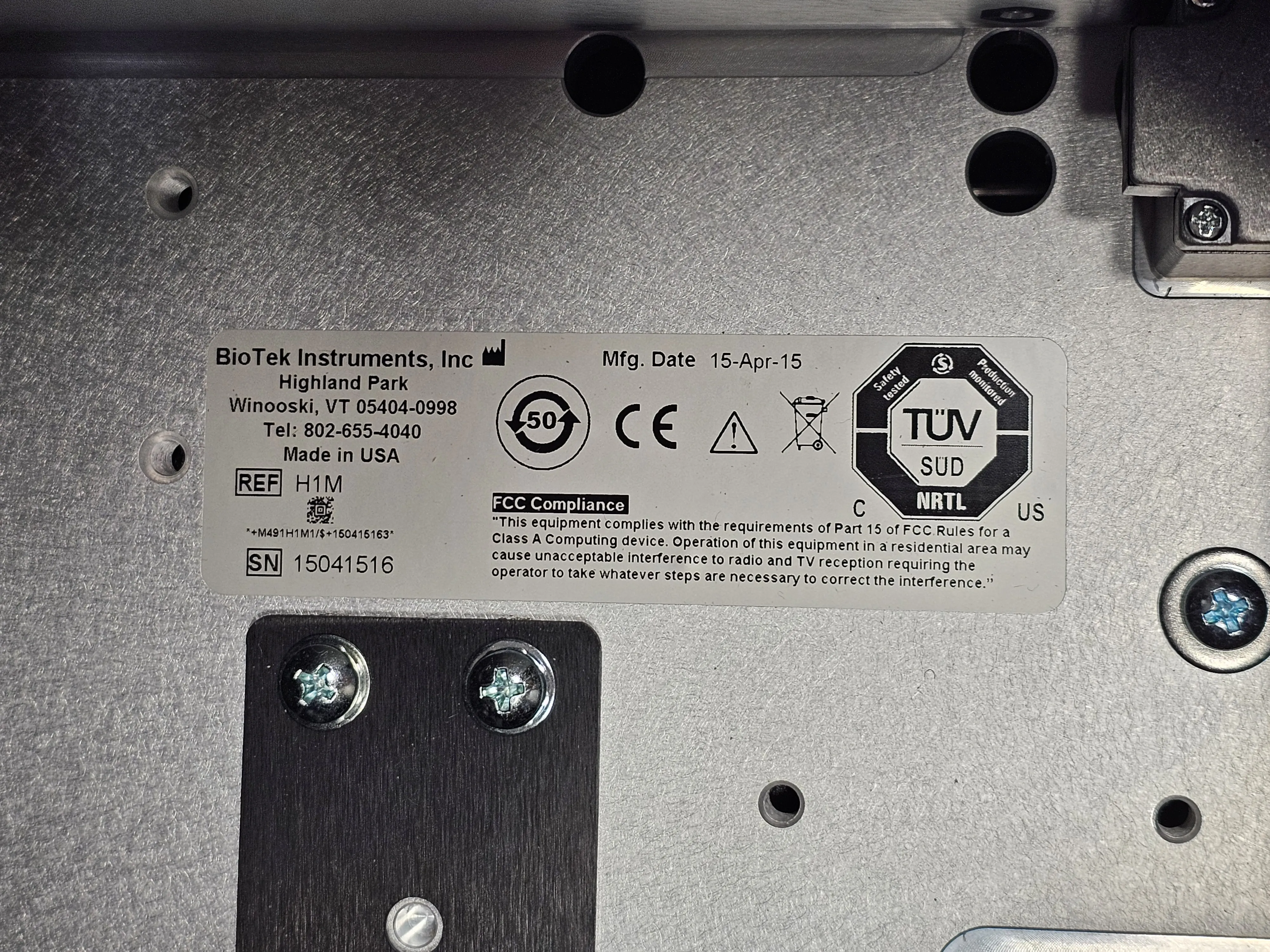

4. Serial No.: 15041516
5. Absorbance Range: 230 to 999 nm (1 nm increments)
6. Measurement Speed: 96 wells: 11 sec.; 384 wells: 22 sec.
7. Dynamic Range: 0 to 4 OD
8. Measurement Technology: Proprietary hybrid technology
9. No. of Dispensers: 2 syringe pumps
10. Sensitivity: Various ranges based on the type of measurement
11. Plate Type: 6- to 384-well plates, Take3 micro-volume plates
12. Reading Options: End point, Kinetic, Spectral scanning, Well area scanning
13. Accuracy: Absorbance: 2 nm; Dispenser 1 L or 2%
14. CO2 Concentration Range: 0 to 20%
15. Compatibility: BioStack and Third party automation compatible
16. Incubator Temperature: 4-Zone incubation to 45°C
17. Shaking: Linear, Orbital, Double orbital
18. Dispense Volume: 5 to 1000 L, 1 L increments
19. Weight: <55 lbs.
20. Dimensions (W x D x H): 15 x 18 x 13 in

Weight

Metric: 22.68 kg

Imperial: 50 lbs

Dimensions

Metric: 38.1 cm x 45.72 cm x 33.02 cm

Imperial: 15 in x 18 in x 13 in

Harmonized Code

90273000

Harmonized Code Details

90273000 - Spectrometers, spectrophotometers and spectrographs using optical radiations (UV, visible, IR)
