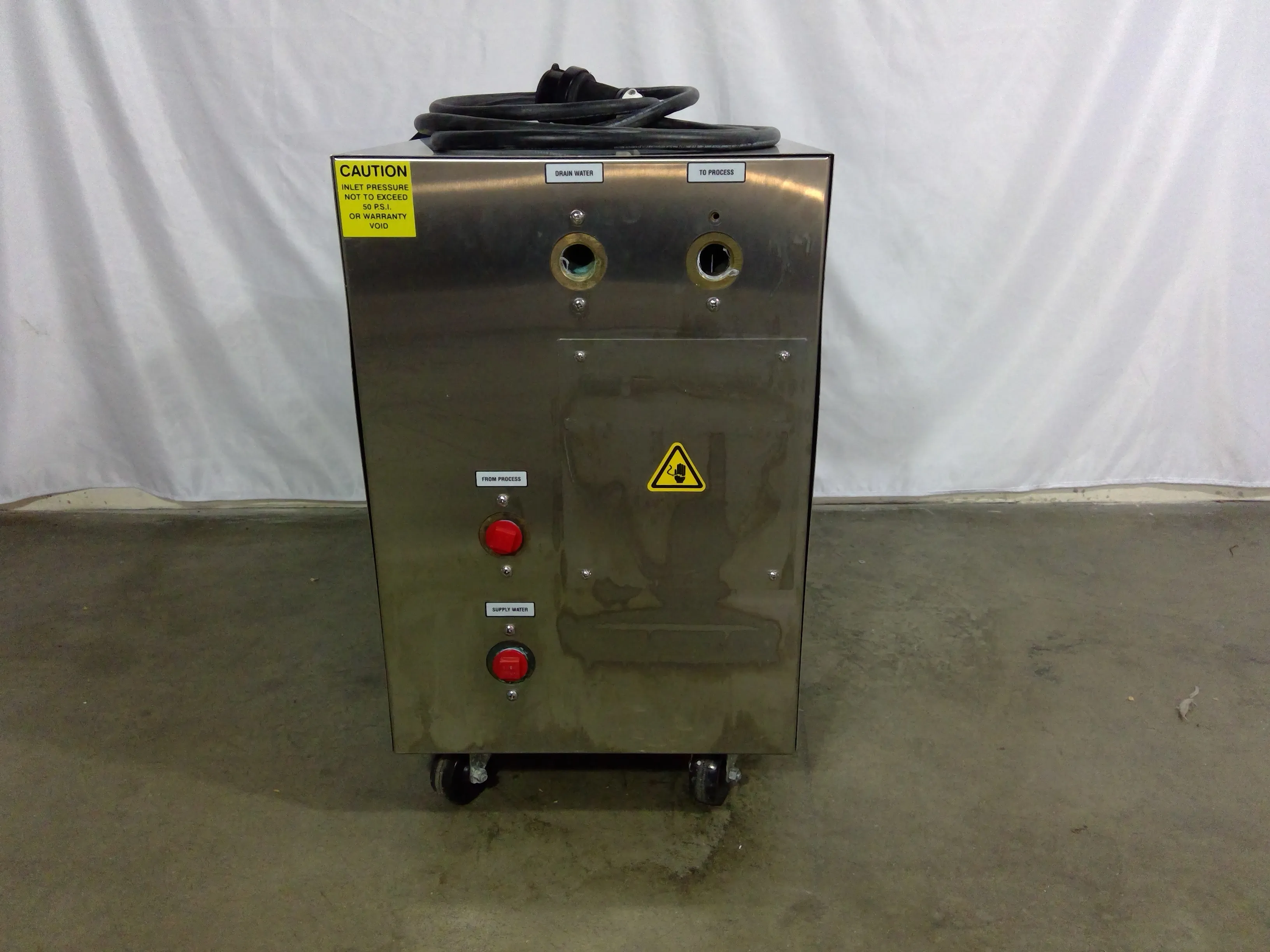

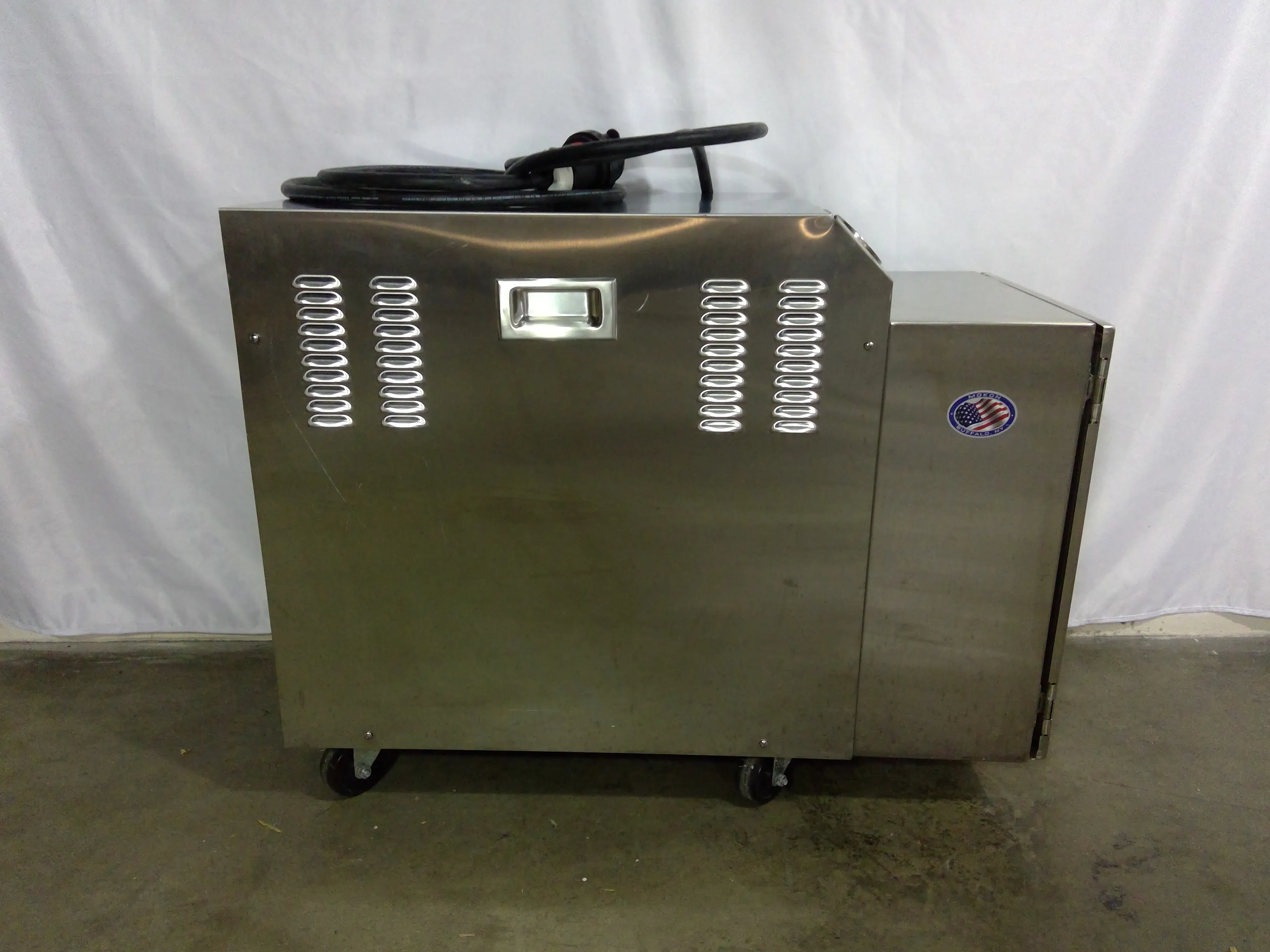

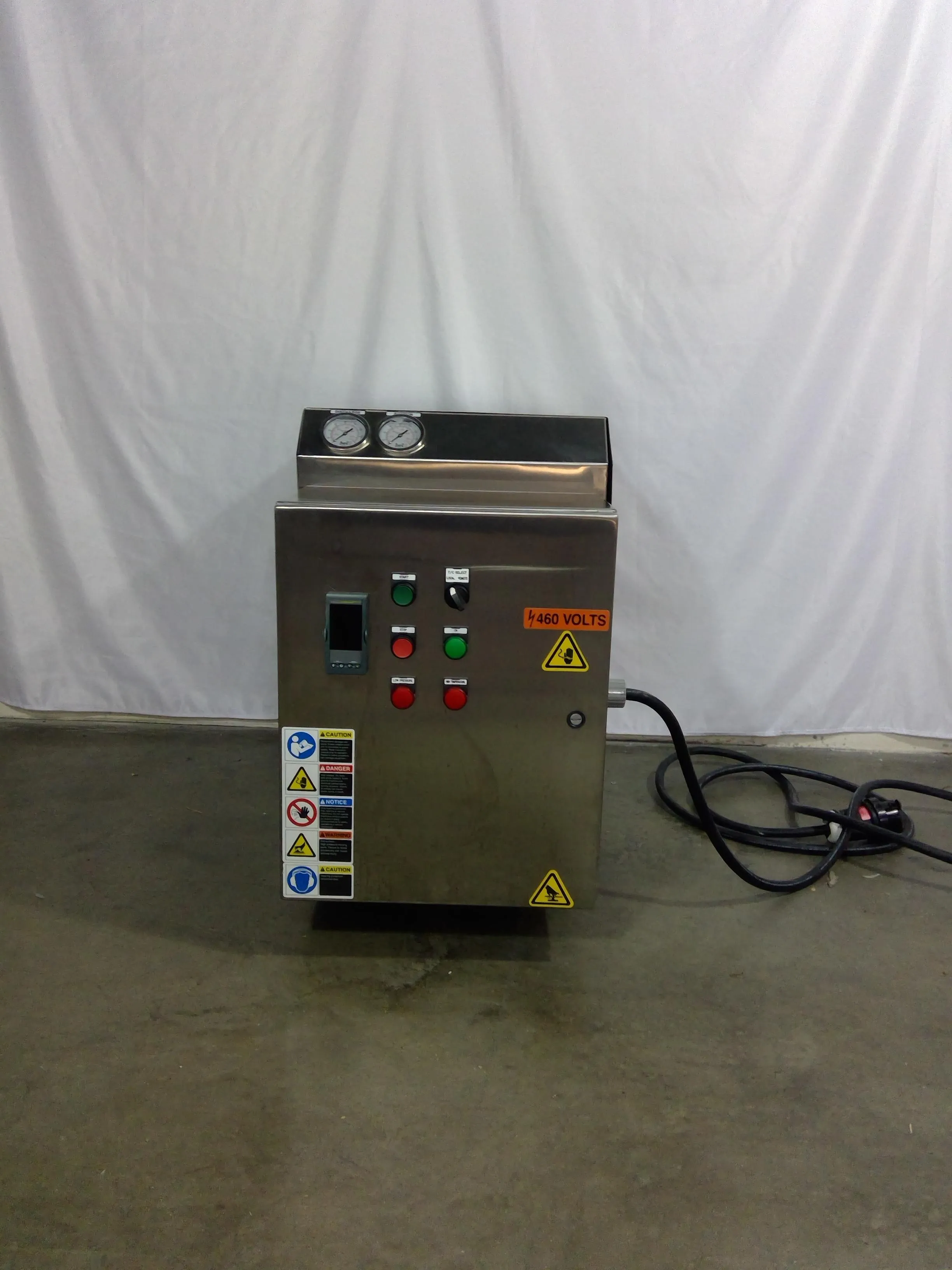

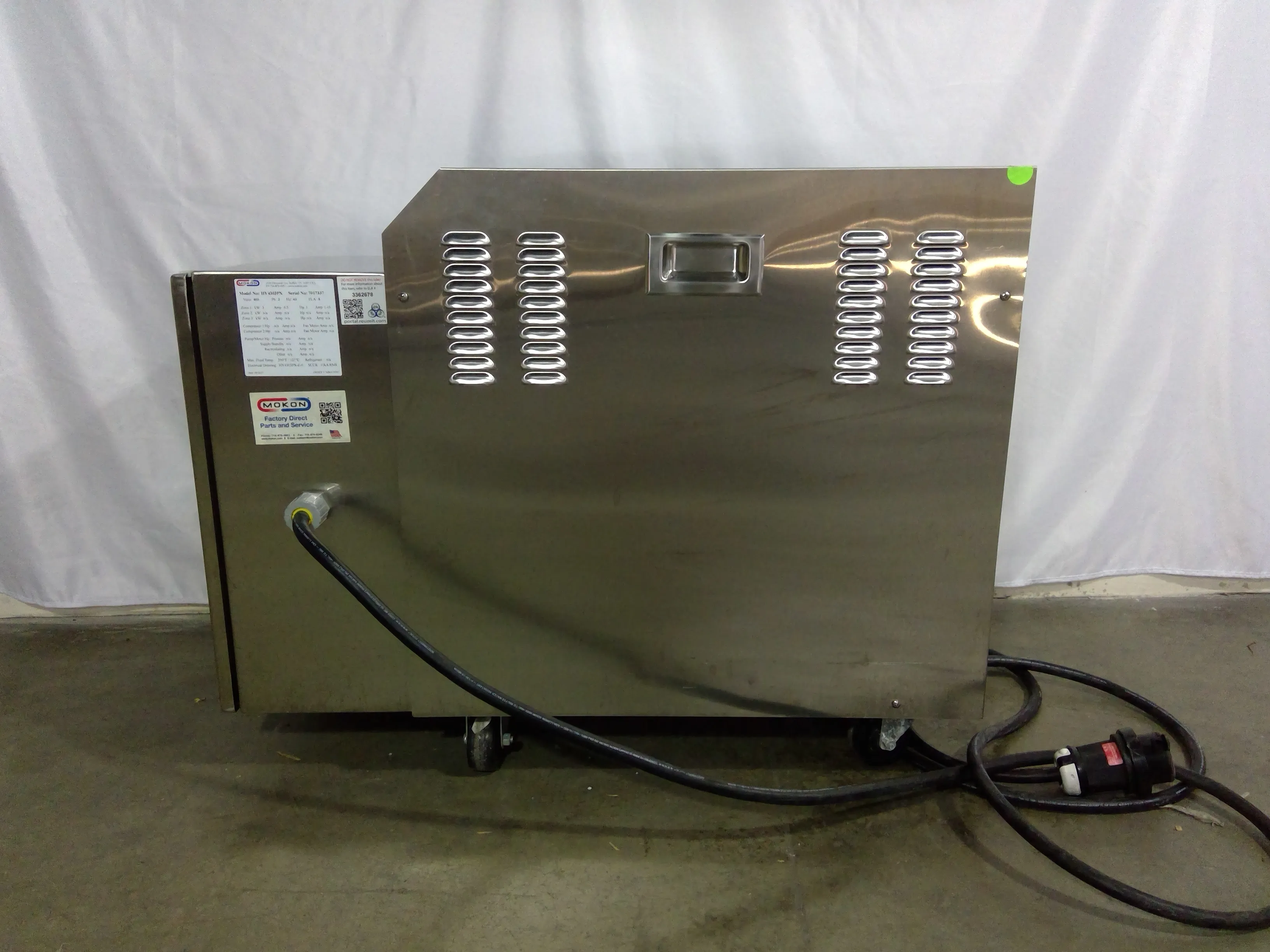

Mokon HY4303PX Pura-Therm Circulating Water Temperature Control System HZ

Product Information

The Mokon temperature control unit DN4312AFJ03, manufactured in 2017 and originating from the United States, is a pre-owned, G (Good) condition, used Pura-Therm Circulating Water Temperature Control System. This system features advanced heating technology reaching up to 250F (121C) and is designed with non-ferrous and stainless-steel materials, ensuring excellent corrosion resistance and leak-free operation. The system is engineered to improve accuracy, reliability of operation, and increase output. It's ideal for applications requiring precise temperature control and circulation, such as chemistry experiments, semiconductor manufacturing, and pharmaceutical production.

• Advanced heating technology up to 250F (121C)
• Non-ferrous and stainless-steel materials with excellent corrosion resistance
• Engineered for improved accuracy, reliability and increased output
• Ideal for chemistry experiments, semiconductor manufacturing, and pharmaceutical production

• Model: HZ
• Pump: 1/2 Horsepower
• Flo Rate & Pressure: 15 gpm @ 15psi
• Process Connection: 1.25" NPT
• Supply/Drain Connection: 1/2" NPT
• Process temperatures up to 380F (193C)
• Heating capacity up to 96 kW
• Closed loop (indirect cooling) and multi-zone circuits
• 3-A heat exchangers and heat remover designs for process isolation
• Magnetic drive sealless and high-efficiency pumps
• Vented and pressurized tanks in a variety of materials
• Sanitary tri-clamp and flanged connections
• 316 SS, passivation and electro-polished surfaces
• Welded connections
• Tool-free access panels
• Modulating cooling valve
• SCR and solid state relays
• Remote interface enclosures and communication options
• Electronic controllers and RTD's calibrated to ISO 17025 standards

Metric: 90.7 kg
Imperial: 200 lb

Metric: 88.9 cm x 43.18 cm x 73.66 cm
Imperial: 35 in x 17 in x 29 in

841989

Machines and mechanical appliances with specific functions; air or vacuum pumps, air or other gas compressors and fans; ventilating or recycling hoods incorporating a fan, whether or not fitted with filters.
