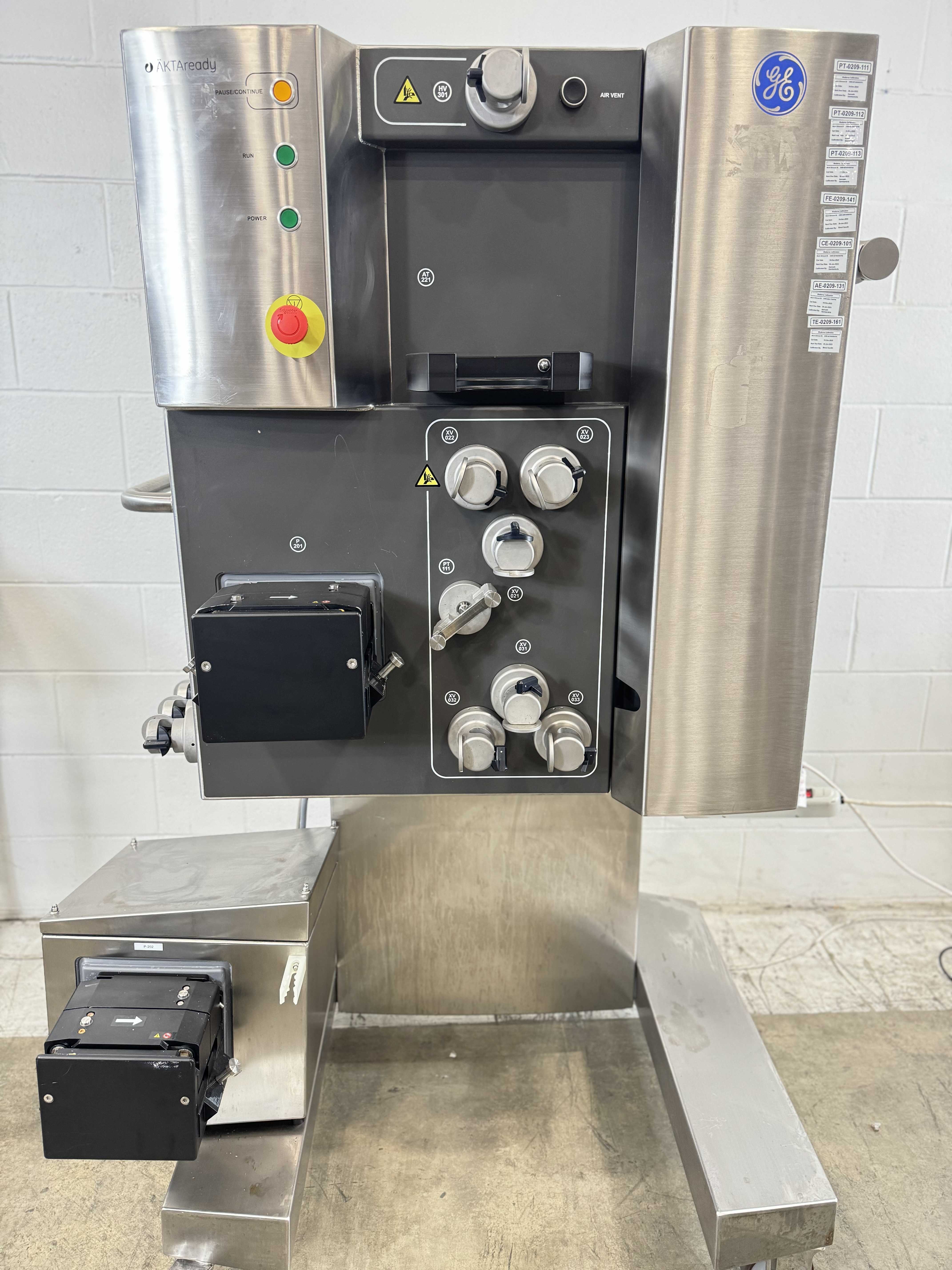

GE AKTA Ready Chromatography System with UV/pH Sensors, Used - 120V 60Hz
GE
Details
-
CategoryBioprocessing
-
Dimension36.0in x 30.0in x 40.0in
-
Serial2610921
-
Shipping TypeFreight
-
ManufacturingDoes Not Apply
-
Voltage / Hertz120V / 60Hz US
Description
The GE AKTA Ready Single-use System 29032038, made in Sweden, is a preowned chromatography solution enabling flexible and efficient purification processes. Designed with isocratic or gradient capability, this system provides essential sensor functionality for a range of chromatography operations, including mAbs and recombinant proteins purification. Enhanced with a three-wavelength variable UV sensor (206-700 nm) and an integrated single-use pH electrode, it supports closed processing operations for applications such as separation of AAV capsids and nucleic acids like plasmids and mRNA. The system comes equipped with single-use flow kits eliminating cleaning and validation, minimizing cross-contamination risks. Functionality has been verified, ensuring reliability. Operating with a flow rate of 3-175 L/h using the Low Flow Kit and 7.5-510 L/h with the High Flow Kit, and engineered to meet material compliance standards, this unit is a robust choice for laboratories aiming to improve productivity and economy.
Key Features
- Single-use system minimizing contamination
- Three-wavelength UV sensor (206-700 nm)
- Integrated single-use pH electrode
- Isocratic or gradient configuration
- Flow rate: 3-175 L/h (Low) and 7.5-510 L/h (High)
Specifications
- AC Voltage: 120V
- Frequency: 60Hz
- Software Requirement: UNICORN 7.0.2+ or Figurate with Emerson DeltaV
- Operating Pressure: Max 58.015 psi (4 bar)
- Ingress Protection: IP45, pump head IP25
- Material Compliance: USP <88> Class VI
- Liquid Temperature Range: 2C to 40C
- Dimensional Footprint: 1000 x 1650 x 800 mm (W, D, H)
- Weight: 230kg
Weight
Imperial: 300.0 Pounds
Metric: 136.08 Kilograms
Shipping Dimensions
Imperial: 43.2 lb x 36.0 lb x 48.0 lb
Metric: 109.73 cm x 91.44 cm x 121.92 cm
Harmonized Code
9027.80.45
Harmonized Code Details
9027.80.45 - Instruments and apparatus for physical or chemical analysis, e.g., polarimeters, refractometers, spectrometers. This code is used as the AKTA Ready system is a sophisticated chromatography apparatus for chemical analysis.
