Sullair ES6-10H Air Compressor 10HP 125PSIG 38ACFM 230/460V Fair Condition
Sullair
Details
-
CategoryFacility
-
Dimension37.0in x 30.0in x 77.0in
-
SerialE601003497
-
Shipping TypeFreight
-
Manufacturing1999-01-01
-
Voltage / Hertz230V-460V / 60Hz US
Description
This Sullair ES6-10H Air Compressor, manufactured in 1999, is a durable and reliable piece of industrial equipment. It is designed for efficient compressed air generation with a 10HP (7.5KW) motor and offers a capacity of 38 ACFM. The compressor operates at a maximum pressure of 125 PSIG (8.6 BAR) and supports voltages between 230V-460V in a 3-phase configuration, making it versatile for various applications. The unit includes an insulation class of 'F' and can perform optimally in ambient temperatures up to 40°C (104°F). With an operational RPM range up to 1740, this unit has accumulated 43,000 operating hours. Despite its fair condition, with some minor errors and cosmetic defects such as surface wear and abrasion, it remains a high-value asset when functional.
Technician comment

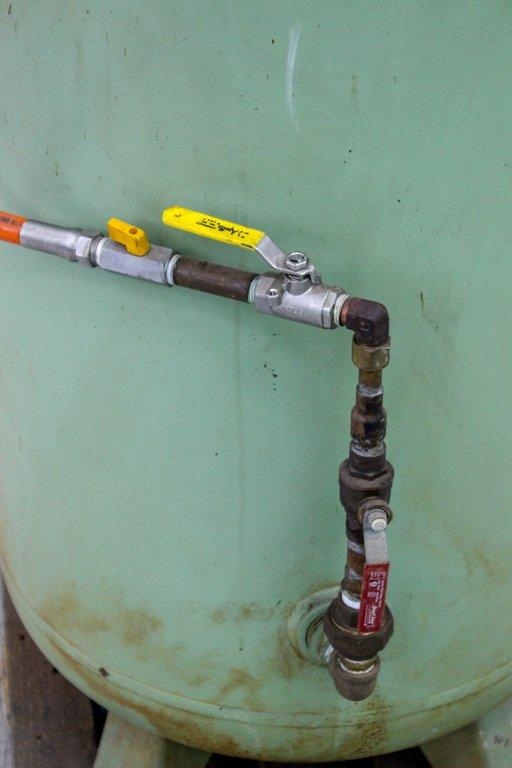

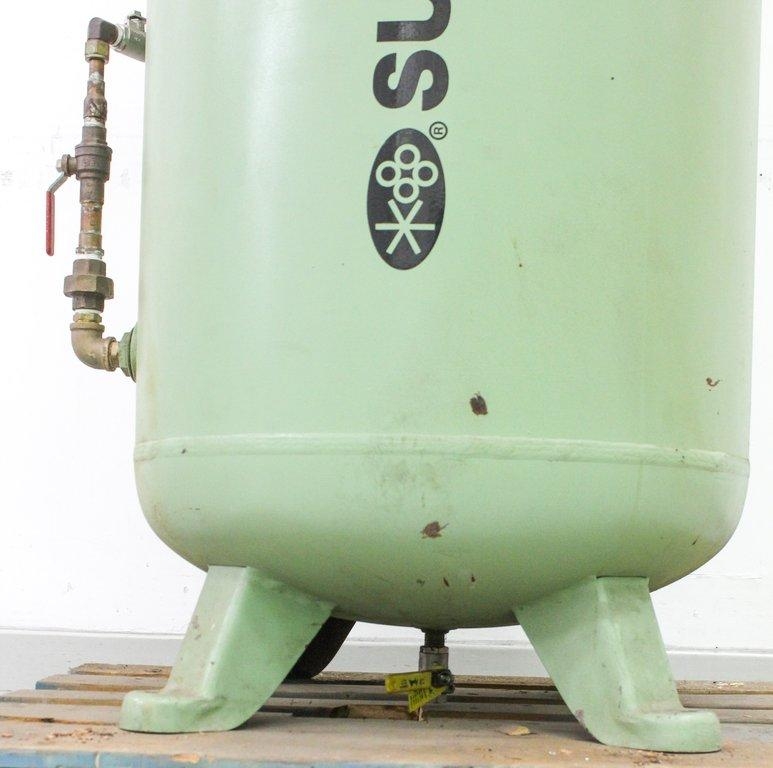

Unable for test. General wear and surface abrasion visible across the tank body. Paint is worn, faded, and chipped in several areas. See photos
Key Features
- 10HP (7.5KW) motor for robust performance
- 38 ACFM capacity ensuring efficient air delivery
- Supports 230V-460V, 3-phase electrical configuration
- Maximum pressure of 125 PSIG (8.6 BAR)
- Durable with an insulation class of 'F'
- Handles ambient temperatures up to 40°C (104°F)
- Operational RPM up to 1740

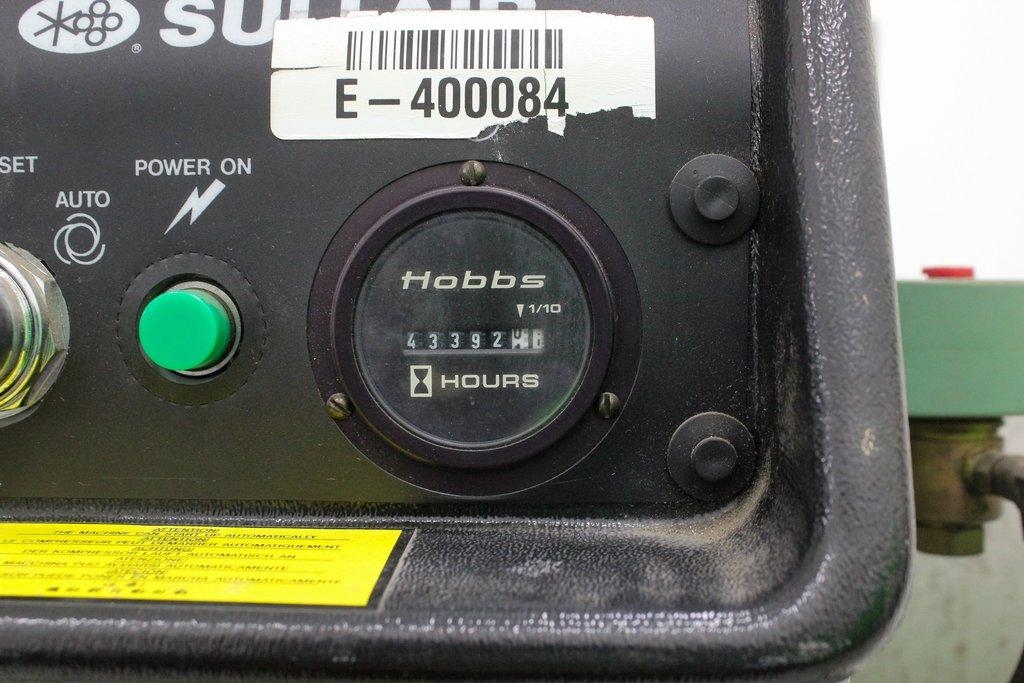

- Extensive operating history of 43,000 hours
Specifications
- HP/KW: 10/7.5
- Capacity ACFM: 38/1.08
- Maximum PSIG/BAR Pressure: 125/8.6
- Voltage: 230/460V 3 Phase
- Insulation Class: “F”; Maximum Ambient Temp.: 40°C (104°F)
- RPM Idle/Max: 1740
- Operating Hours: 43,000
- Condition: Fair, with cosmetic wear and minor errors
Weight
Imperial: 540.0 Pounds
Metric: 244.94 Kilograms
Shipping Dimensions
Imperial: 44.4 lb x 36.0 lb x 92.4 lb
Metric: 112.78 cm x 91.44 cm x 234.7 cm
Harmonized Code
841480
Harmonized Code Details
841480 - Air pumps, air or other gas compressors and ventilating or recycling hoods incorporating a fan, whether or not fitted with filters. This code is applicable as it covers air compressors which the Sullair unit falls under.
