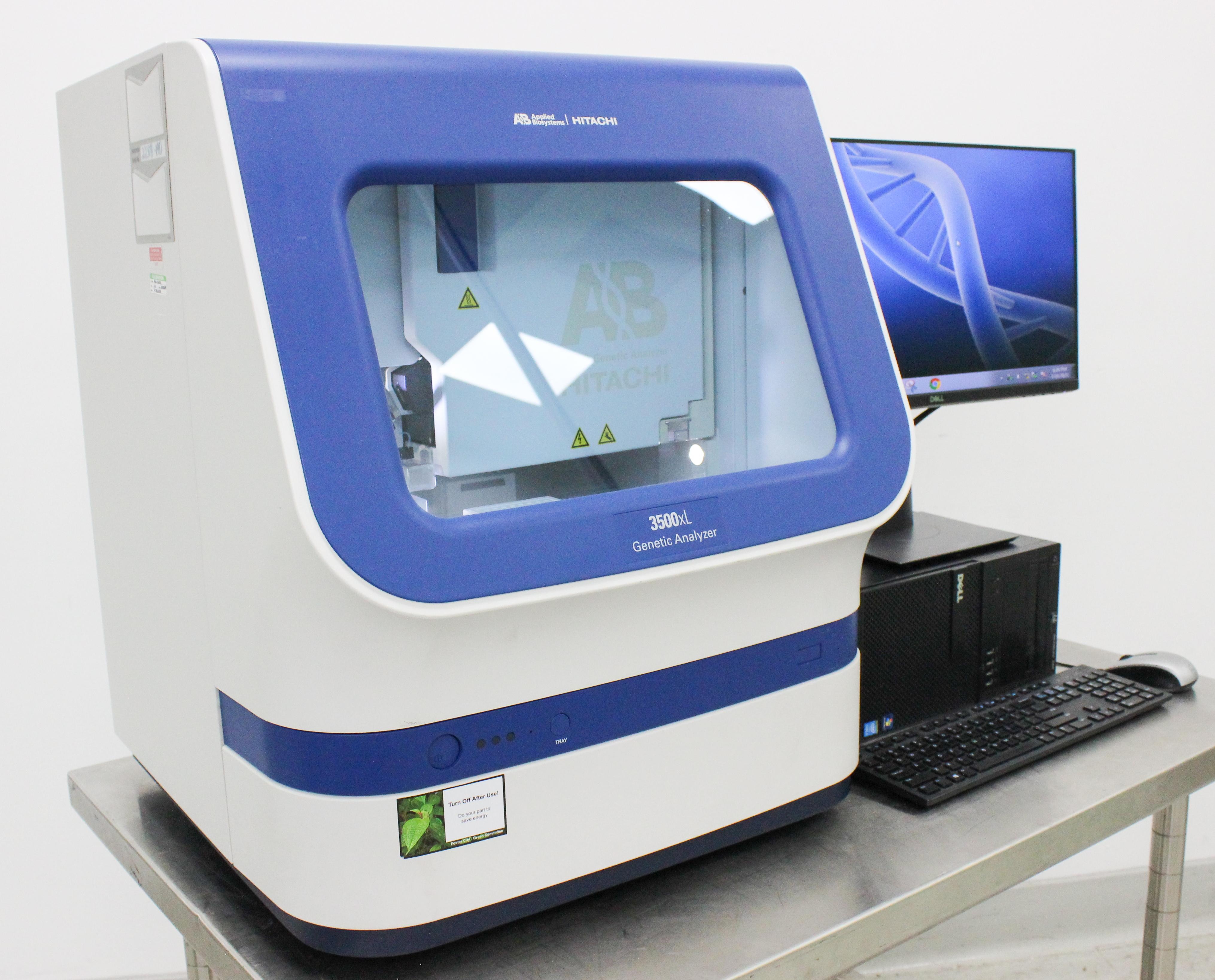

ABI 3500xL Genetic Analyzer Electrophoresis 24-Capillary With Software
Applied Biosystems
Details
-
CategoryElectrophoresis
-
Dimension24.0in x 42.0in x 29.0in
-

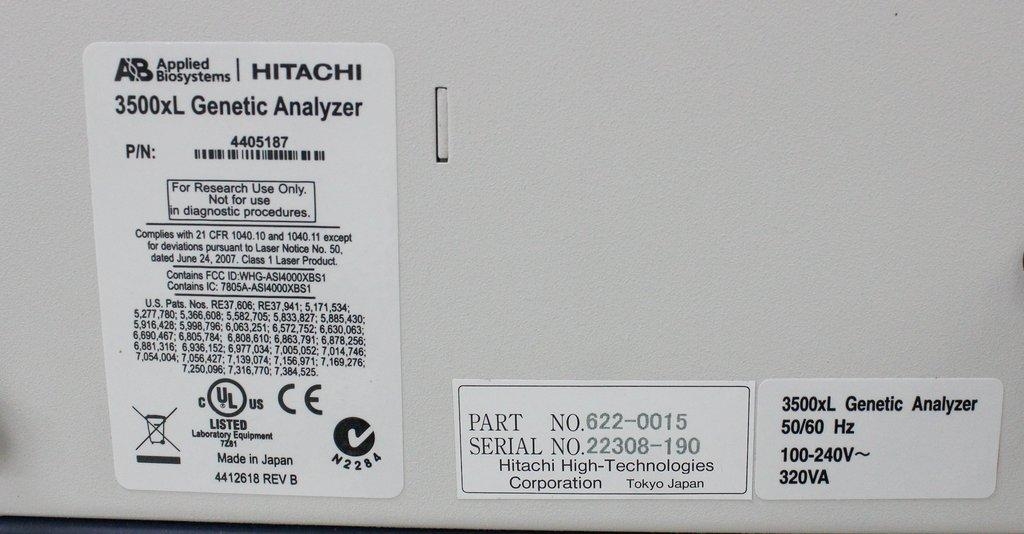

Serial22308-190
-
Shipping TypeFreight
-
ManufacturingDoes Not Apply
-
Voltage / Hertz120V/220V / 50Hz/60Hz
Description

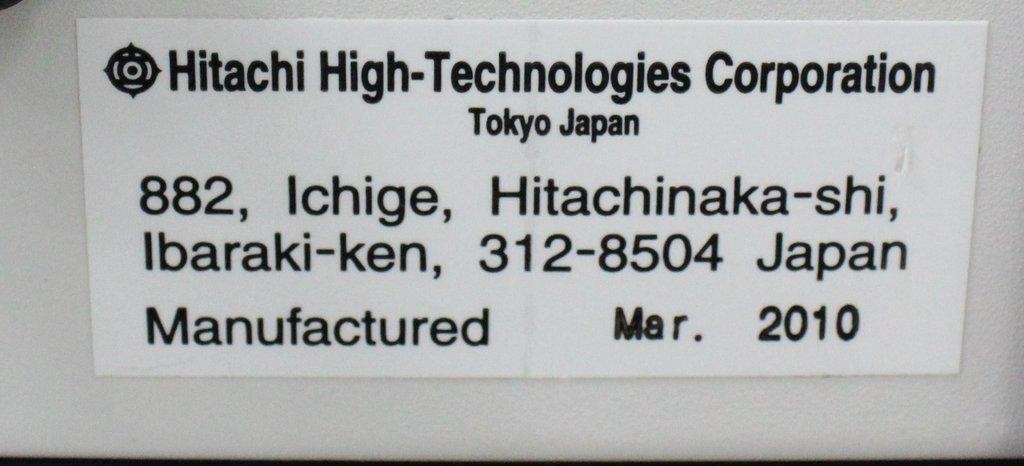

The ABI 3500xL Genetic Analyzer, model 4405187, is a versatile 24-capillary system designed for enhanced capillary electrophoresis, particularly suited for Human Identification applications. Manufactured in Japan, this instrument integrates seamlessly with ABI reagents and consumables to deliver a comprehensive HID solution. It includes a long-life solid-state laser and advanced polymer pump design to minimize waste. This pre-owned system in good cosmetic condition requires validation and calibration for accurate results. Notable features are real-time data quality assessment, streamlined maintenance via HID-specific tools, and RFID consumable tracking. Operating at 120V/220V and 50Hz/60Hz, it is optimized for faster data generation with reduced signal variation and enhanced thermal control.
Technician comment

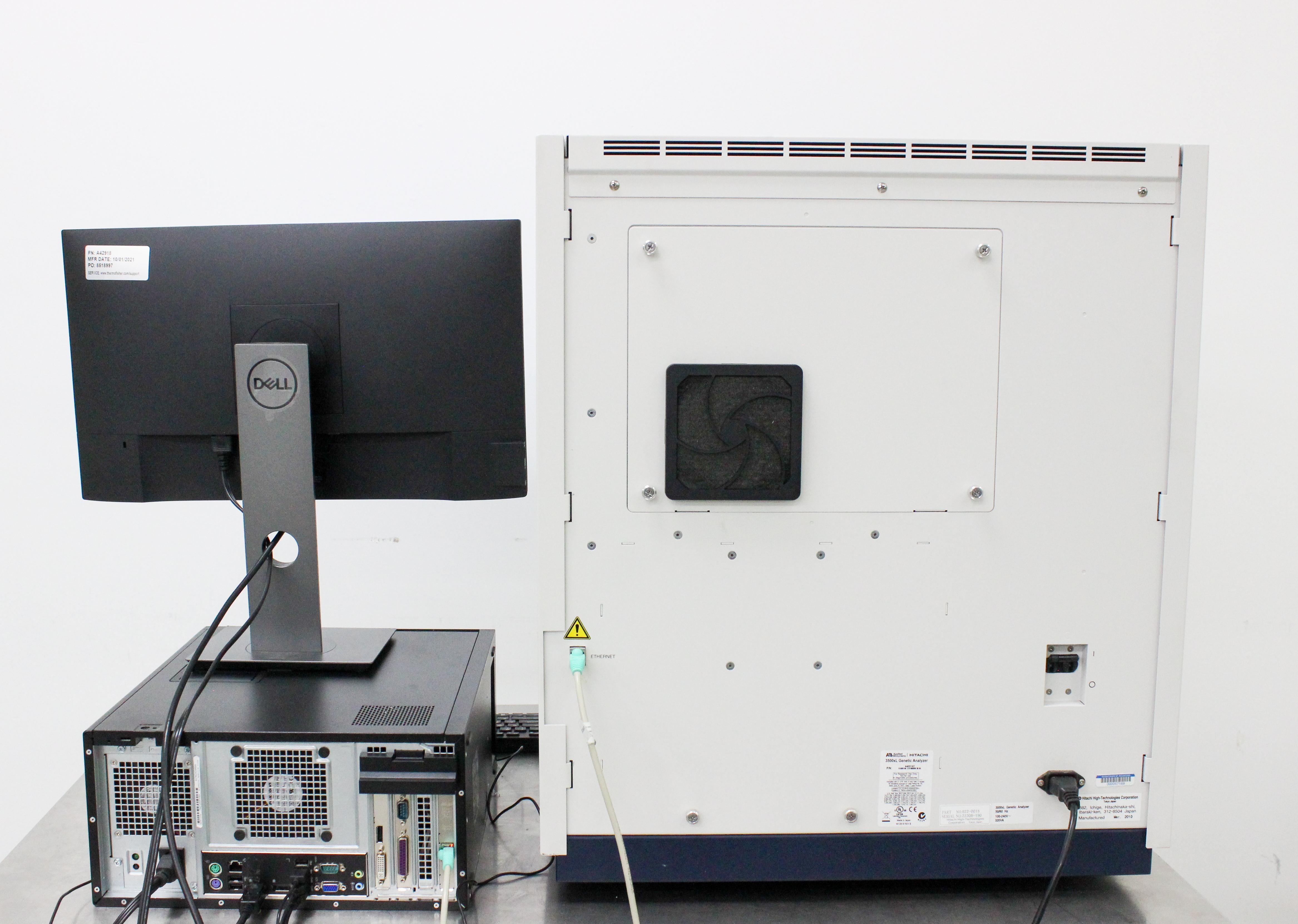

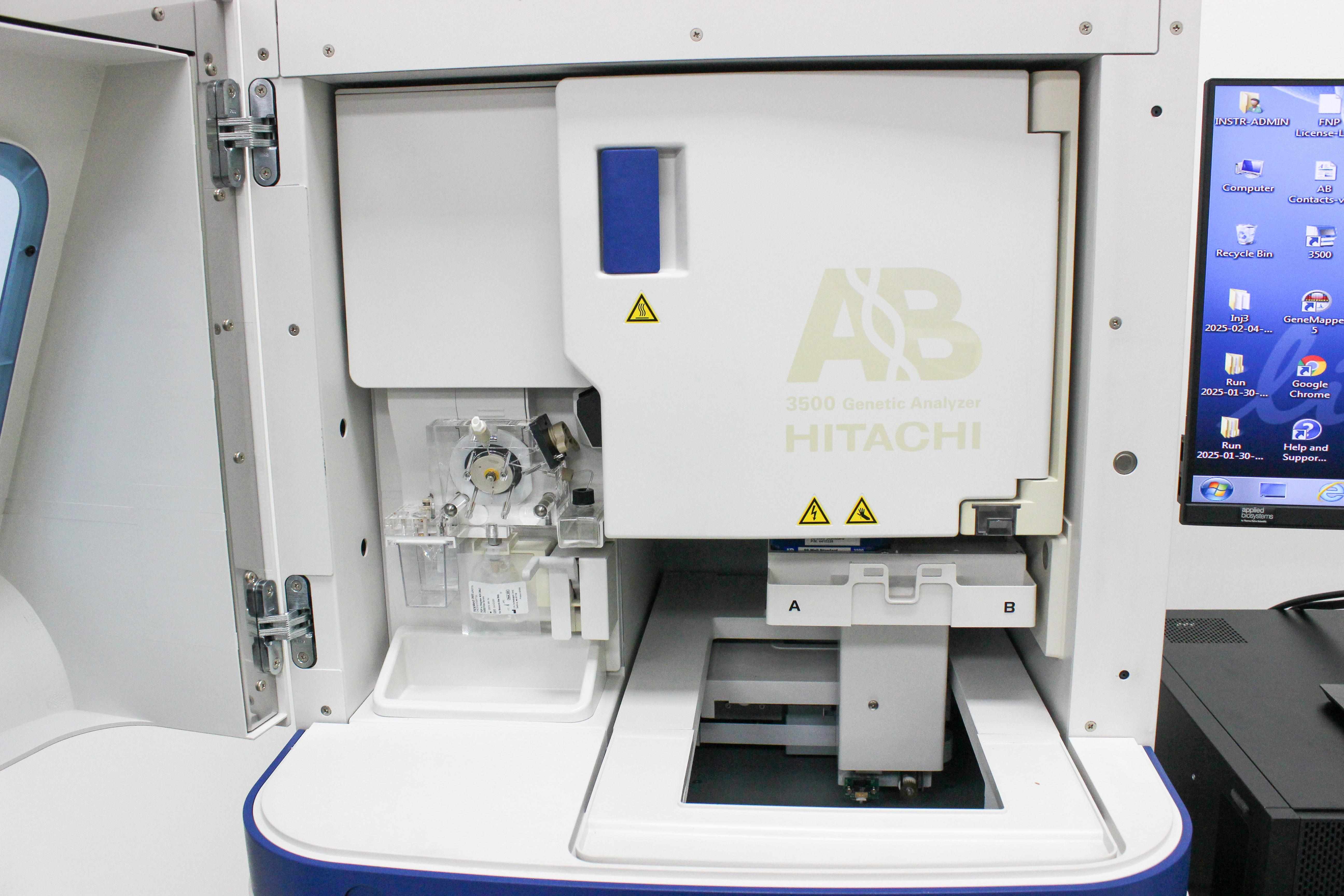

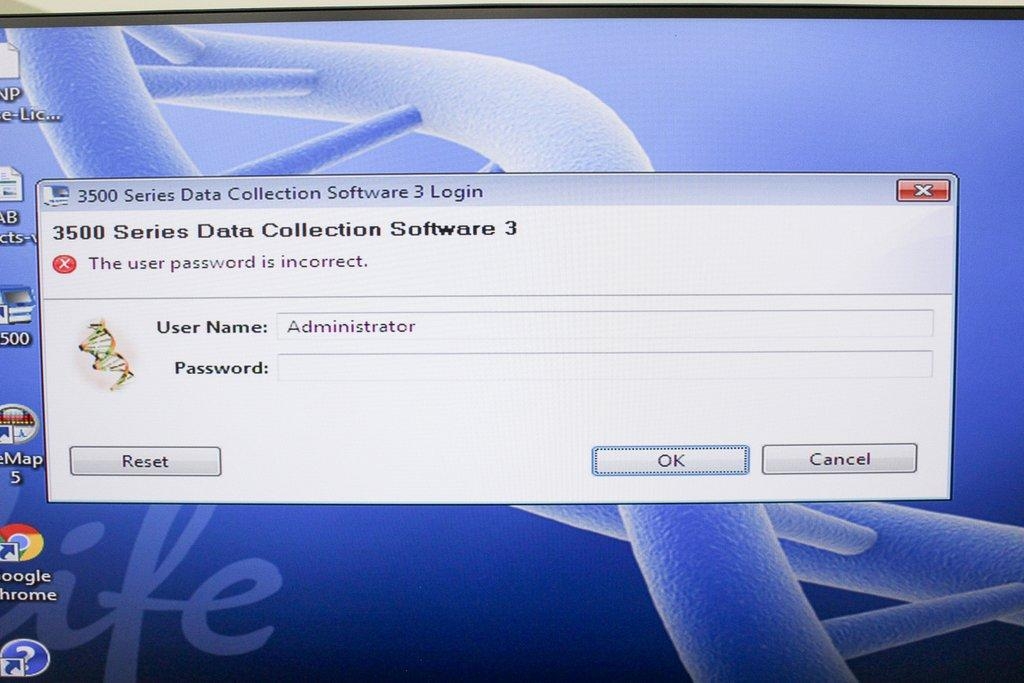

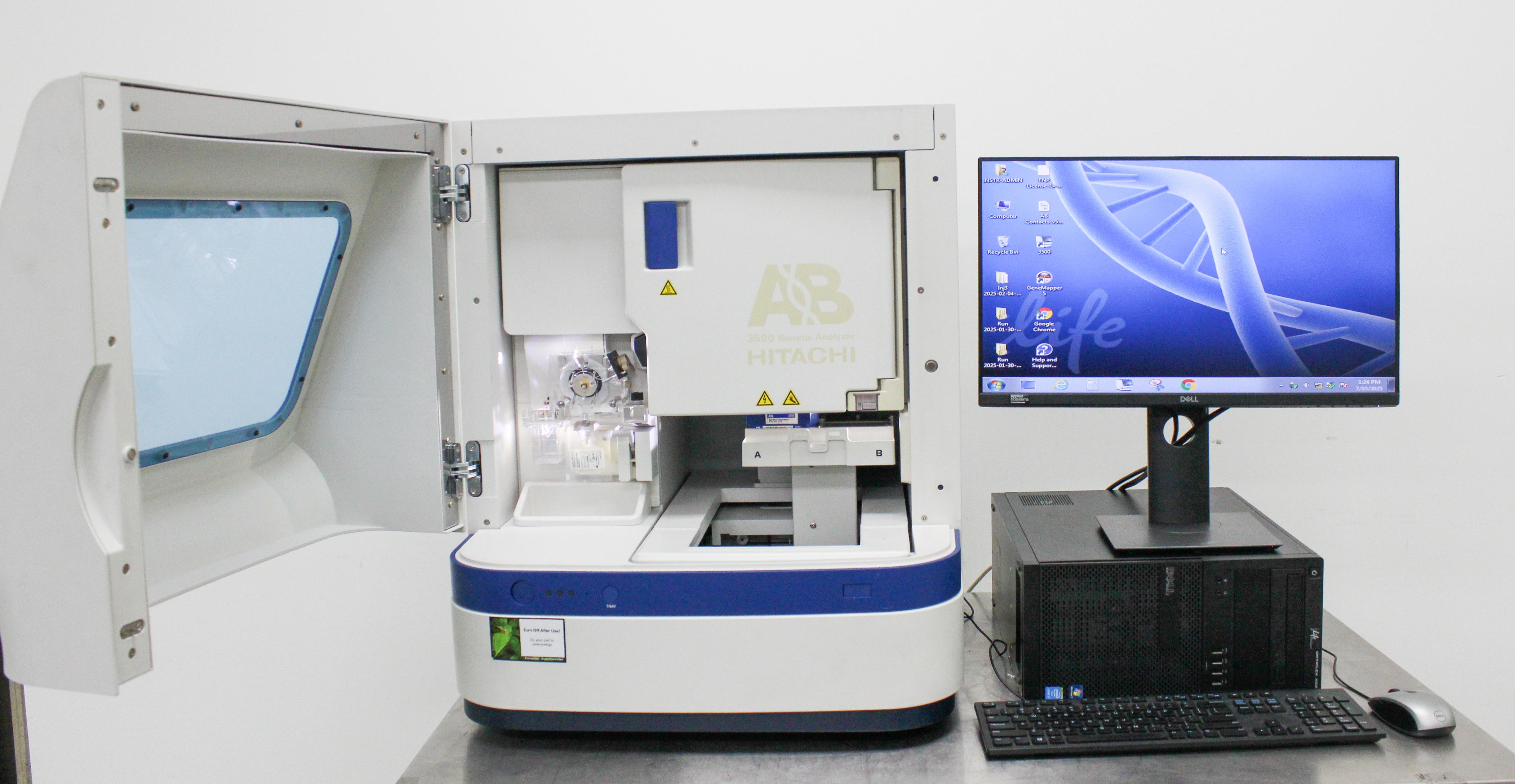

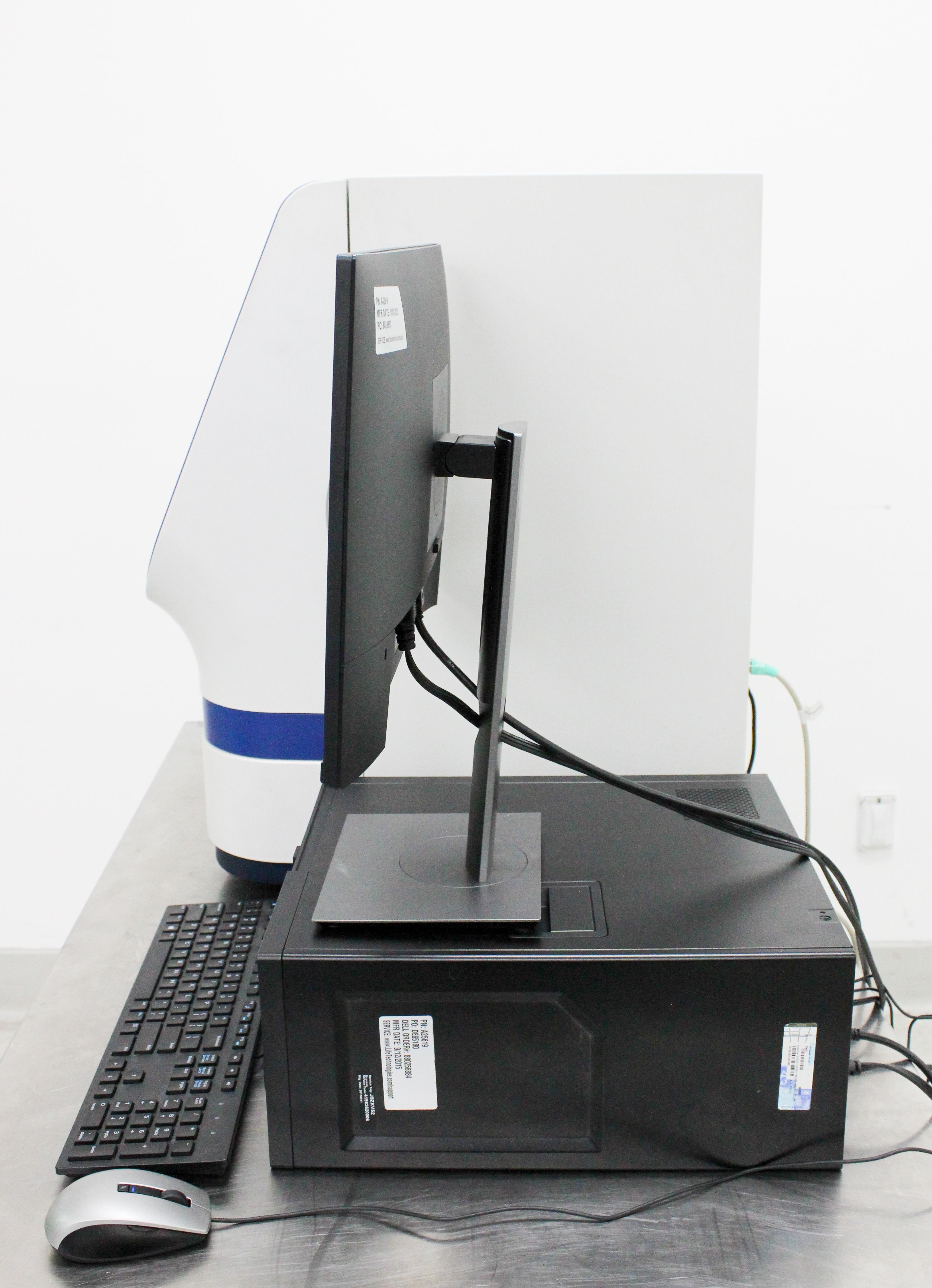

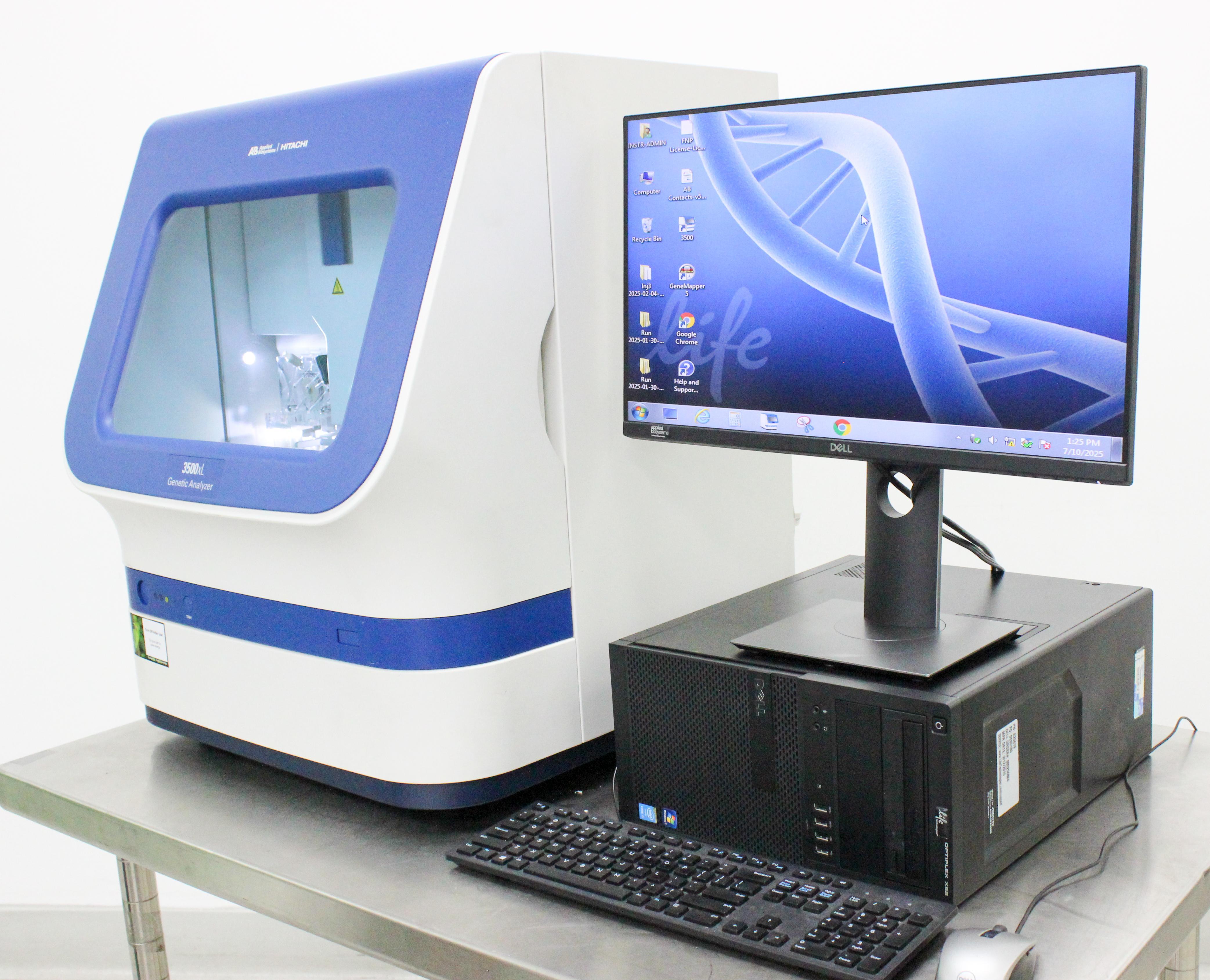

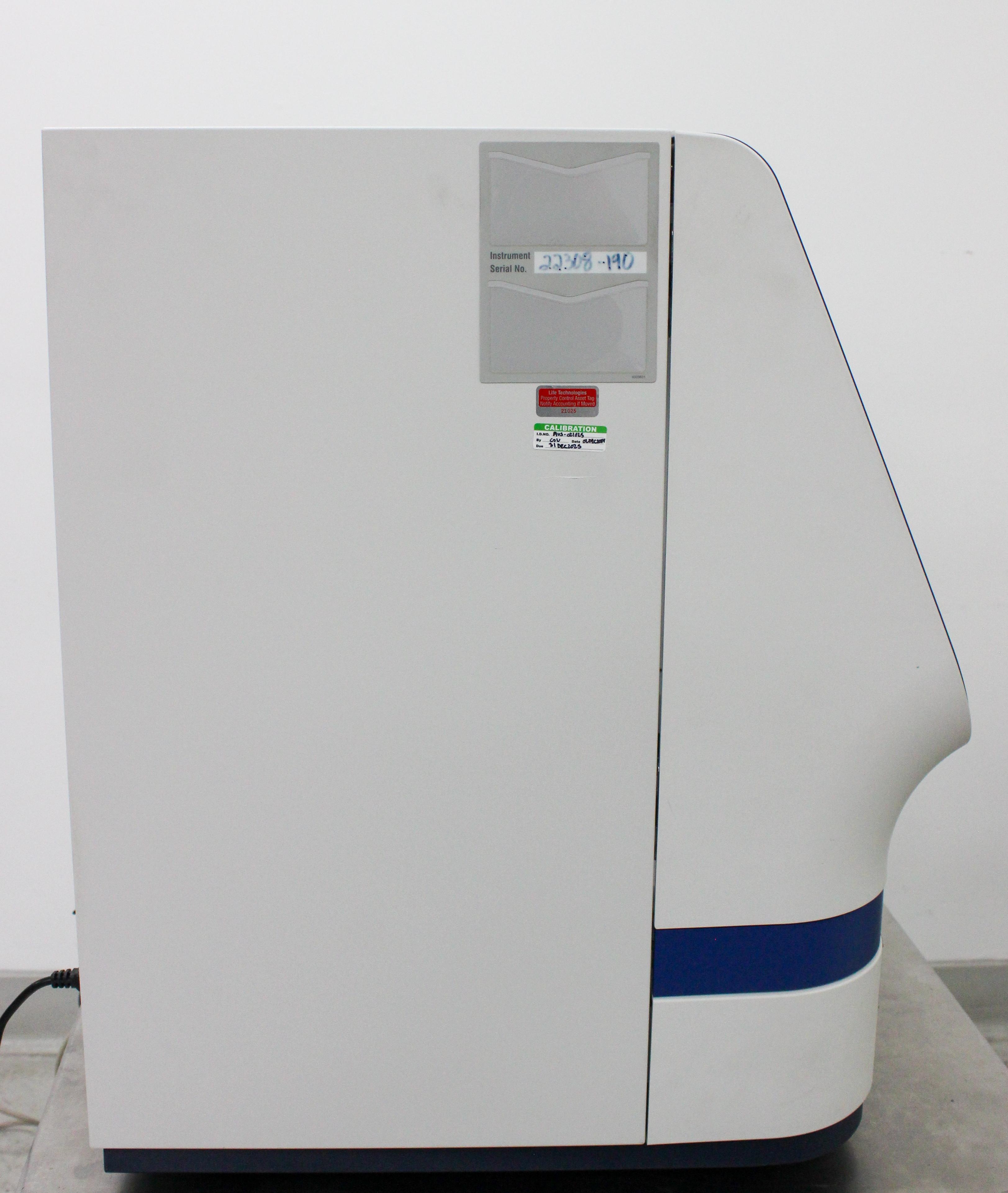

***Instrument is preowned in excellent cosmetic condition. System will need to be validated/calibrated to ensure accurate results. Need user credentials to fully test. Buyer can expect a everything pictured with 30-day warranty. See photos for details.
Key Features
- 24-capillary design for increased throughput
- Integrated with ABI reagents, consumables, and software
- Real-time data quality assessment on-instrument
- Long-life solid-state laser for excitation at 505 nm
- Improved polymer pump design for reduced waste
- RFID technology for consumable tracking
- Enhanced thermal control with smaller oven and improved seal
- Pre-configured HID workflow for ease of use
Specifications
- Software Compatibility: GeneMapper ID-X Software
- Capillary Length Options: 50 cm, 36 cm
- Max. Voltage: Up to 20 kV
- Supported Plate Formats: 96-well, 384-well, 8-tube strip
- Read Length: 420 bp with 36 cm capillary and POP-4
- Run Time: 30 to 140 min. depending on module
- Operating Environment: 15C-30C, Humidity: 20%-80% (non-condensing)
- Throughput: Up to 936 sequencing samples/day
Weight
Imperial: 216.0 Pounds
Metric: 97.98 Kilograms
Shipping Dimensions
Imperial: 28.8 lb x 50.4 lb x 34.8 lb
Metric: 73.15 cm x 128.02 cm x 88.39 cm
Harmonized Code
9027.30.20
Harmonized Code Details
9027.30.20 - Instruments and apparatus for measuring or checking quantities of heat, sound, or light. Justified by the system's capability to analyze DNA through electrophoresis, involving light detection and measurement.
