Hamilton 500uL Gastight Syringe Model 1750 RN 22 Gauge 115C Range
Hamilton
Details
-
CategoryPump
-
Dimension23.0cm x 4.0cm x 4.0cm
-
Serial1900066722
-
Shipping TypeFedEx Ground
-
ManufacturingDoes Not Apply
-
Voltage / HertzDoes Not Apply / Does Not Apply
Description

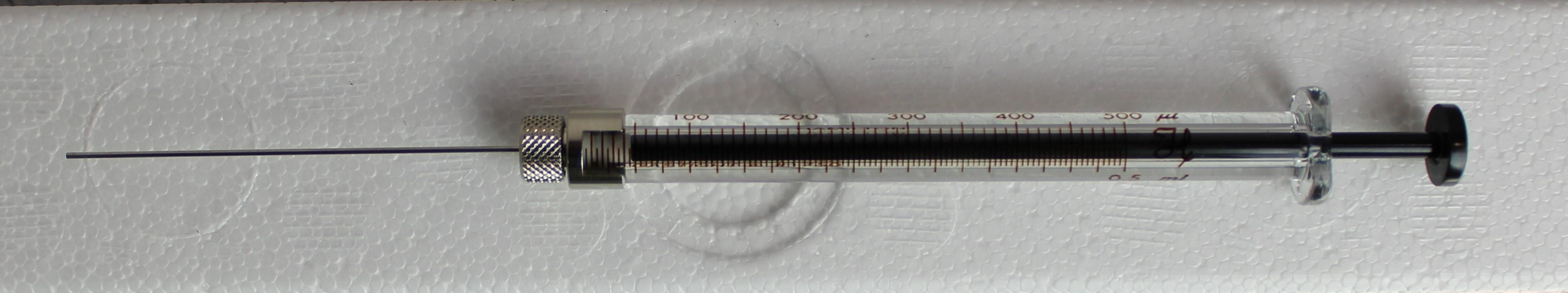

The Hamilton 500uL, 1750 RN, gastight syringe offers precision and reliability in liquid handling applications. Made in Romania, this syringe features a 22 gauge large RN removable needle, perfect for dispensing volumes up to 500µL. The fluid path combines stainless steel, borosilicate glass, and PTFE, ensuring robust performance. The syringe is both autoclavable and gas sterilizable, sustaining pressures up to 700 psig (48.3 bar). With its 2-inch (51mm) needle, this syringe maintains functional versatility across various laboratory settings involving temperature ranges from 10°C to 115°C. Its compact barrel design has an inner diameter of 0.128 inches and an outer diameter of 0.305 inches. With Hamilton's trusted design, this syringe supports precision-focused tasks essential in analytical, biochemical, and pharmaceutical environments.
Key Features
- 500µL volume capacity
- Gastight design
- 22 gauge removable needle
- Autoclavable and gas sterilizable
- Temperature range 10-115°C
- Pressure rating 700 psig
- Fluid path: stainless steel, borosilicate glass, PTFE
Specifications
- Volume: 500µL
- Syringe Type: Gastight
- Needle Gauge: 22
- Needle Length: 2 inches (51 mm)
- Pressure Rating: 700 psig (48.3 bar)
- Maximum Temperature: 115°C / 239°F
- Minimum Temperature: 10°C / 50°F
- Barrel Inner Diameter: 0.128 inches (3.26 mm)
- Barrel Outer Diameter: 0.305 inches (7.75 mm)
- Needle Inner Diameter: 0.0161 inches (0.41 mm)
- Needle Outer Diameter: 0.0283 inches (0.72 mm)
- Standard Needle Dead Volume: 6.81µL
Weight
Imperial: 2.65 Pounds
Metric: 1.2 Kilograms
Shipping Dimensions
Imperial: 10.87 lb x 1.89 lb x 1.89 lb
Metric: 27.61 cm x 4.8 cm x 4.8 cm
Harmonized Code
9018.39.00
Harmonized Code Details
The harmonized code 9018.39.00 falls under medical, surgical, dental or veterinary instruments and appliances. This code is appropriate for the Hamilton Syringe as it is a precision liquid handling instrument used in laboratory and clinical settings.
