Hamilton 500uL 1750 RN Gastight Syringe 22 Gauge for Precise Dispensations
Hamilton
Details
-
CategoryLiquid Handling
-
Dimension23.0cm x 4.0cm x 4.0cm
-
Serial1900066722
-
Shipping TypeFedEx Ground
-
ManufacturingDoes Not Apply
-
Voltage / HertzDoes Not Apply / Does Not Apply
Description

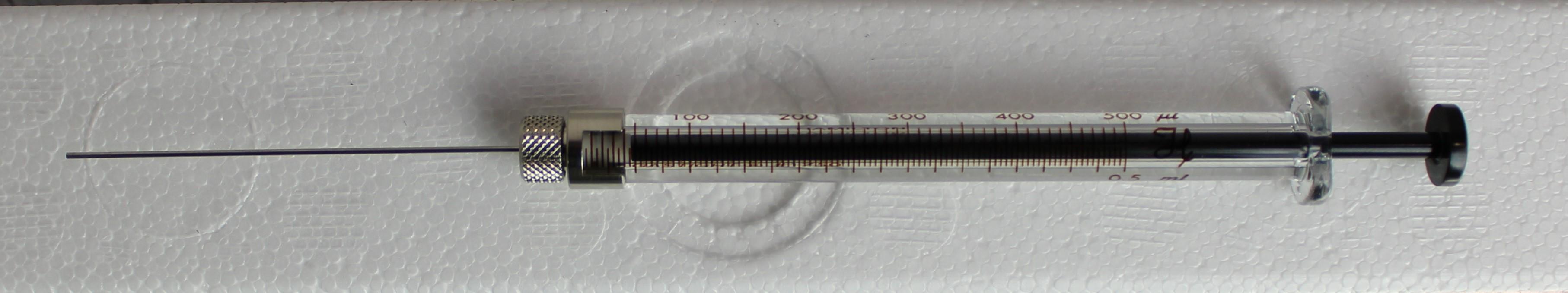

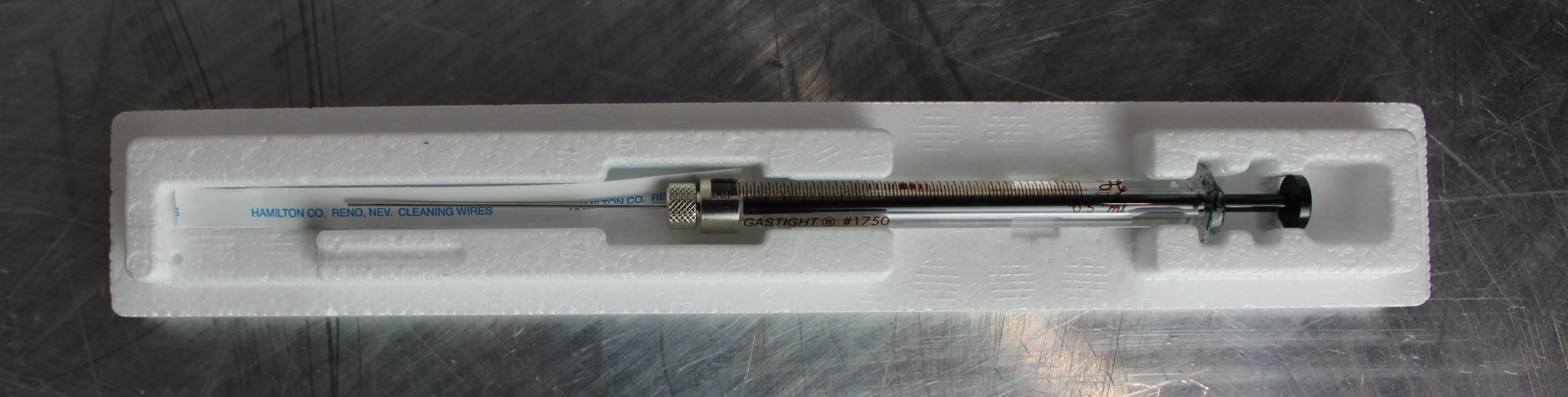

The Hamilton 500uL 1750 RN Gastight Syringe is a precision instrument made in Romania, designed for accurate dispensation of liquid volumes from 1 µL to 500 µL. Part of the 1700 series, this syringe is comparable to the gastight version of the Hamilton 700 series, offering flexibility and versatility through a range of needle and termination options. It features a removable needle (RN) with a 22-gauge size and a large RN needle style, providing reliable performance for laboratory applications. The syringe has a pressure tolerance of up to 700 psig and operates between 10°C and 115°C, making it suitable for various laboratory environments. Crafted with a fluid path composed of stainless steel (SST), borosilicate glass, and PTFE, it is both autoclavable and gas sterilizable, ensuring ease of maintenance and reuse.
Key Features
- 500uL capacity
- Gastight design
- 22 gauge needle
- 1700 series
- Removable needle (RN)
Specifications
- Volume: 500µL
- Syringe Type: Gastight
- Syringe Series: 1700
- Termination: Removable Needle (RN)
- Needle Type: Large RN, 22 gauge, 2-inch length
- Fluid Path: SST, Borosilicate glass, PTFE
- Autoclavable: Yes
- Gas Sterilizable: Yes
- Pressure: 700 psig (48.3 bar)
- Temperature Range: 10°C to 115°C
- Barrel Inner Diameter: 0.128 inches (3.26 mm)
- Barrel Outer Diameter: 0.305 inches (7.75 mm)
Weight
Imperial: 2.65 Pounds
Metric: 1.2 Kilograms
Shipping Dimensions
Imperial: 10.87 lb x 1.89 lb x 1.89 lb
Metric: 27.61 cm x 4.8 cm x 4.8 cm
Harmonized Code
90183100
Harmonized Code Details
Harmonized code 90183100 pertains to syringes, used for medical, surgical, dental or veterinary purposes. This code is appropriate given the Hamilton Syringe's use in precise liquid handling applications common in laboratory settings.
