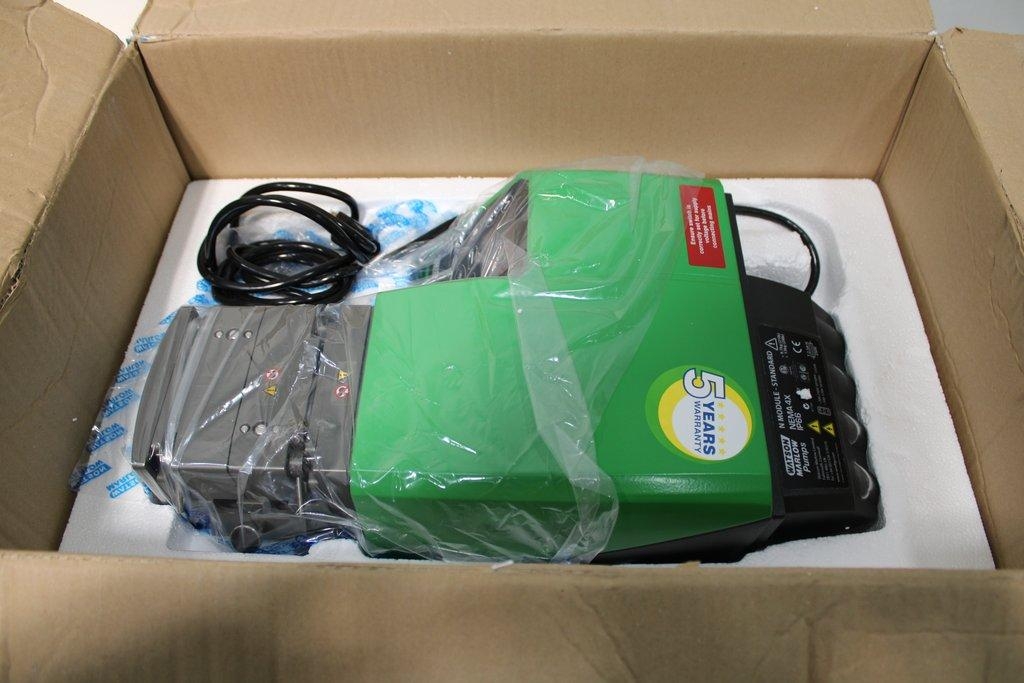

Watson Marlow 530U Peristaltic Pump NEMA 4X IP66 High Flow Rates
Watson Marlow
Details
-
CategoryPump
-
Dimension20.0in x 11.0in x 7.0in
-
Serial2303273065152 bar code 3379790
-
Shipping TypeFedEx Ground
-
ManufacturingDoes Not Apply
-
Voltage / Hertz120V / 50Hz/60Hz
Description
The Watson Marlow 530U model provides exceptional precision in peristaltic pumping, featuring user-friendly HMI that minimizes operational key presses. This ensures complete isolation of fluids, maintaining product integrity via contained tubing. It's suitable for diverse conditions, equipped with multiple pumphead options for varied pressure needs: 520R, 520R2 for continuous tubing; 520REL, 520REM, 520REH, 520RET and 505L for dispensing accuracy. Operational versatility is supported by a 2,200:1 speed control range from 0.1 to 220 rpm with analog/digital, RS232, RS485, PROFIBUS, PROFINET, SCADA, and EtherNet/IP options. Built to IP66/NEMA 4X standards, this dual voltage pump offers flow rates from 0.0006 GPH to 55.48 GPH, making it suitable for demanding environments. Designed to function efficiently between temperatures of 5-40°C, it adheres to CE and RoHS standards for quality assurance.
Key Features
- User-friendly HMI with minimal key presses
- Fluid isolation within tubing
- Multiple pumphead options for various pressures
- Flow rates from 0.0006 GPH to 55.48 GPH
- 2,200:1 speed control range
- Analog/Digital, RS232, RS485, PROFIBUS, PROFINET, SCADA, EtherNet/IP control
- Dual voltage, 115/230 V 50/60 Hz
- Built to IP66/NEMA 4X standards
Specifications
- 530 Drive with 520R Pumphead
- Pumphead number of rollers: 2
- Number of channels: 1
- Max. flow rate: 56 US GPH
- Min. flow rate: 0.0006 US GPH
- Drive speed: 0.1 - 220 rpm
- Operating temp range: 5-40°C (40-104°F)
- Humidity: 80% up to 31°C; reducing to 50% at 40°C
- Noise: <70 dBA at 1m
- Max. altitude: 2000m
- Drive ingress protection: IP31, IP66, NEMA 2, NEMA 4X
- Power supply: 115/230 V 1ph 50/60 Hz 135 VA
- Compatible tubing bore sizes: 0.5 - 9.6 mm
Weight
Imperial: 34.8 Pounds
Metric: 15.79 Kilograms
Shipping Dimensions
Imperial: 24.0 lb x 13.2 lb x 8.4 lb
Metric: 60.96 cm x 33.53 cm x 21.34 cm
Harmonized Code
841350
Harmonized Code Details
841350: Liquid elevators, other. The code covers machinery for pouring fluids in various settings, suitable due to the pump's application in fluid transfer.
