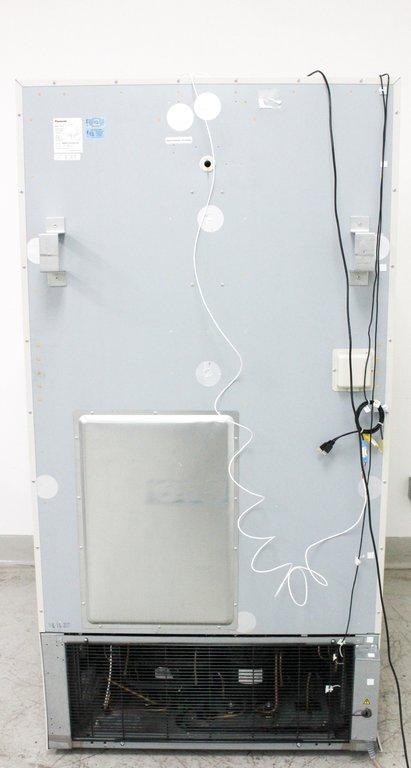

Panasonic MDF-U76VA-PA Ultra Low Freezer -86C 25.7 cu ft Capacity
Panasonic
Details
-
CategoryCold Storage
-
Dimension38.0in x 40.0in x 79.0in
-

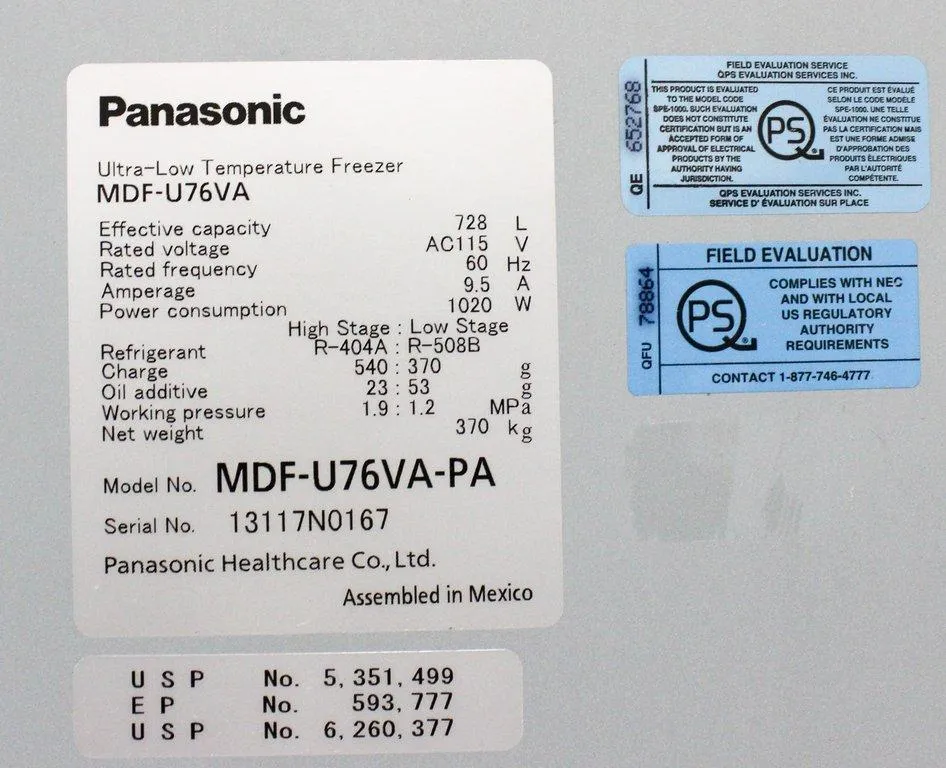

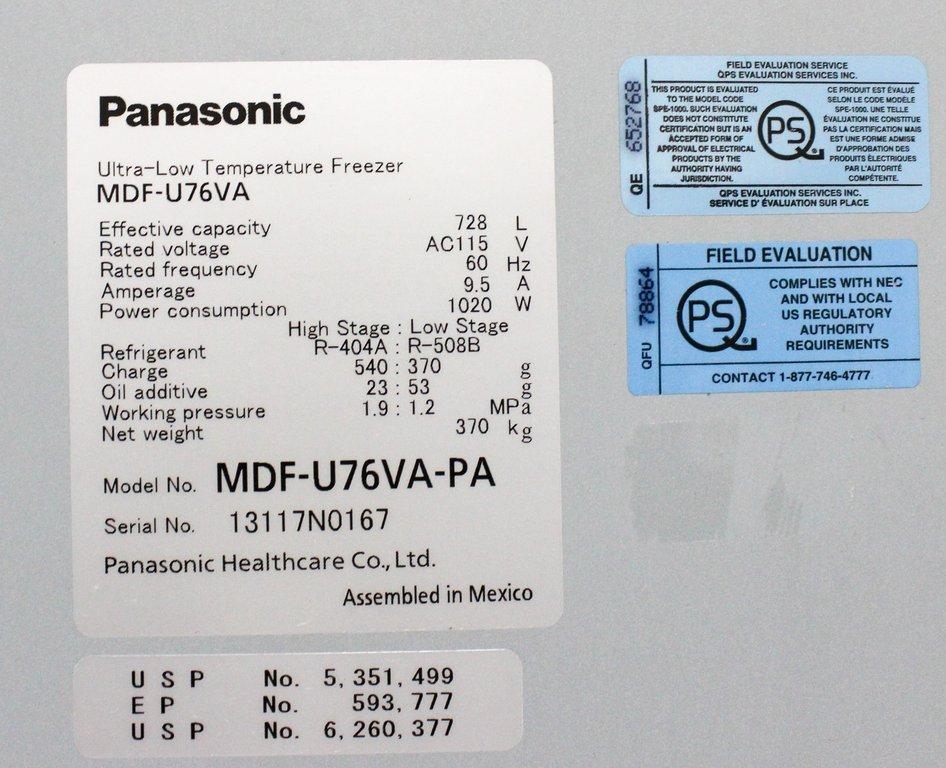

Serial13117N0167
-
Shipping TypeFreight
-
ManufacturingDoes Not Apply
-
Voltage / Hertz120V / 60Hz US
Description

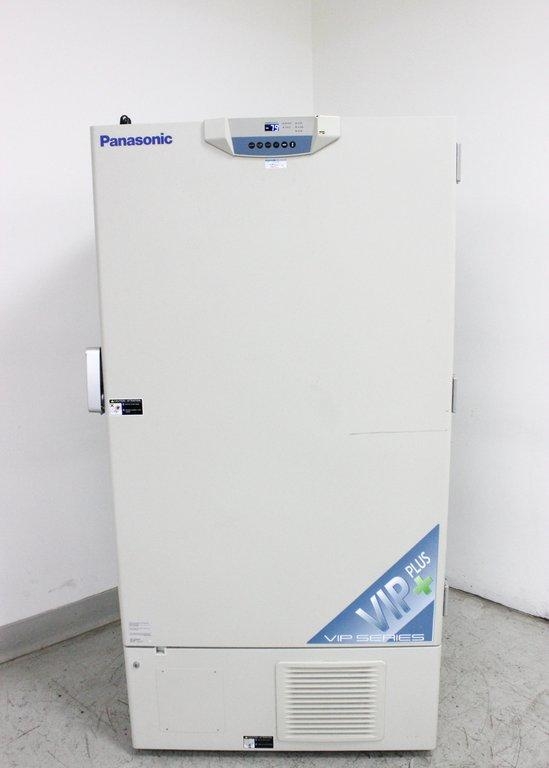

The Panasonic VIP Plus Series MDF-U76VA-PA is a high-performance ultra-low temperature freezer, designed for laboratories and hospitals. With a capacity of 25.7 cu ft, it ensures optimal preservation of biological samples and materials testing at temperatures as low as -86C. Its advanced refrigeration system includes unique Panasonic compressors and high-density vacuum insulation panels. Despite side panel warping and cosmetic display damage, this freezer offers significant energy savings, secure storage via integrated alarms, and easy temperature management. It features a universal keyed door lock, removable insulated inner doors, and eco-friendly HFC refrigerants for sustainable operation. Front access to washable condenser filters facilitates routine maintenance. This item is classified as scrap and best suited for parts or recycling.
Technician comment

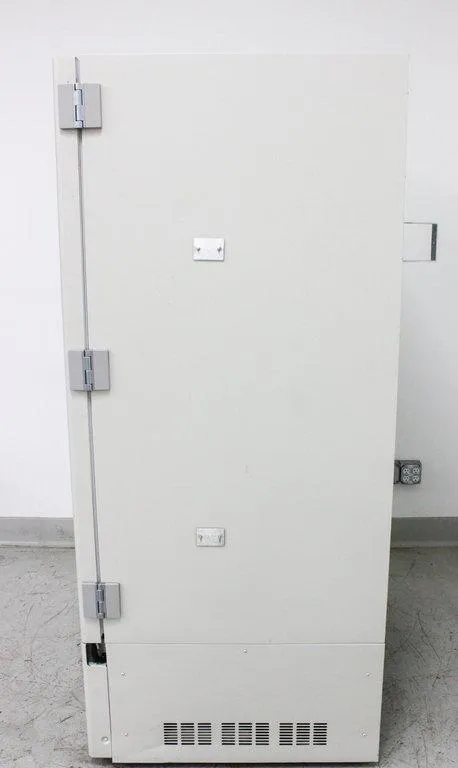

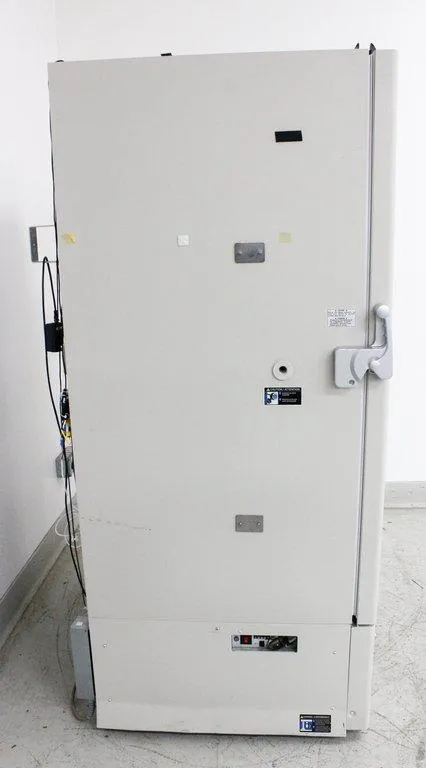

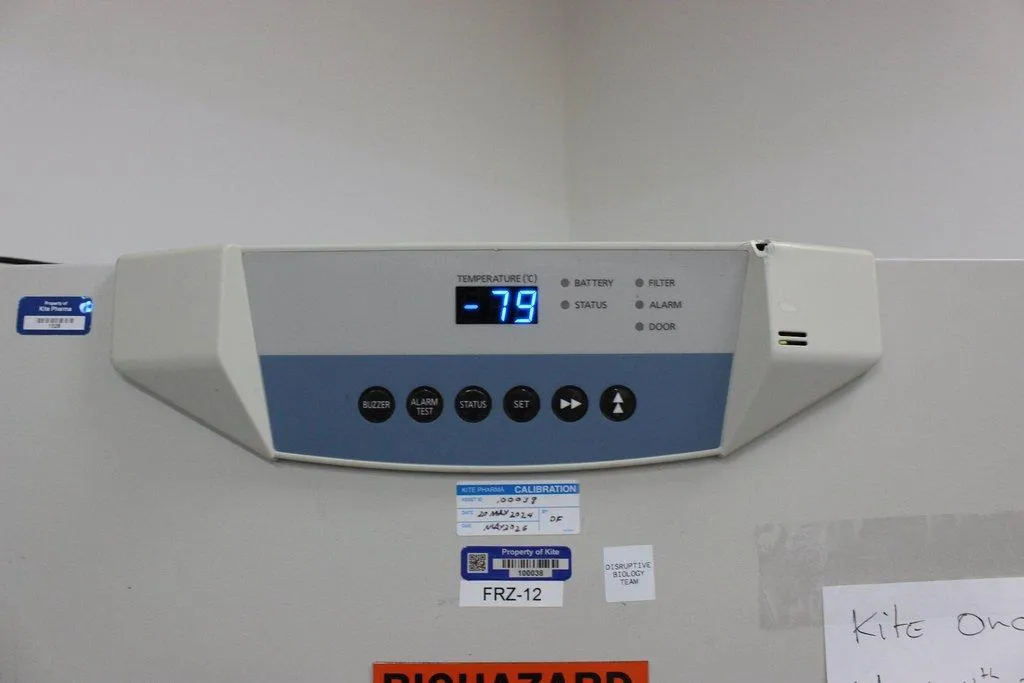

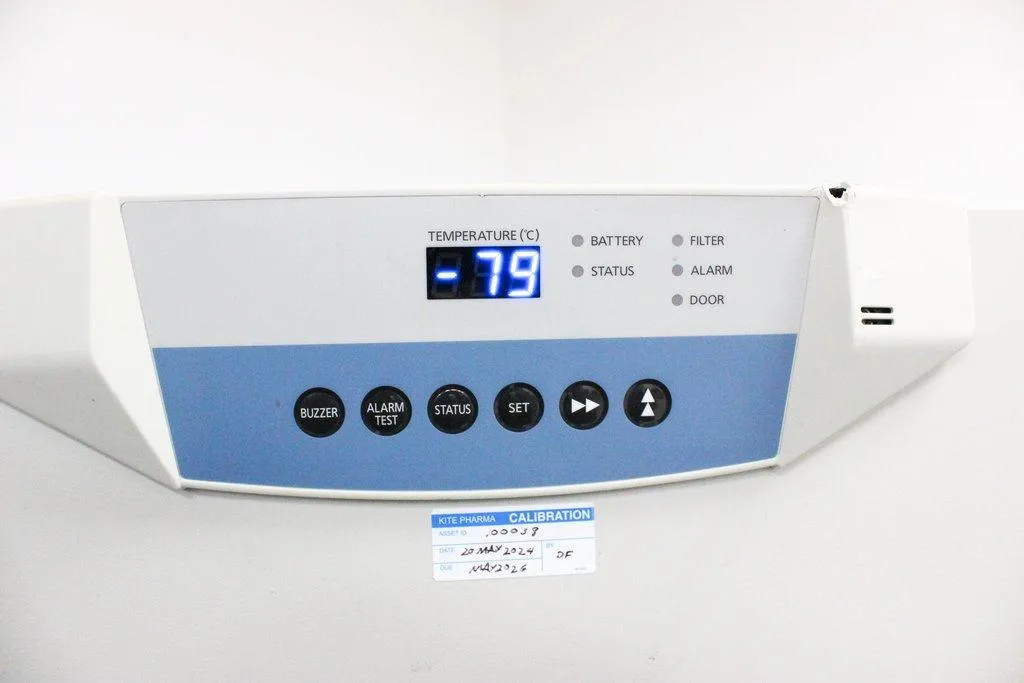

Side panels slightly warped. minor cosmetic damage on temp display. See photos for details.
Key Features
- Ultra-low temperature range: -50C to -86C
- Interior volume: 25.7 cu ft
- Panasonic VIP plus refrigeration
- High-density vacuum insulation
- Energy-efficient HFC refrigerants
- Integrated alarm and monitoring
- Universal keyed door lock
Specifications
- Temperature Range: -50C to -86C (in 1C increments)
- Interior Dimensions: 870 x 600 x 1400 mm
- Alarm: Integrated with standard features
- Voltage: 120V, Frequency: 60Hz

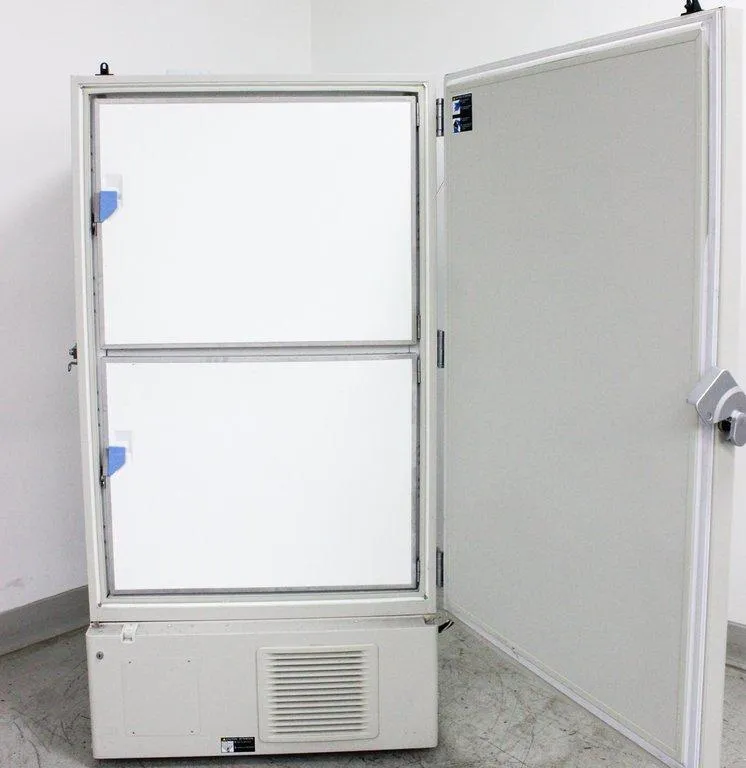

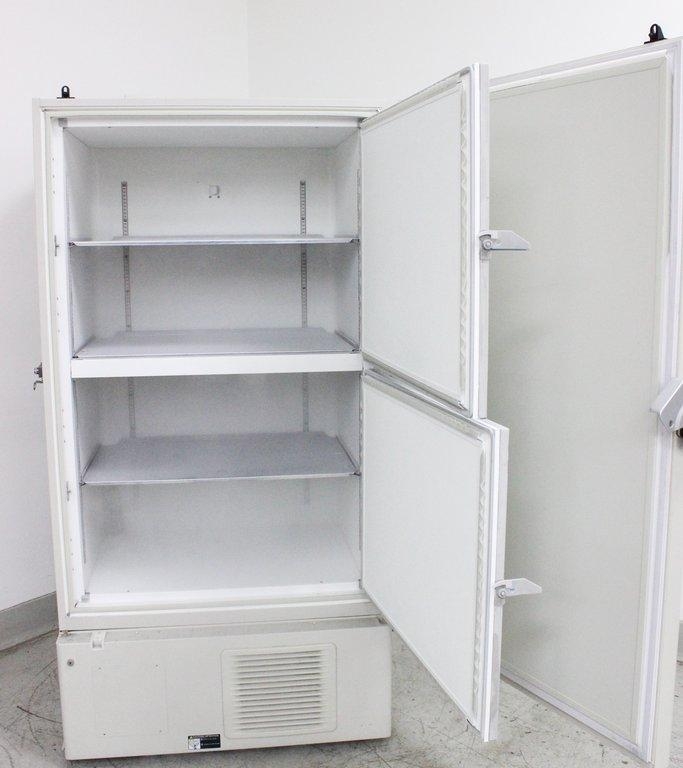

- Exterior Doors: 1, Interior Doors: 2
- Storage: 576 standard 2ml vial boxes or 384 standard 4ml vial boxes
- Designed for secure biological preservation and materials testing.
Weight
Imperial: 978.0 Pounds
Metric: 443.61 Kilograms
Shipping Dimensions
Imperial: 45.6 lb x 48.0 lb x 94.8 lb
Metric: 115.82 cm x 121.92 cm x 240.79 cm
Harmonized Code
8418302000
Harmonized Code Details
8418302000 - Freezers of the upright type, not exceeding 900L capacity. The harmonized code is likely chosen based on the classification of the equipment as an ultra-low temperature upright freezer designed for laboratory use.
