Lee 225LD Process/Scale-Up Jacketed Kettle 225L -20 to 332 Deg F Stainless
Lee Industries
Details
-
CategoryProcess / Scale-Up
-
Dimension35.0in x 35.0in x 53.0in
-
SerialDoes Not Apply
-
Shipping TypeFreight
-
ManufacturingDoes Not Apply
-
Voltage / HertzDoes Not Apply / Does Not Apply
Description

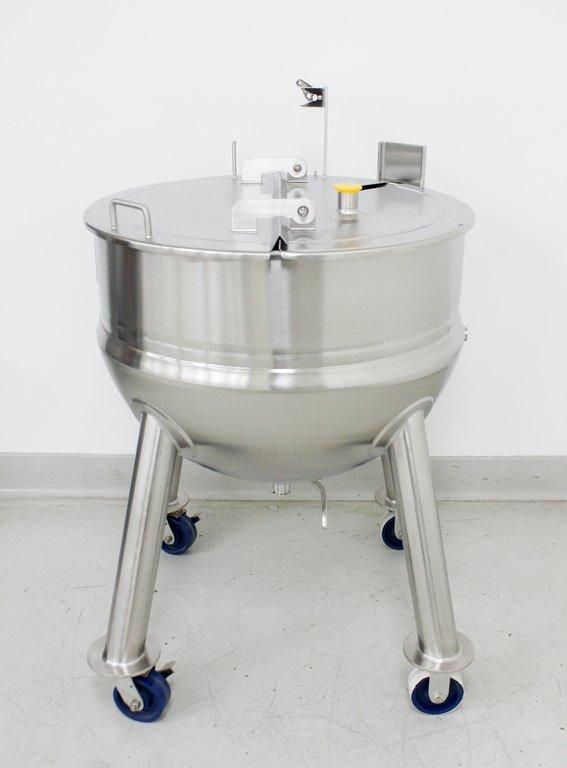

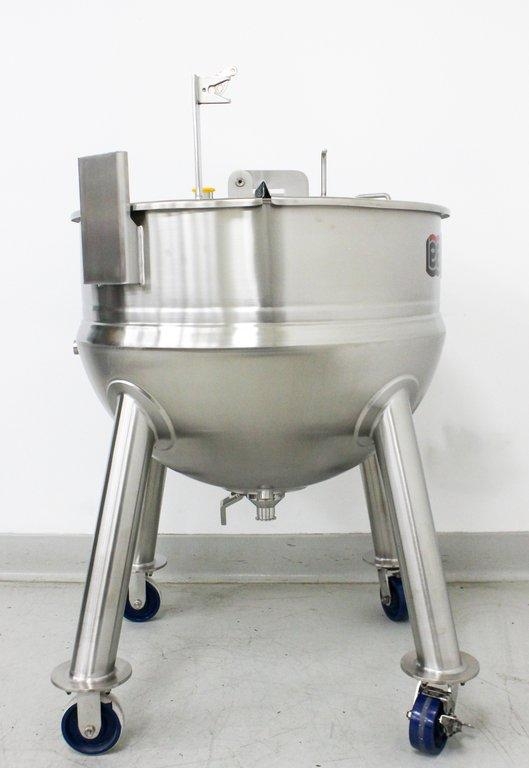

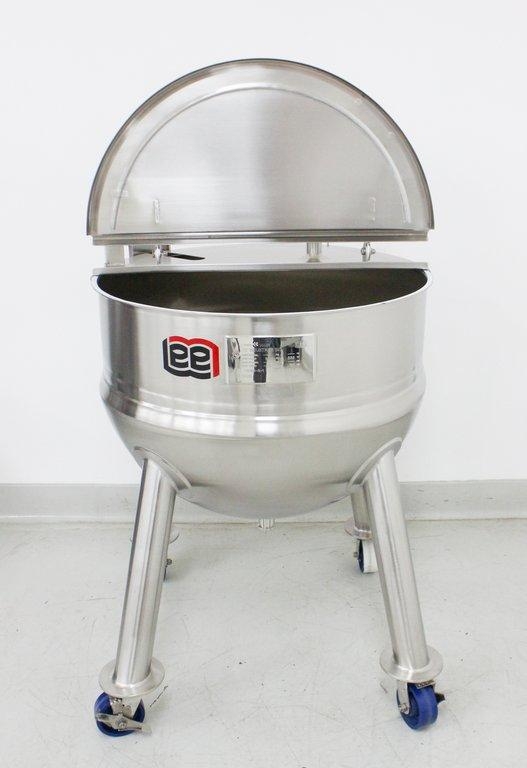

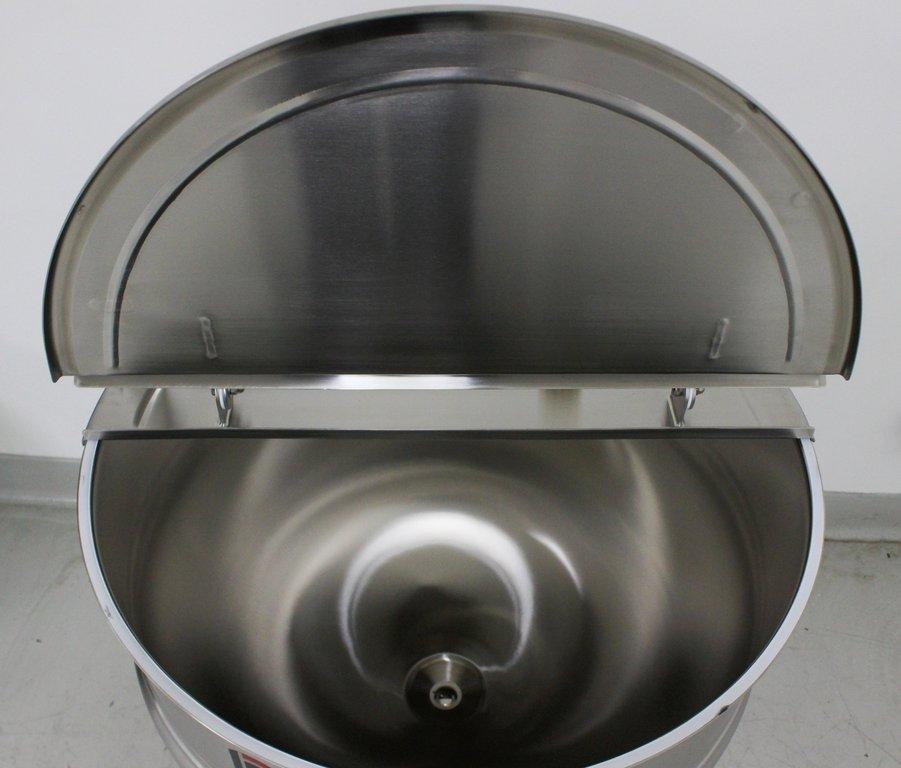

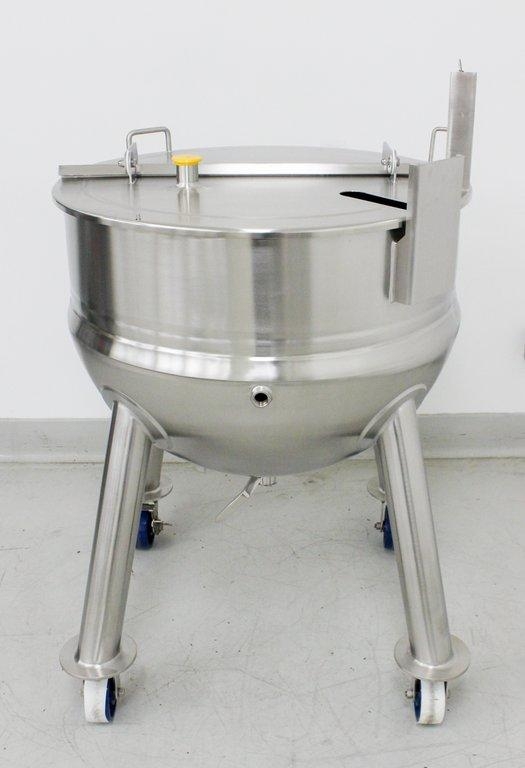

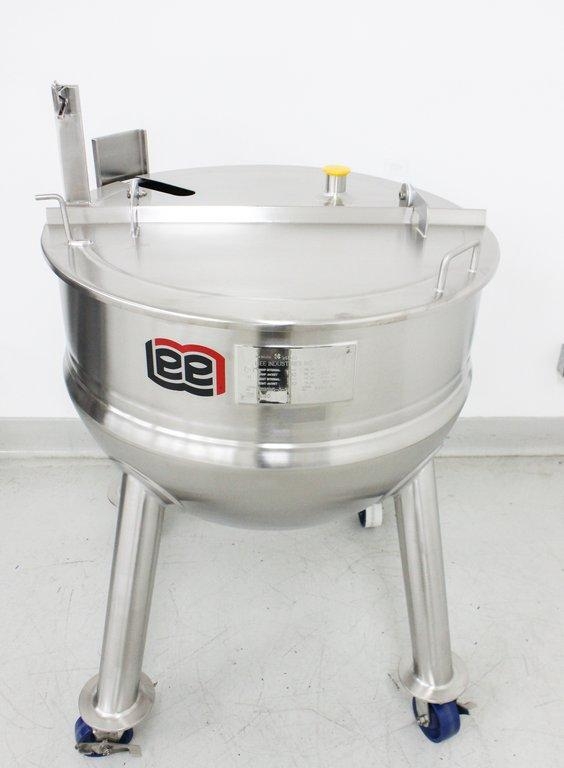

The Lee Industries 225 LD Kettle with a capacity of 225 liters is crafted from 316 stainless steel and features a jacketed design, optimal for both heating and cooling applications. Designed to ASME specifications, it boasts a unique hemispherical bottom for effective mixing. The vessel dimensions are 32 inches in diameter, 24 inches deep with a 10-inch straight wall, and it includes a flip-up cover and a 1½-inch tri-clamp center bottom discharge with a ball valve, providing a 15-inch ground clearance. For versatile facility integration, it is mounted on a tubular leg frame with locking casters. With a Maximum Allowable Working Pressure (MAWP) of 90 PSI at 332°F and a Minimum Design Metal Temperature (MDMT) of -20°F at 90 PSI, this kettle is ideal for various process and scale-up applications. All contact parts are engineered in stainless steel with a high-polished sanitary finish.
Key Features
- 225 liter capacity
- 316 stainless steel construction
- Jacketed for heating and cooling
- Hemispherical bottom for optimal mixing
- MAWP of 90 PSI at 332°F, MDMT of -20°F at 90 PSI
- Mounted on tubular leg frame with locking casters
Specifications
- Capacity: 225 liters
- Material: 316 Stainless Steel
- Jacketed: Yes
- Vessel Dimensions: 32" diameter x 24" deep, 10" straight wall
- Discharge: 1½" tri-clamp center bottom with ball valve
- Ground Clearance: 15 inches
- MAWP: 90 PSI at 332°F
- MDMT: -20°F at 90 PSI
- Finish: High-polished sanitary
Weight
Imperial: 360.0 Pounds
Metric: 163.29 Kilograms
Shipping Dimensions
Imperial: 42.0 lb x 42.0 lb x 63.6 lb
Metric: 106.68 cm x 106.68 cm x 161.54 cm
Harmonized Code
841989
Harmonized Code Details
841989 - Machinery, plant or laboratory equipment for the treatment of materials involving a change of temperature such as heating, cooking, etc., n.e.s. This code applies as the kettle is designed for both heating and cooling applications.
