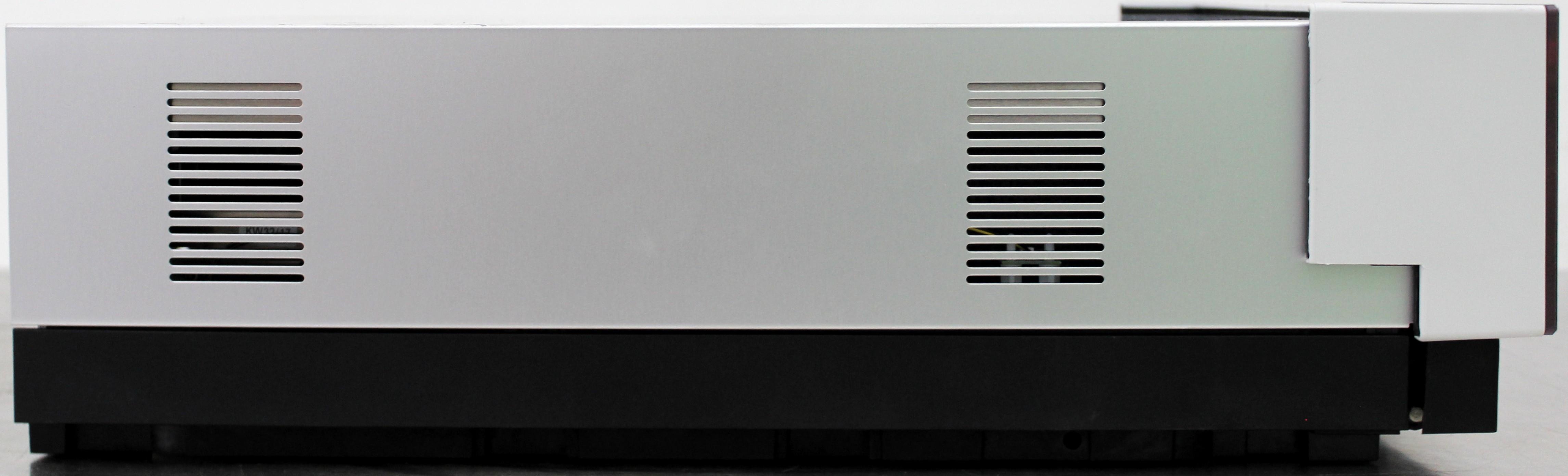

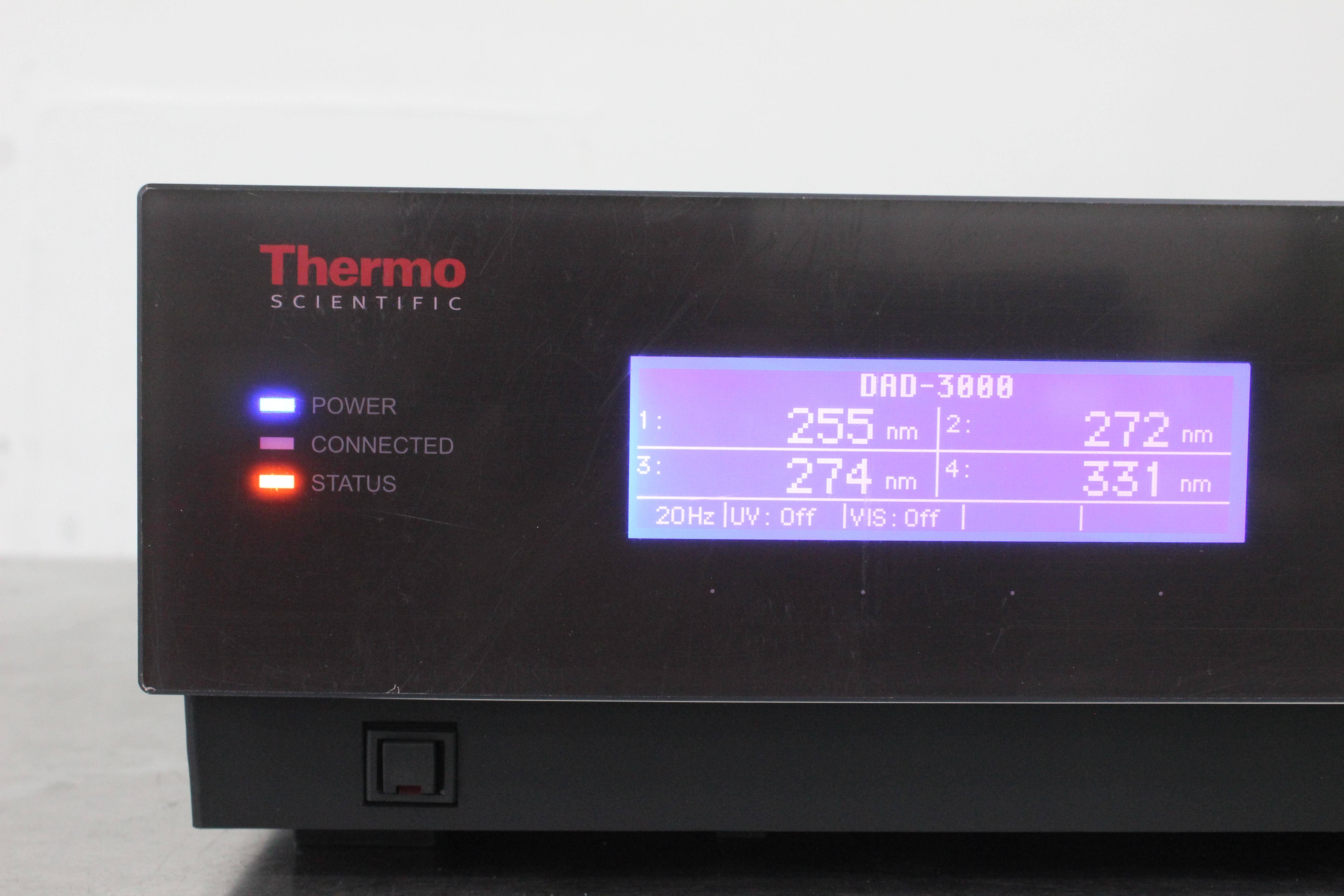

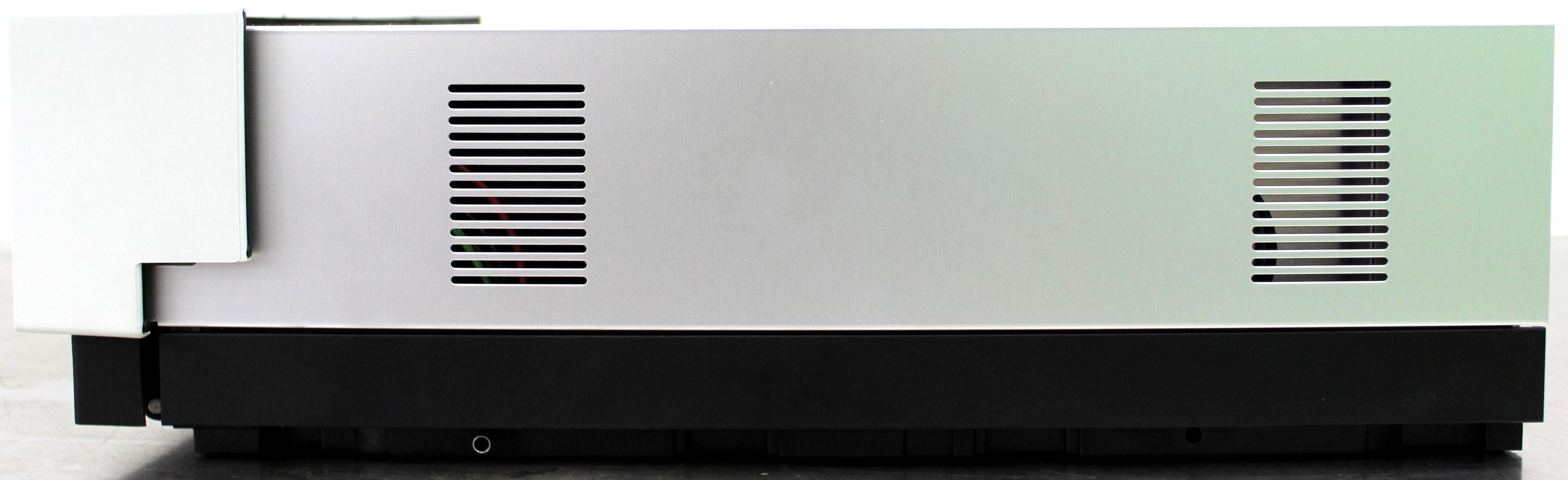

Thermo UltiMate 3000 Diode Array Detector HPLC/UHPLC 200Hz Data Capture
Thermo Scientific
Details
-
CategoryHPLC / FPLC / GC / CE
-
Dimension20.0in x 16.0in x 6.0in
-
Serial8137599
-
Shipping TypeFedEx Ground
-
ManufacturingDoes Not Apply
-
Voltage / Hertz100-120/200-240V / 50Hz/60Hz
Description
The Thermo Scientific Dionex UltiMate 3000 Diode Array Detector, built in the United States, offers high-level performance for liquid chromatography applications. This detector excels in full spectral data acquisition for both conventional and rapid separation tasks at speeds up to 200Hz. Supporting eight channels of UV-vis detection with a 1024-element diode array, it ensures excellent noise and drift performance thanks to its forward-optic detector design. It is highly recommended for method development laboratories that focus on capturing comprehensive spectral data of novel compounds with narrow peak separations. This device is optimized for HPLC and UHPLC applications, and features PEEK and stainless steel flow cell options. The front access to prealigned cells and lamps facilitates routine maintenance, while ID chips ensure tracking of lamp and cell parameters for detailed audit trails. Note, a computer is not included with this system.
Technician comment
Unit powers on and is in good working condition.
Key Features
- Full spectral acquisition for HPLC and UHPLC applications
- Data capture speed up to 200Hz
- 8-channel UV-vis detection with 1024-element diode array
- Low noise (<±8 μAU) and drift performance
- PEEK and stainless steel flow cell compatibility
- Front-access prealigned cells and lamps for easy maintenance
Specifications
- Detection Mode: UV-vis Detection (8 Channels)
- Flow Rate: Analytical to Semi-Prep
- Noise: <±8 μAU
- Wavelength Range: 190 to 800 nm
- Voltage: 85 to 260 V

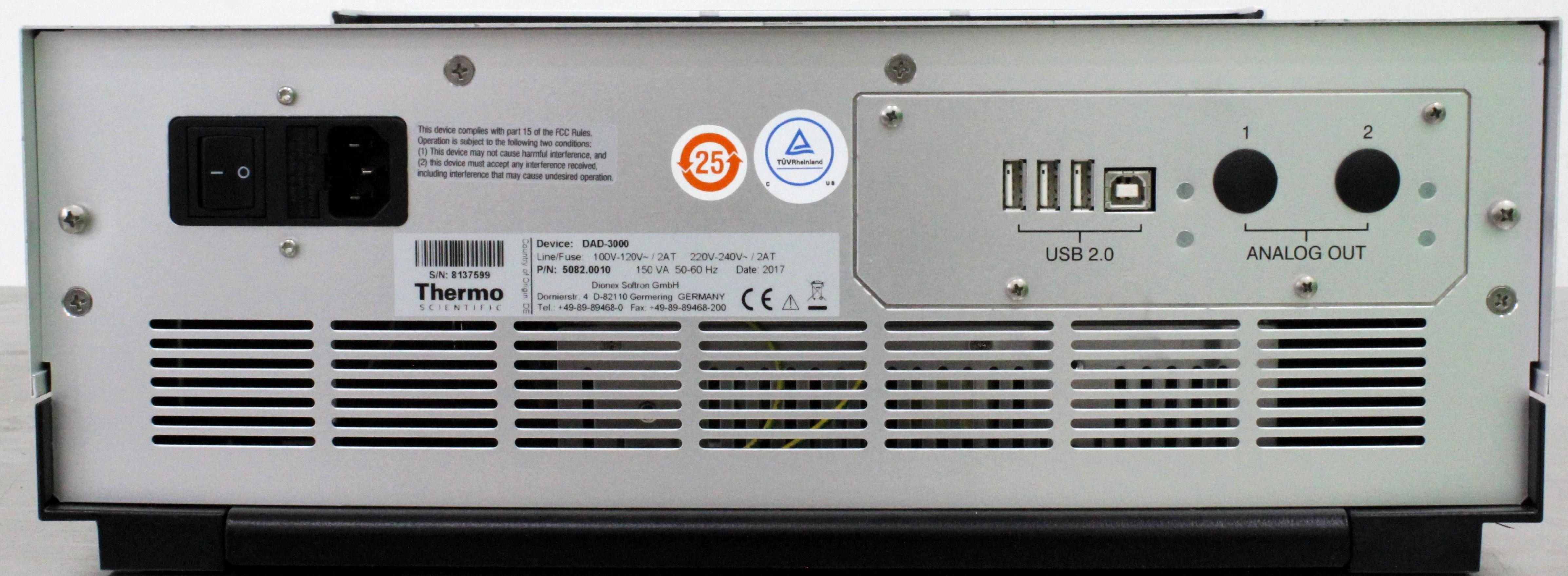

- USB PC Connection
- Temperature Control: Yes
- Data Collection Rate: Up to 200 Hz
- Flow Cell: Various, Order Separately
Weight
Imperial: 54.0 Pounds
Metric: 24.49 Kilograms
Shipping Dimensions
Imperial: 24.0 lb x 19.2 lb x 7.2 lb
Metric: 60.96 cm x 48.77 cm x 18.29 cm
Harmonized Code
902730
Harmonized Code Details
Harmonized Code 902730: Instruments and apparatus for physical or chemical analysis, particularly suitable for this diode array detector due to its application in liquid chromatography data collection and analysis.
