Novatec VPU-5 Vacuum Pump Power Unit 5HP 100CFM Conveyor USED AS-IS
Novatec
Details
-
CategoryPump
-
Dimension23.0in x 52.0in x 50.0in
-

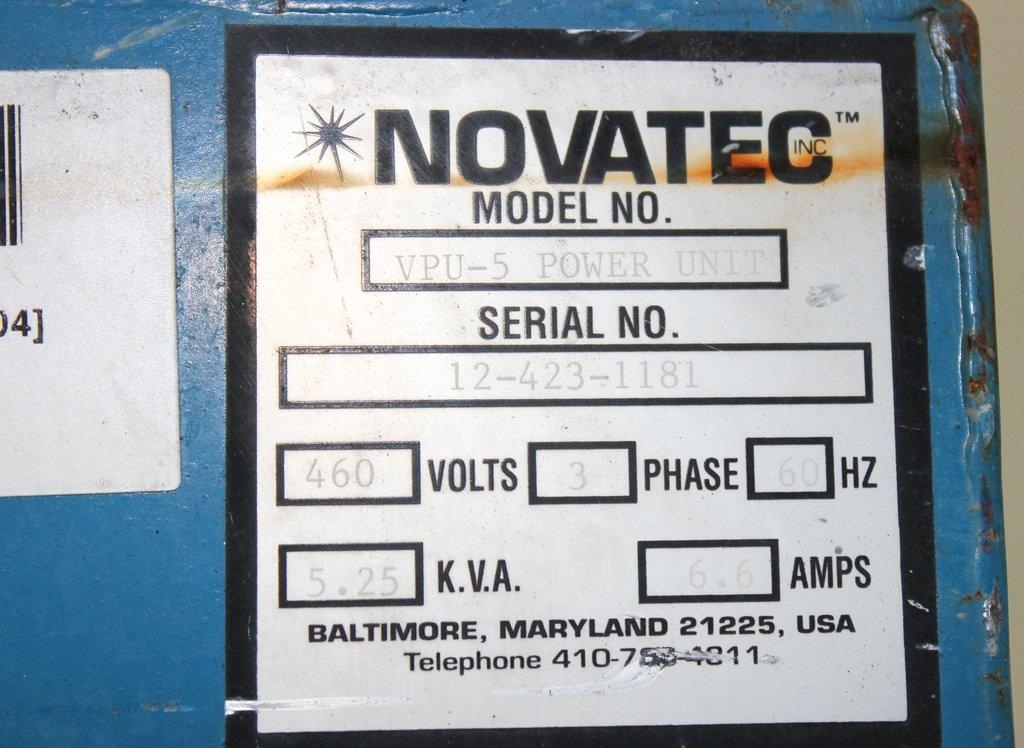

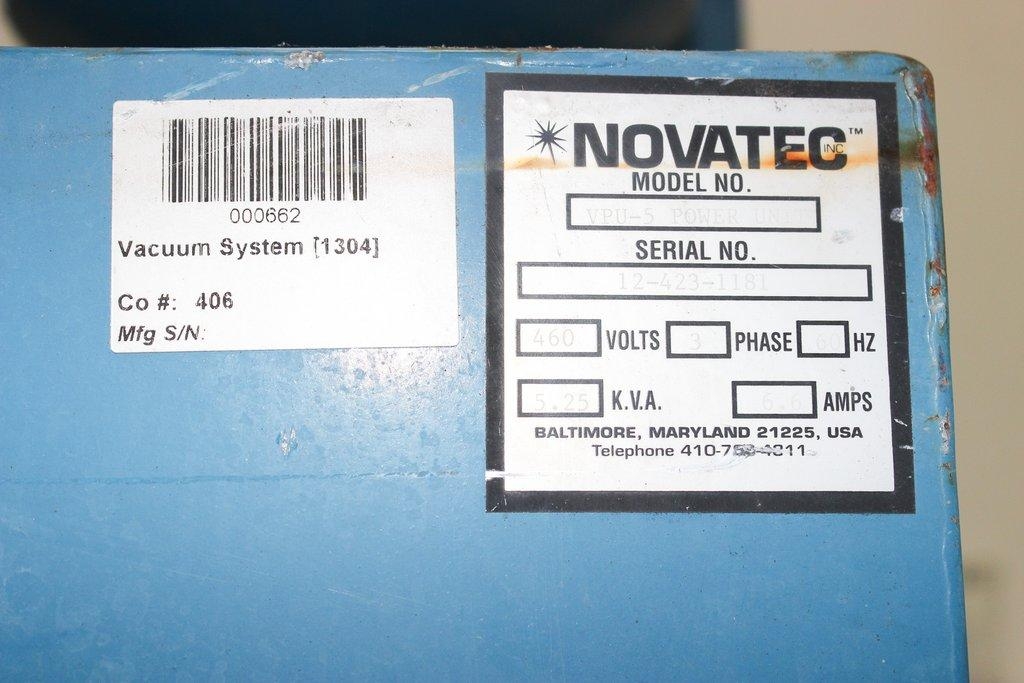

Serial12-423-1181
-
Shipping TypeFreight
-
ManufacturingDoes Not Apply
-
Voltage / Hertz460V / 60Hz US
Description

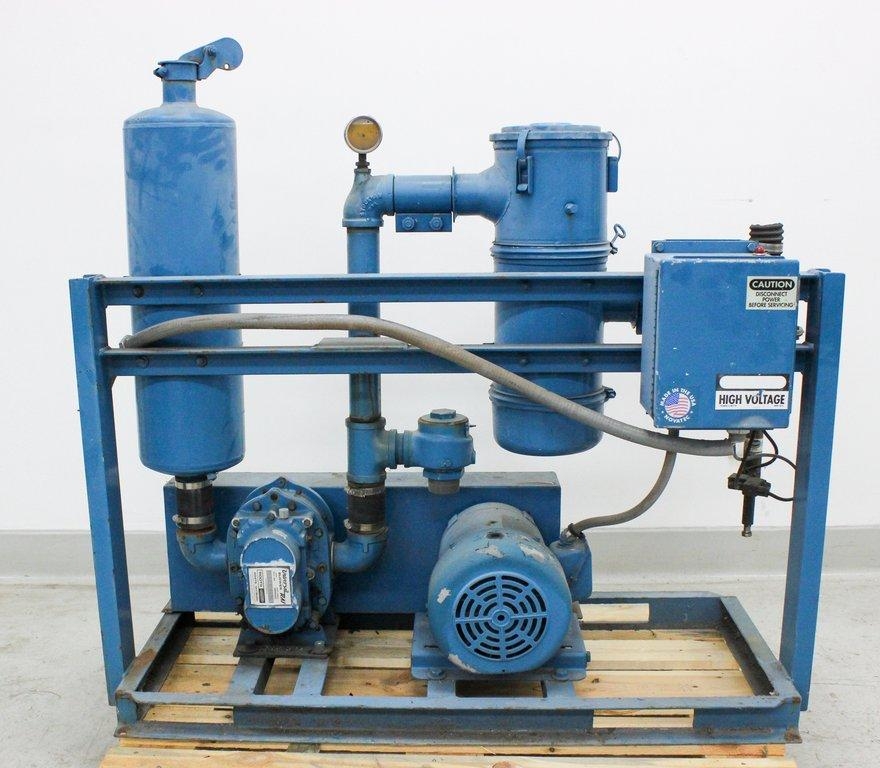

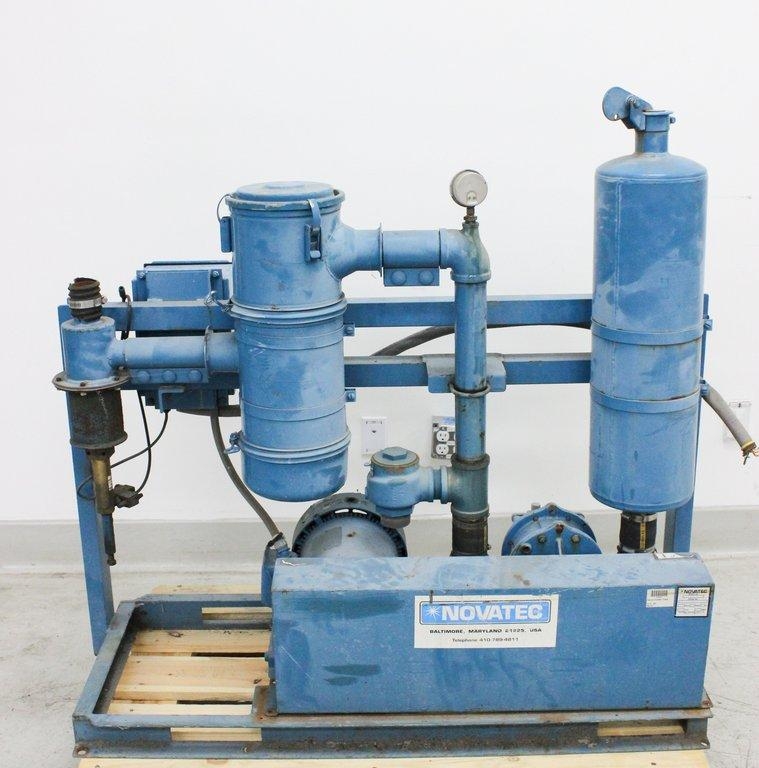

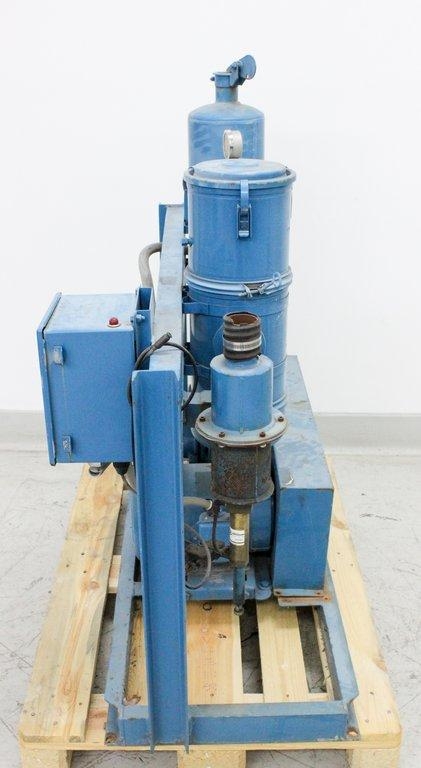

The Novatec VPU-5 Vacuum Power Unit is a reliable and high-performing component commonly used in positive displacement vacuum conveying systems. Featuring a 5 horsepower motor, this unit efficiently powers systems intended for transporting plastic pellets, powders, or similar materials through vacuum suction in a laboratory or industrial environment. The VPU-5 is equipped with a Roots 33URAI positive displacement lobe type blower, delivering approximately 100 cubic feet per minute (CFM) at a maximum pressure of 12 psi. Designed to operate on a 3-phase, 460V power supply, its standard configuration is suitable for a wide range of industrial applications. The unit condition is fair, with slight cosmetic damage and a waterlogged pressure gauge, and it requires hardwiring for testing. Expect noticeable rust and stains around the unit, reflective of prior use in a working environment. Equipment is sold AS-IS, suitable for buyers capable of managing potential repairs or maintenance requirements.
Technician comment

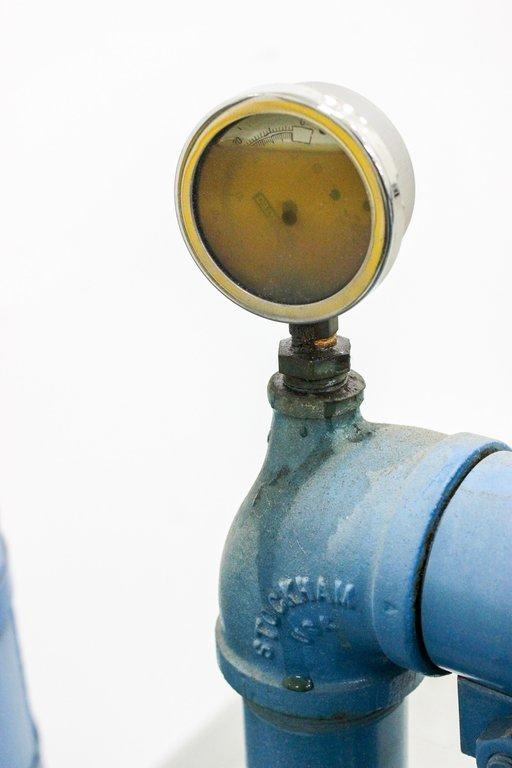

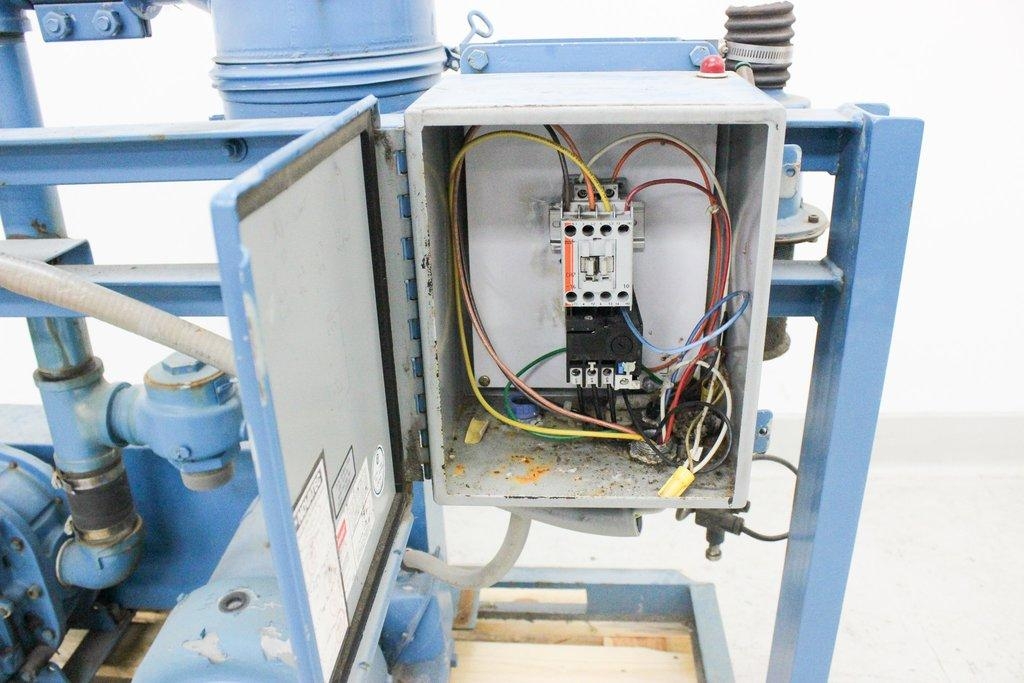

Novatec VPU-5 is preowned from a working environment, rust & stains around unit. Pressure gauge is waterlogged. VPU-5 will need to be hardwired to test or power on. Unit for sale AS/IS. See photos for details.
Key Features
- 5 HP motor
- 100 CFM airflow

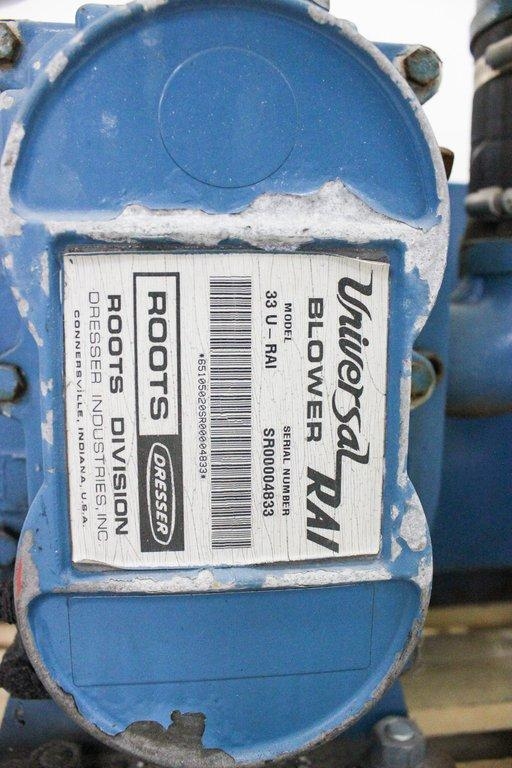

- Roots 33URAI lobe blower
- Capable of 12 psi pressure
- 460V, 3-phase power supply
- Used for vacuum conveying systems
Specifications
- Horsepower: 5 HP (3.7 kW)
- Airflow: ~100 CFM
- Max Pressure: ~12 psi
- Voltage: 208-230V or 460V, 3-phase
- Amperage: ~5–14 A
- Blower: Roots 33URAI positive displacement lobe type
- Motor Speed: 1,725–1,750 RPM
Weight
Imperial: 480.0 Pounds
Metric: 217.72 Kilograms
Shipping Dimensions
Imperial: 27.6 lb x 62.4 lb x 60.0 lb
Metric: 70.1 cm x 158.5 cm x 152.4 cm
Harmonized Code
8414.8
Harmonized Code Details
8414.80 - Air or vacuum pumps; air or other gas compressors and fans; hoods with a fan. This code is justified based on the classification of the Novatec VPU-5 as a vacuum pump used in industrial conveying systems.
