Nikon VMA-2520 Multi-Sensor Measuring System with PC & Table

Product Information

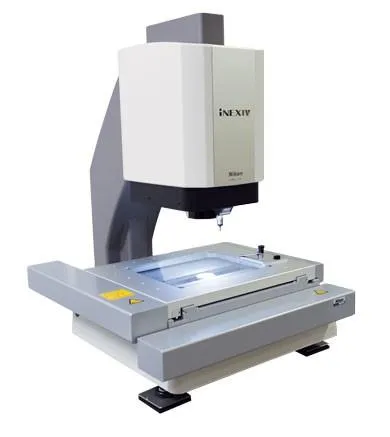

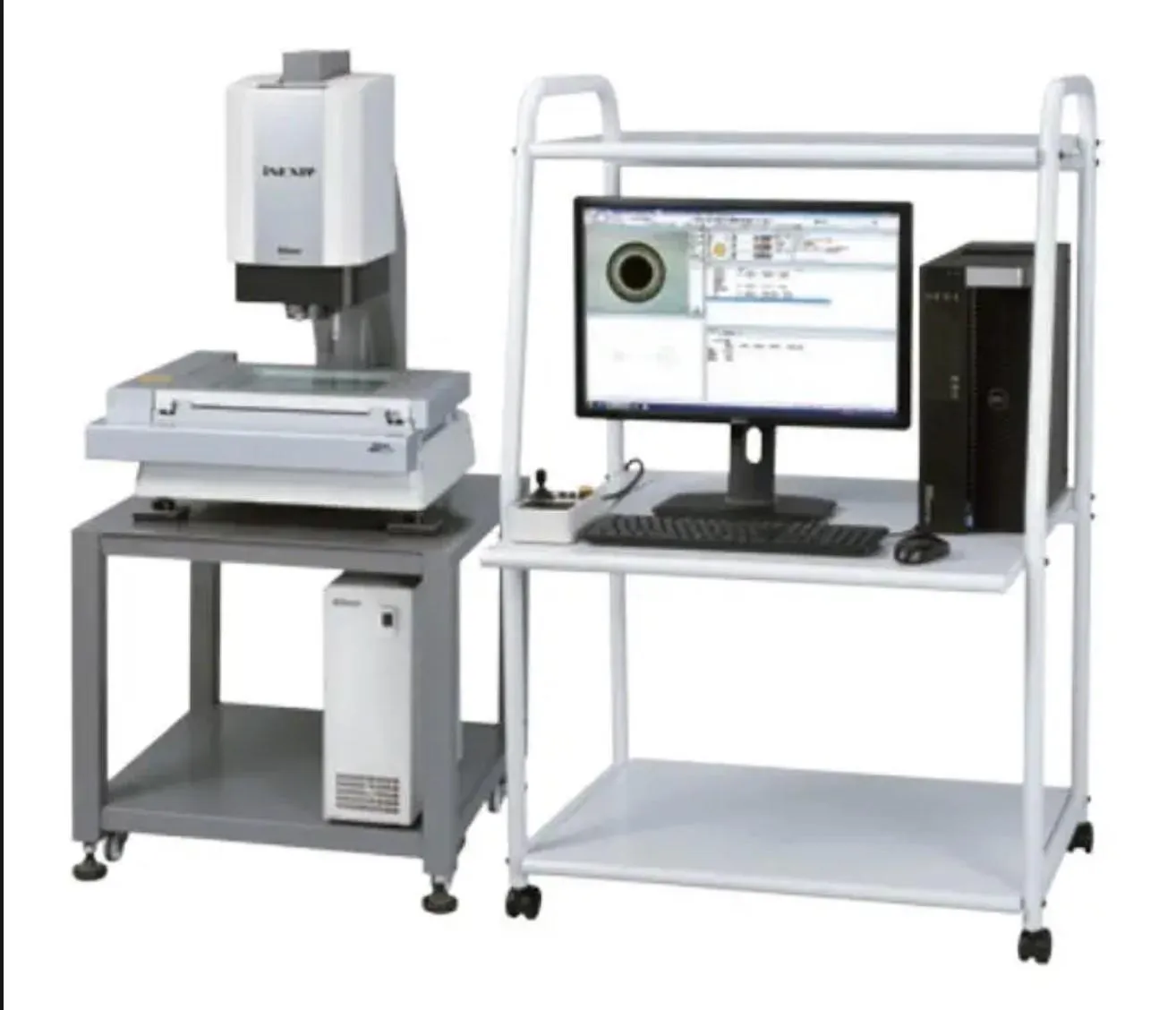

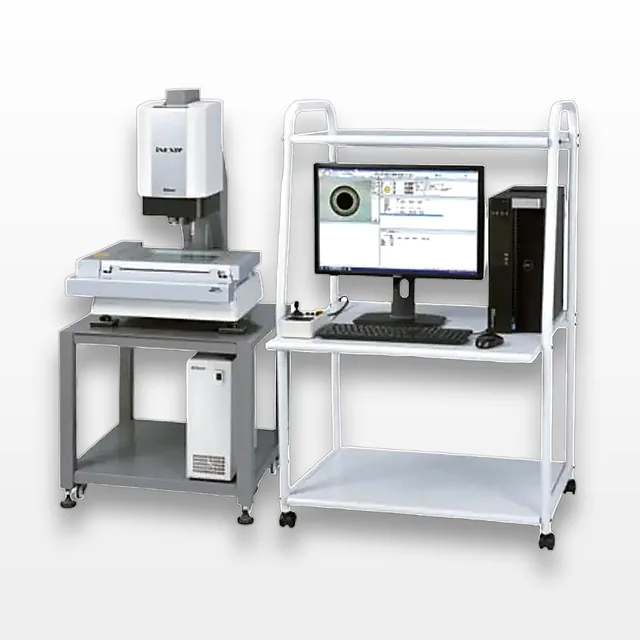

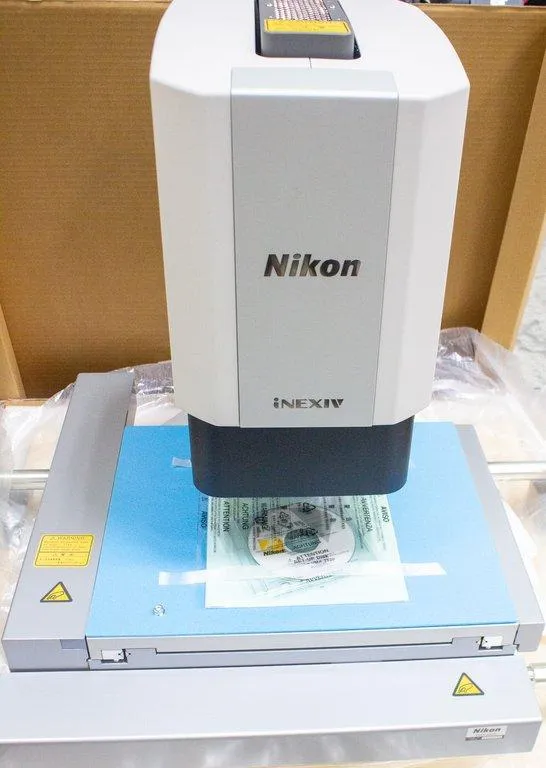

(Brand NEW in box with PC & table.) Does not include PC cart displayed on main image. The iNEXIV VMA-2520 is a new multi-sensor measuring system that’s lightweight and compact enough to be used in the factory on the bench top, with fast, fully automatic and high accuracy features that make it ideally suited for a wide variety of industrial measuring, inspection and quality control applications. The iNEXIV is designed to measure 3D workpieces, is touch probe ready, integrates the latest imaging processing software and incorporates a new 10x optical zoom system and Laser Auto Focus option. Applications: Surface analysis, surface examination, manual examination, plastic manufacturing, metal manufacturing, implants/prostheses, mobile phones, shavers & watches, micro-electronics, opto-electronics, telecom & electronics, antennae, telescope optics. Easy and Accurate Measurements Optimized for 3D Parts: Nikon has drawn on its state-of-the-art digital technologies to produce a highly affordable automated measurement system. The iNEXIV VMA-2520’s design is optimized for easy use as well as repeatable and accurate measurement of 3D parts. Compact and Lightweight: The iNEXIV VMA-2520 is a powerful bench-top system designed to use minimum factory floor space. The main body has a footprint of only 565 W x 690 D x 740mm H (computer and controller separate) and weighs only 72kg (158.7 lb), yet it still has a 250 x 200 x 200mm measuring capability. Long Working Distance: The newly developed optical system features a super long 73.5mm working distance for all magnifications. This allows sufficient three-dimensional clearance for Z-axis measurements even at high magnification. Sophisticated VMA AutoMeasure Software: Automeasure is Nikon’s powerful measuring software platform. It provides various functions to easily conduct tasks ranging from setup, teaching programs and measurements, to evaluations. High-speed, Highly-accurate Laser AF (Optional): In addition to the standard Vision AF, an optional high-speed Laser AF with a long 63mm working distance is available. It provides fast focusing and Z-axis measurements regardless of the surface shape of your workpiece. Touch Probing Measurement (Optional): The iNEXIV VMA-2520 accepts the Renishaw TP20 or TP 200 Touch Probe system, making surface and side coordinate measurement of complicated 3D parts possible, in areas that vision sensing hardware could not be used.

• Multi-sensor measuring system
• Suitable for industrial measuring, inspection & quality control
• 10x optical zoom system & Laser Auto Focus option
• Touch probe ready
• Compact & lightweight - Designed for easy use & repeatable measurement

• Stroke (X x Y x Z): 250 x 200 x 200mm (10 x 8 x 8 in)
• Minimum Readout: 0.1µm
• Maximum Workpiece Weight: 15kg (up to 5kg accuracy guaranteed)
• Magnification: Optical: 0.35 to 3.5x, On screen: 12 to 120x (with 17-inch monitor at SXGA resolution)
• Camera: 1/3-in. 3CCD color, Progressive scan (B/W optional)
• Working Distance: 73.5mm (63mm with LAF)
• Illumination: White LED illumination, 8-segment white LED ring
• Power Source: 100-240V, 50/60Hz, Power Consumption: 5-2.5A
• Dimensions & Weight: Main Body (W x D x H): 565 x 690 x 740mm, Controller: 145 x 400 x 390mm, Table for Main Body (Option): 600 x 700 x 825mm, Recommended Workbench: Min. load capacity 1000kg or more
• Operational Environment: Temperature: 10 to 35ºC, Humidity: 70% or less, CPU: Intel® Core Duo 1.8GHz or faster, Memory: 1G or more, Operating System: Windows® XP Pro SP2 or later, Interface: USB2.0/IEEE1394

Metric: 72 kg
Imperial: 158.7 lb

Metric: 565 cm x 690 cm x 740 cm
Imperial: 222.4 in x 271.7 in x 291.3 in

903180

903180 - Optical, photographic, cinematographic, measuring, checking, precision, medical, or surgical instruments and apparatus; parts and accessories
