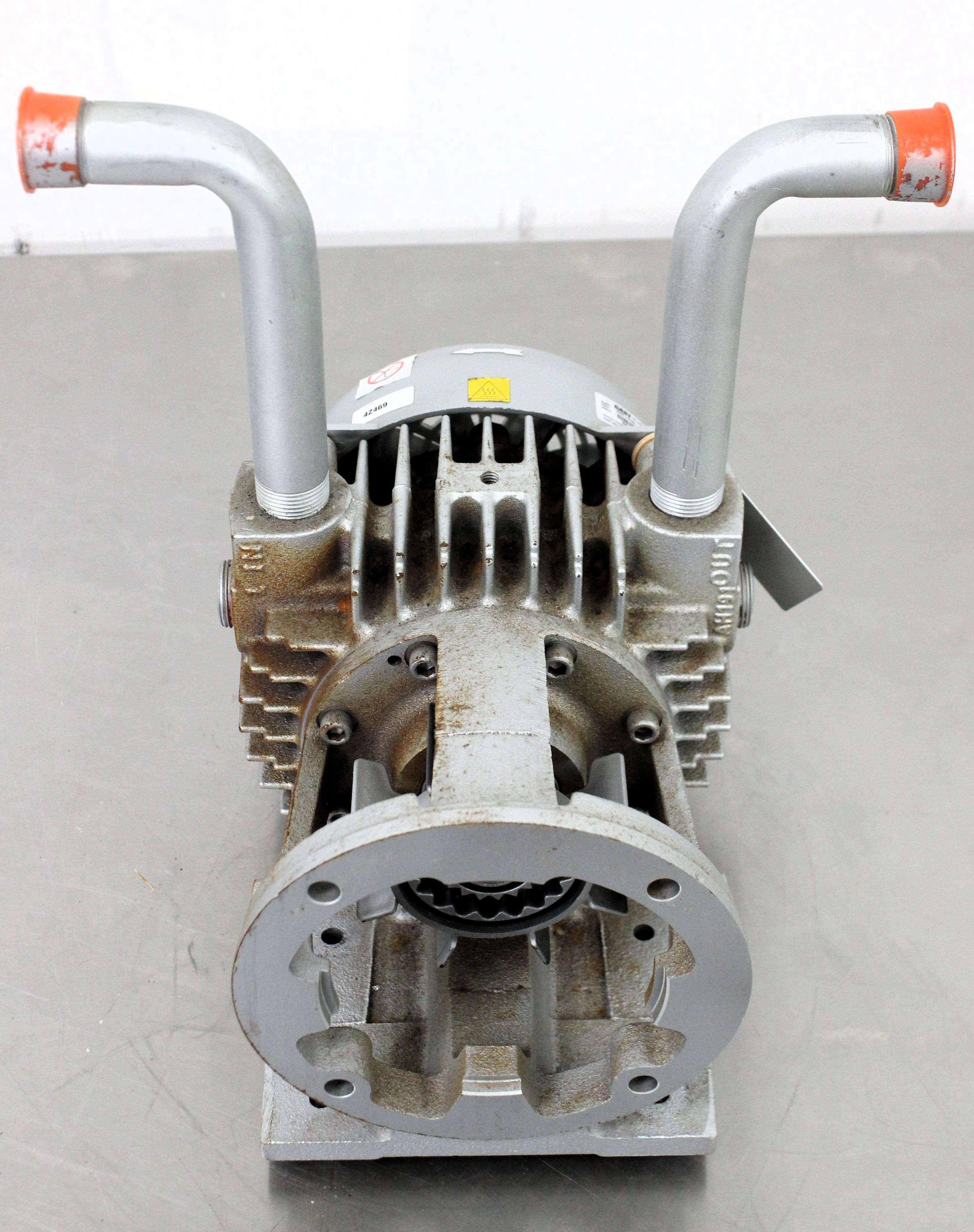

Gast 2067-V108 Oil-Less Rotary Vane Vacuum Pump, 1HP, Continuous Duty
Gast
Details
-
CategoryPump
-
Dimension10.0in x 6.0in x 13.0in
-
Serial0619905956
-
Shipping TypeFedEx Ground
-
ManufacturingDoes Not Apply
-
Voltage / HertzDoes Not Apply / 60Hz US
Description
The Gast 2067-V108 is a brand-new, oil-less rotary vane vacuum pump designed for continuous duty, perfect for applications in central vacuum systems and industrial workshops. This 1 HP, 1-phase pump boasts a durable cast iron housing and requires a separate motor for operation, typically a 56C frame. Key features include self-lubricating vanes, permanently lubricated bearings, and 3/4 inch NPT inlet/outlet sizes. Operating on 60Hz, the unit achieves up to 1725 RPM and supports voltage configurations of 115V, 208-230V, or 460V. Designed for air fluid compatibility and ideal for environments like pond aeration, the pump offers a maximum vacuum of 26.5 in. hg and a maximum pressure of 15 psi. Includes coupling and coupling guard. Notably, the unit requires an external power source and motor.
Technician comment
Unable to test motor, came from a working environment and is excepted to work as intended, no damages to unit. Unit does not come with glass tanks.
Key Features
- 1 horsepower, 1-phase motorless design
- Continuous duty cycle with oil-less operation
- Self-lubricating vanes and sealed bearings
- 3/4 inch NPT inlet and outlet
- Compatible with 56C frame motors
Specifications
- Type: Rotary Vane Vacuum Pump
- Horsepower: 1 HP
- Voltage: 115V, 208-230V, or 460V
- Frequency: 60Hz
- Max Vacuum: 26.5 in. hg
- Max Pressure: 15 psi
- Max Speed: 1725 RPM
- Housing Material: Cast Iron
- Includes: Coupling, Coupling Guard
Weight
Imperial: 54.0 Pounds
Metric: 24.49 Kilograms
Shipping Dimensions
Imperial: 12.0 lb x 7.2 lb x 15.6 lb
Metric: 30.48 cm x 18.29 cm x 39.62 cm
Harmonized Code
841410
Harmonized Code Details
841410 - Vacuum pumps. This code is suitable because the Gast 2067-V108 is a rotary vane vacuum pump used to move gases or air.
